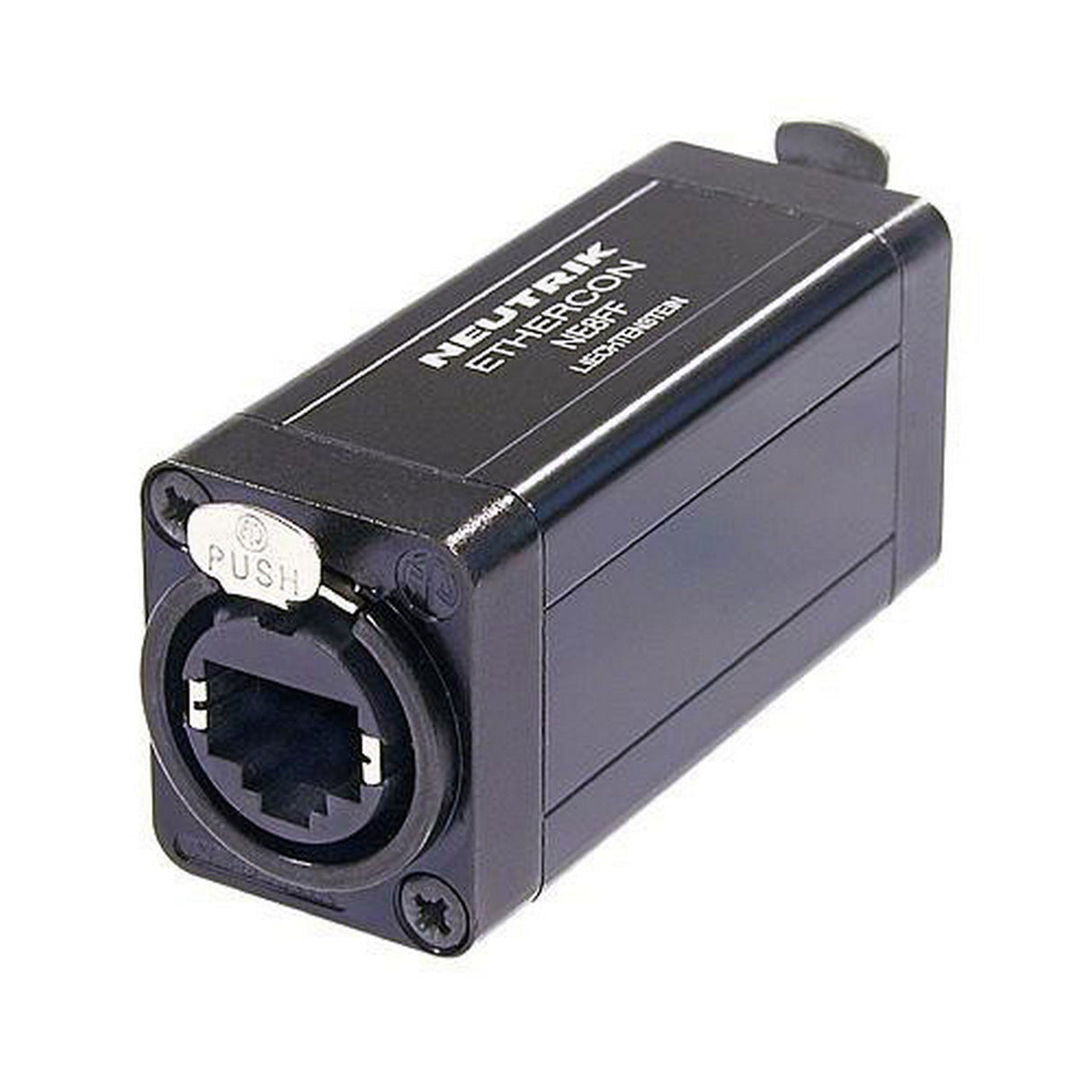

Neutrik NE8FF etherCON RJ45 Feed Through Coupler
Neutrik NE8FF etherCON RJ45 Feed Through Coupler
Neutrik NE8FF etherCON RJ45 Feed Through Coupler
The etherCON RJ45 Feed-Through Coupler for Cable Extensions from Neutrik helps connect two cables together to extend the overall application. It features a secure latch lock system. The coupler can be used with all RJ45 plugs, including the NE8MC RJ45 cable connector.
Key Features
- Accommodates NE8MC or any standard RJ45 plug
- Approved latch lock system
Technical Specifications
Product
Title
NE8FF
Connection Type
Adapter
Gender
female
Electrical
Contact resistance
< 10 m OHM
Dielectric strength:
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G OHM
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
Withdrawal force
< 20 N
Lifetime
> 1000 mating cycles
Locking device
Latch lock
Material
Contact plating
0.2 um Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Strain relief
CuZn35Pb2, Tin plated
Environmental
Flammability
UL 94 HB
Temperature range
-30 degrees C to +80 degrees C
