Neutrik NKO2S-XP-0-31 opticalCON DRAGONFLY Male to Female SMPTE Hybrid Cable, 31 Meters

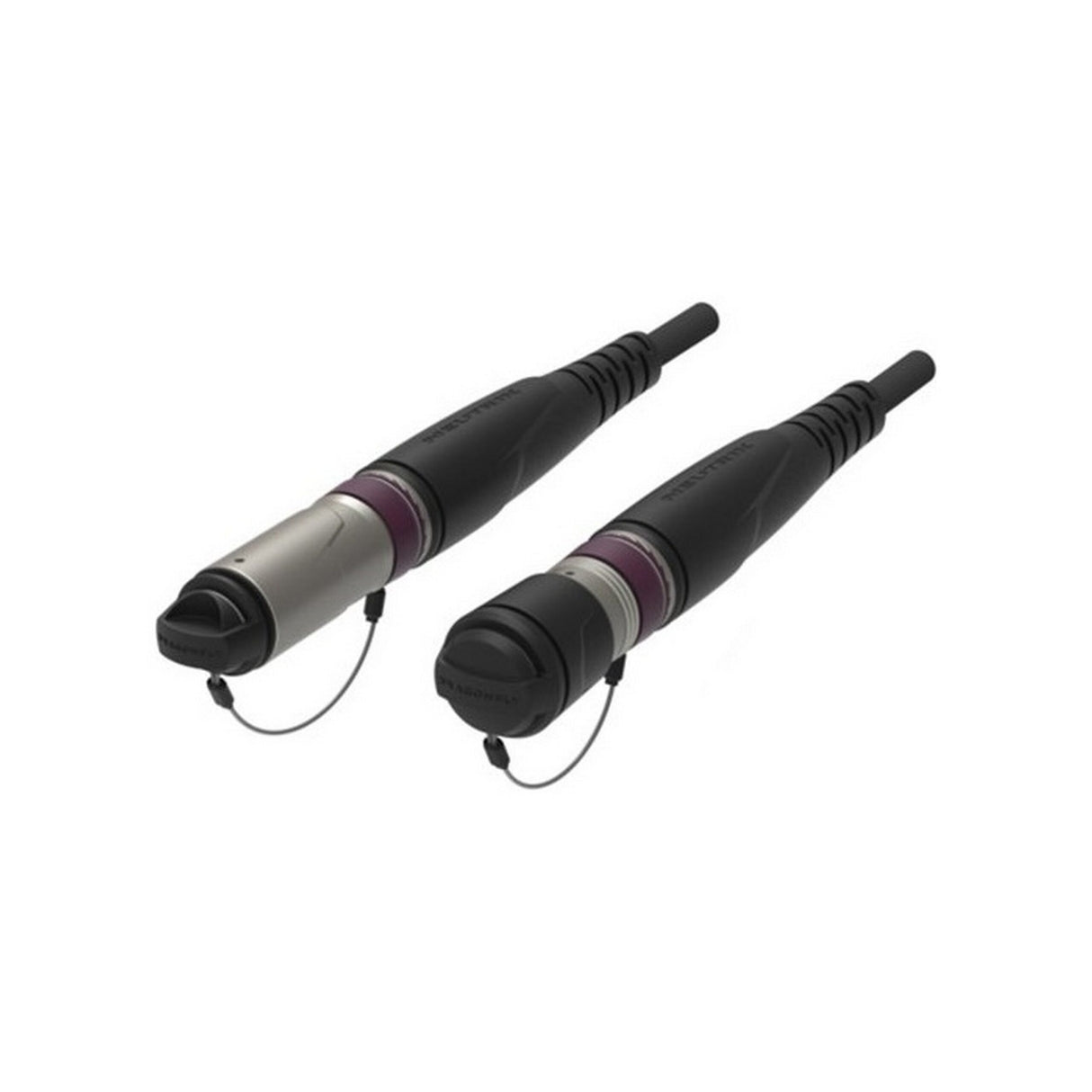

The Neutrik NKO2S-XP-0-31 opticalCON DRAGONFLY is a pre-assembled female to male SMPTE Hybrid cable with 2 lensed single-mode ferrules and 4 copper pins. more robust, reliable and easier to maintain than common hybrid camera signal transmission systems. Using technology based on fiber lenses and fusion splicing Neutrik's opticalCON DRAGONFLY achieves a extremely robust signal with minimal loss. An additional sealing cover is provided to protect lenses against dirt and dust.
Key Features
- Suitable for indoor (studio) and outdoor (OB-Truck) camera links according to SMPTE standard
- Ruggedized and dirt protected hybrid connection system
- 2 Unique Lensed Optical Connectors
- 2 Signal Contacts
- 2 Power Contacts
- 1 Ground Contact
- Fusion Splice technology - Field Repairable
- High performance - low loss
- Consistent Quality
- 100% Reliable Even at Extreme Temperature Fluctuations
- Permanent Connection
- SMPTE Hybrid Connection - Power & Data Over One Connection
- Low Maintenance Interval
- Easy Switching to DRAGONFLY- Fits into Standardized SMPTE Hybrid Cutouts
- Easy Cleaning with Compressed Air and Water
- Competitive price ROBUST AND RELIABLE
- Extremely Robust System
- Reliable Push/Pull Locking Mechanism
- Dust and Waterproof According to IP68
- Proven Anti-kink Boot Design
- Long life - 10.000 Mating Cycles
Technical Specifications
Product
Title
NKO2S-XP-0-*
Gender
male/female
Electrical
Contact resistance
< 7 m?
Insulation resistance
> 10 G? (initial)
Mains
240V AC / 10A / 50Hz
120V AC / 10A / 60Hz
300V DC / 7A
Sense
42V AC peak / 1-3A / =1kHz
60V DC / 1-3A
Mechanical
Cable retention
500 N
Insertion force
< 45 N
Withdrawal force
< 45 N
Lifetime
10,000 mating cycles
Wiresize Power
4 x 20 AWG
Wiresize Sense
2 x 24 AWG
Locking device
Push-Pull
Material
Boot
Rubber (EPDM)
Bushing
Zinc diecast (ZnAl4Cu1)
Contacts
Brass
Insert
Polyetherimide and Polycarbonate (PEI+PC)
Shell
Zinc diecast and Polyoxmethylen
Shell plating
Nickel
Strain relief
Brass
Environmental
Flammability
UL94 V-0
Protection Class
IP68 (with sealing KIt'sCXP-*) in mated condition
Certification according to
IEC 62368-1 :2014
IEC 60529
UL 1977
2019
CSA C22.2 No. 182.3
2016
UL50E Type 4
