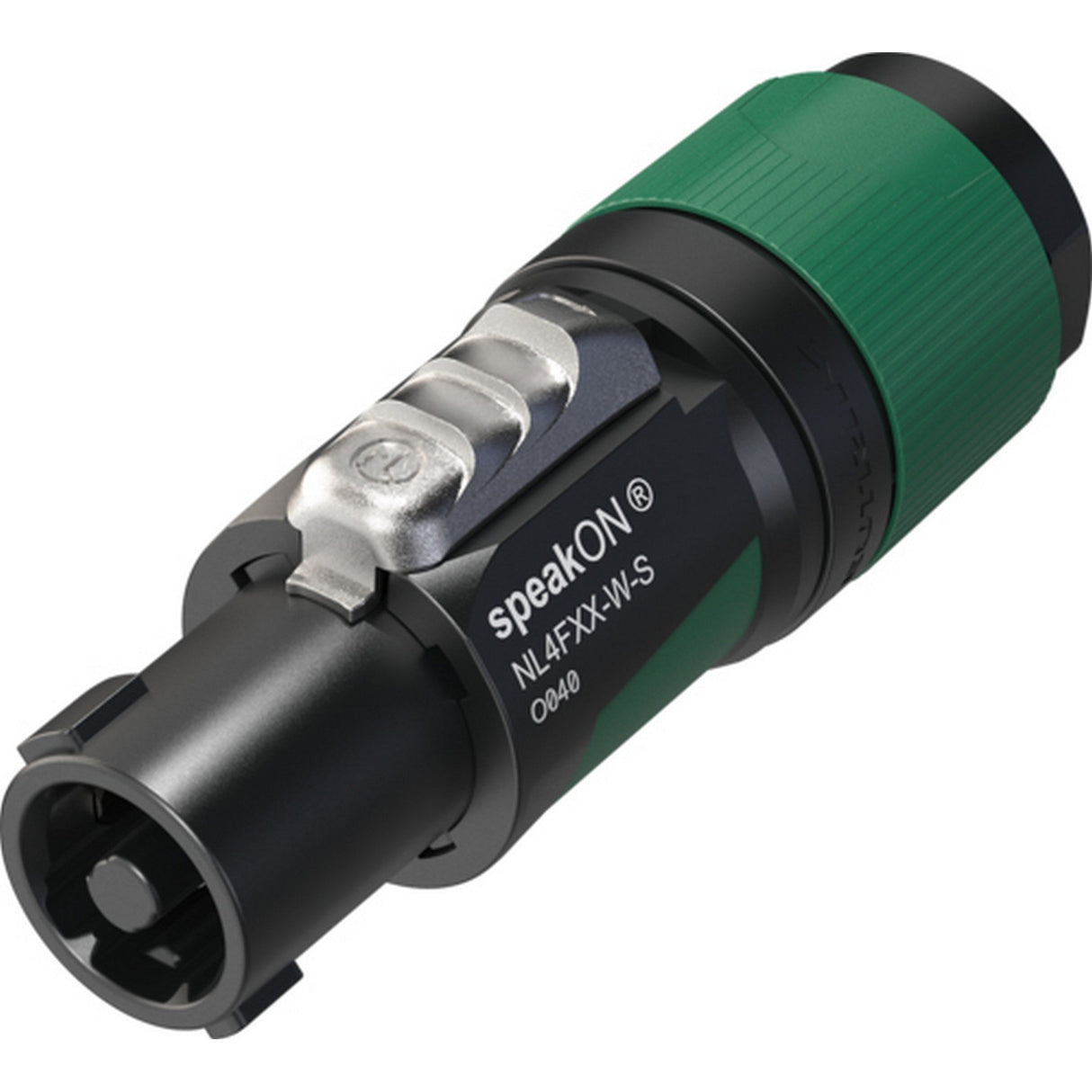

Neutrik NL4FXX-W-S speakON XX Series 4 Pole Cable End, Green

Neutrik | SKU: NEU-NL4FXXWS
$695

Low In Stock




Estimated Shipping Widget will be displayed here!


Condition: New

Neutrik NL4FXX-W-S speakON XX Series 4 Pole Cable End, Green

Neutrik NL4FXX-W-S 4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm.

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

Key Features

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing

Technical Specifications

Electrical
Contact resistance
≤ 2 mΩ
Dielectric strength
2.8 kVac
Insulation resistance
> 10 GΩ (initially)
Number of electrical contacts
4
Rating Europe
IEC 61984: 37 A 250 V AC
Rating USA
UL1977: 35 A 250 V AC
Rating Canada
CSA C22.2 No.182.3: 24 A 250 V AC
Attention
This product is strictly not intended for use as an AC or DC power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT
Mechanical
Cable O.D.
6 - 12 mm
Lifetime
typically, 5’000 mating cycles
Wiresize (mm)
1.5 - 4 mm
Wiresize (AWG): 17 - 11 AWG
Locking device: Twist lock
Termination: screw type terminals
Material
Contact plating
Ag
Contacts
Copper Alloy
Insert
Polyamide (PA6.6)
Locking element
Zinc diecast
Shell
Polyamide (PA6) / TPE
Strain relief
Polyketone
Bushing
Polypropylene / TPE
Environmental
Temperature range
-33 Degrees C to +80 Degrees C
Protection class
IP20
Flammability acc. to UL94
V-0
Item Includes
1x Neutrik NL4FXX-W-S speakON XX Series 4 Pole Cable End - Green - Small Chuck for Cable 6-12mm - Each
