Neutrik NL4MPR 4 Pole Chassis Connector
Neutrik NL4MPR 4 Pole Chassis Connector
Neutrik NL4MPR 4 Pole Chassis Connector

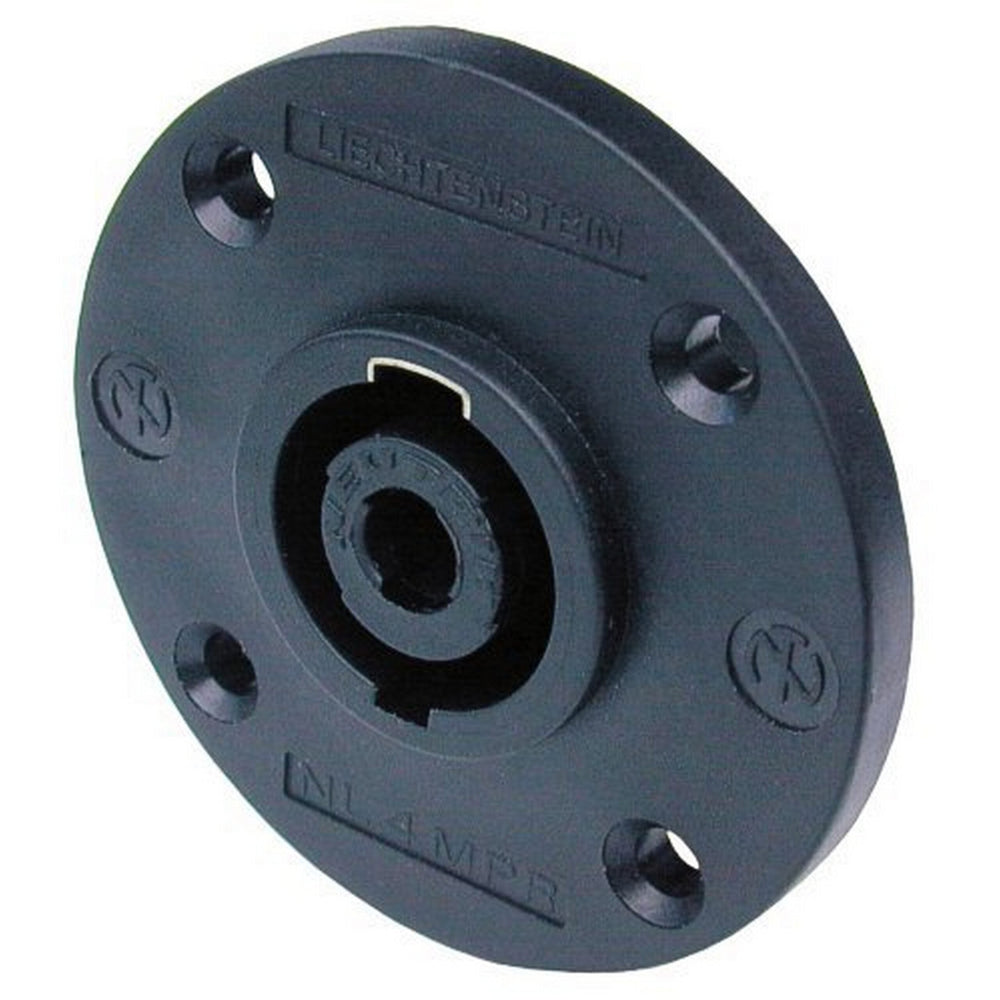

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16” flat tabs. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Key Features
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal inserts in locking area
- Airtight design - optimized for speaker applications
Technical Specifications
Product
Title
NL4MPR
Connection Type
speakON
Gender
male
Electrical
Contact resistance
≤ 3 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V ac
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Chassis shape
round G-size flange
Layout
four thru holes
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
