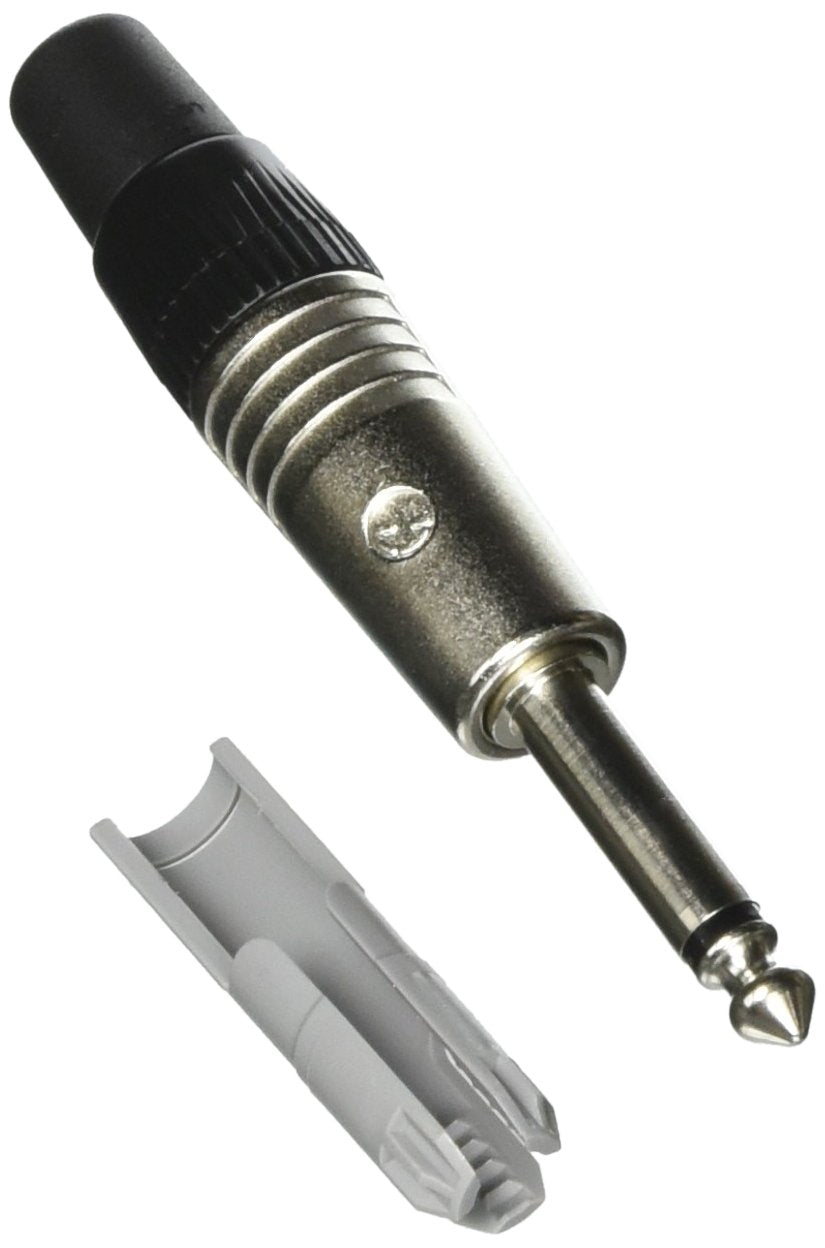

Neutrik NP2C 2 Pole 1/4-Inch Phone Plug Cable End, Nickel
Neutrik NP2C 2 Pole 1/4-Inch Phone Plug Cable End, Nickel
Neutrik NP2C 2 Pole 1/4-Inch Phone Plug Cable End, Nickel
2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Key Features
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
Technical Specifications
Connection Type
Plug
Gender
male
Contact resistance
depends on mating connector m OHM
Dielectric strength
1 kVdc
Insulation resistance
> 2 G OHM (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm2
Wiresize
18 AWG
Wiring
Solder contacts
Bushing
Polyacetal (POM) + PU
Contact plating
2 um Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 C to +65 C
