Neutrik NP2C 2 Pole 1/4-Inch Phone Plug Cable End, Nickel (Used)
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: Used
Description

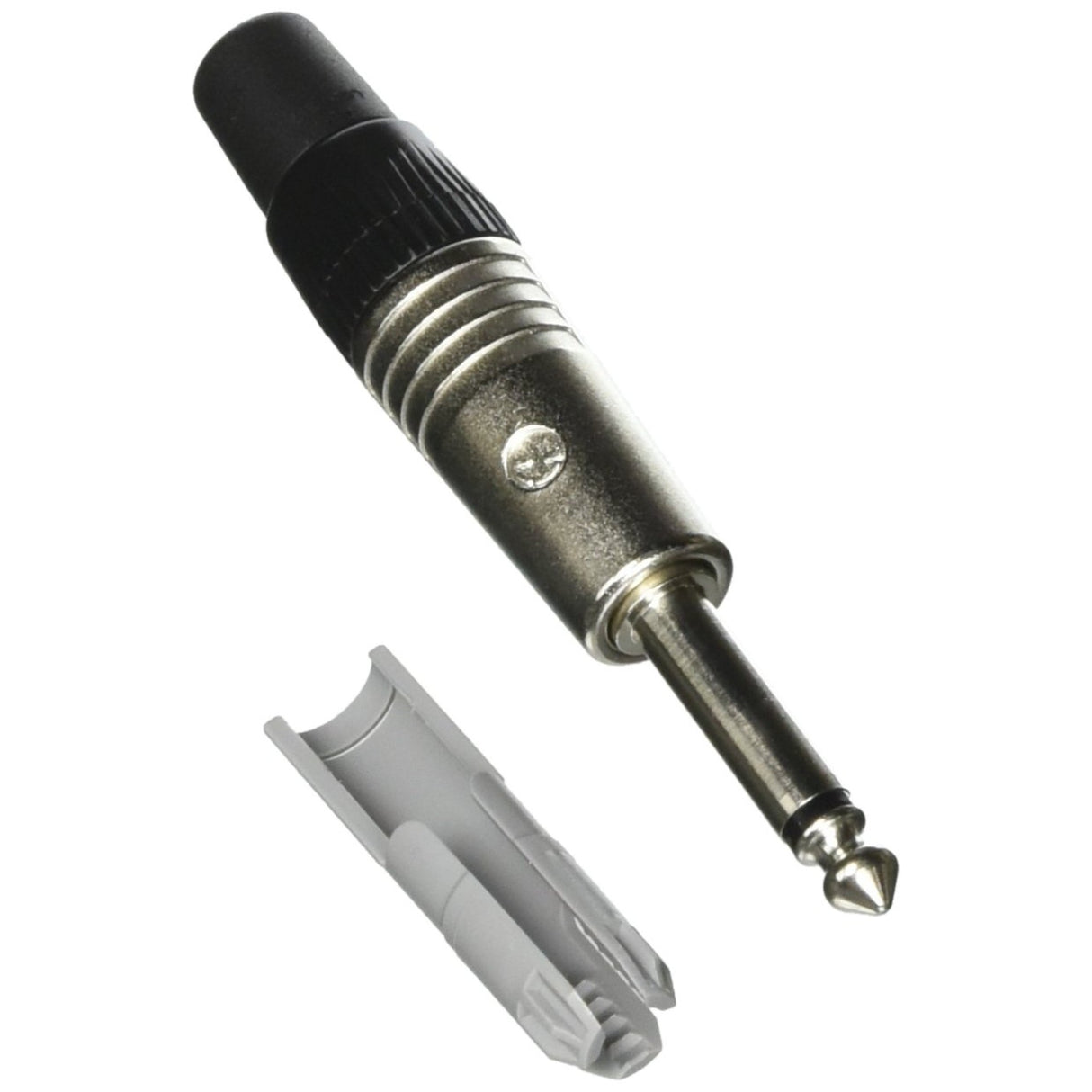

Neutrik NP2C 2 Pole 1/4-Inch Phone Plug Cable End, Nickel
Shows signs of wear | Operable
2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Key Features
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
Technical Specifications
Connection Type
Plug
Gender
male
Contact resistance
depends on mating connector m OHM
Dielectric strength
1 kVdc
Insulation resistance
> 2 G OHM (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm2
Wiresize
18 AWG
Wiring
Solder contacts
Bushing
Polyacetal (POM) + PU
Contact plating
2 um Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 C to +65 C
