Neutrik NP2C Mono 1/4" Professional Phone Plug, Nickel Housing, Nickel Contacts Black
Neutrik | SKU: NEU-ACC-NP2C
Neutrik NP2C Mono 1/4" Professional Phone Plug, Nickel Housing...
$1000
Unit price
/
Unavailable
Neutrik NP2C Mono 1/4" Professional Phone Plug, Nickel Housing, Nickel Contacts Black
Buy Over 9 units in Bulk and Big Save!!

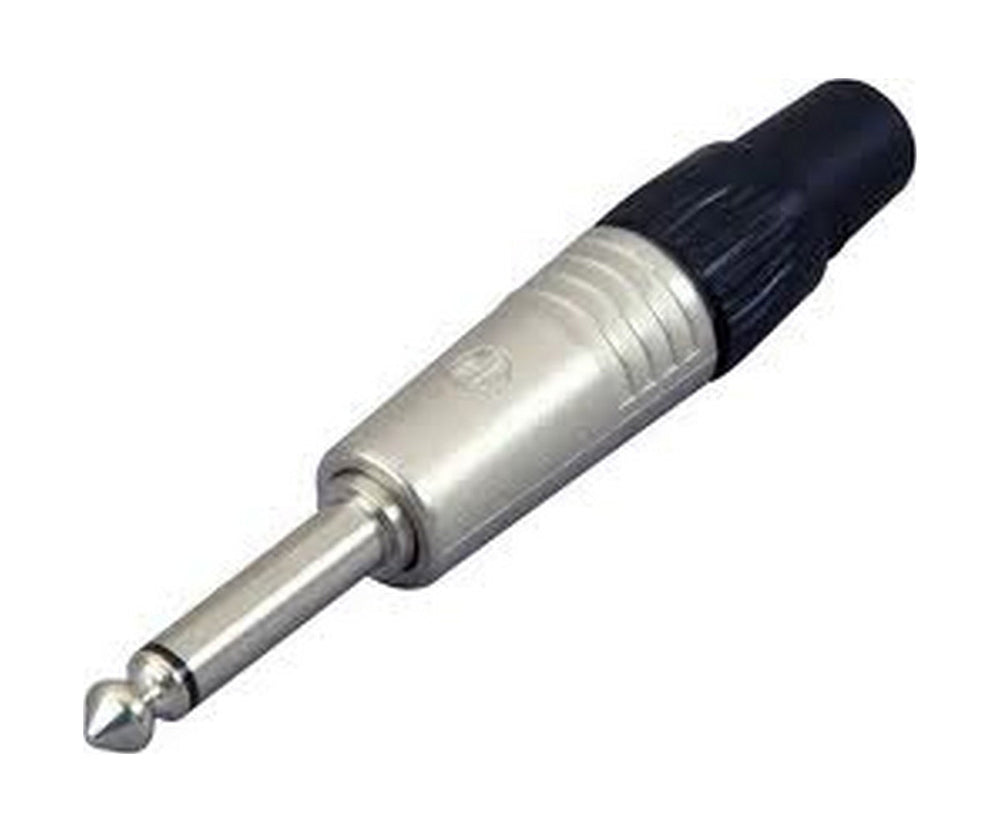

The Neutrik NP2C is a monophonic male 1/4" phone connector for soldered termination of two-conductor audio cables.
Key Features
- Rugged diecast metal shell
- Nickel plug and contacts
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
Technical Specs
- Connector Type: Plug
- Gender: male
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Insulation resistance: ≥ 1 GΩ (after damp heat test)
- Rated current per contact: ≤ 15 A
- Cable O.D.: 4 - 7 mm
- Wire size: 1 mm
- Wire size: 18 AWG
- Wiring: Solder contacts
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 μm Ni (Su)
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Standard compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 C to +65 C
