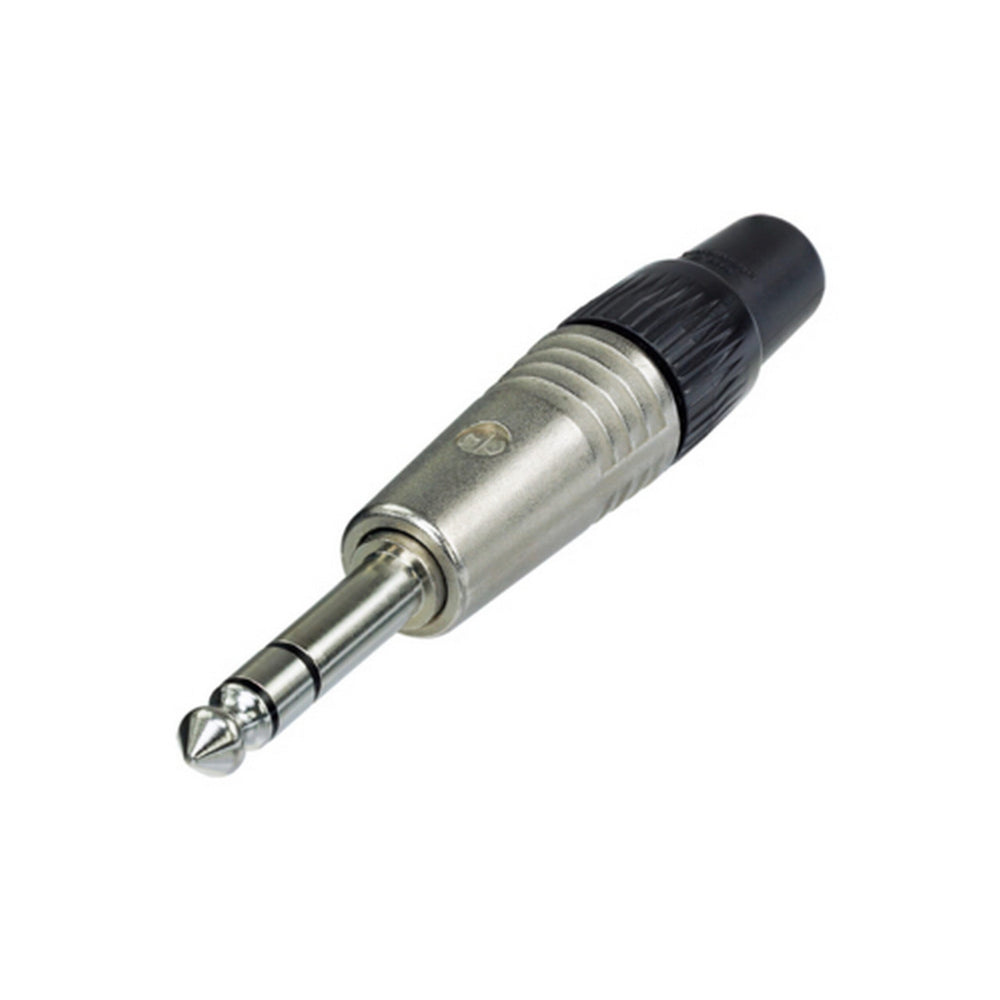

Neutrik NP3C 1/4-Inch TRS Male Cable Plug, Nickel
Authorized Dealer
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Neutrik NP3C 1/4-Inch TRS Male Cable Plug, Nickel
3 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Key Features
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
Technical Specifications
Connection Type
Plug
Gender
male
Contact resistance
depends on mating connector m OHM
Dielectric strength
1 kVdc
Insulation resistance
> 2 G OHM (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm2
Wiresize
18 AWG
Wiring
Solder contacts
Bushing
Polyacetal (POM) + PU
Contact plating
2 um Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Standard compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature range
-20 C to +65 C
Installation / Use Cases
- Use the 3-pole 1/4-inch TRS male cable plug for cable assembly or replacement using solder-contact wiring.
- Suitable for cables with an outer diameter of 4 to 7 mm and wire sizes up to 1 mm² / 18 AWG.
- Use the chuck-type strain relief to provide cable protection at the connector termination point.
Package Contents
- Neutrik NP3C 1/4-Inch TRS Male Cable Plug, Nickel
Frequently Asked Questions
What type of connector is the Neutrik NP3C?
The Neutrik NP3C is a 3-pole 1/4-inch TRS male professional phone plug.
What finish does the Neutrik NP3C use?
The NP3C has a nickel-plated zinc diecast shell and nickel-plated contacts.
What cable diameter can the Neutrik NP3C accommodate?
The NP3C is designed for cables with an outer diameter of 4 to 7 mm.
What wire size does the Neutrik NP3C support?
The NP3C supports a wire size of 1 mm², or 18 AWG.
How are wires connected to the Neutrik NP3C?
The NP3C uses solder contacts for cable termination.
What type of strain relief does the Neutrik NP3C use?
It uses a chuck-type strain relief designed to provide cable protection.
