Araknis Networks AN-530-AP-I Wi-Fi 7 Indoor Access Point
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

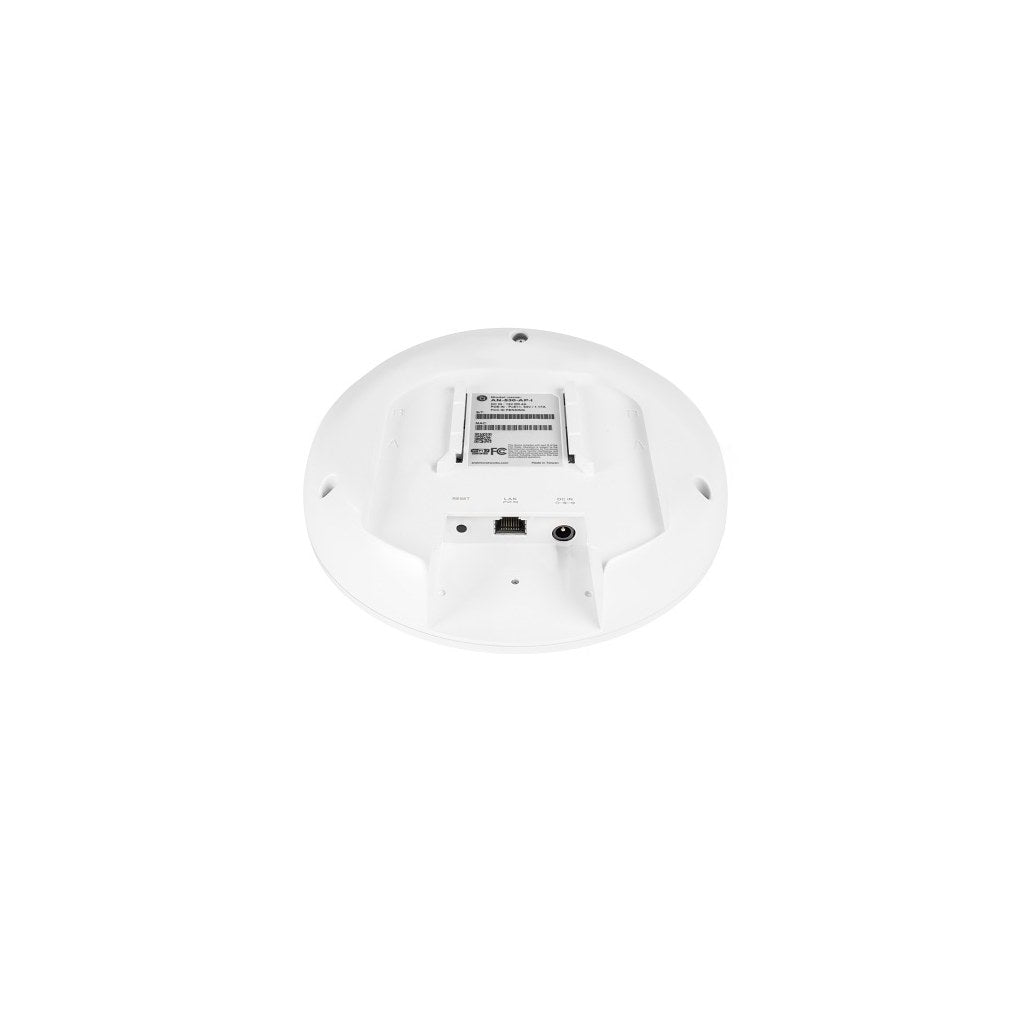

Araknis Networks AN-530-AP-I Wi-Fi 7 Indoor Access Point
The Araknis Networks AN-530-AP-I Wi-Fi 7 Indoor Access Point is a tri-band 2x2x2 indoor AP built for modern smart homes and light commercial networks. It delivers multi-gig wireless performance, low latency, 6 GHz connectivity, WPA3 security, and OvrC-enabled remote management for faster deployment and easier long-term support.
Designed for professional installers, this mid-range Wi-Fi 7 access point supports streaming, conferencing, automation, AV-over-IP systems, surveillance devices, and dense client environments. Buyers looking to purchase a Wi-Fi 7 indoor access point, upgrade an Araknis Wi-Fi 6 deployment, or add a 10G uplink wireless AP get a clean, scalable platform for residential and SMB projects.
Concurrent tri-band radios help balance throughput across 2.4 GHz, 5 GHz, and 6 GHz bands, while automated AI-powered channel tuning improves performance in busy RF environments. OvrC support enables remote monitoring, configuration, firmware updates, and troubleshooting from a single management platform, helping integrators reduce service calls and maintain reliable wireless networks.
Araknis 530 Wi-Fi 7 Access Point Key Features
- Wi-Fi 7 Performance: IEEE 802.11be support delivers faster wireless speeds, lower latency, and improved efficiency for modern devices.
- Tri-Band 2x2x2 Design: Concurrent 2.4 GHz, 5 GHz, and 6 GHz radios help maximize coverage and throughput across all supported bands.
- 10GBASE-T Uplink: One 10 Gigabit Ethernet LAN port with PoE-IN helps remove wired bottlenecks from high-performance wireless installs.
- AI-Powered Channel Tuning: Automated RF scanning evaluates the environment and applies optimized channel settings in minutes.
- OvrC Remote Management: Cloud-based tools support live network access, configuration, monitoring, firmware updates, and troubleshooting.
- Wireless Bridge Mode: Bridge operation extends network coverage where running Ethernet is impractical.
- Enterprise-Grade Security: WPA2, WPA3, WPA3-SAE, OWE, AES encryption, and MAC address filtering help protect network access.
- Mixed Network Compatibility: Backward compatibility with Araknis Wi-Fi 6 access points supports phased network upgrades.
Technical Specifications
- Brand: Araknis Networks
- Model: AN-530-AP-I
- ADI Part Number: V6-AN530API
- Product Series: 530
- Product Type: Indoor wireless access point
- Application: Single-family smart home
- Wi-Fi Generation: Wi-Fi 7
- Wireless LAN Standard: IEEE 802.11be
- Antenna Configuration: 2x2x2
- Antenna Type: Embedded omni-directional antenna
- Outdoor Rating: No
- Ethernet: 1 x 10GBASE-T Ethernet RJ45
- PoE Support: Power over Ethernet 802.3at/bt
- Full Functionality Power: 12V 3.5A DC, 27.24W; 802.3bt Class 6, 28.56W
- Limited Functionality Power: 802.3at Class 4, 24.84W
- Network Technology: 10GBASE-T
- Networking Standard: IEEE 802.3bt
- Wireless Operating Frequencies: 2.4 GHz, 5 GHz, 6 GHz
- PHY Data Rate: 2.4 GHz up to 541.7 Mbps; 5 GHz up to 2722.2 Mbps; 6 GHz up to 5444.4 Mbps
- Modulation: 2.4 GHz up to 1024-QAM; 5 GHz up to 4096-QAM; 6 GHz up to 4096-QAM
- Channelization: 20, 40, 80, 160, and 320 MHz
- Antenna Gain: 2.4 GHz up to 5.4 dBi; 5 GHz up to 6.2 dBi; 6 GHz up to 7.5 dBi
- Maximum TX Power: 2.4 GHz 23 dBm; 5 GHz 24 dBm; 6 GHz 22 dBm
- Wireless Features: Auto channel selection; access point mode; bridge mode; up to 26 SSIDs per AP; hidden SSID; guest network
- Wireless Security: Open, OWE, WPA2 AES, WPA2-PSK AES, WPA3, WPA3-SAE, WPA3-SAE Mixed, MAC address filtering
- VLAN Features: 802.1Q, 1 per BSSID
- Spanning Tree: Yes
- Management Features: Rate limiting, L2 access control list, Wi-Fi scheduler, maximum client limit, wireless client isolation, WMM, WPA2/WPA3, Agile Multiband
- OvrC Support: Yes
- Operating Temperature: 32°F to 122°F
- Operating Humidity: Up to 90% non-condensing
- Storage Temperature: -22°F to 158°F
- Weight: 2.03 lbs
- Dimensions: 7.33" x 7.33" x 1.56"

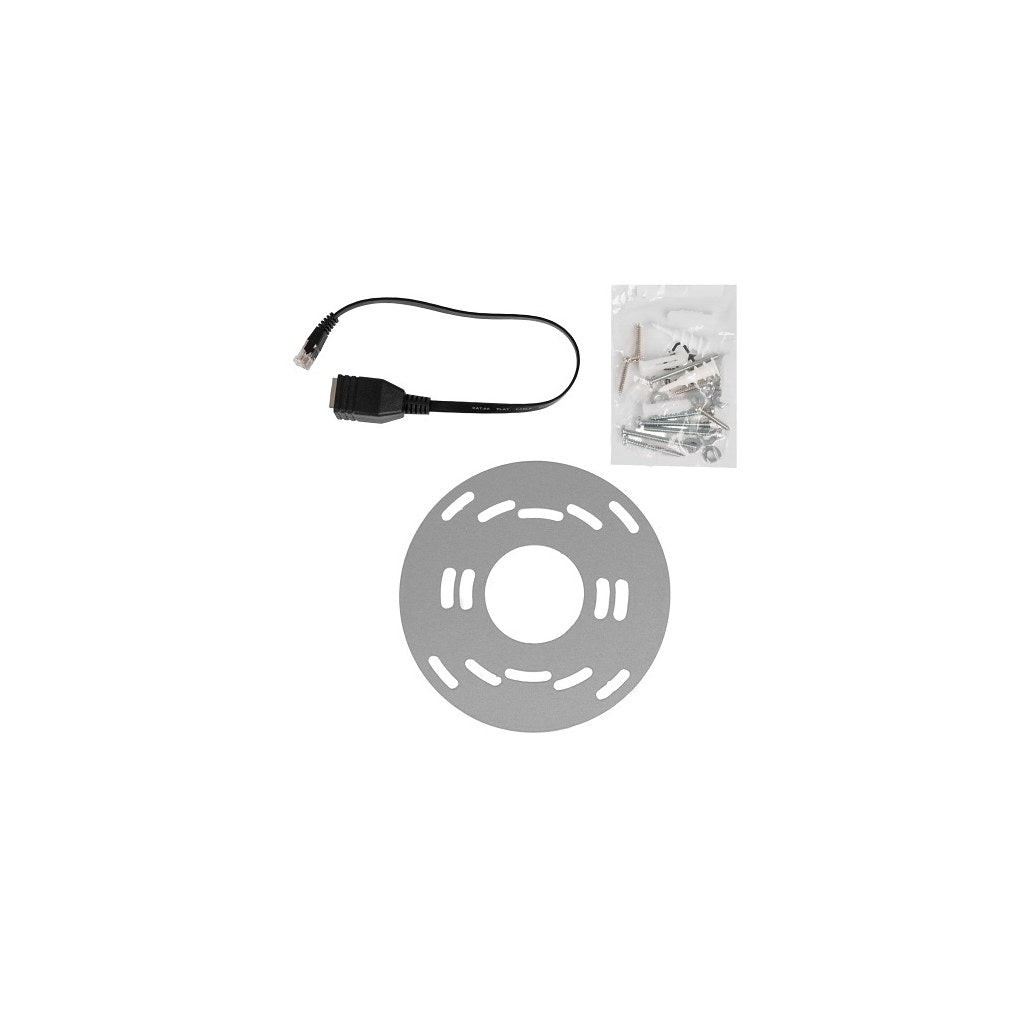

- Related SKUs: AN-ACC-ICBKT-LR, AN-ACC-PS-12V4A
- Country of Origin: Taiwan
