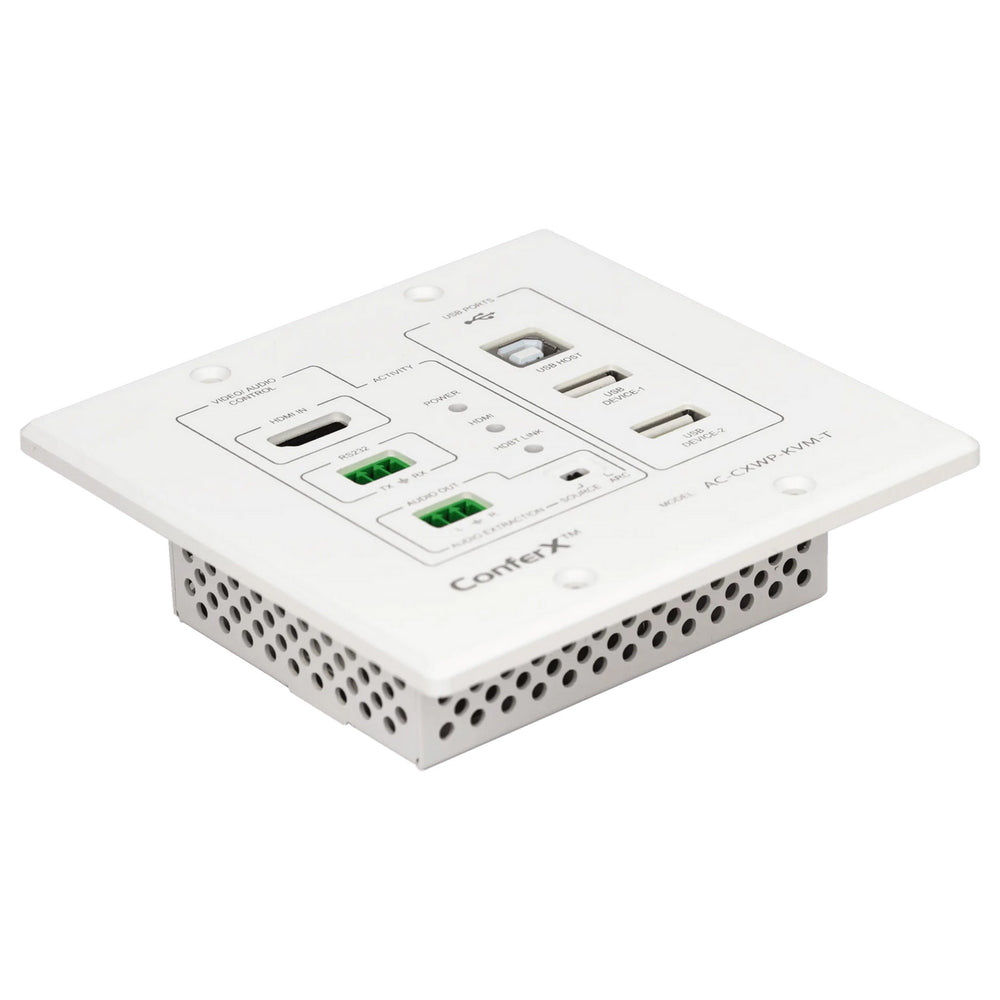

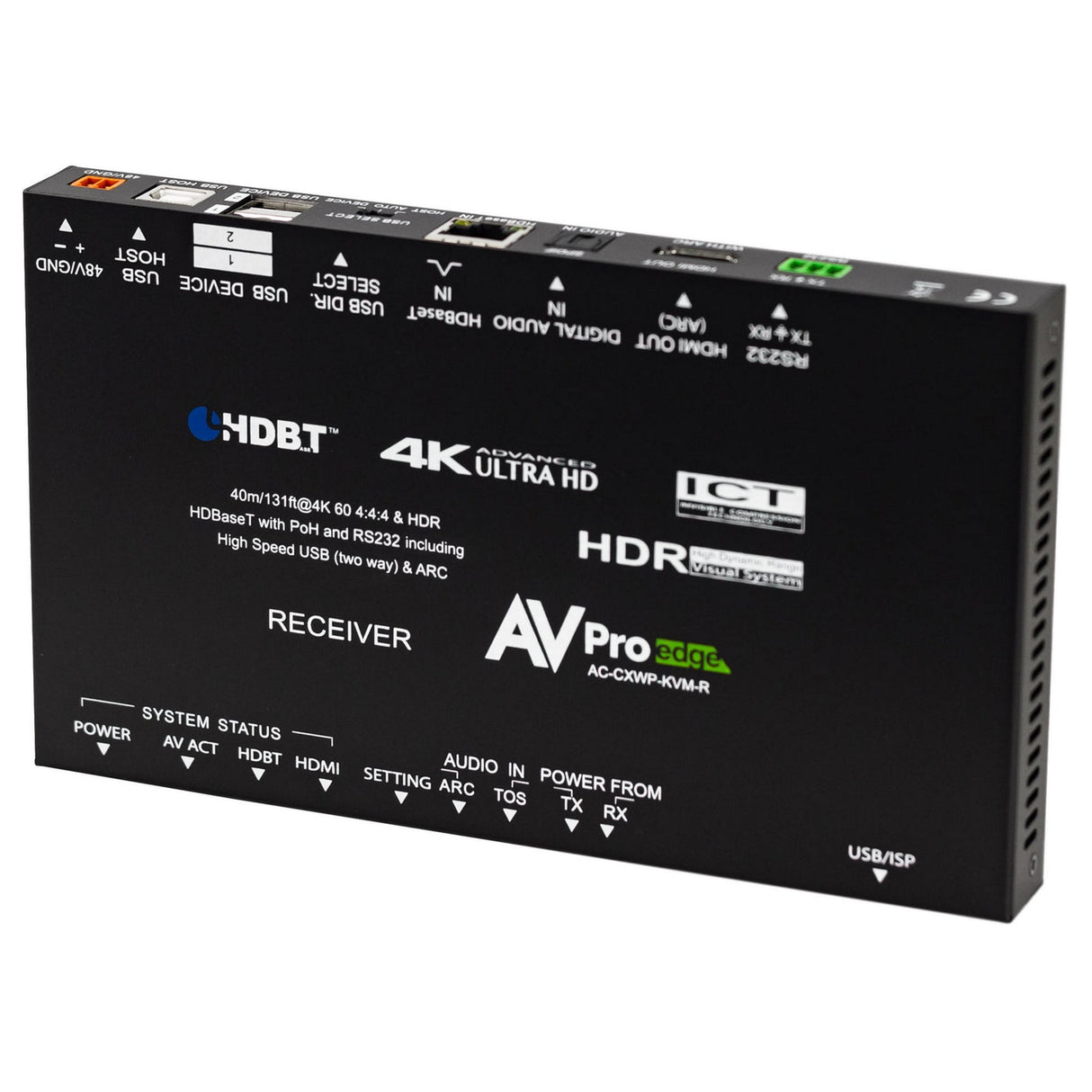

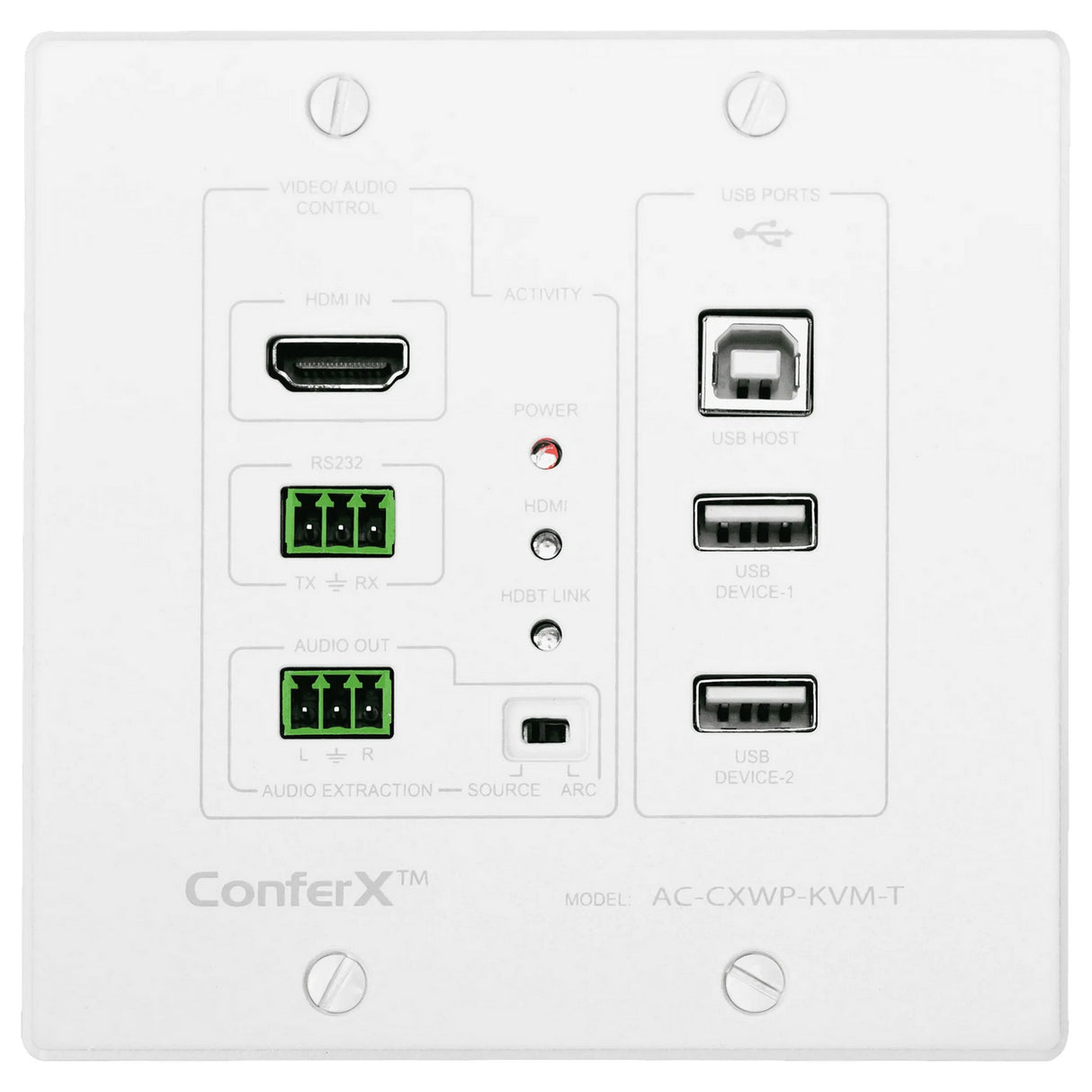

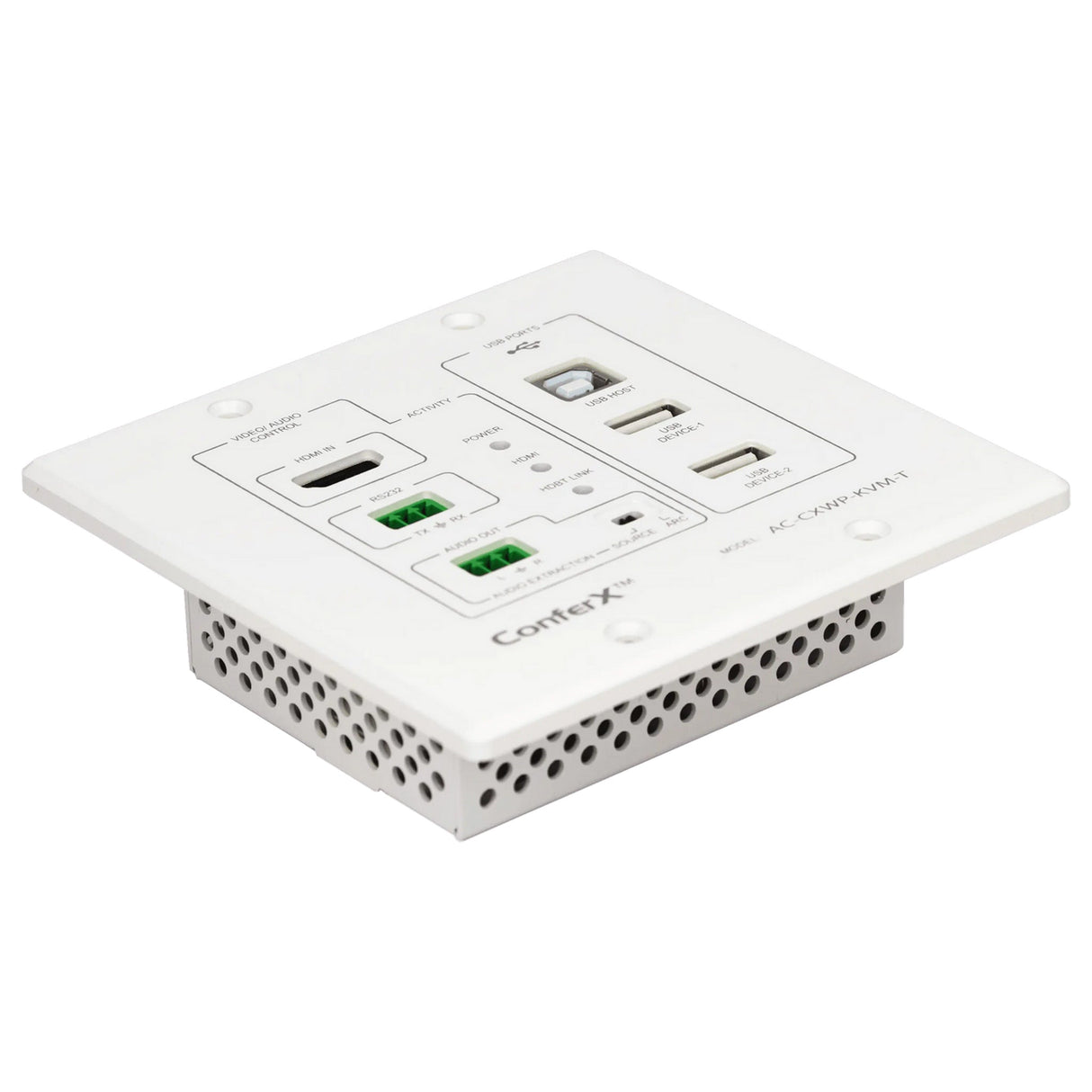

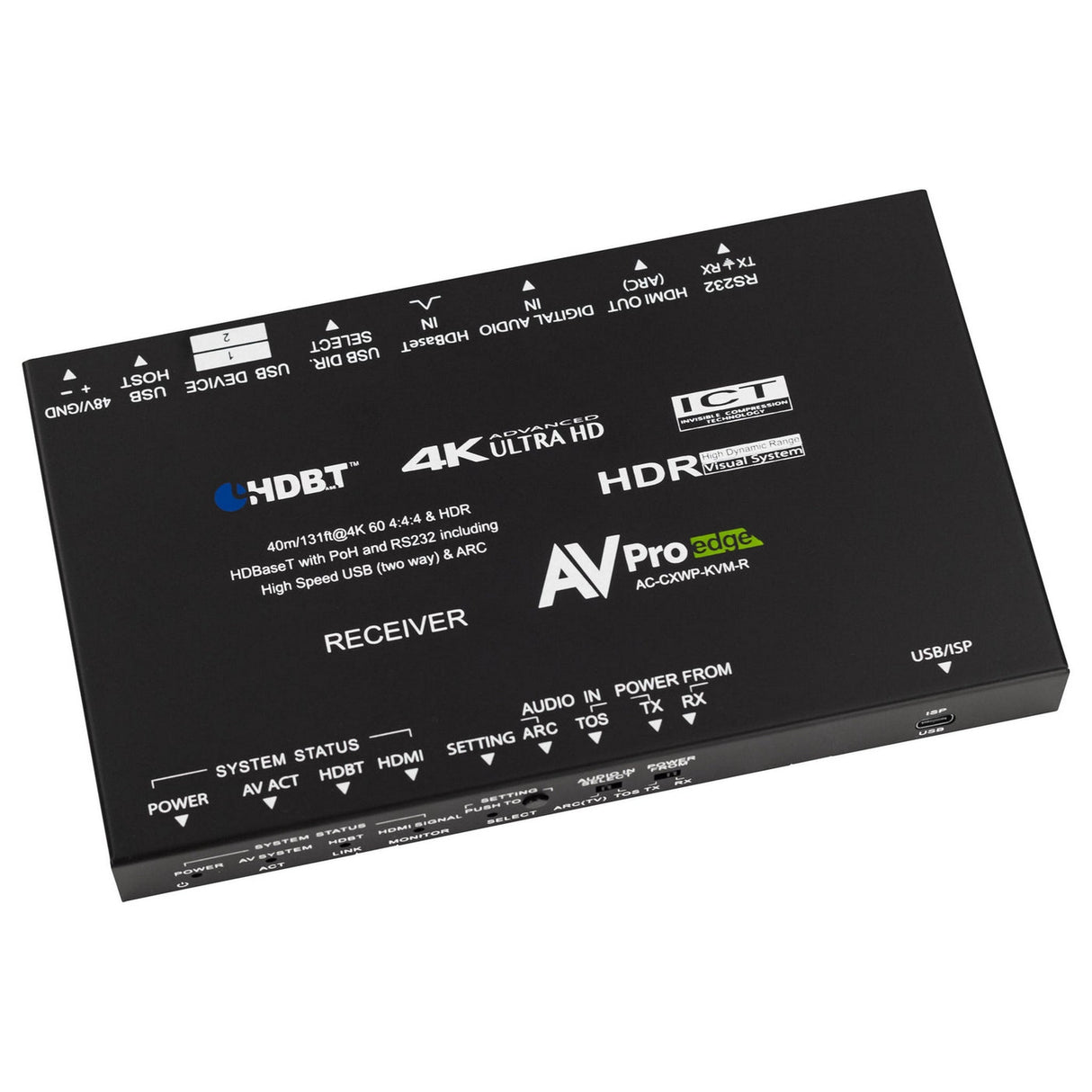

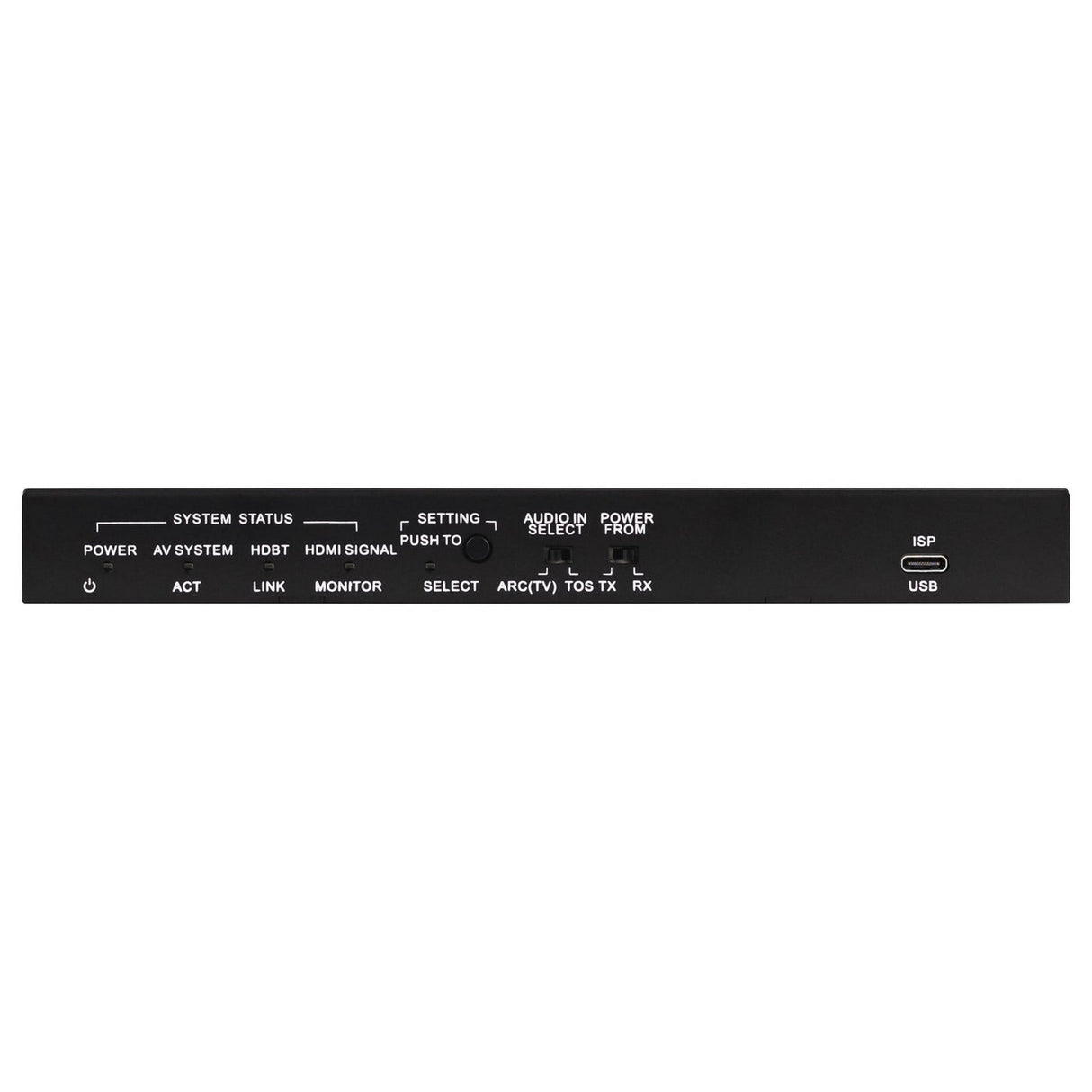

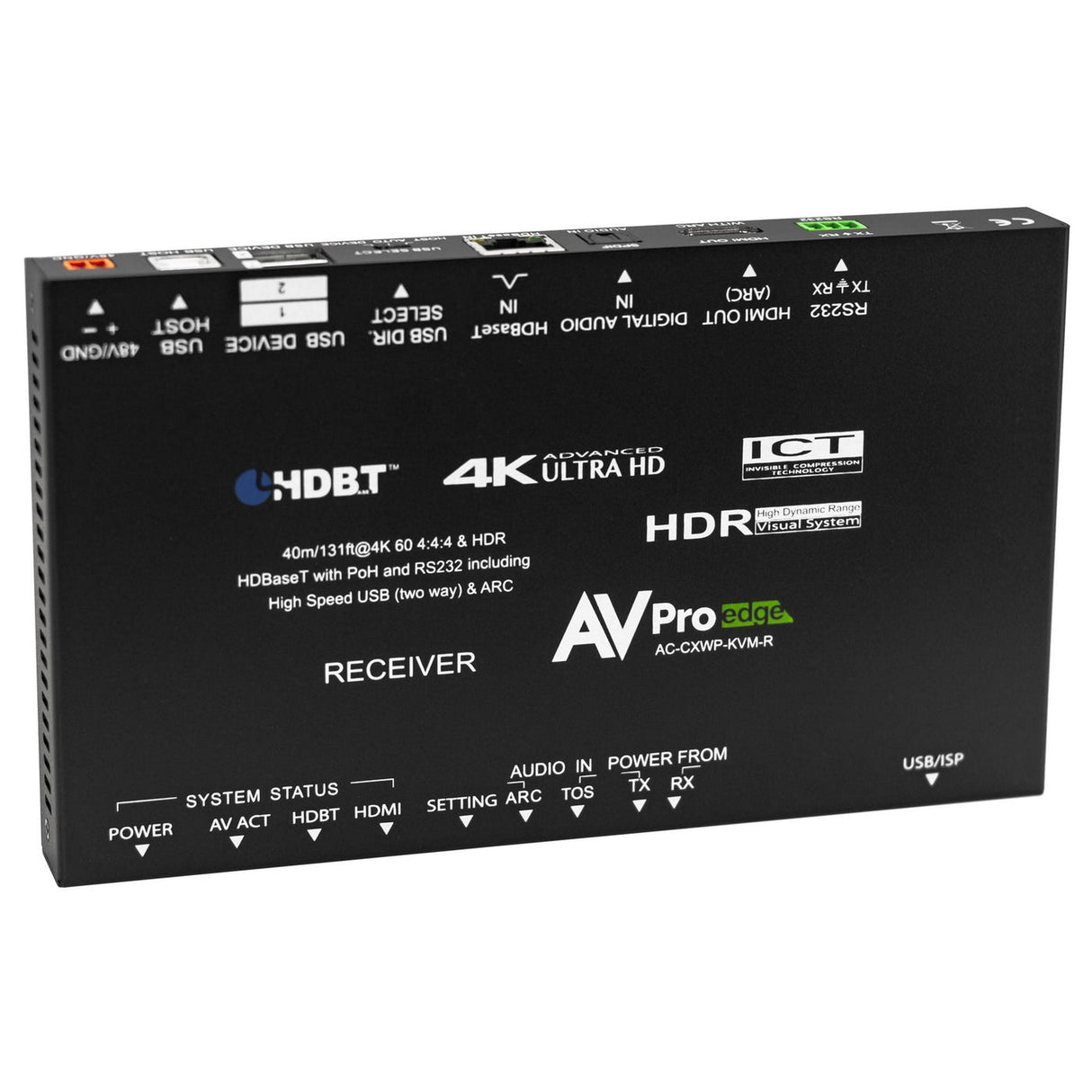

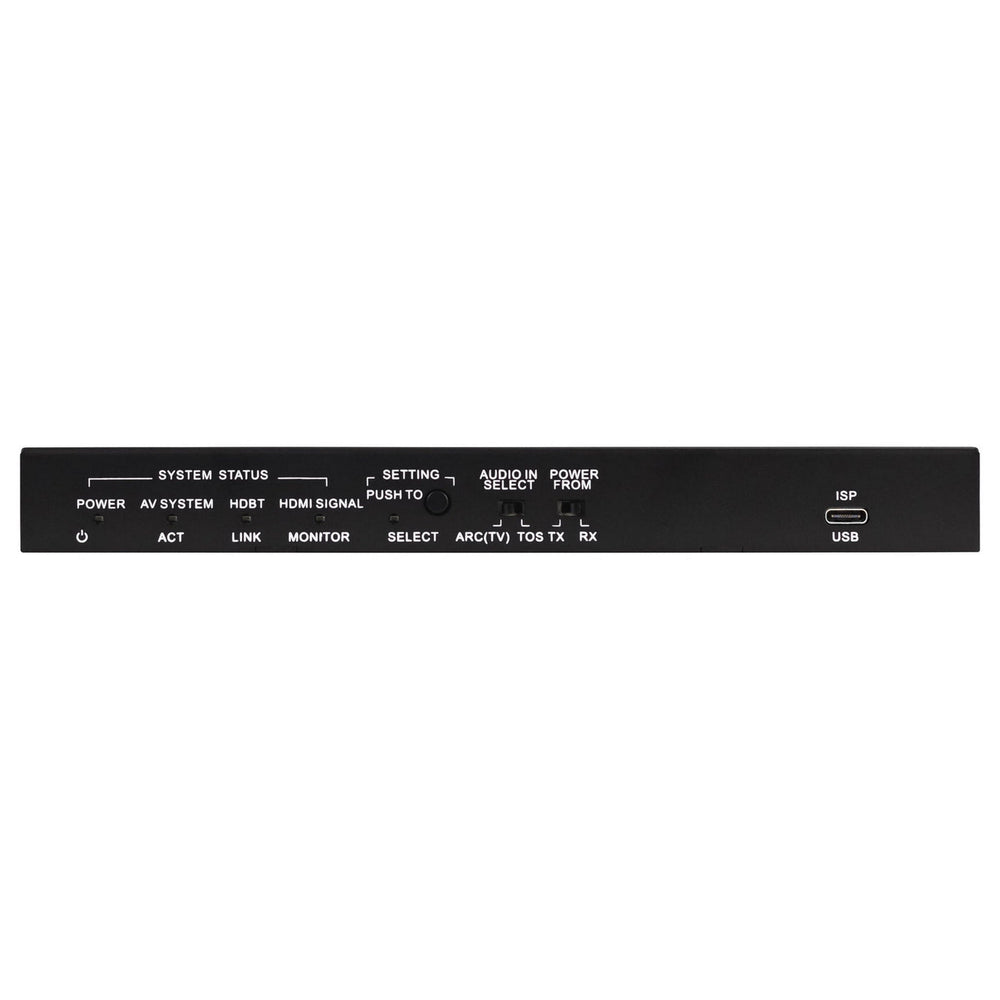

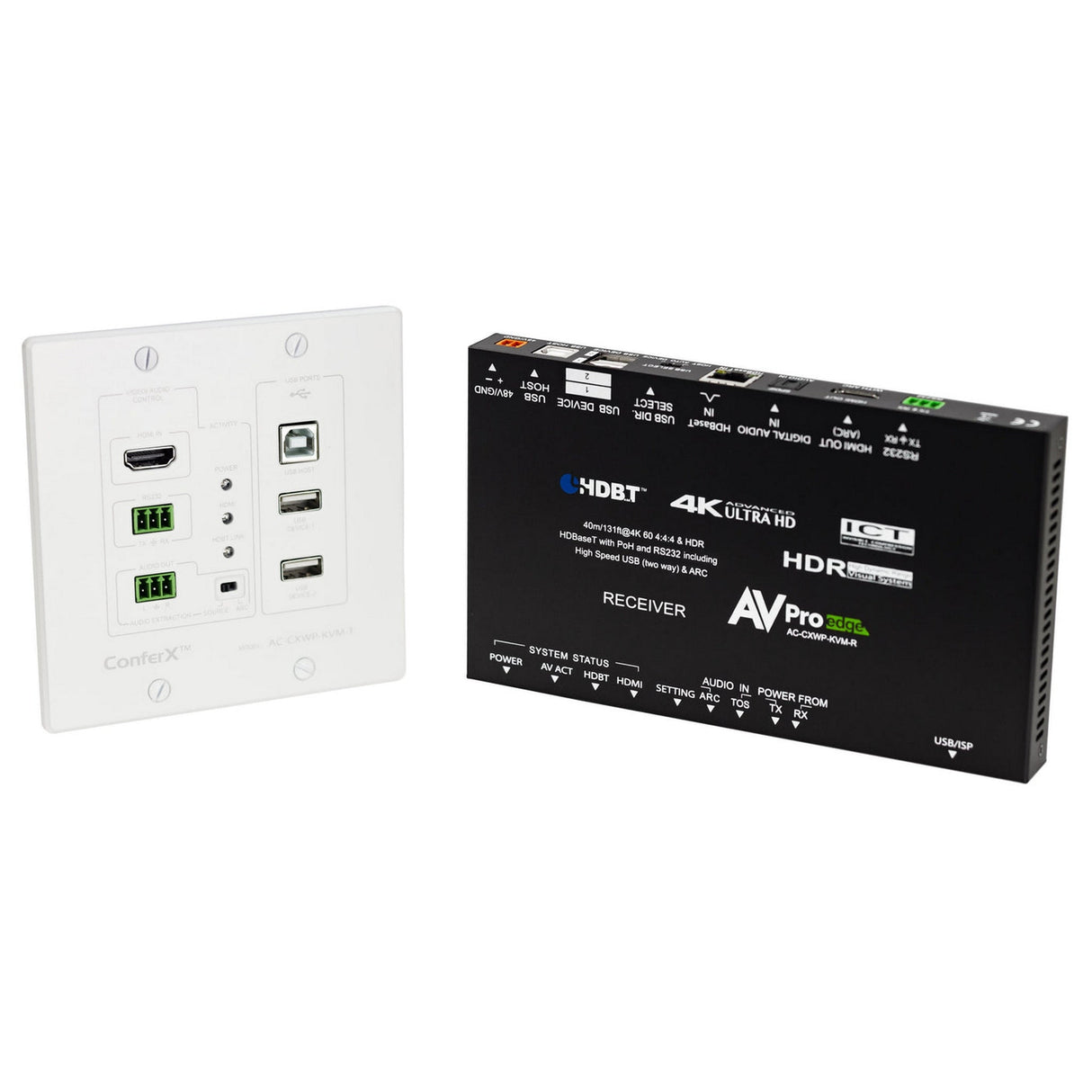

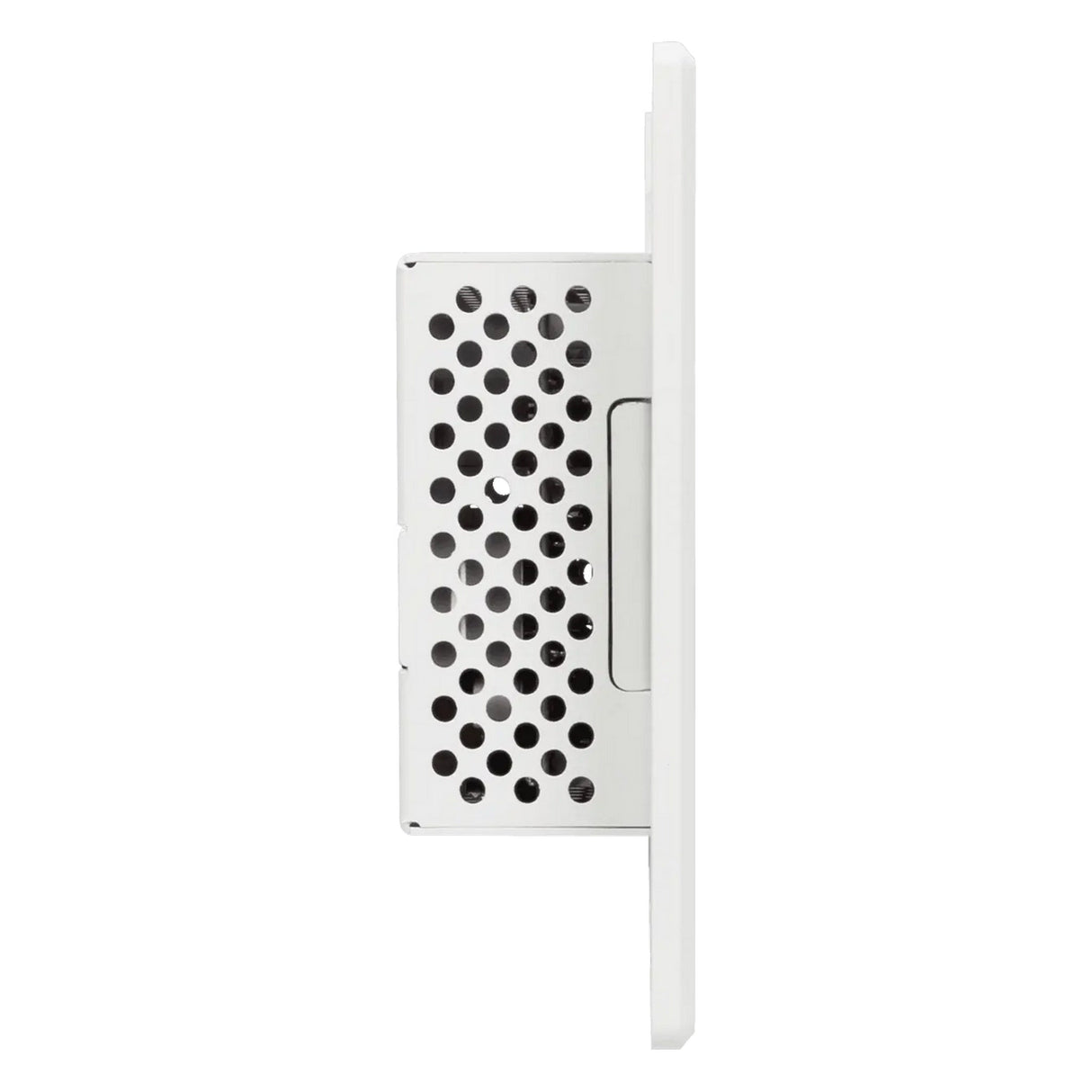

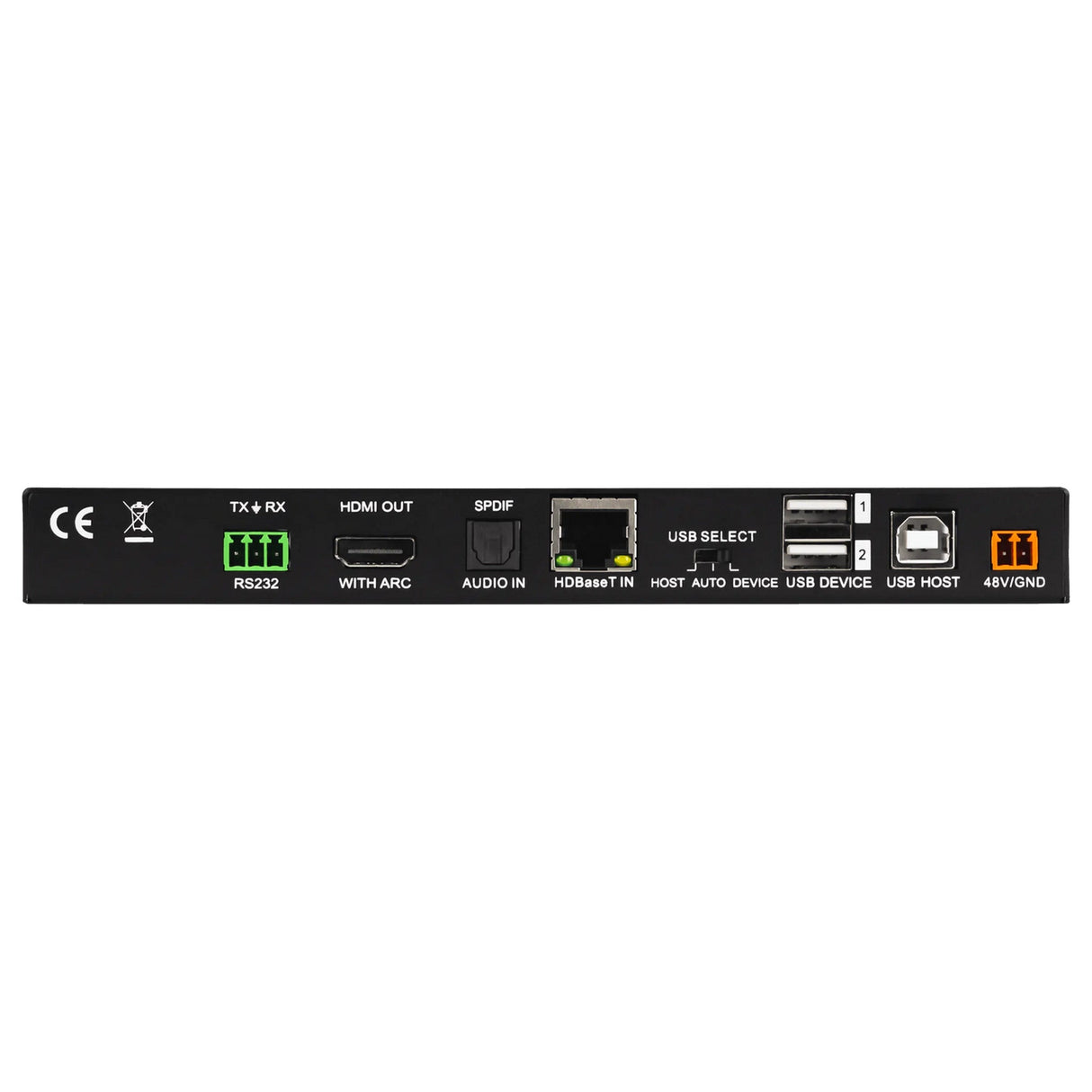

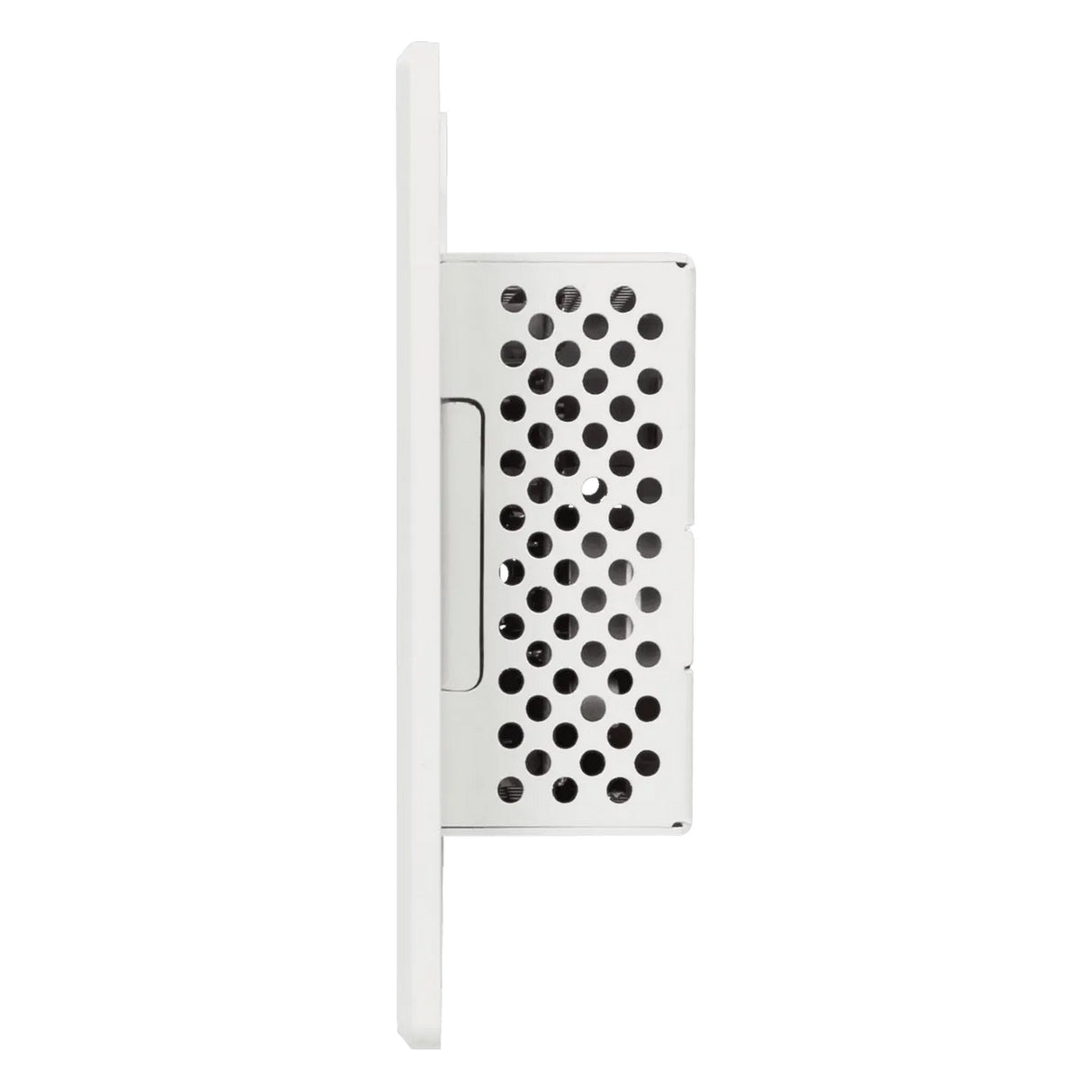

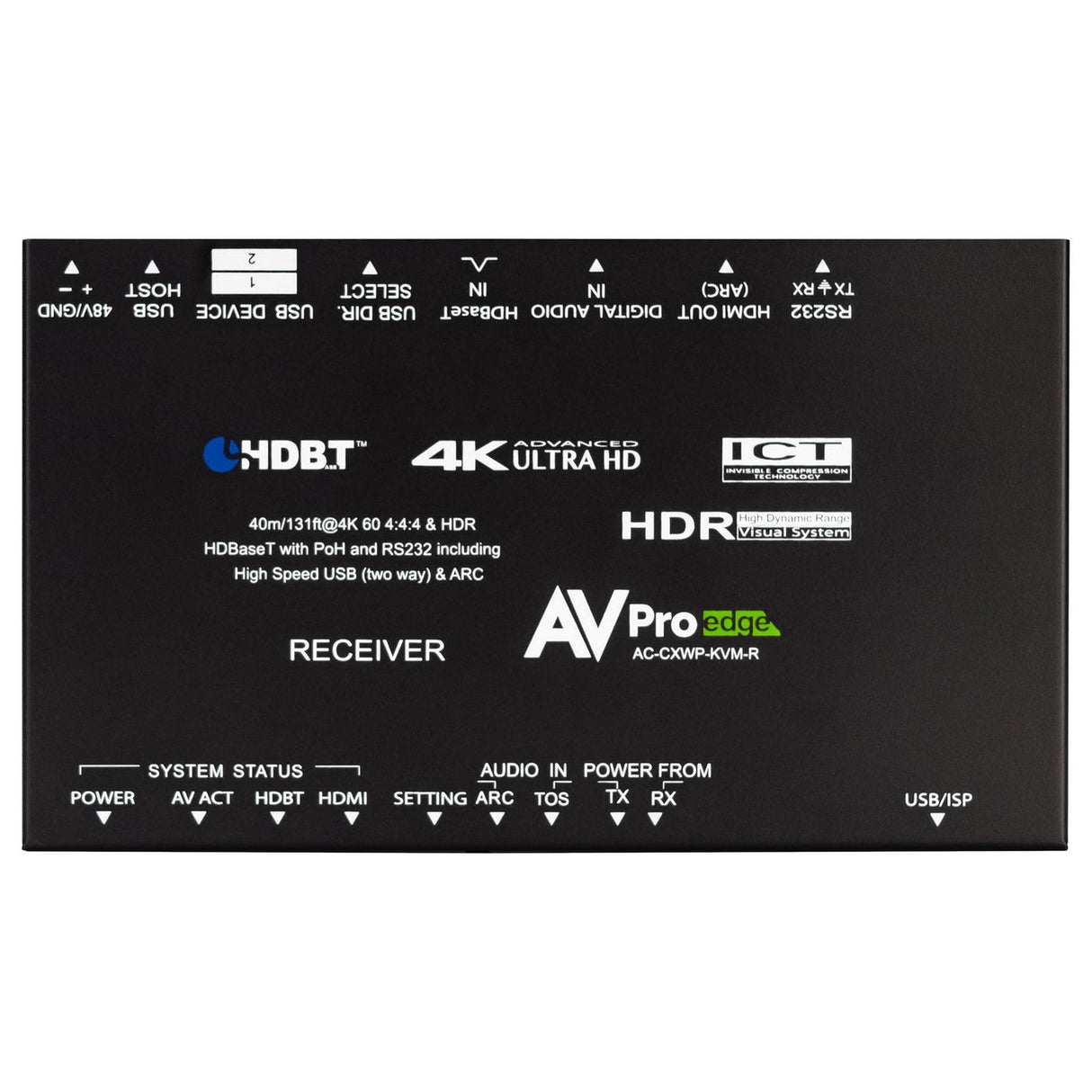

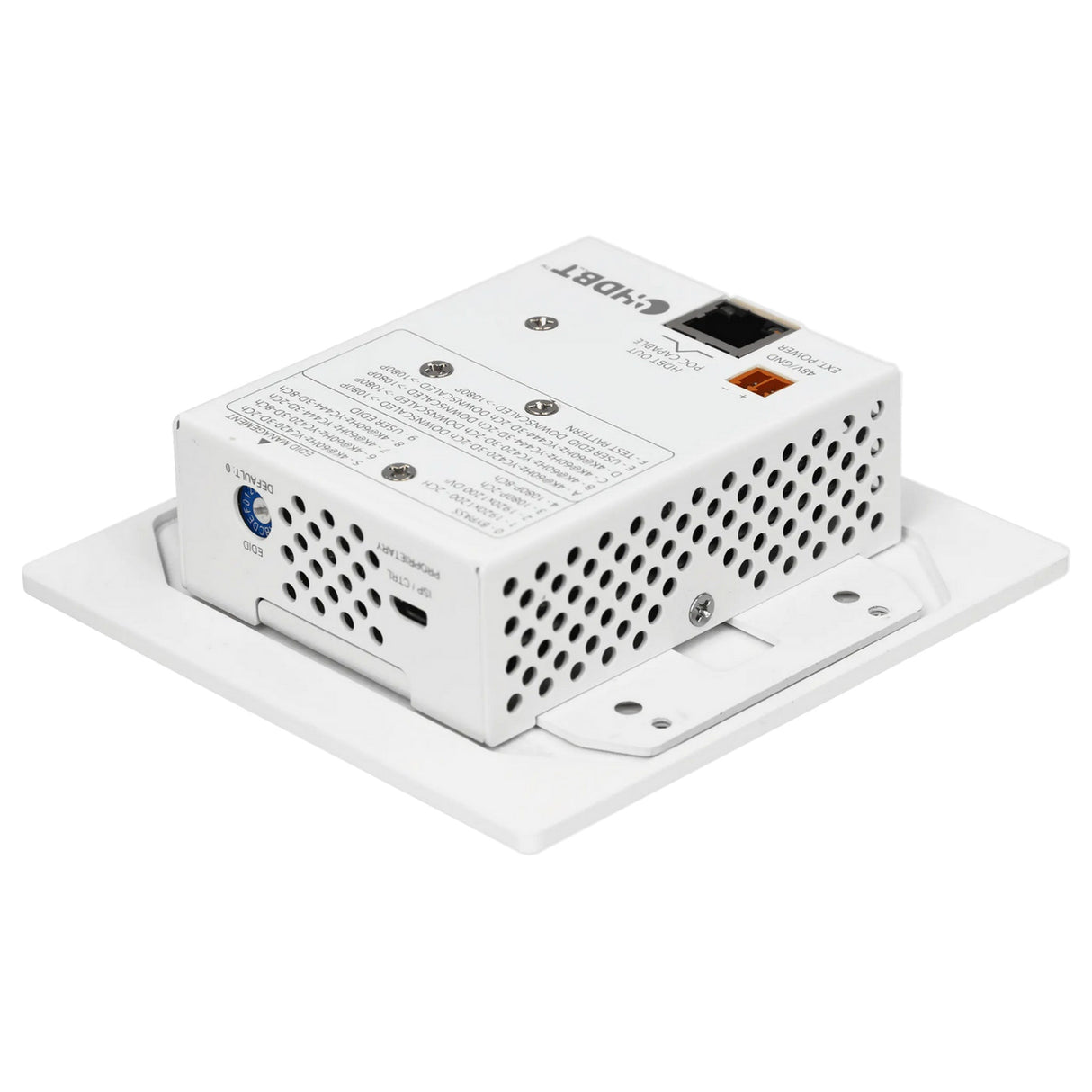

AVPro Edge AC-CXWP-KVM-KIT Bi-Directional HDMI USB Wall Plate Kit
The AVPro Edge AC-CXWP-KVM-KIT is a 4K60 4:4:4 HDBaseT wall plate extender kit designed to send HDMI video and USB over a single CAT cable for clean, professional installs. It is built for modern BYOD spaces where reliable 4K signal extension and USB connectivity are essential.
This kit supports HDMI 2.0 performance with 18Gbps bandwidth and includes bi-directional USB 2.0 transport for KVM-style workflows. It also features EDID management and a built-in downscaling circuit in the transmitter to help match system requirements across mixed display environments.

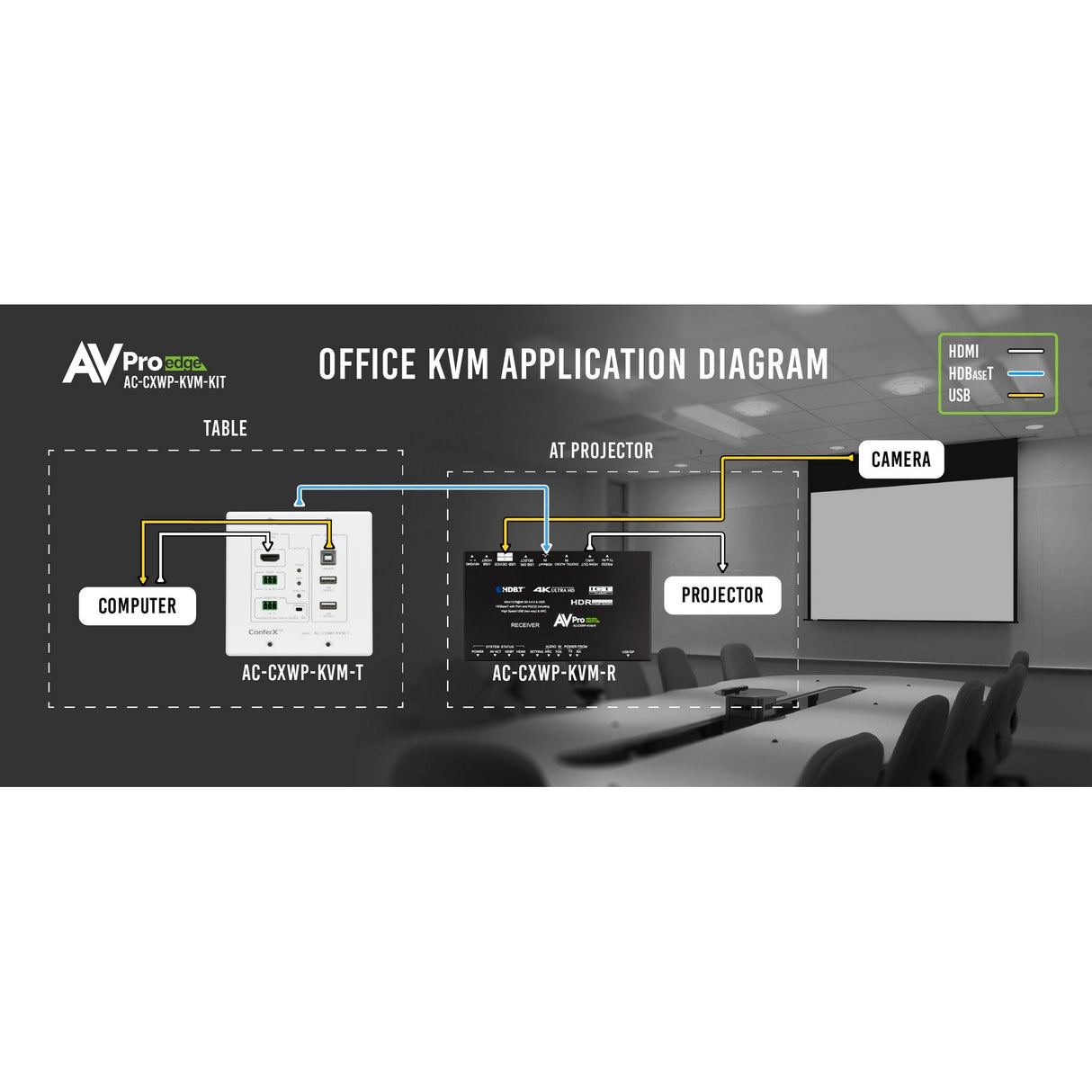

With long-distance HDBaseT transport, this wall plate kit helps reduce cable clutter while keeping high-quality video and control responsive and stable. It is an ideal solution for classrooms and conference rooms using laptops, interactive displays, projectors, and desktop computers.
Key Features
- 4K60 4:4:4 Extension: Supports high-bandwidth 4K60 4:4:4 video transport via HDBaseT over a single CAT UTP/STP cable.
- Bi-Directional USB 2.0: Sends USB 2.0 signals bi-directionally through the same HDBaseT link.
- 18Gbps Bandwidth Support: Built for HDMI 2.0 signal requirements with 18 Gbps bandwidth support.

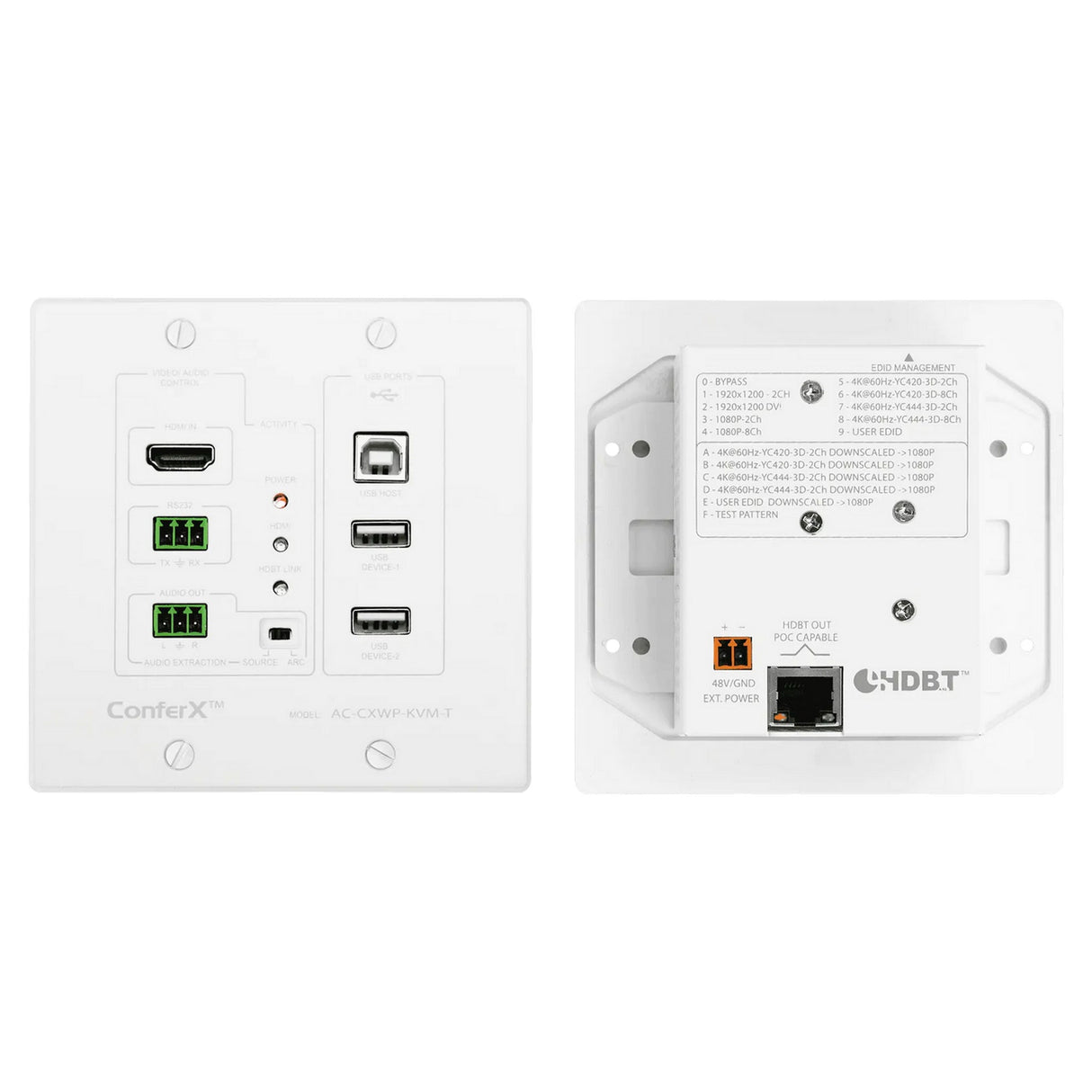

- EDID Management: Provides robust EDID control options including bypass, preset EDIDs, and user EDID copy.
- Down Scaling: Transmitter includes a scaling circuit that can scale 4K to 1080P.
- ARC Support: Audio Return Channel support continues upstream audio to the transmitter via HDMI ARC.
- On-Board Troubleshooting: Built-in test pattern generation from the transmitter or receiver to verify system integrity.
Technical Specifications
- Video Resolutions: Up to 4K 60Hz 4:4:4
- Vesa Resolutions: Up to DCI 4K (4096x2160)
- Bandwidth: 18 Gbps (Uses ICT above 10.2 Gbps signals)
- HDCP: HDCP 2.2 and earlier
- USB Version: USB 2.0
- HDBaseT Distance 4K: 40 Meters / 131 Feet (Cat 6a)
- HDBaseT Distance Full HD: 70 Meters / 230 Feet (Cat 6a)
- Downscaling: 4K (and HDR) down to 1080p
- Power Consumption: 12 watts max
- Power Supply Input: AC 100-240V ~ 50/60Hz
- Power Supply Output: DC 48V 0.5A
