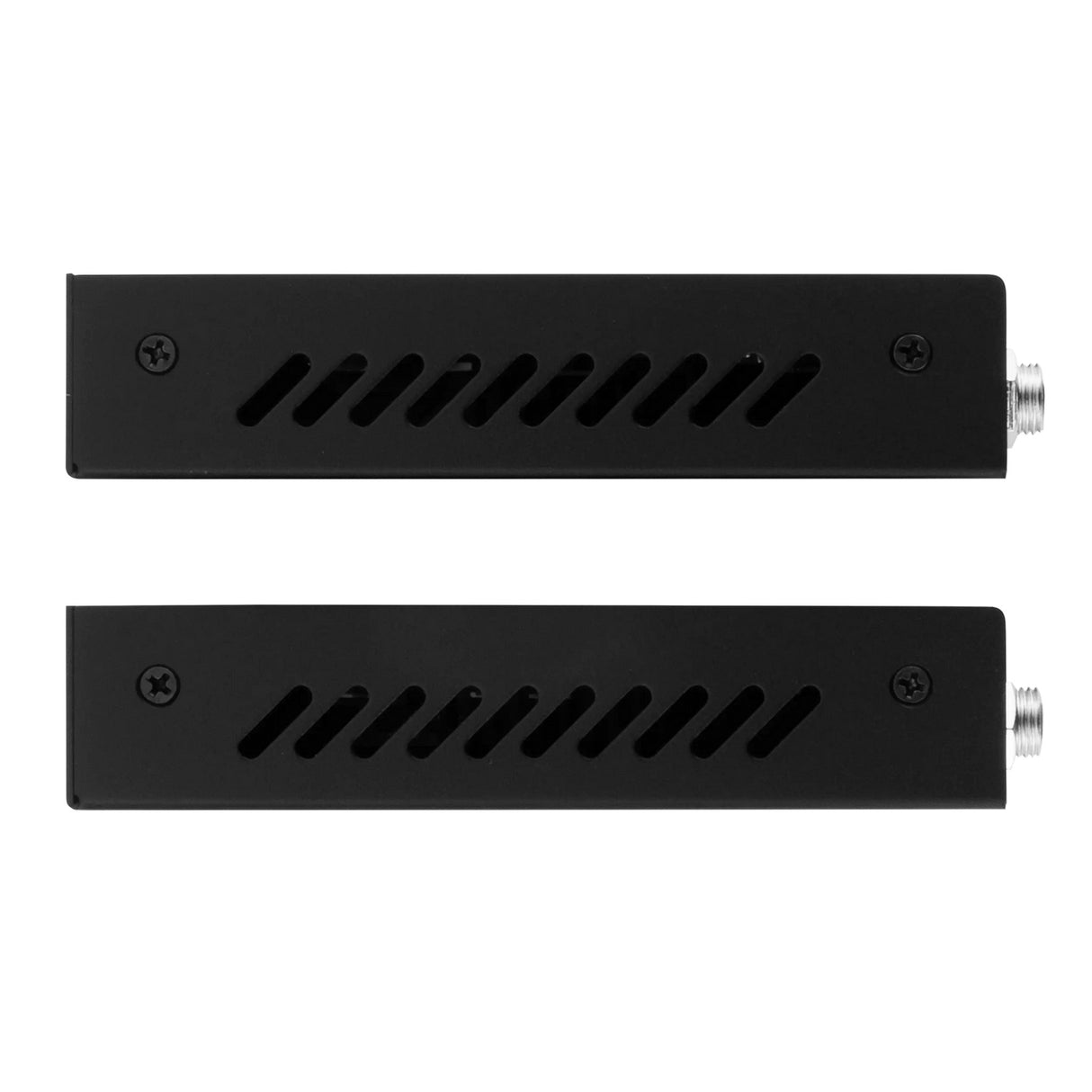

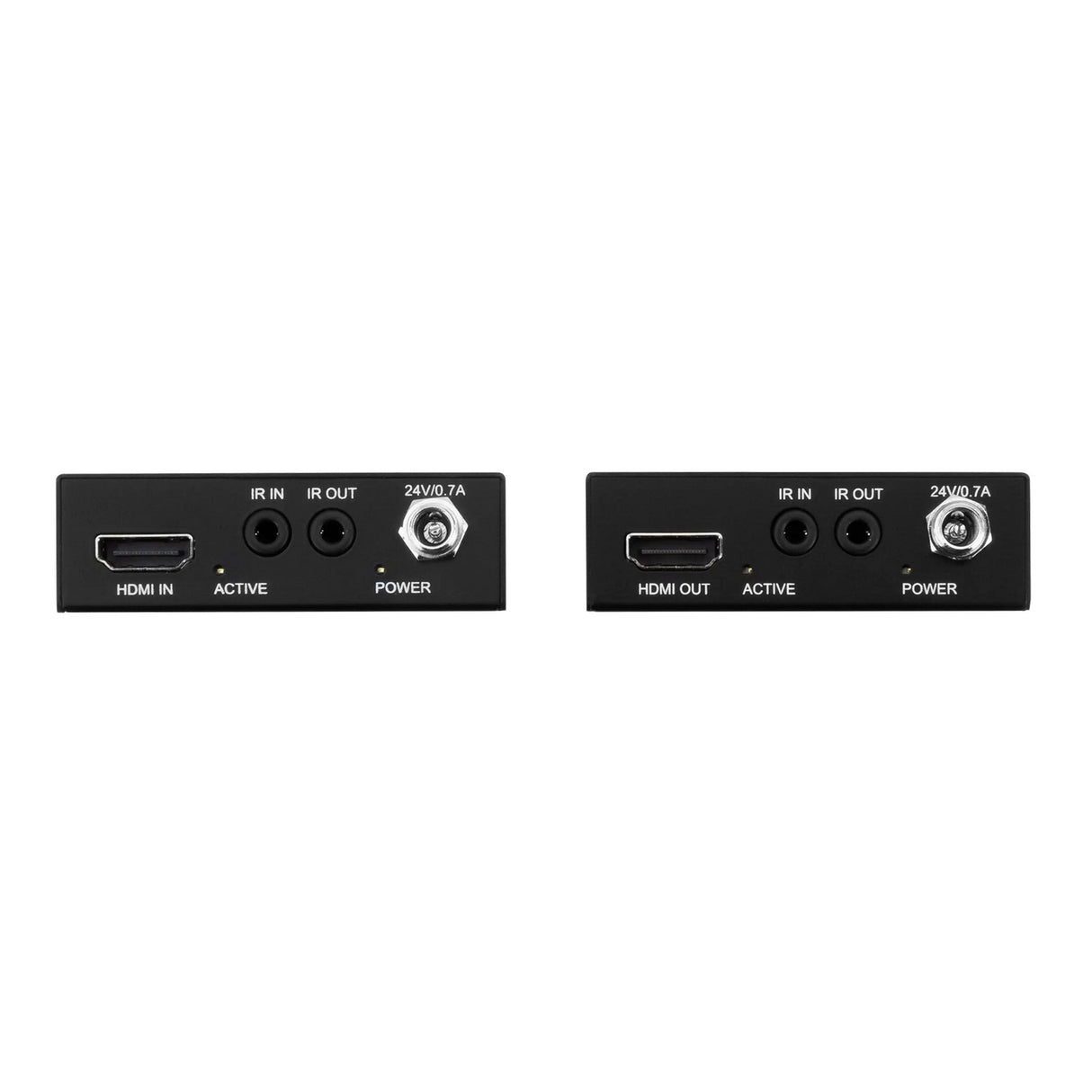

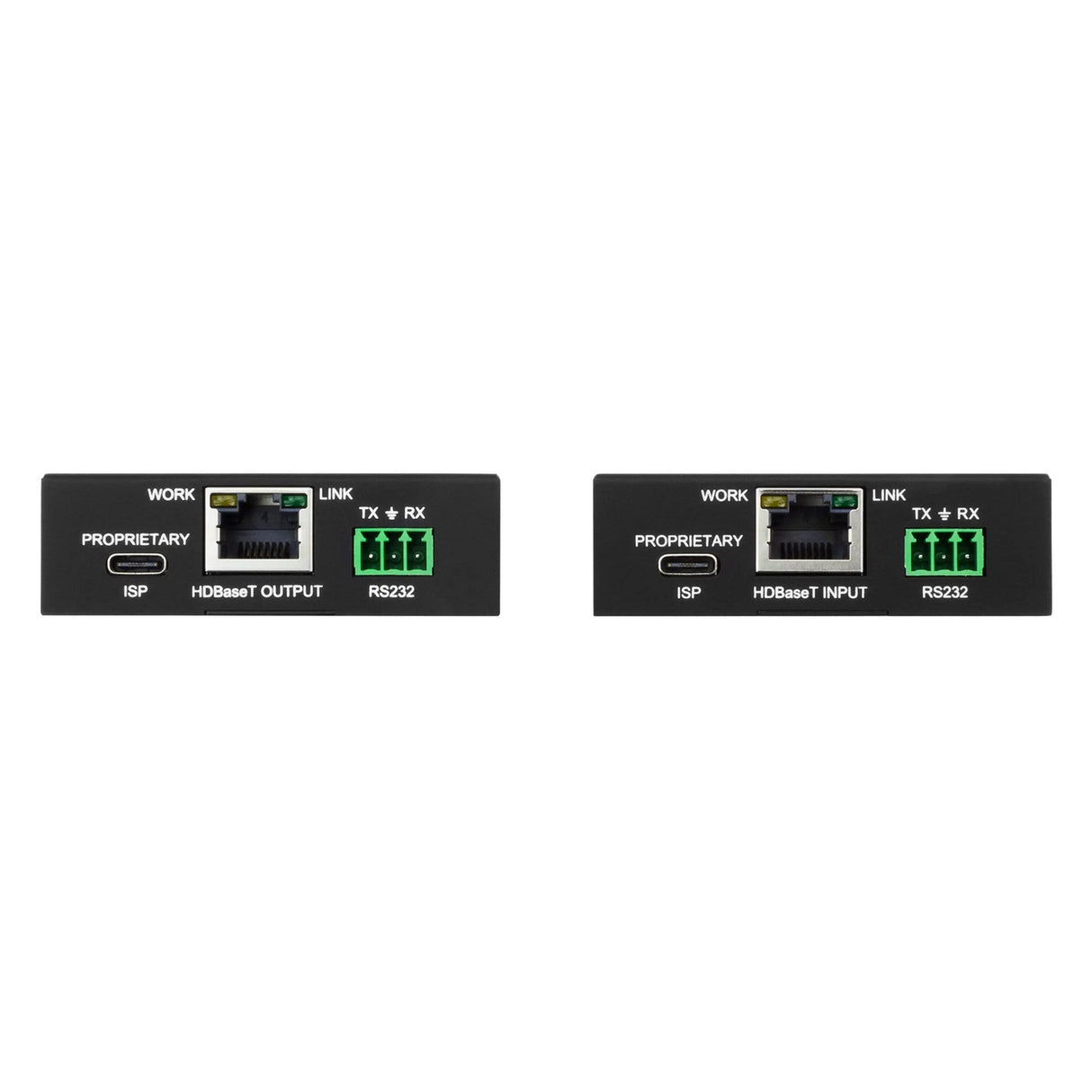

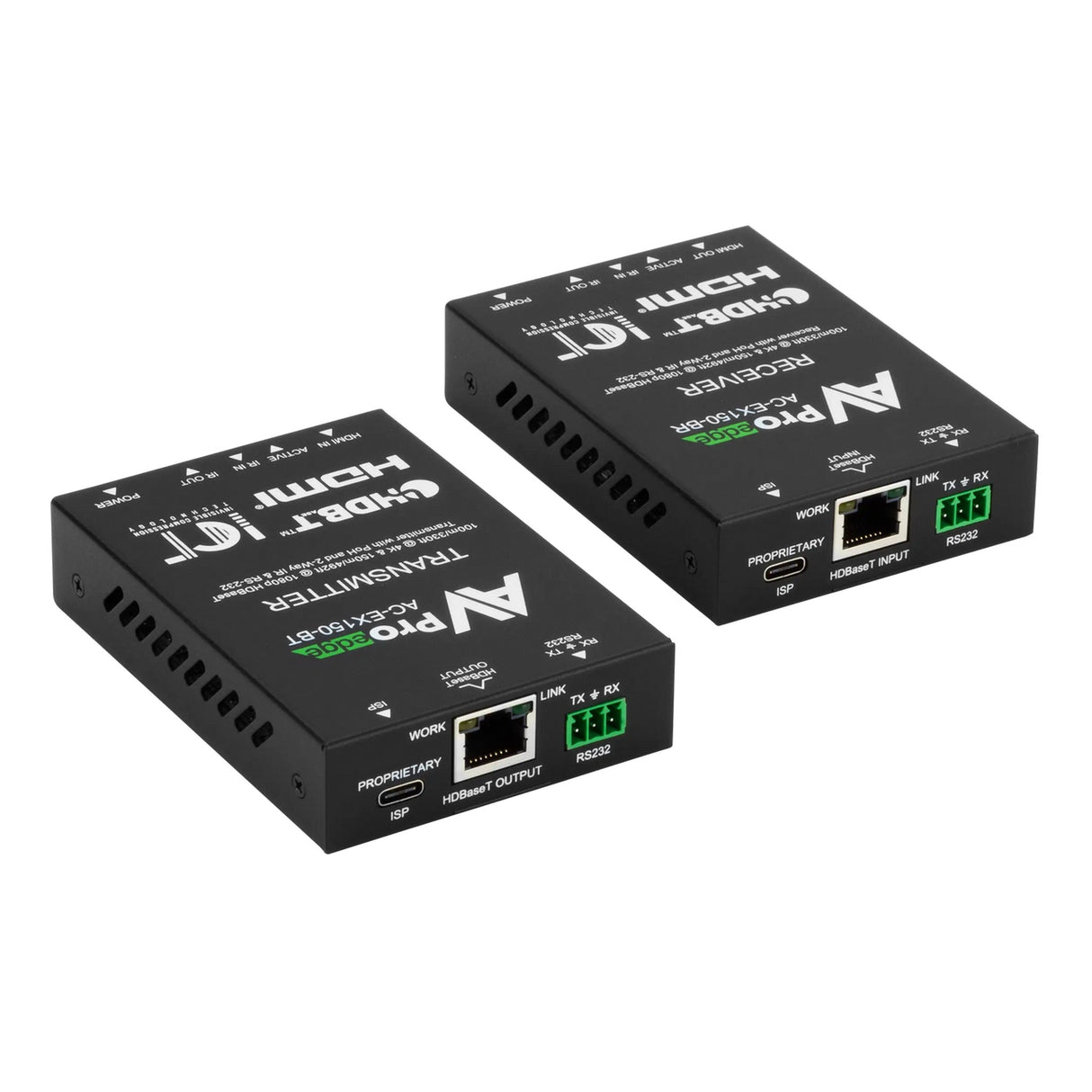

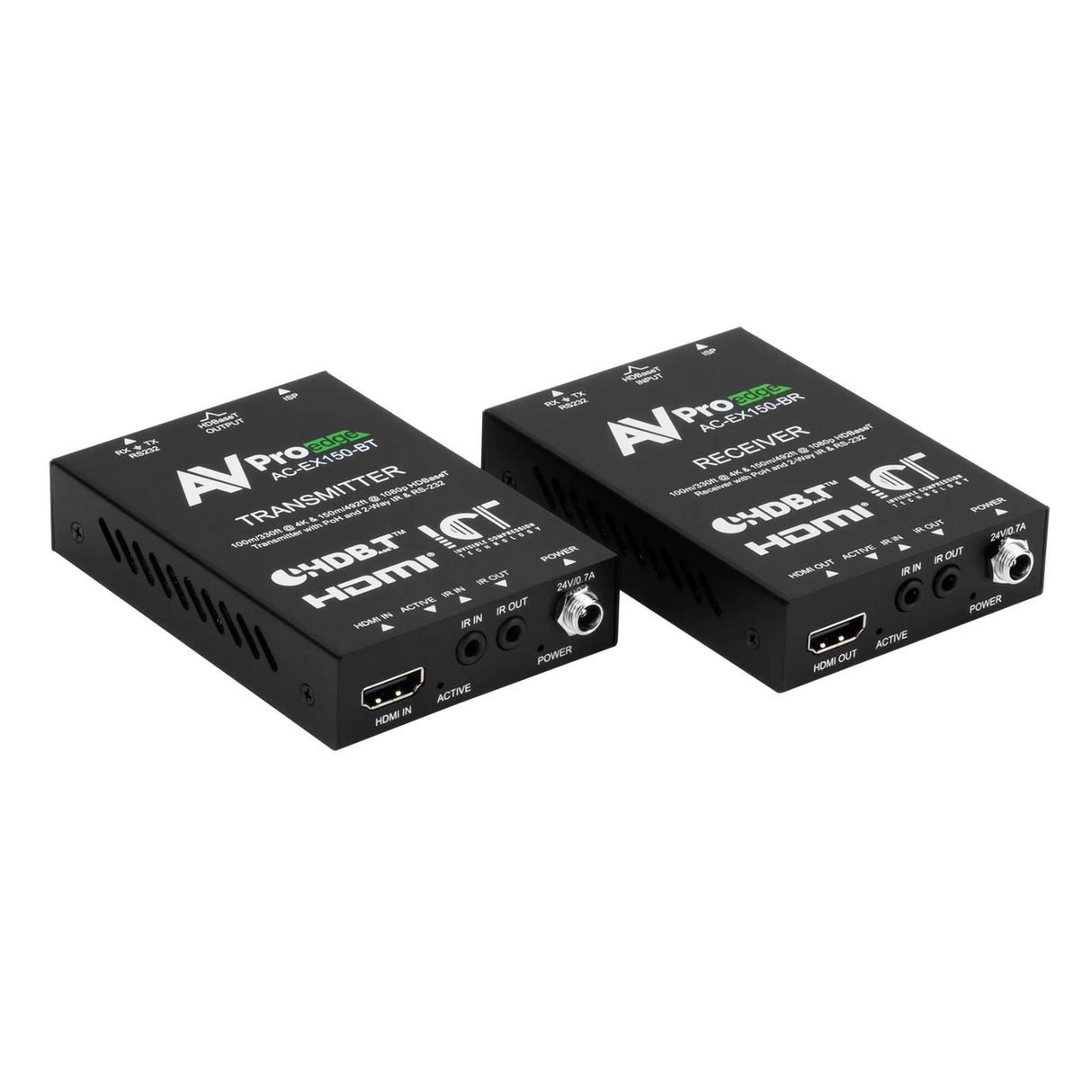

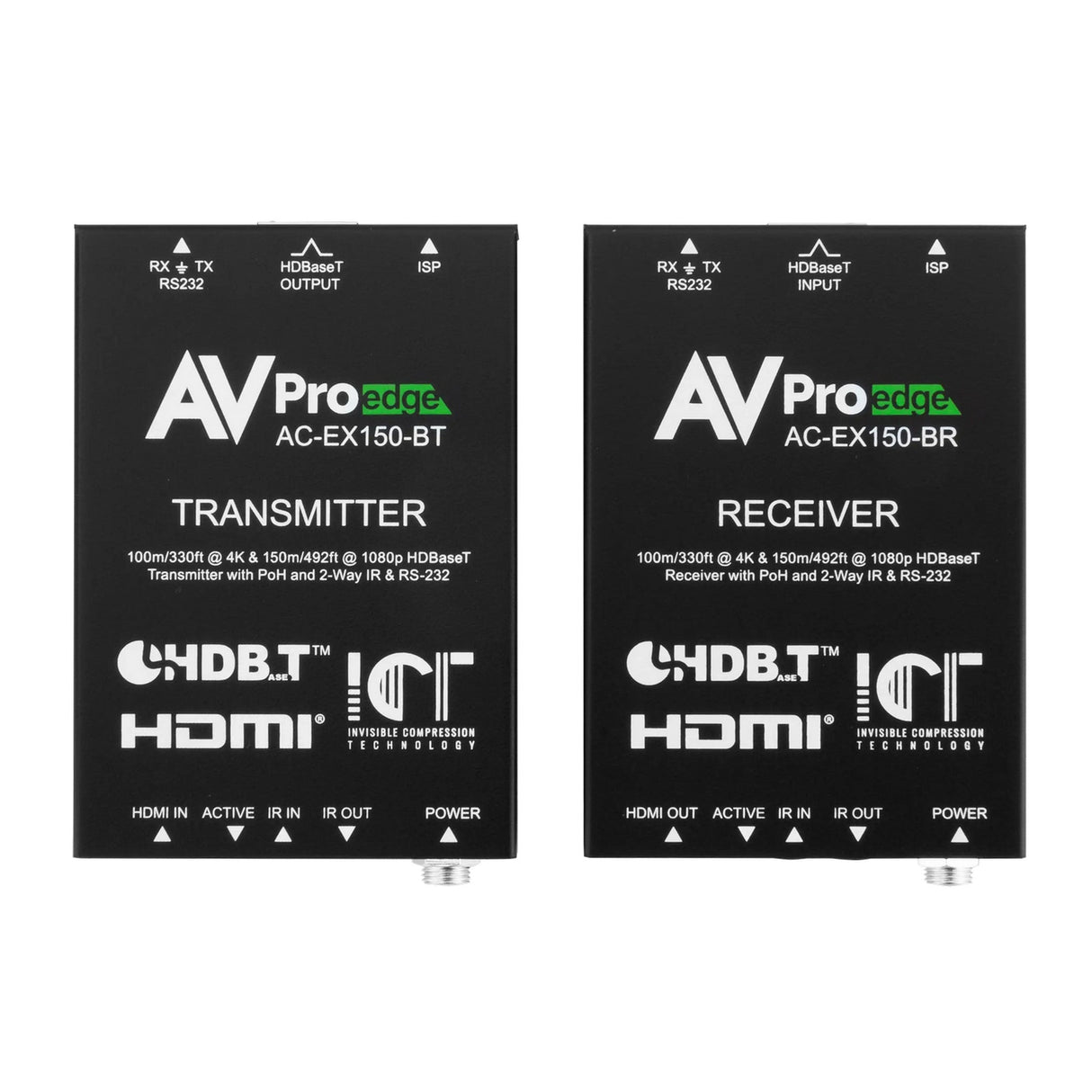

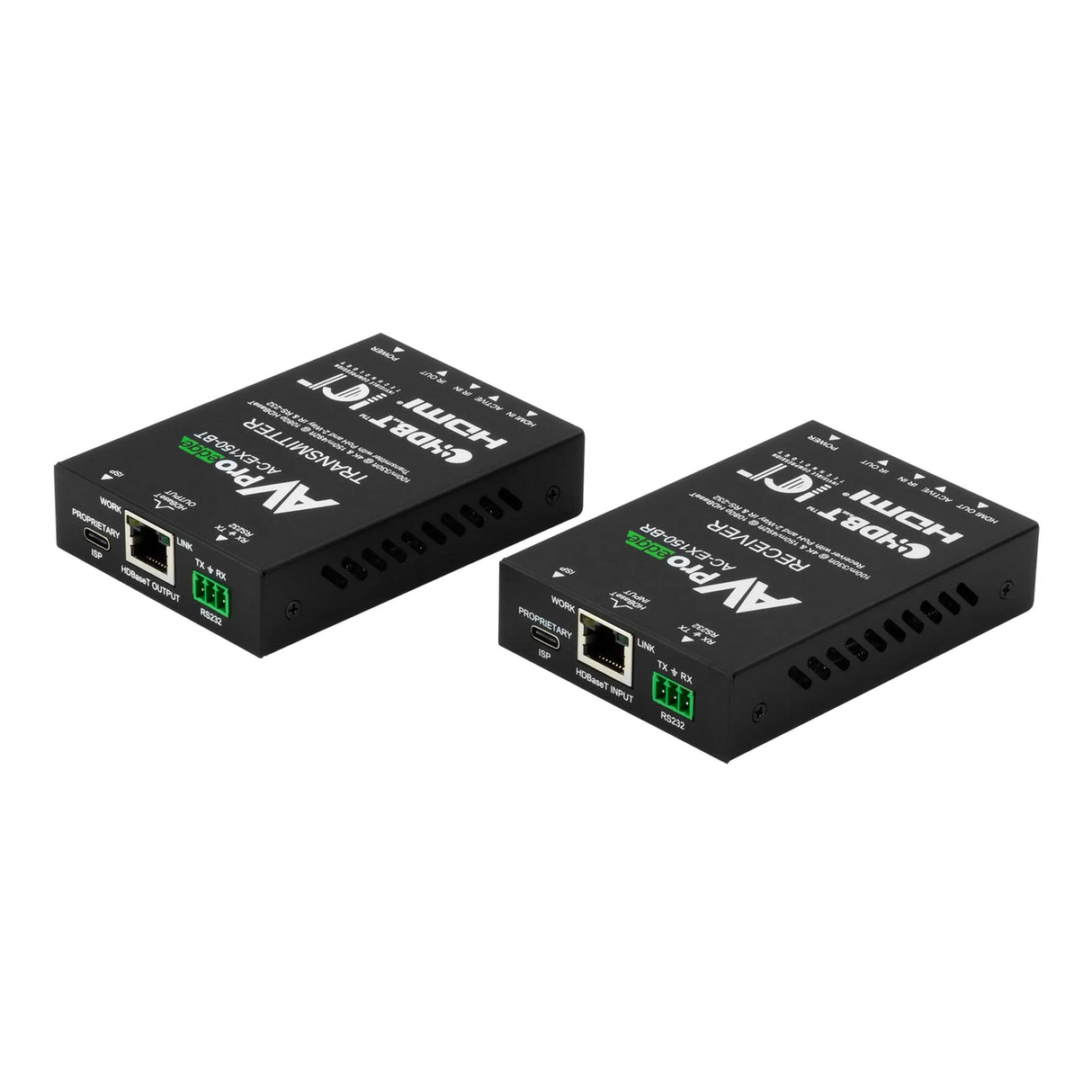

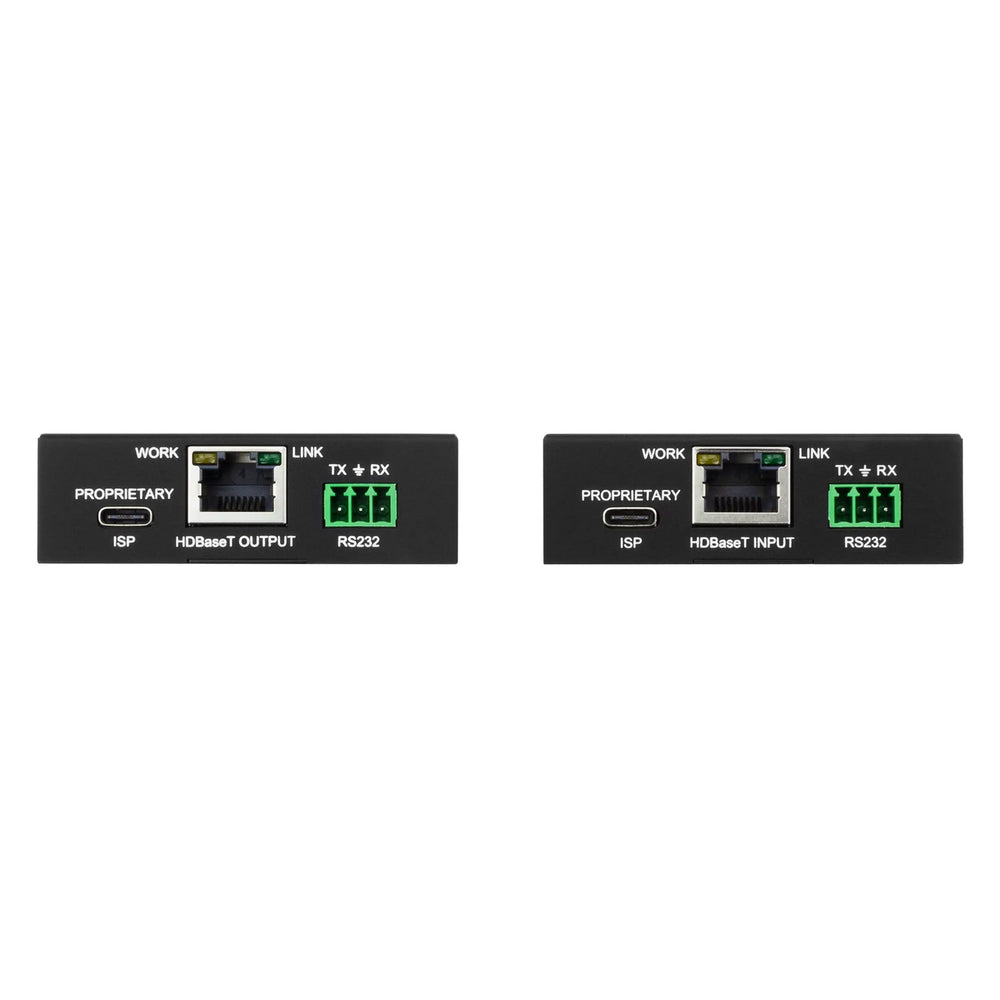

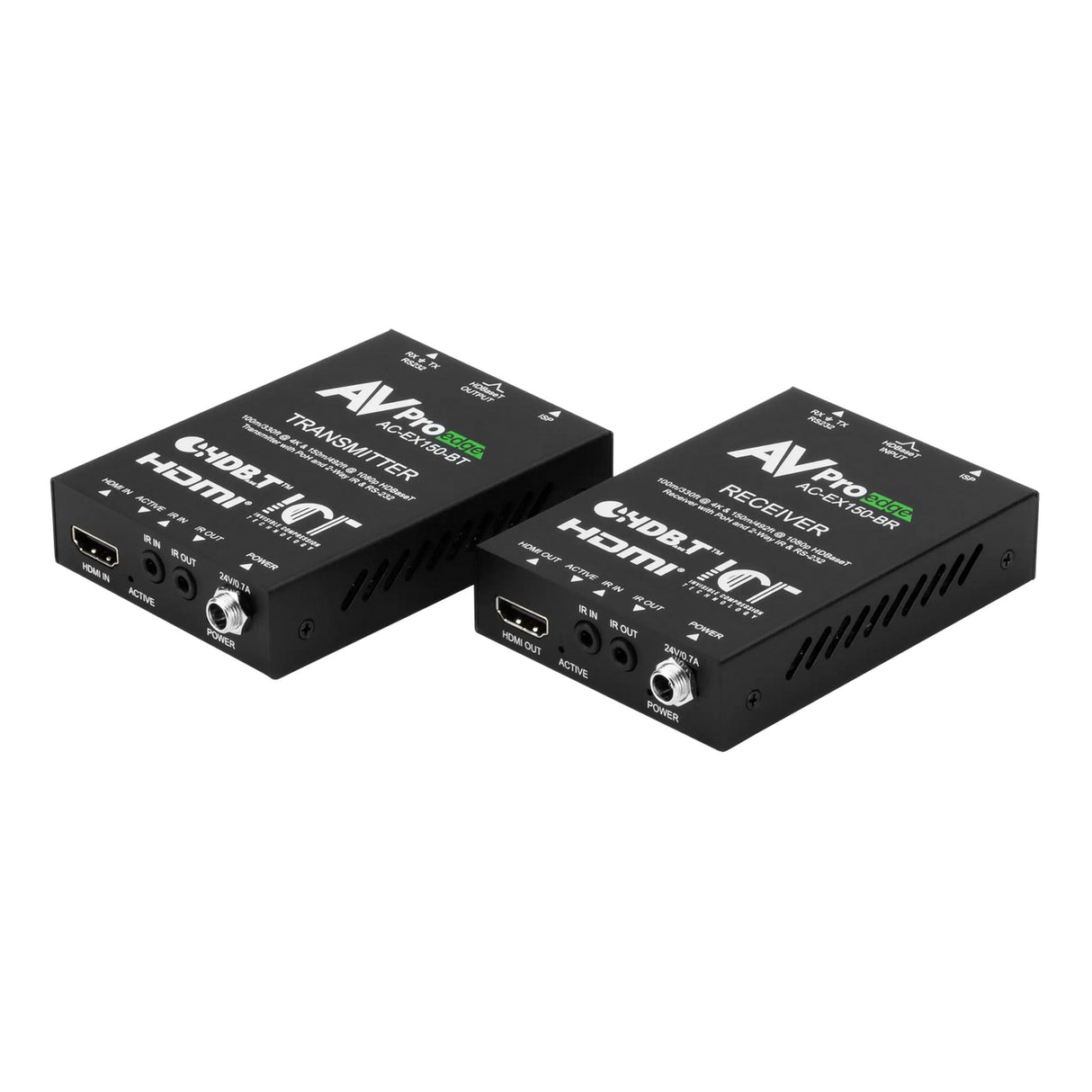

AVPro Edge AC-EX150-BKT Long Distance 4K HDMI Extender

The AVPro Edge AC-EX150-BKT is a long distance 4K HDMI extender designed to solve tough retrofit signal delivery over Category cable. It is built for integrators who need reliable video distribution to TVs or projectors when existing infrastructure limits a standard HDMI run.

Engineered to push Full HD up to 150 meters and 18 Gbps 4K HDMI 2.0 up to 100 meters, the AC-EX150-BKT is optimized for legacy Category 5e scenarios and challenging terminations. It adds integrator tools like EDID management, 4K to 1080p downscaling, CEC, and bidirectional RS-232 and IR control.

For commercial and residential retrofits, the AC-EX150-BKT helps turn problematic cable paths into profitable installs without sacrificing picture quality. AVPro Edge Image Compression Technology is designed to maintain a clear, artifact-free image while supporting long distance distribution needs.

Key Features

• 150 Meter Full HD Extension: Supports 1080p transmission up to 150 meters over legacy Category cable.
• 100 Meter 4K Distribution: Transports 18 Gbps 4K UHD signals up to 100 meters for extended HDMI delivery.
• Retrofit Infrastructure Support: Designed to overcome inline Category wire challenges such as splices, couplers, and punch-down blocks.

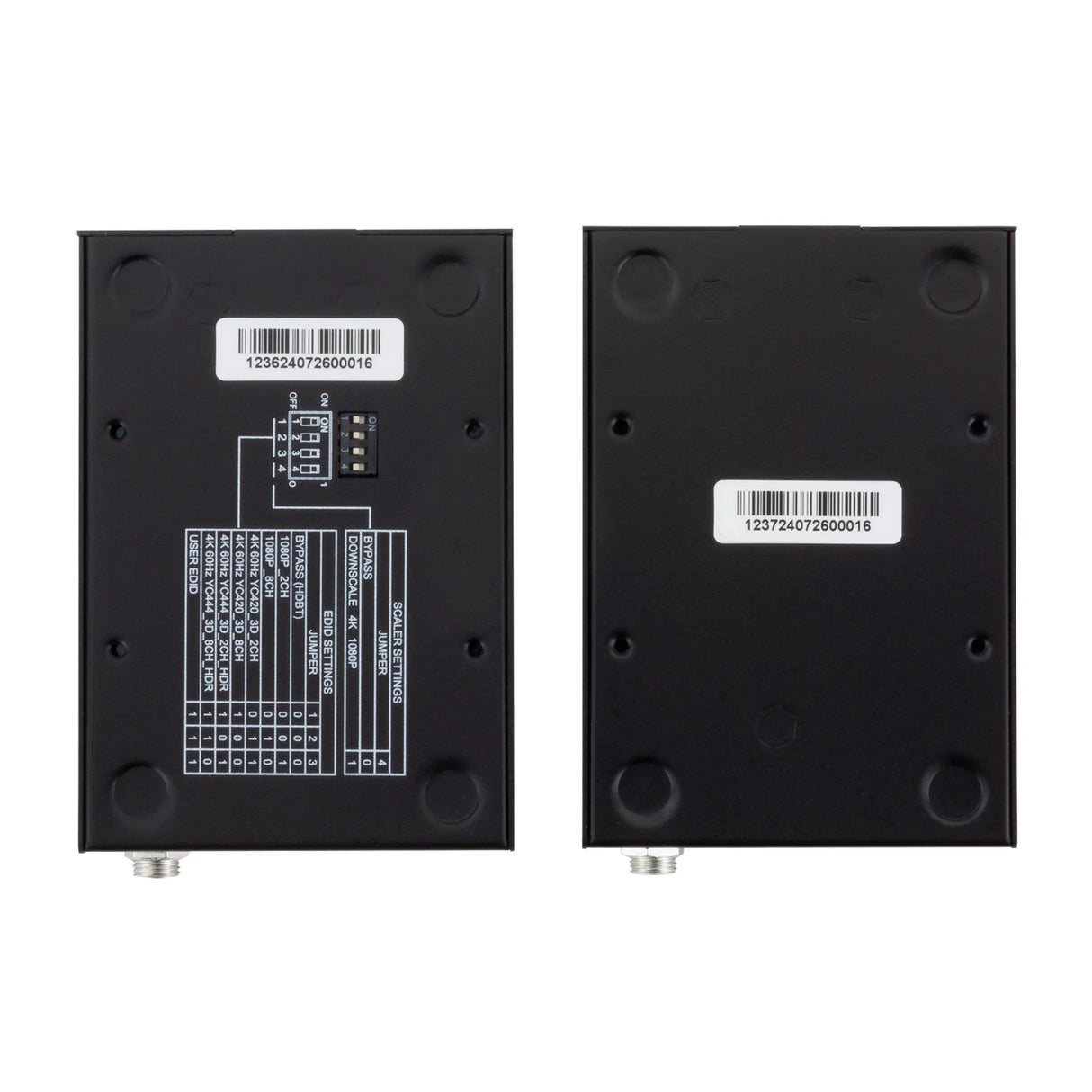

• EDID Management: Configurable EDID handling to help stabilize negotiation for trouble-free operation.
• 4K to 1080p Downscaling: Downscales 4K content to support legacy displays in mixed-resolution systems.
• Bidirectional Control: Full bidirectional pass-through for RS-232 and IR control signals.
• Image Compression Technology: AVPro Edge ICT is designed to preserve picture fidelity with an artifact-free image.

Technical Specifications

• Video Resolutions: Up to 4K 60 Hz 4:4:4
• VESA Resolutions: Up to DCI 4K 4096x2160
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 supported
• Bandwidth: 18 Gbps
• HDCP: HDCP 2.3 and earlier
• HDBaseT Distance 4K HDR: 100 m (330 ft) (Cat 6a)
• HDBaseT Distance Full HD: 150 m (492 ft) (Cat 6a)
