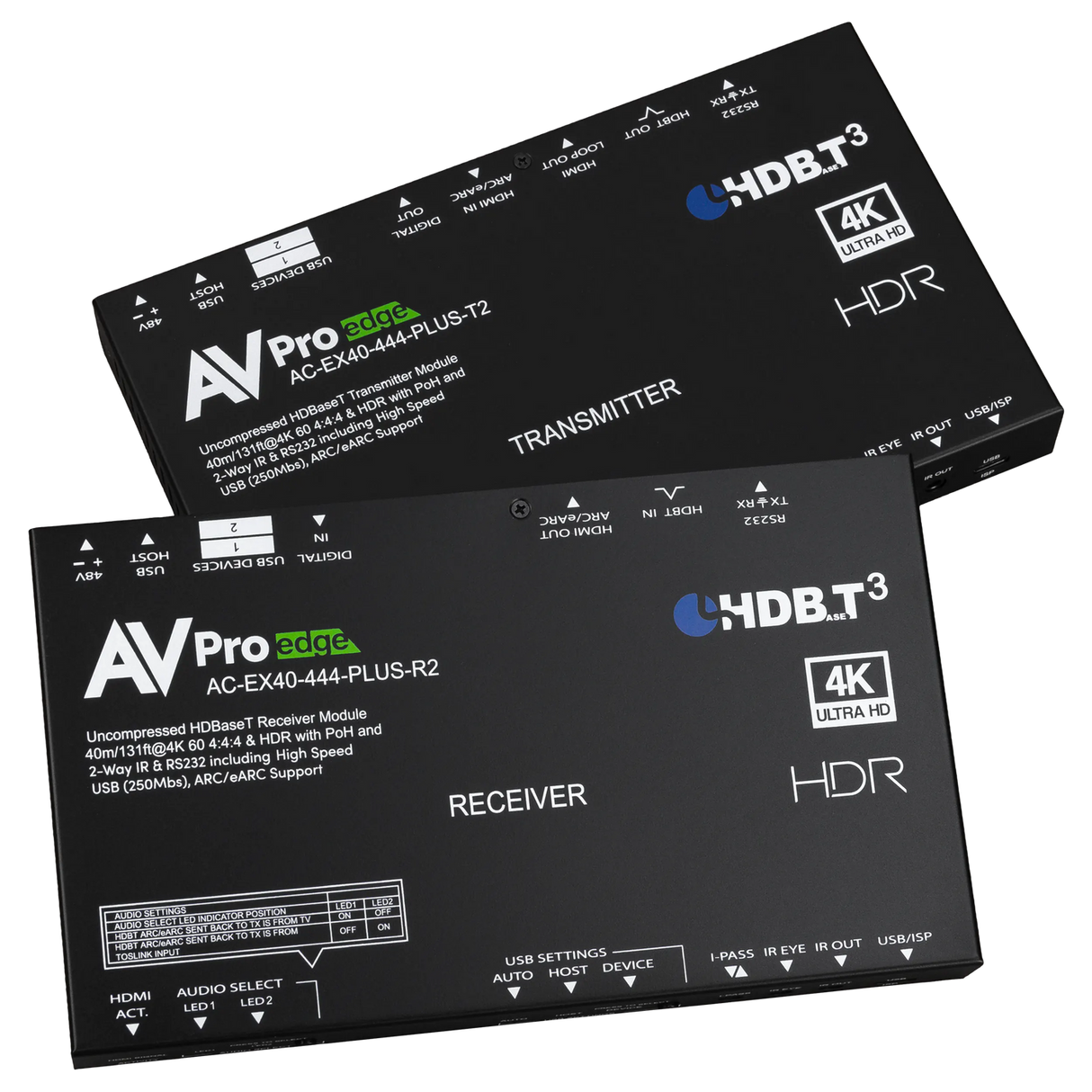

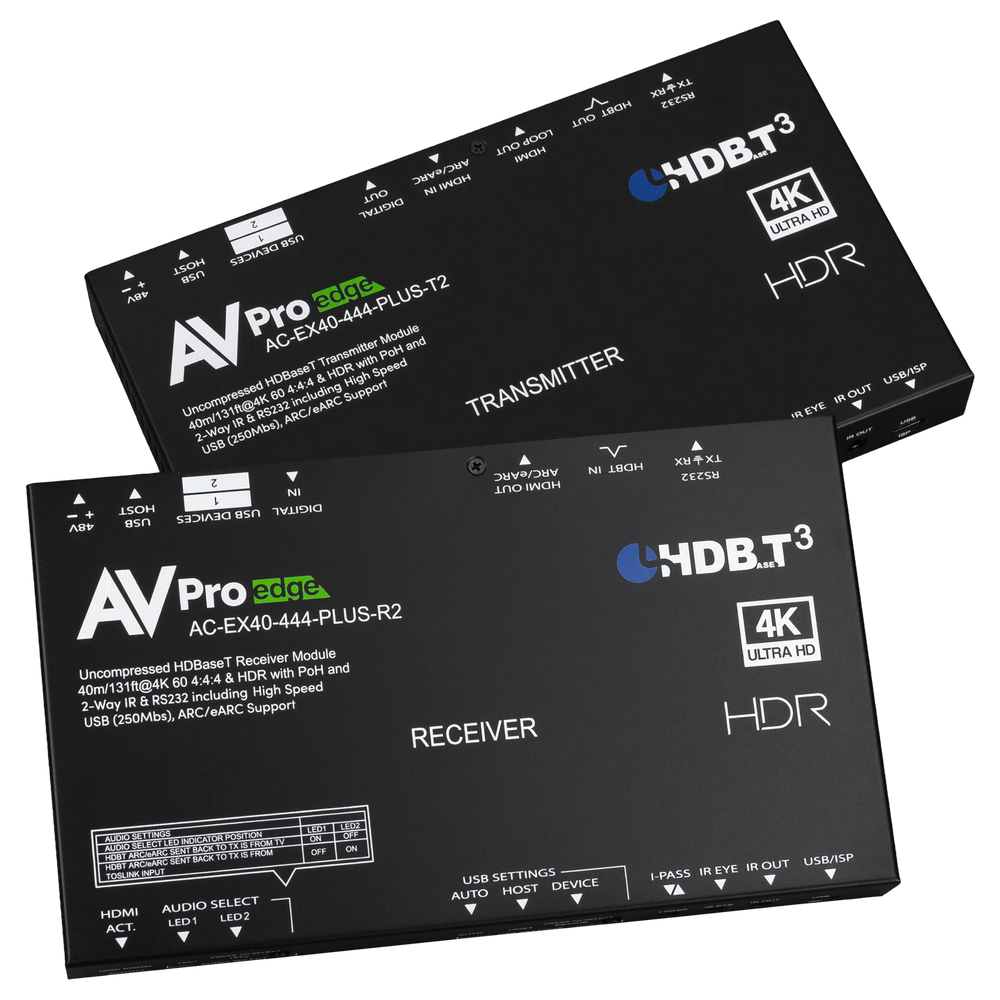

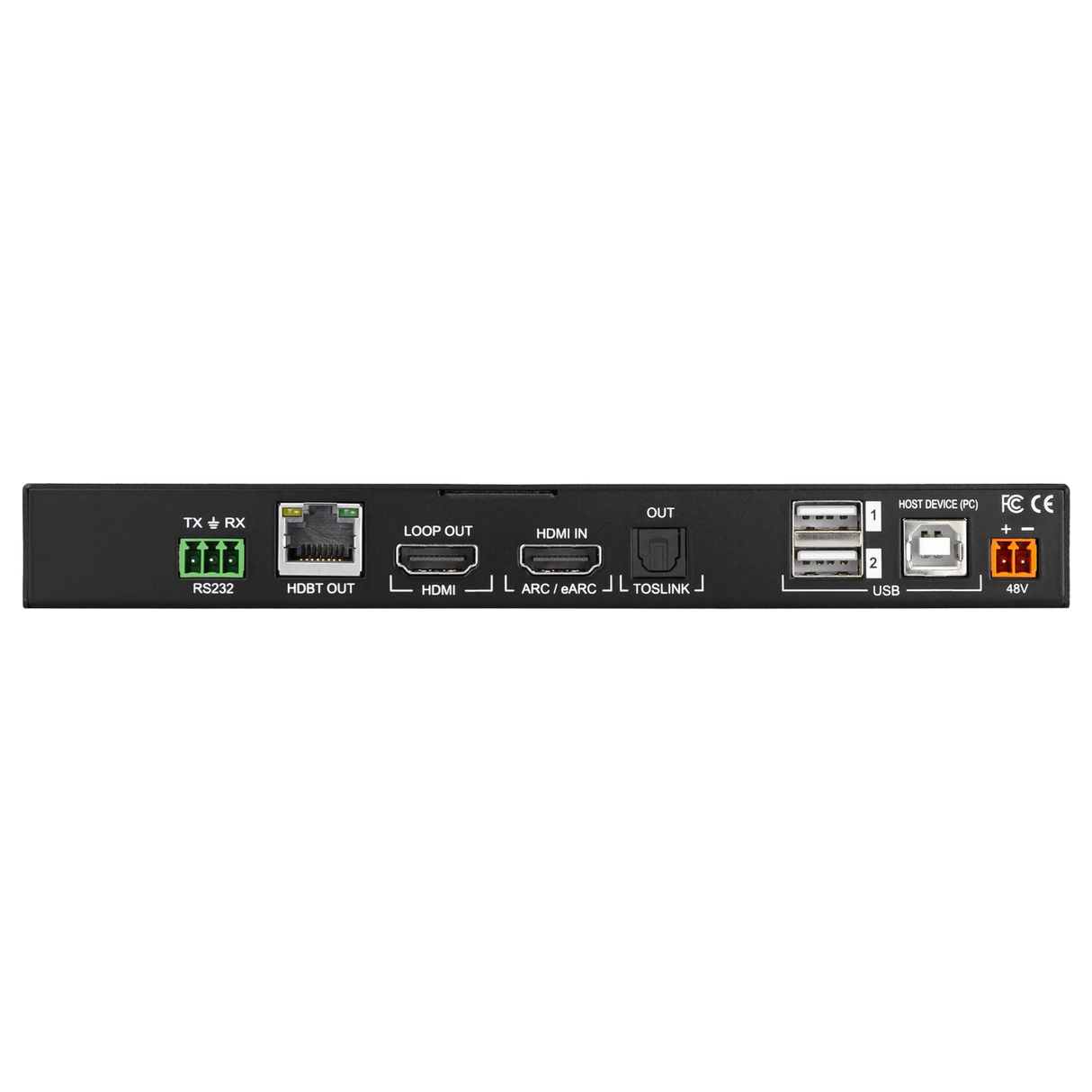

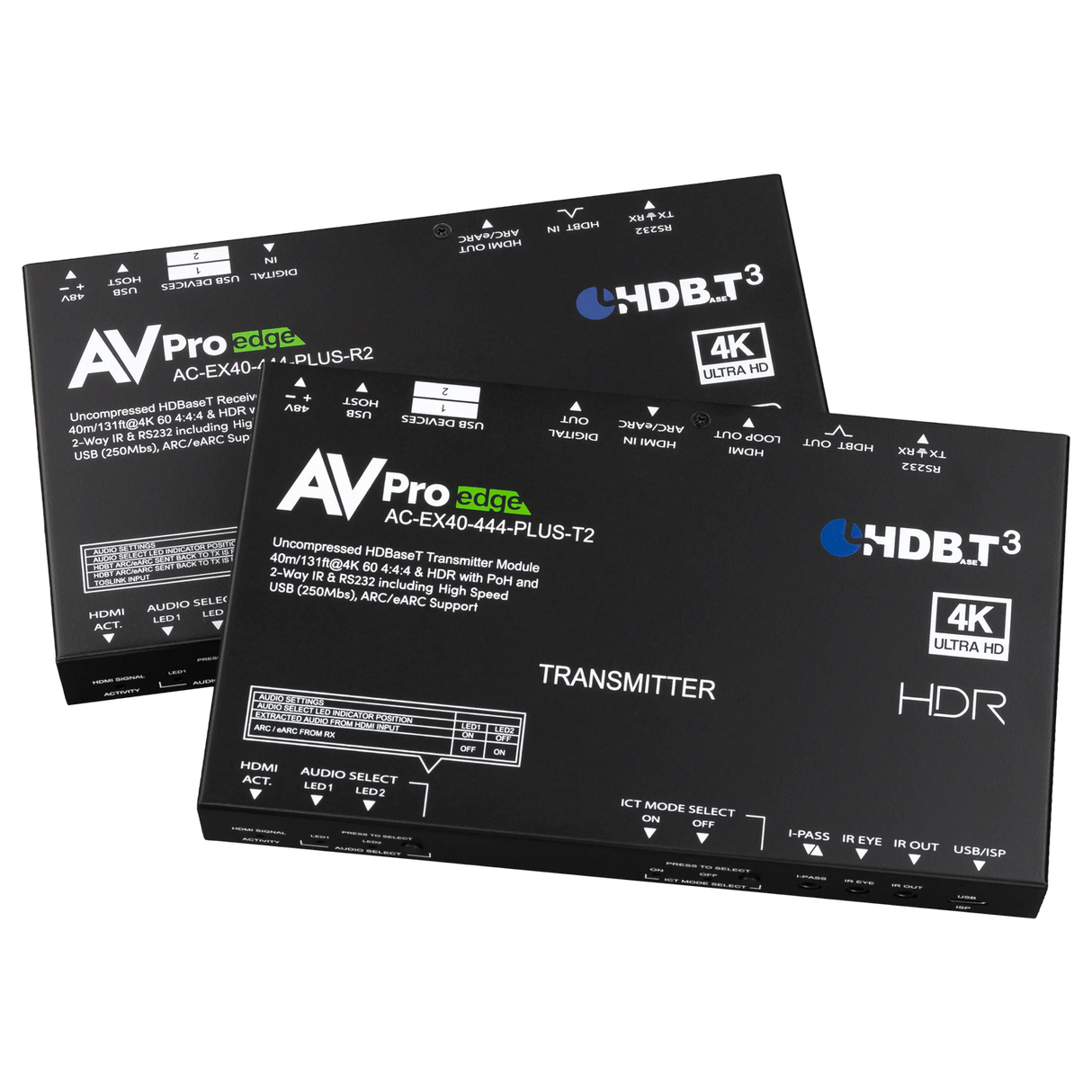

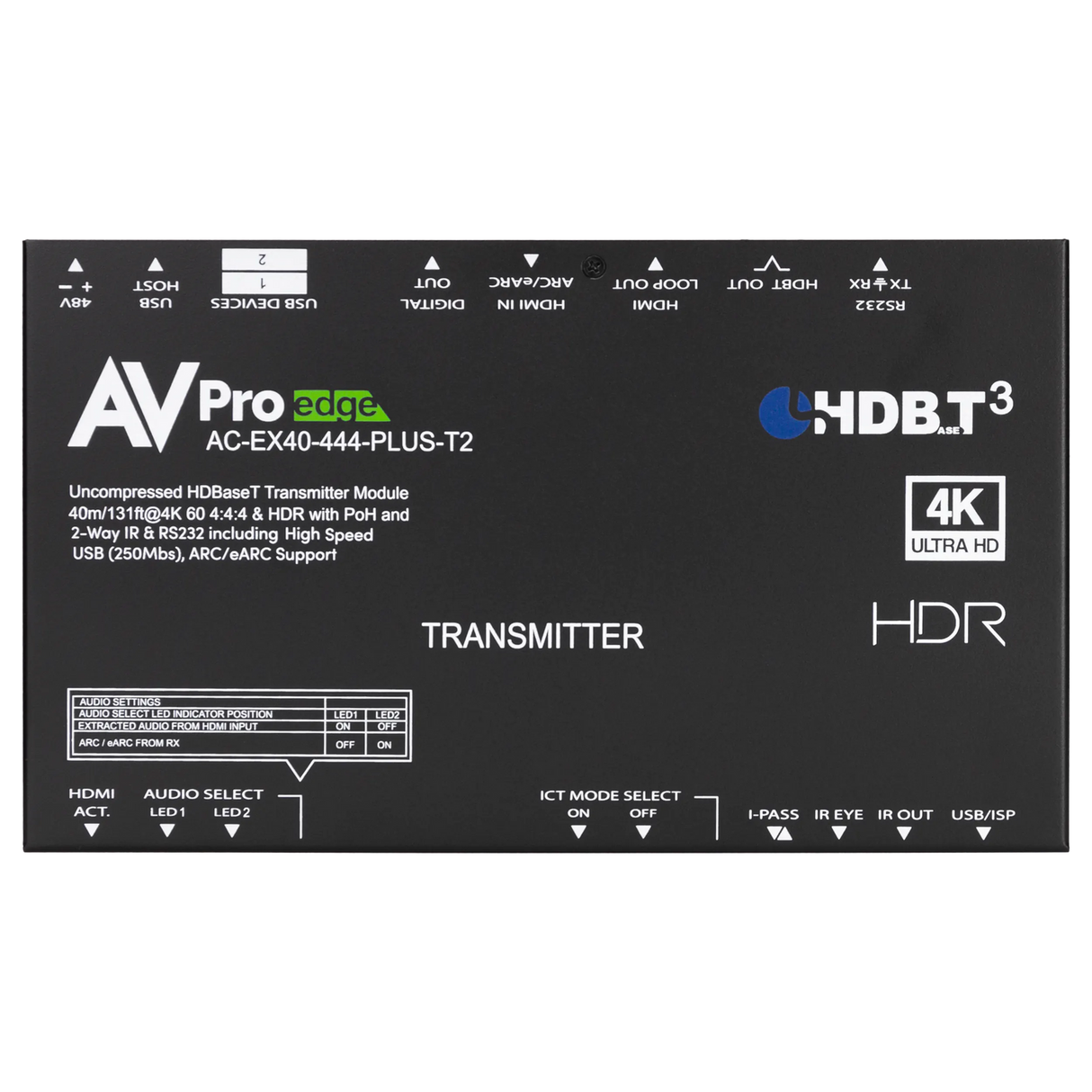

AVPro Edge AC-EX40-444-PLUS-KIT 18Gbps HDBaseT Extender Kit with USB Extension
AVPro Edge AC-EX40-444-PLUS-KIT is an HDBaseT HDMI extender kit built for long distance AV installs that need reliable 4K signal extension over category cabling. It is designed to move UHD video from a source to a remote display while keeping installation wiring clean and efficient. This extender kit targets professional residential and commercial integration where performance and flexibility matter.
This kit supports HDBaseT Spec 3.0 compliance and transports high bandwidth HDMI 2.0 signals with an option to reduce output bandwidth using Invisible Compression Technology when needed. It supports eARC signal transfer and is compatible with HDR10, HDR10+, Dolby Vision (24/30 Frames), and HLG metadata formats. USB 2.0 extension and configurable control for IR and RS-232 help consolidate video, control, and peripheral connectivity into a single pull.
Near-zero signal latency helps keep video timing natural for presentation and real world viewing. Built-in tools like downscaling, EDID management, and onboard test patterns support smoother commissioning and troubleshooting. Use this kit when you need dependable 4K60 4:4:4 extension, practical integration features, and resilient performance across varied cable infrastructures.
Key Features
- HDBaseT Spec 3.0 Compliance: HDBaseT Spec 3.0 compliant with backward compatibility.
- 18Gbps Bandwidth Adaptation: Designed for up to 18Gbps uncompressed transport with a selectable 10.2Gbps output option using ICT.
- eARC Support: Supports eARC signal transfer for compatible audio workflows.
- USB 2.0 Extension: Extends USB 2.0 connectivity using selectable host ports on TX and RX.
- Downscaling: Transmitter can downscale 4K and HDR to 1080p for mixed display environments.
- Audio Extraction: Extracts PCM 2 Channel L/R audio via TOSLINK from the transmitter end when the source outputs 2-channel audio.

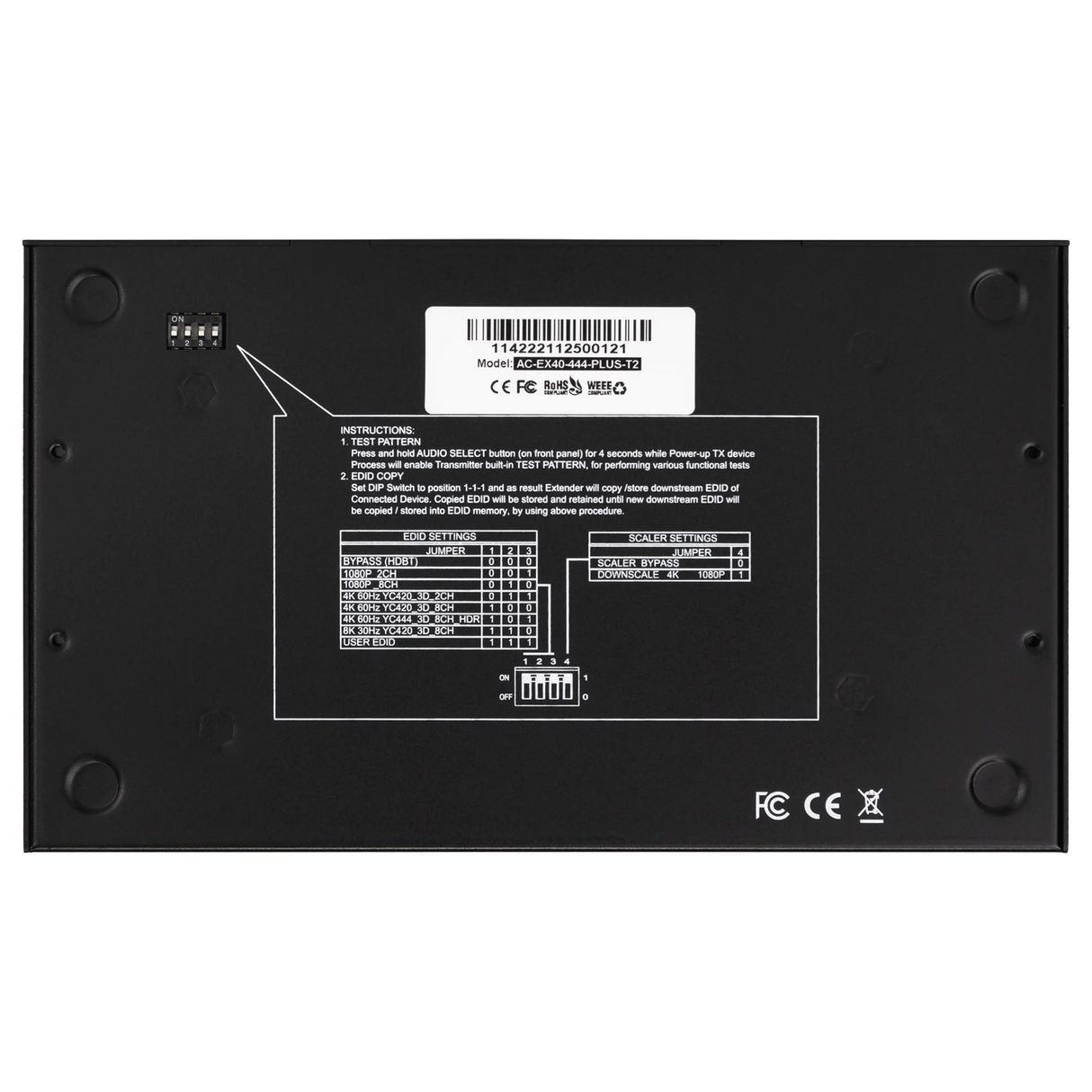

- Onboard Troubleshooting: Transmitter can generate a 1080p or 4K test pattern for verification and setup.
- Control Options: Configurable bidirectional control for IR and RS-232 signals.
Technical Specifications
- Video Resolutions: Up to 4K 60Hz 4:4:4
- VESA Resolutions: Up to DCI 4K (4096x2160)
- HDR Formats: HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG
- HDBaseT Distance 4K: 40 Meters / 131 Feet (Cat 6a)
- HDBaseT Distance Full HD: 70 Meters / 230 Feet (Cat 6a)
- Bandwidth: 18 Gbps
- HDCP: HDCP 2.3 and Earlier
- Down Scaling: 4K (and HDR) down to 1080p
- USB Version: USB 2.0
- Power Consumption Total: 12 Watts Max
- Power Supply Output: DC 48V 0.5A
