AVPro Edge AC-EX70-UHD-ARC 70M 10.2Gbps HDBaseT HDMI Extender Kit

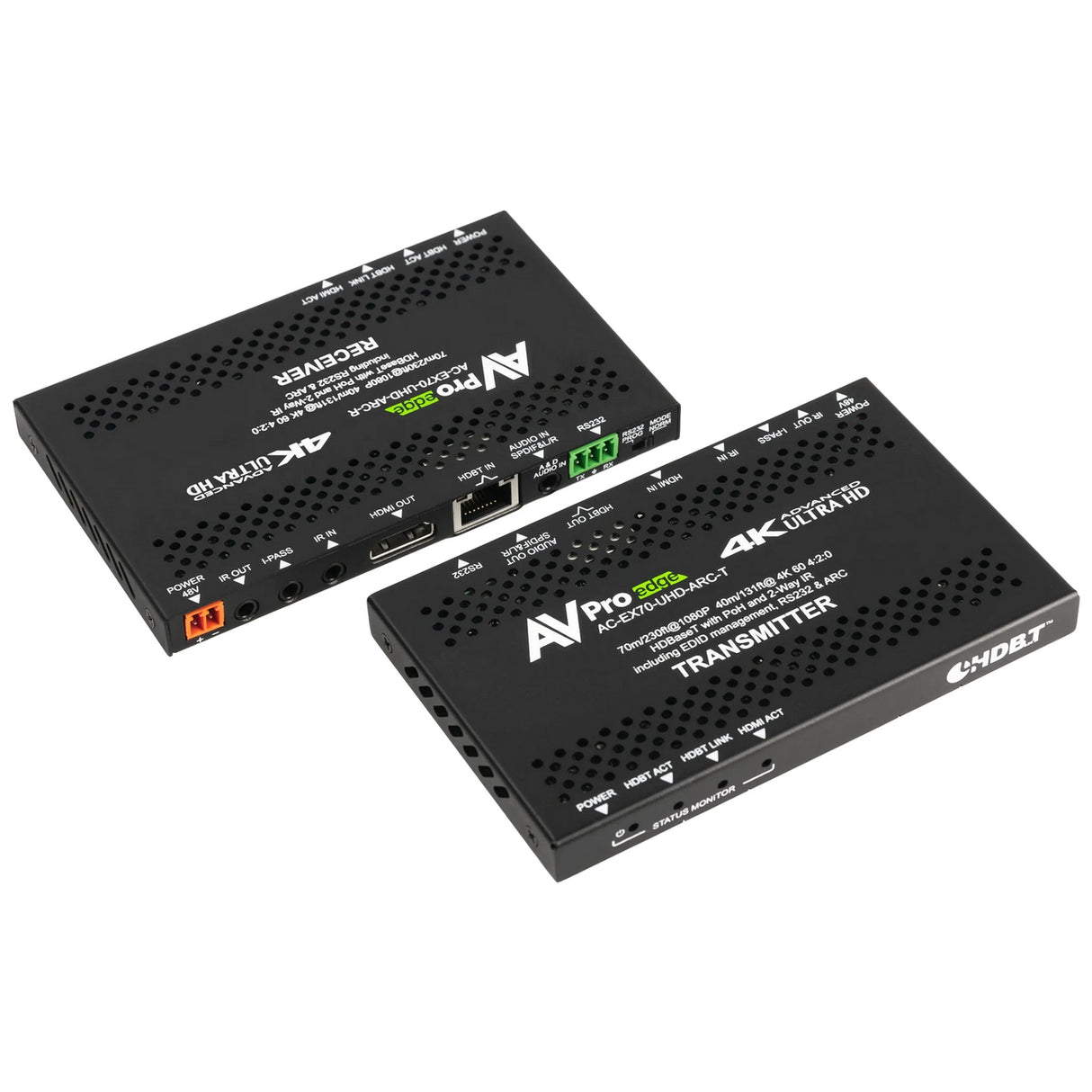

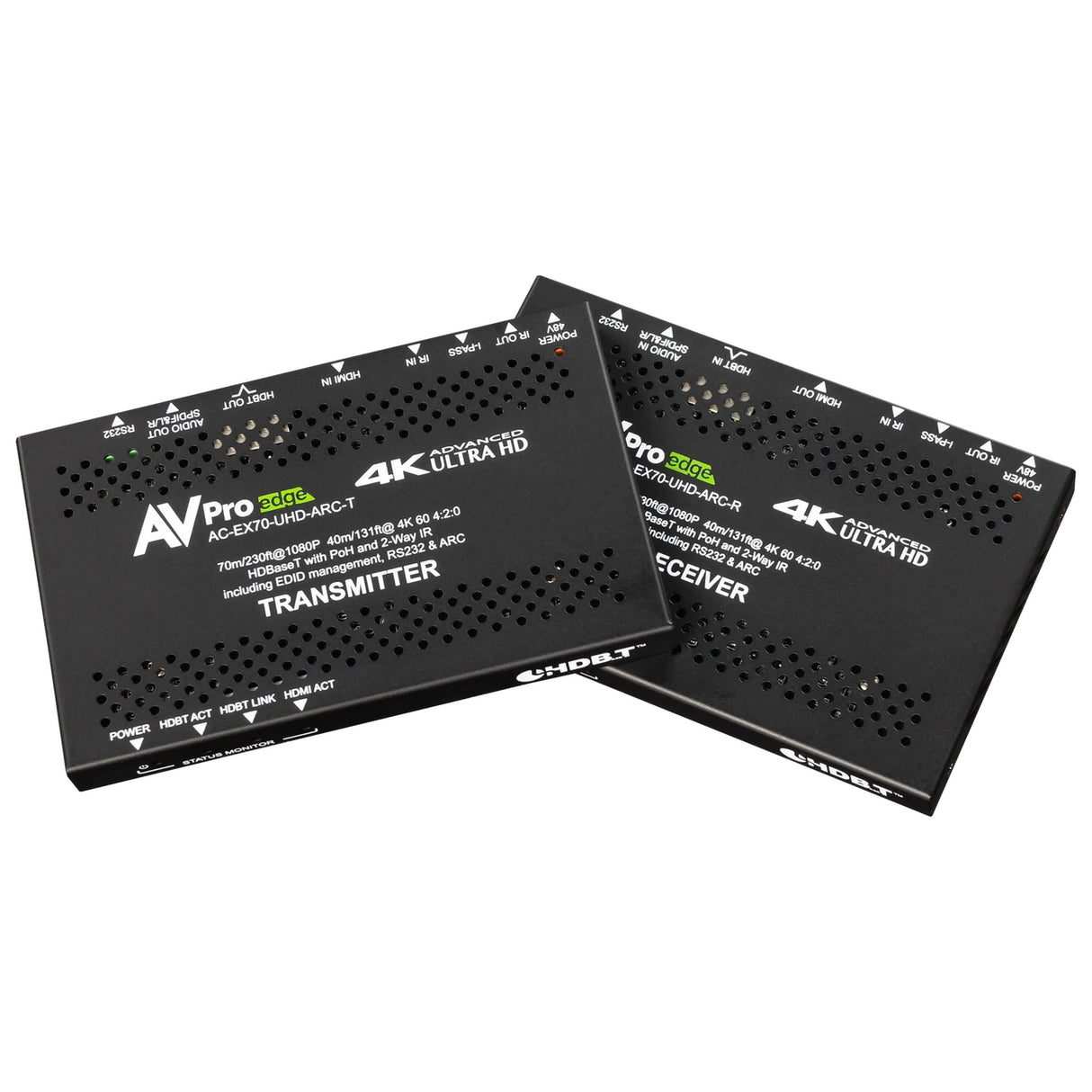

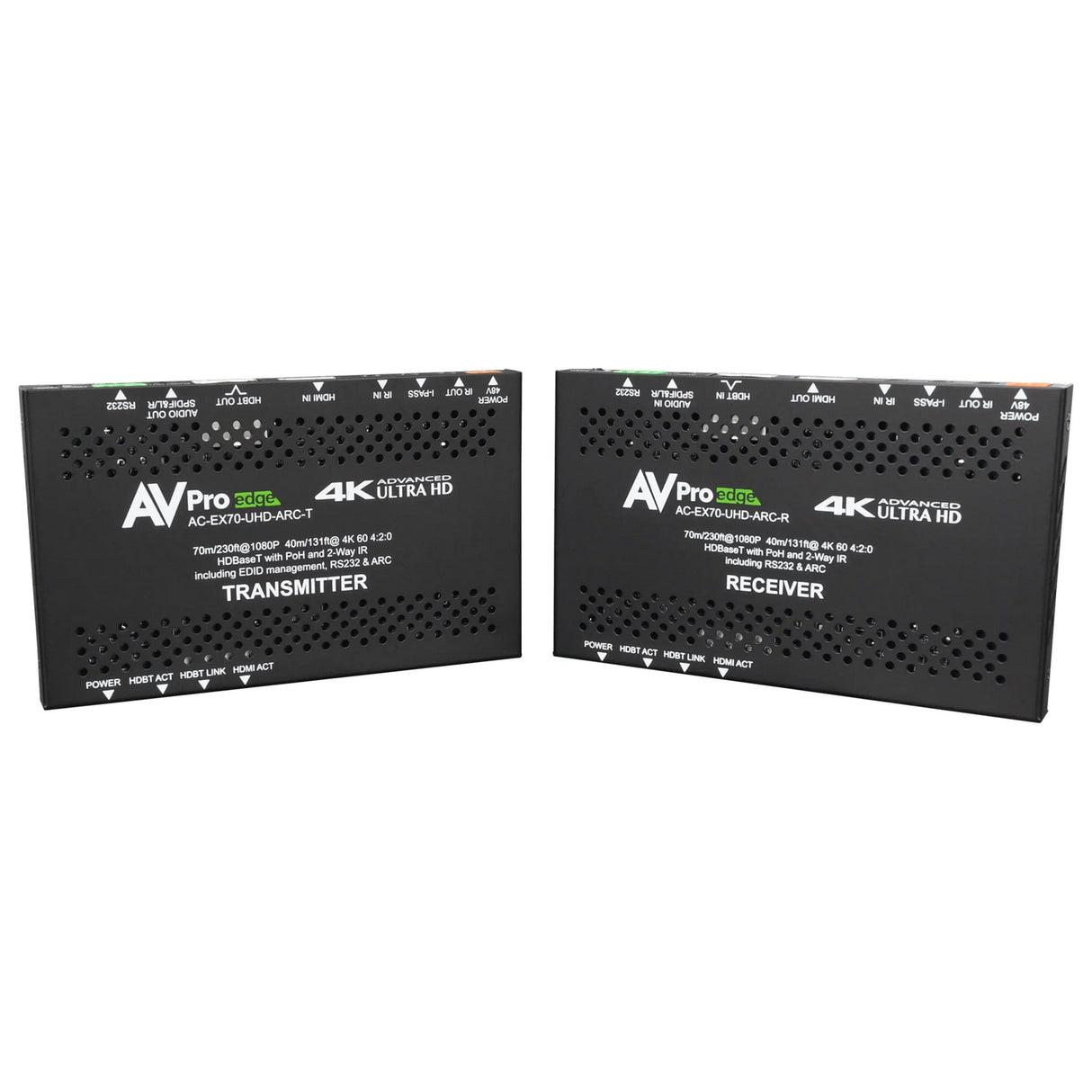

The AVPro Edge AC-EX70-UHD-ARC is an ultra slim HDBaseT extender kit designed to send 4K UHD HDMI from a source to a remote display over a single Cat 6a cable run. It also supports Audio Return Channel so display audio can be returned to the headend through the HDMI ARC path.
This kit supports HDMI 2.0 video up to 4K60 4:2:0 and 4K30 4:4:4 with 10.2 Gbps bandwidth plus CEC support. EDID management includes multiple preset EDID options and a user EDID copy mode to help improve source and display compatibility.
Bi directional IR and RS-232 pass through supports control from either end of the link, while PoH bi directional power lets one unit power the other for cleaner installs in tight spaces. With up to 70 meters at Full HD and up to 40 meters at 4K 60 4:2:0, it is well suited for conference rooms, classrooms, and residential AV distribution.
Key Features
- HDBaseT Extension: Sends HDMI signals up to 70 meters at Full HD and up to 40 meters at 4K 60 4:2:0 over Cat 6a.
- Audio Return Channel: Supports ARC for returning audio through the HDMI connection.

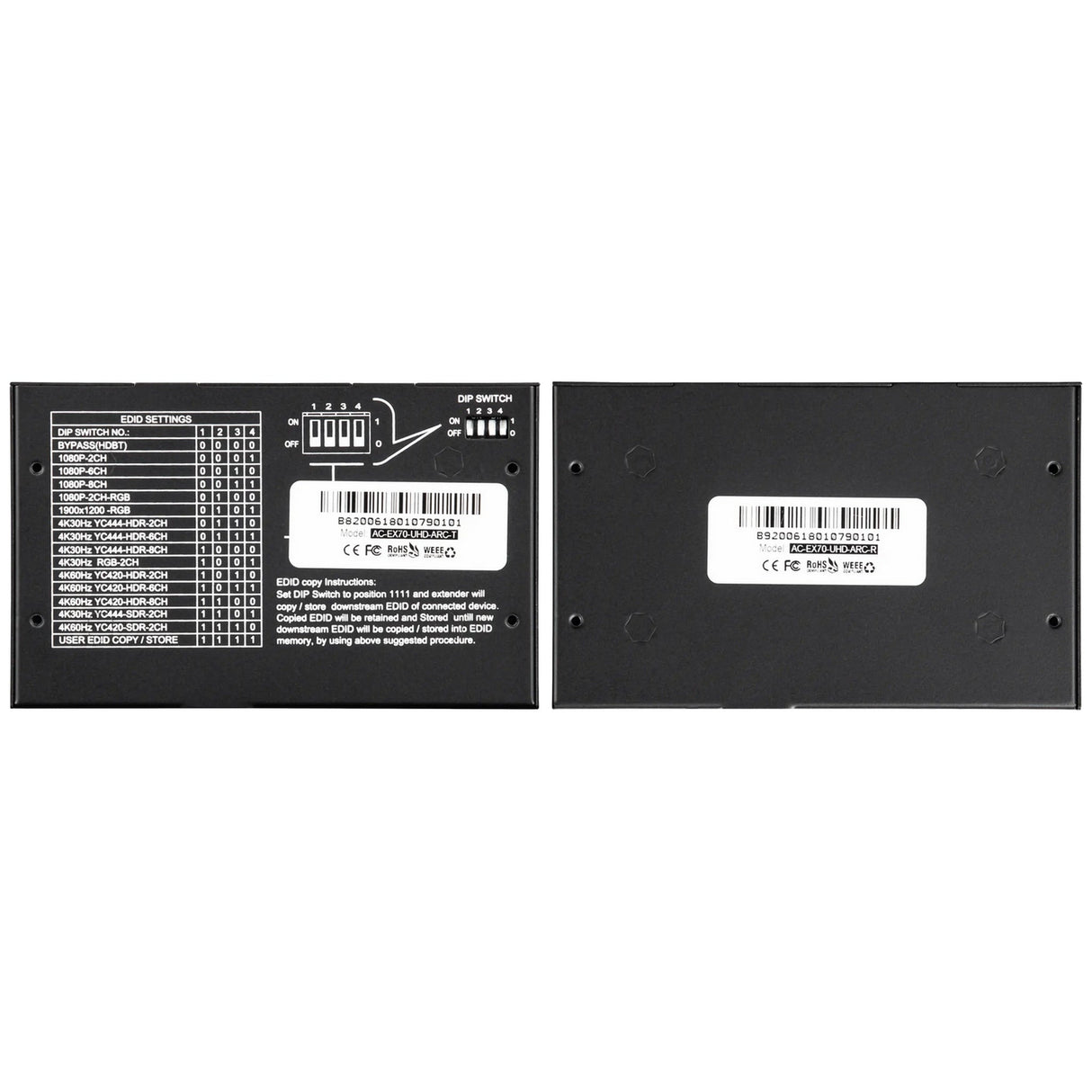

- EDID Management: Includes EDID Bypass, multiple preset modes, and USER EDID copy.
- Bi Directional Control: IR and RS-232 are bi directional for control from source or display side.
- PoH Bi Directional Power: Power over HDBaseT can power Rx from Tx or Tx from Rx.
- Audio IO Options: Provides 3.5mm stereo and Mini Toslink audio input and output on TX and RX.
- Field Updates: Firmware updates can be performed in the field if needed.
Technical Specifications
- Video Resolutions: Up to 4K 60Hz 4:2:0 and 4K30 4:4:4.
- VESA Resolutions: Up to DCI 4k (4096x2160).
- Bandwidth: 10.2 Gbps.
- HDCP: HDCP 2.3 and Earlier.
- CEC: YES.
- ARC Support: Yes.
- HDBaseT Distance 4K 60 4:2:0: 40 Meters (131 Feet) (Cat 6a).
- HDBaseT Distance Full HD: 70 Meters (230 Feet) (Cat 6a).
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported.
- Deep Color: Up to 16 bit (1080) Up to 12 bit (4K).
- Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 and 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos.

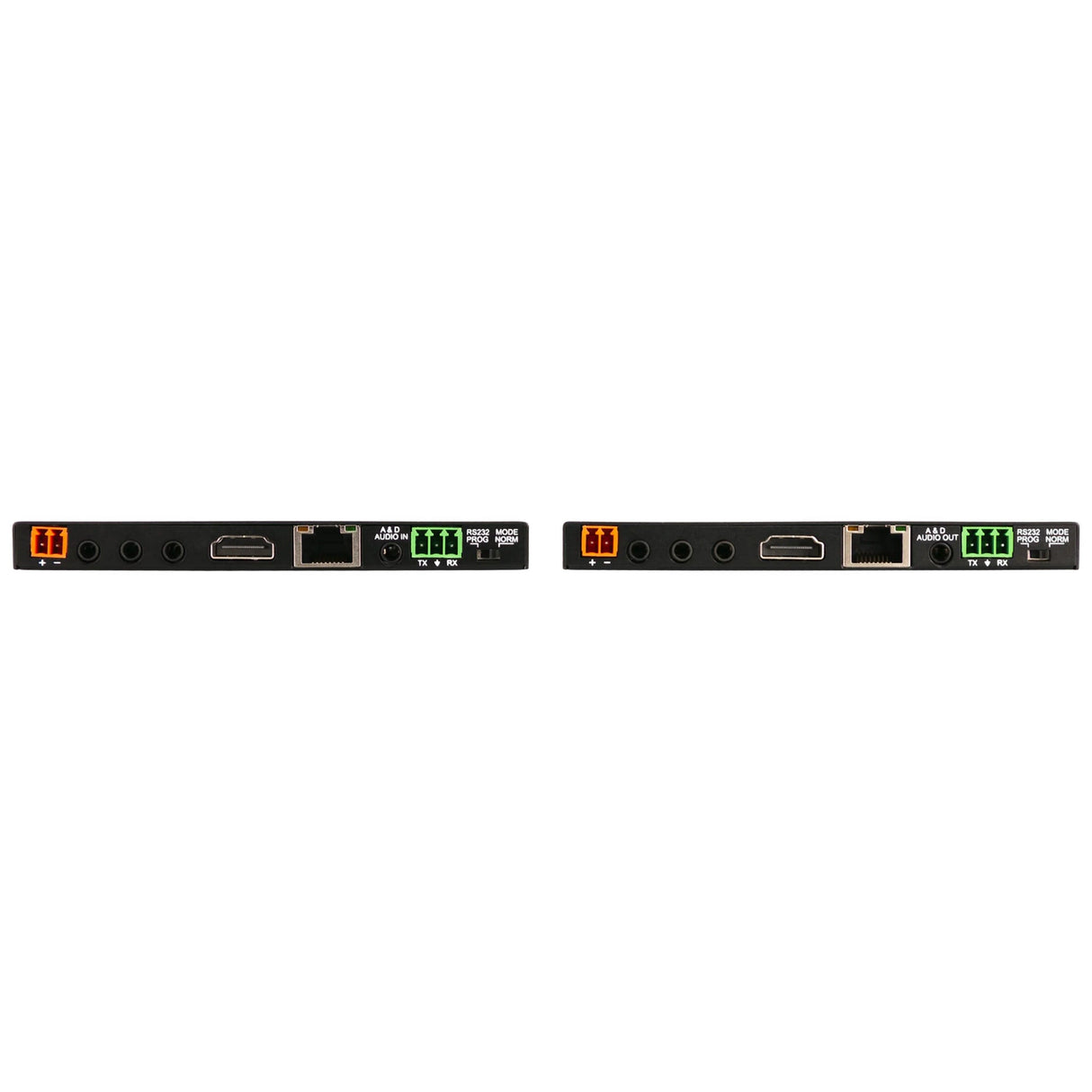

- Ports: HDMI Type A; HDBaseT RJ45 w/ PoH for HDBaseT Receivers; IR 3.5mm; RS-232 3 Pin Terminal Block; Power (TX and RX) 2 pin terminal block.
- Power Consumption Total: 12 Watts Max.

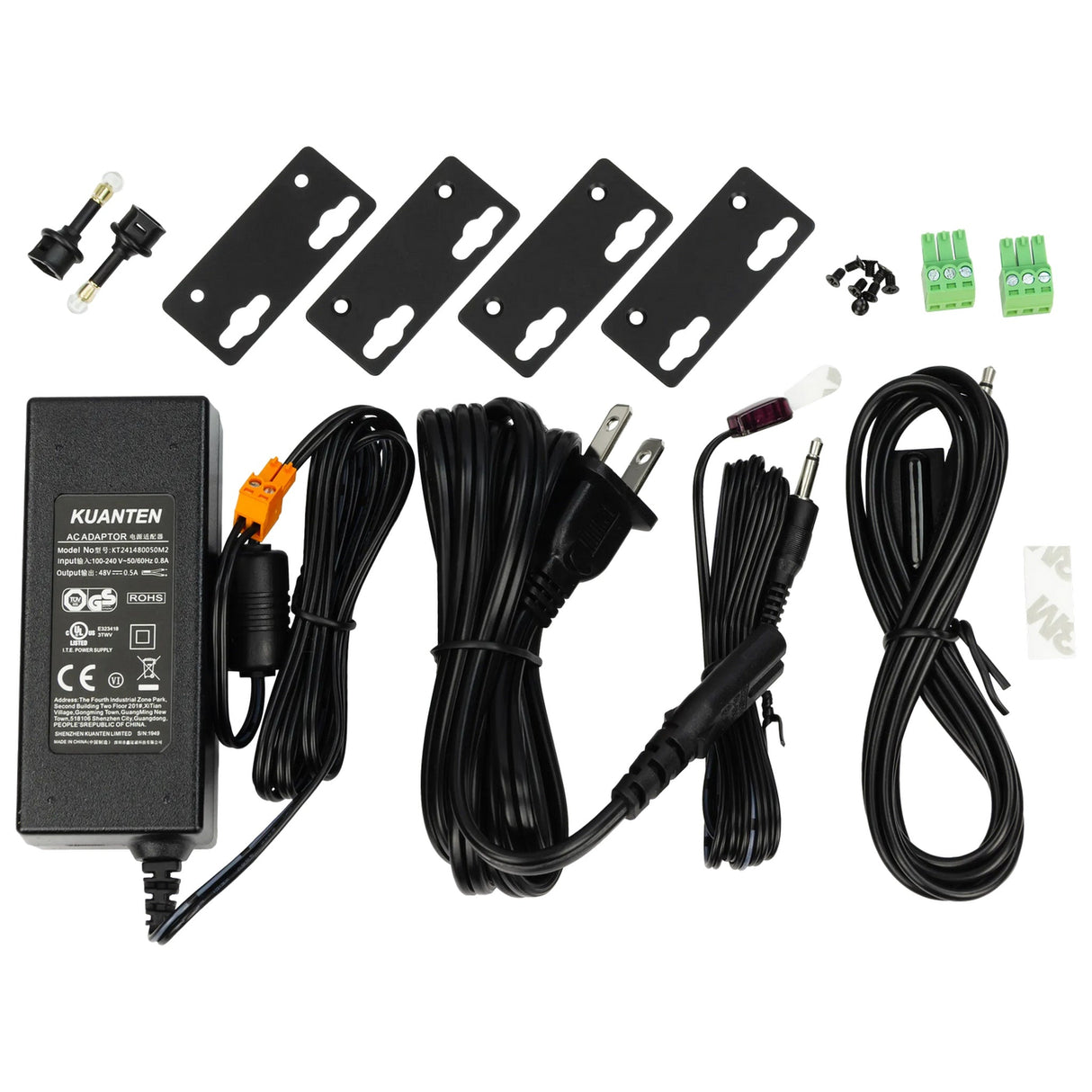

- Power Supply: Input AC 100-240V ~ 50/60Hz; Output DC 48V 0.5A.
