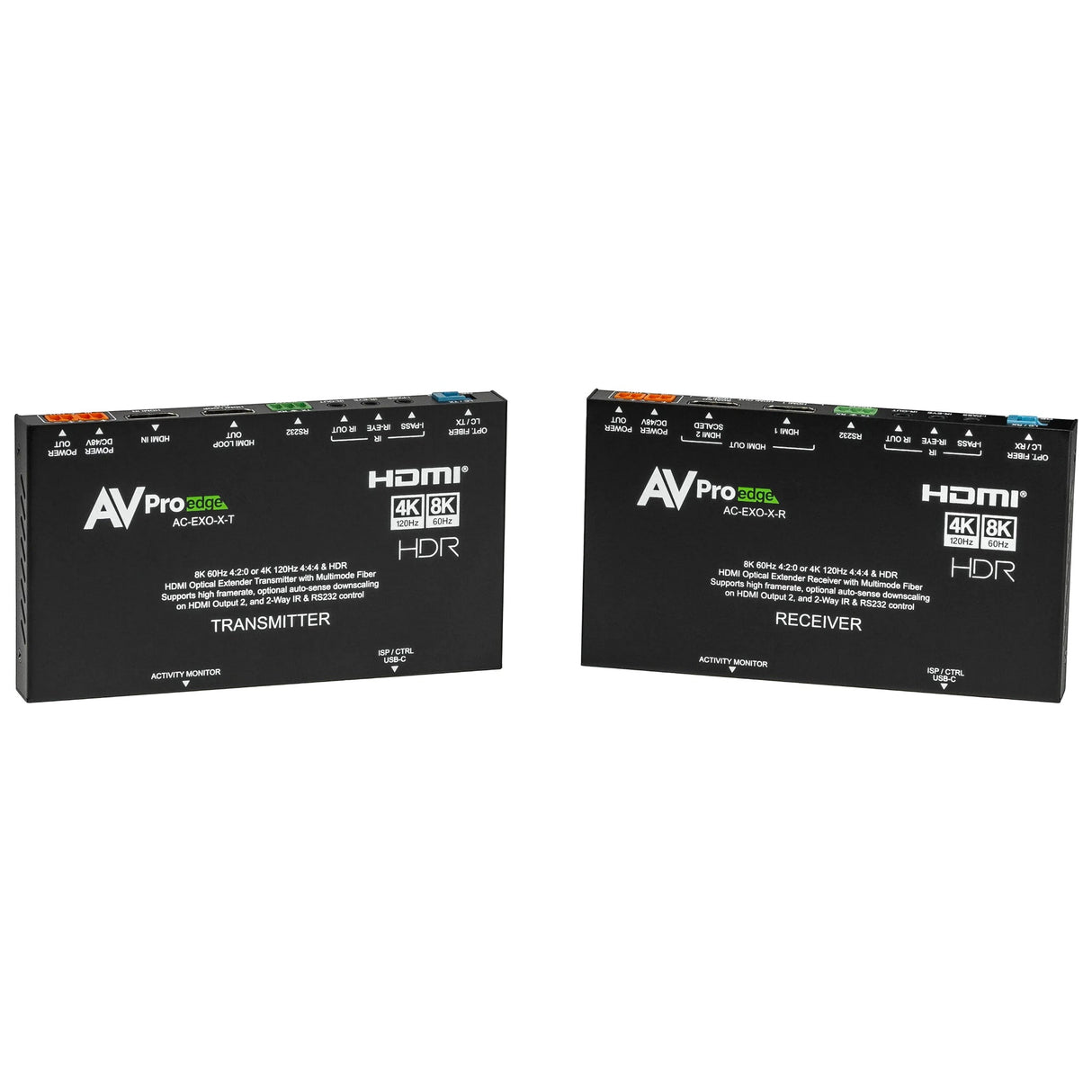

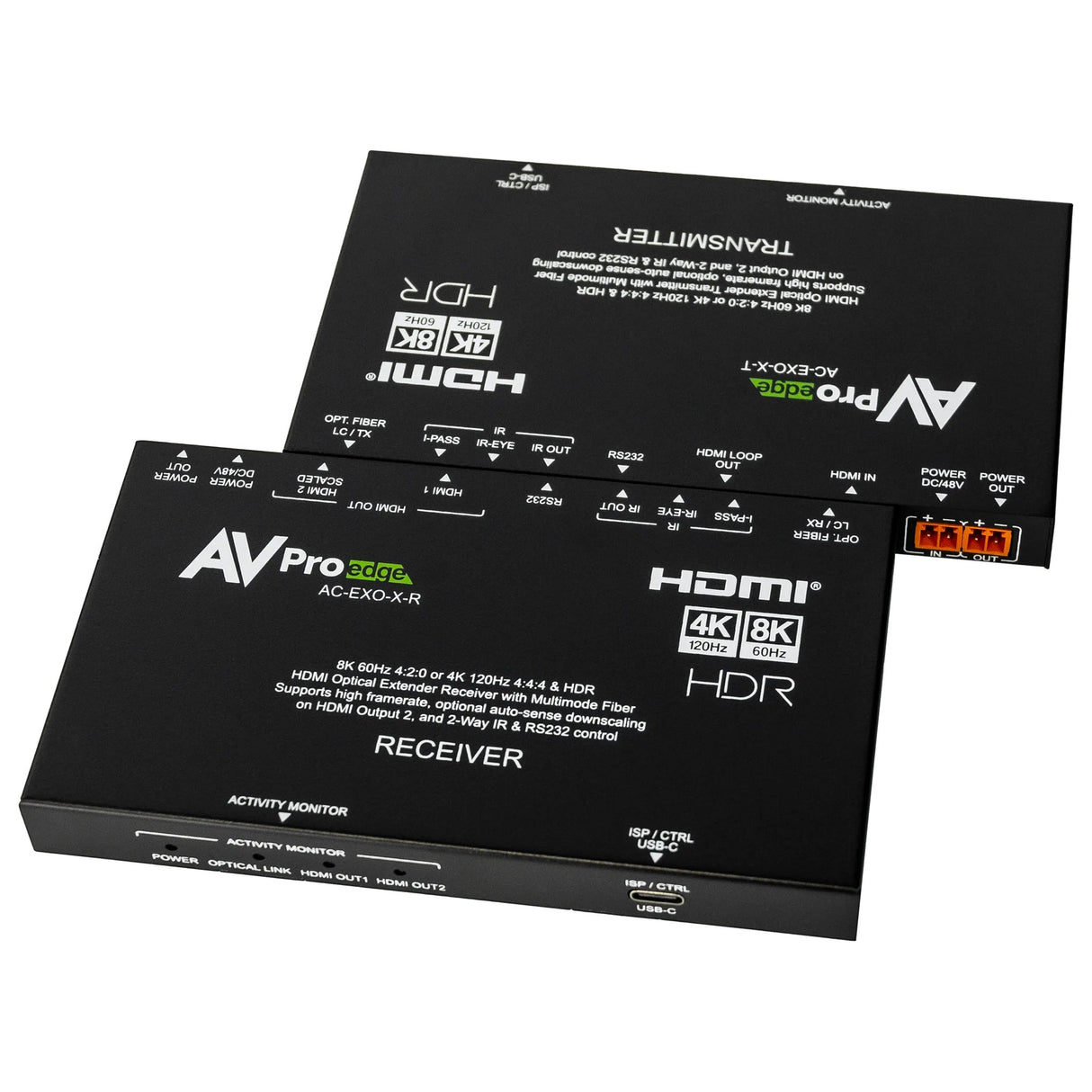

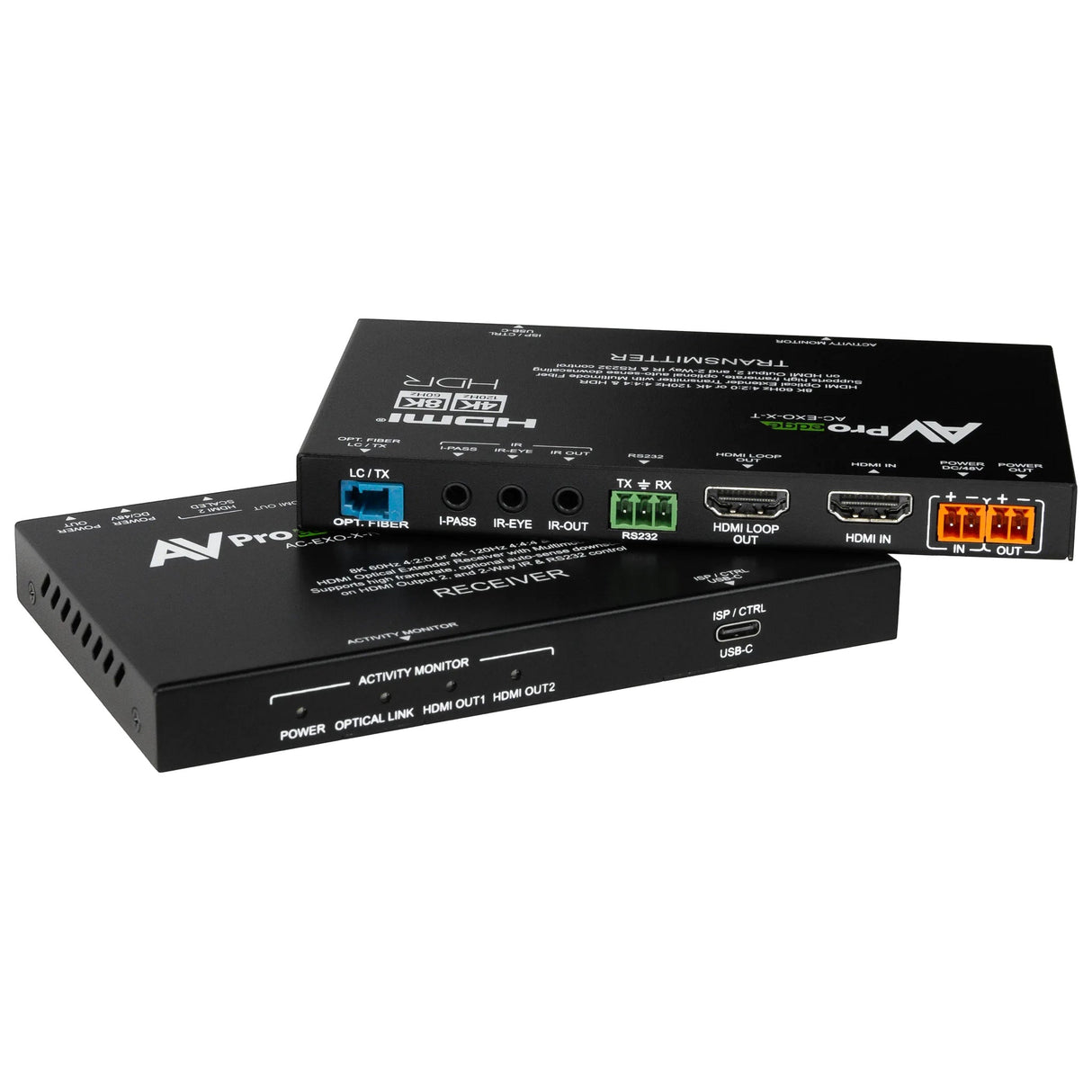

AVPro Edge AC-EXO-X-KIT 40Gbps HDMI 2.1 Fiber Optic Extender Kit

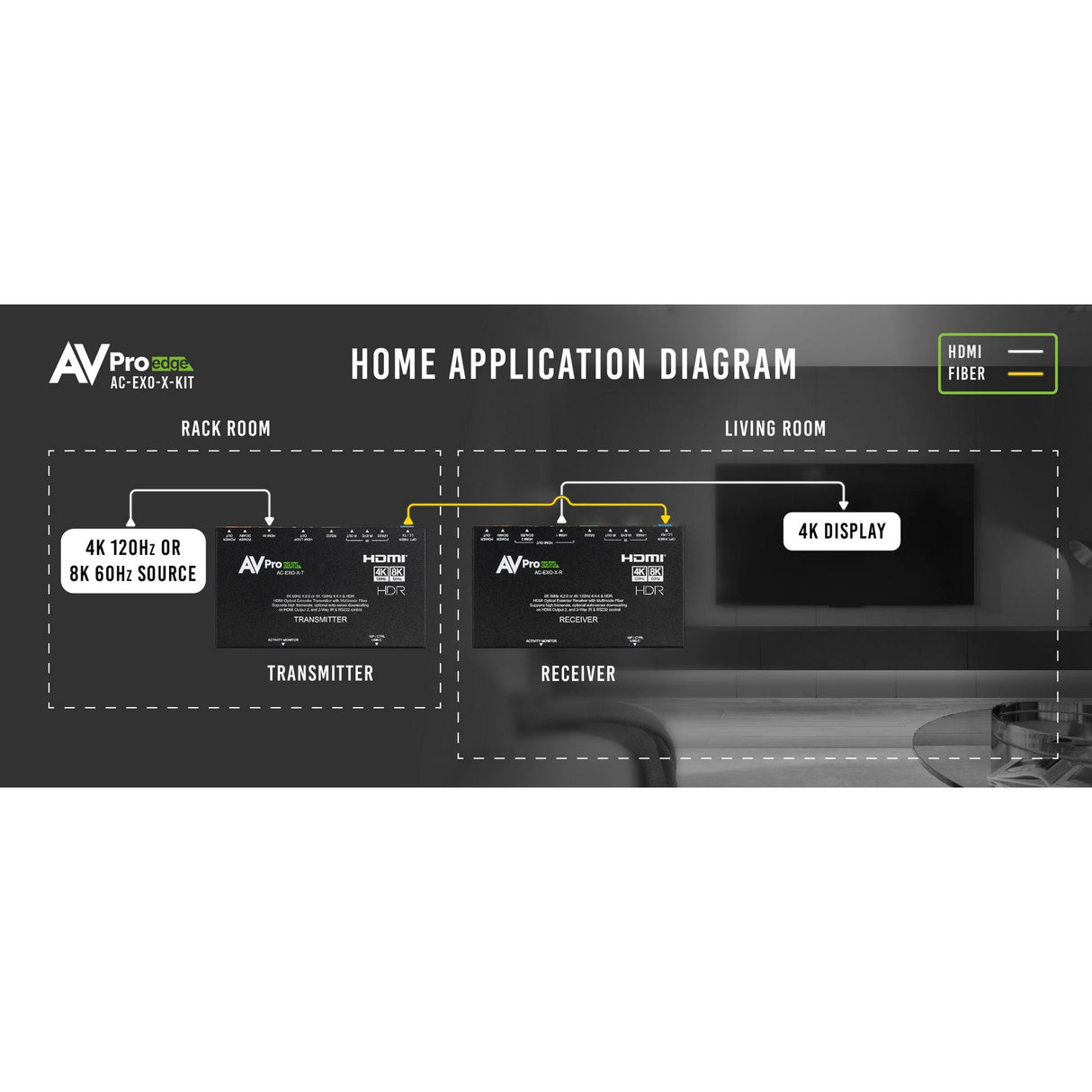

The AVPro Edge AC-EXO-X-KIT is a 40Gbps HDMI 2.1 fiber optic extender kit built for high bandwidth 8K and high frame rate 4K signal extension over multi-mode fiber. It is designed to preserve original image fidelity for demanding Pro AV and NextGen AV installations. Use it to extend HDMI video, audio, and control signals with near-zero latency performance.
Engineered around an HDMI 2.1 fiber interface module, it uses a hyper-precise, beam-focusing lens assembly to help prevent refraction and downline light scatter. A custom AVPro Edge Link Training algorithm with forward error correction analysis monitors Fixed Rate Link status and restrains Link Training bandwidth reductions. The receiver includes dual-HDMI outputs, with HDMI Output 2 performing downscaling including auto-sensing.
This extender supports advanced HDR workflows and mixed-resolution system design with comprehensive EDID management. Configurable, bidirectional IR and RS-232 control signal management can consolidate wiring to a solo pull while maintaining reliable control transport. With latency less than 8 microseconds, it delivers a measurable but visually imperceptible delay for high performance AV distribution.
Key Features
- 40Gbps HDMI 2.1 Transport: Supports up to 40Gbps (FRL5) for 8K and high frame rate 4K distribution over fiber.
- Multi-Mode Fiber Extension: Confirmed distances with a 40Gbps, 8K/60Hz 4:2:0 signal include OM2 / 40 meters, OM3 / 200 meters, OM4 / 300 meters.
- Lens Assembly: Hyper-precise, beam-focusing lens assembly limits transmission refraction and downline light scatter with minimal attenuation.
- Link Training Control: Custom algorithm monitors Fixed Rate Link status and restrains Link Training bandwidth reductions.

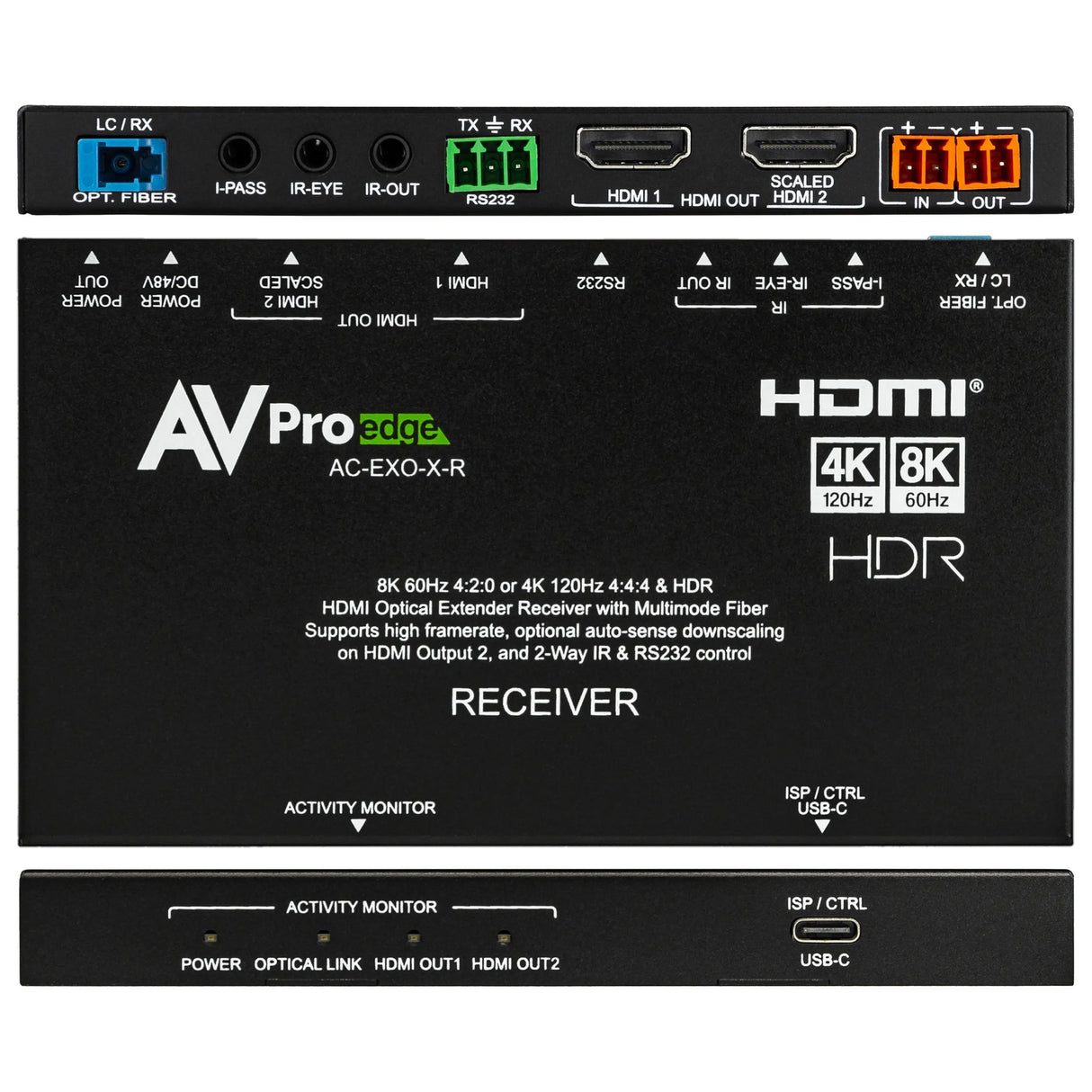

- Dual HDMI Outputs: Receiver features dual-HDMI outputs with an always-scaled secondary output (selectable as 8K to 4K, 8K to 1080p, or 4K to 1080p).
- Control Pass-Through: Configurable, bidirectional IR and RS-232 control signal management for streamlined installs.
- EDID Management: Comprehensive EDID management for mixed-resolution NextGen systems.
Technical Specifications
- Video Resolutions: Up to 8K 60Hz 4:2:0 / 8K 30Hz 4:4:4 / 4K 120Hz
- Bandwidth: 40Gbps (FRL5)
- HDR Formats: HDR10, HDR10+, Dolby Vision, HLG
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
- Color Space: YUV (Component), RGB (CSC: REC.601, REC.709, BT2020, DCI, P3 D6500)
- Deep Color: Up to 16-bit (1080p), up to 12-bit (4K)
- Scaling Output 2 Only: 8K to 4K, 8K to 2K (1080p)
- Audio Formats: HDMI PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
- Fiber Type: Multimode OM3
- Fiber Connector: Simplex LC (Lucent Connector)
- Distance OM2: Up to 40M
- Distance OM3: Up to 200M
- Distance OM4: Up to 300M
- HDCP: HDCP 2.3 and earlier

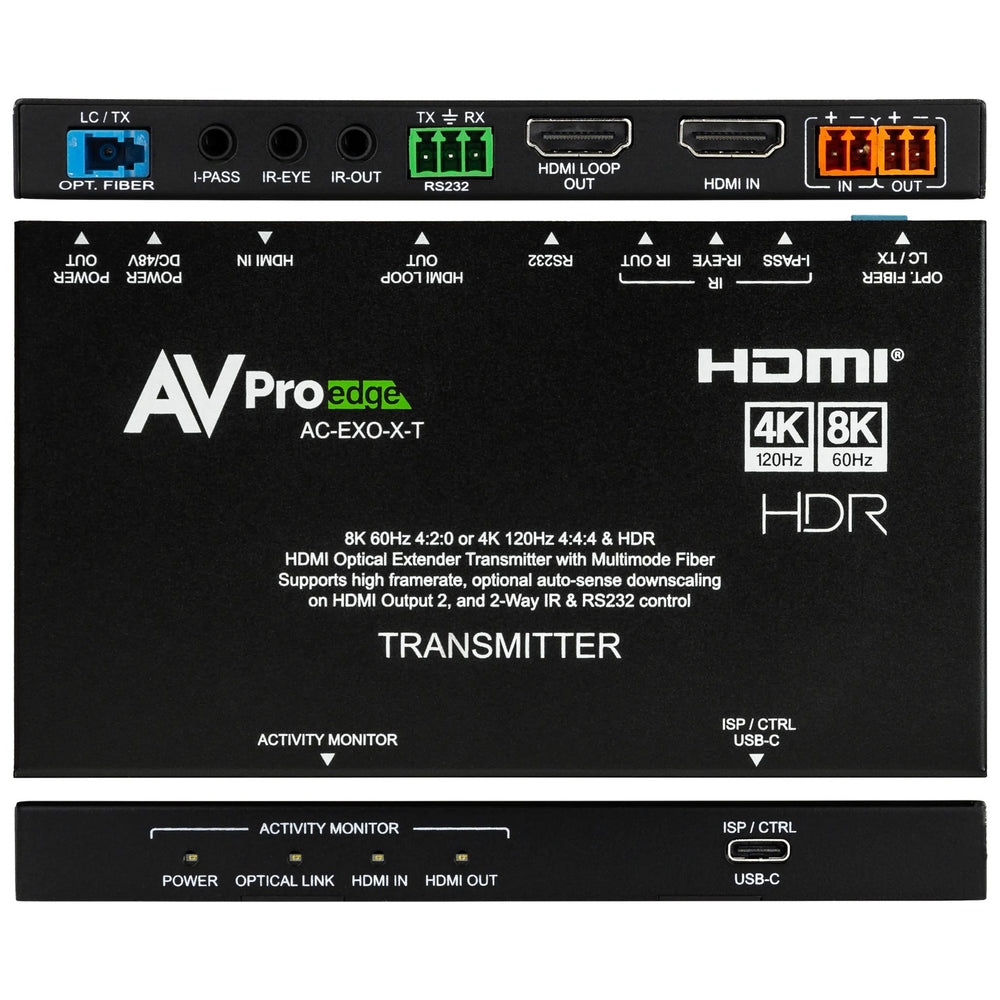

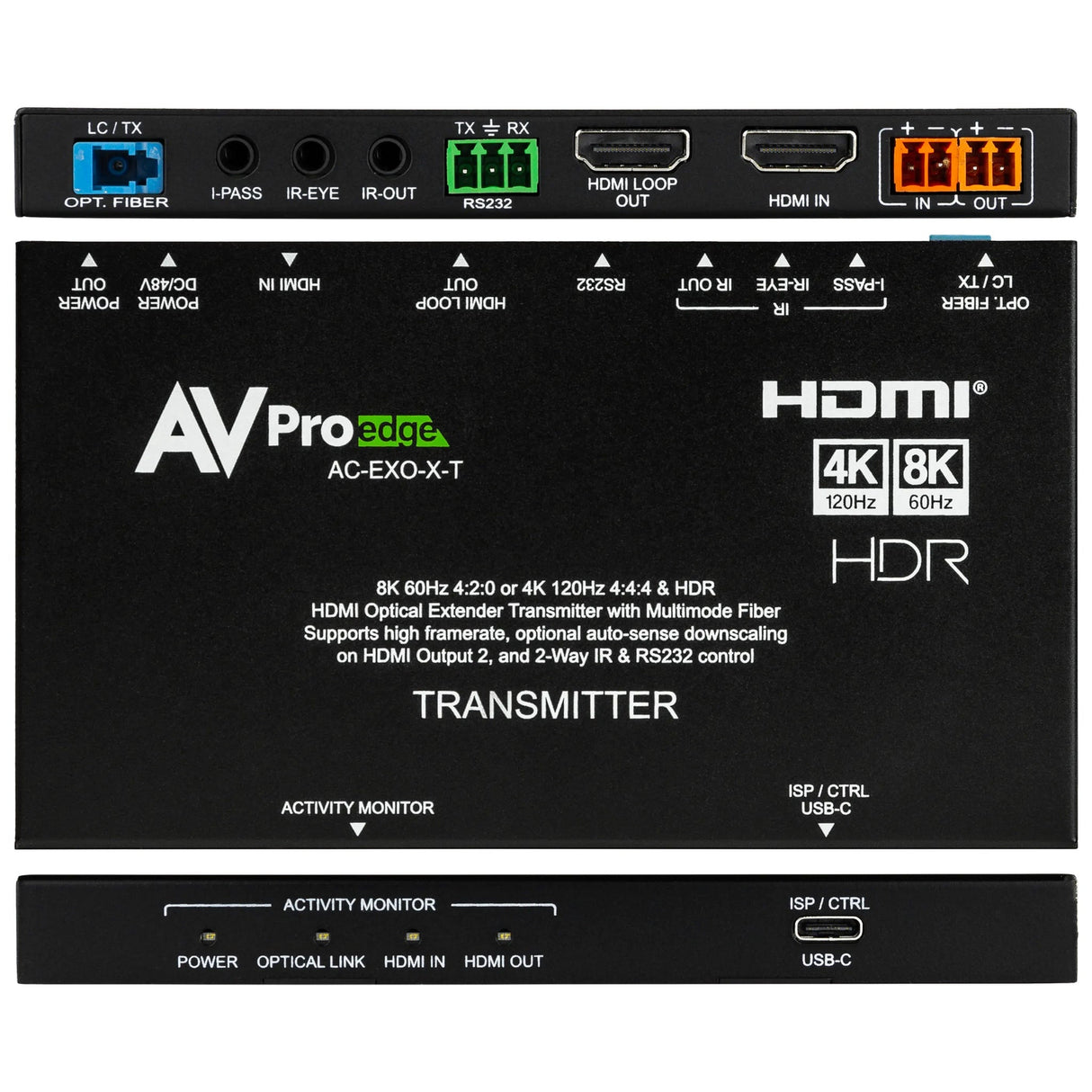

- Ports HDMI Tx and Rx: Type A
- IR Transmit Tx and Rx: 3.5mm Mono Jack (TS)
- IR Receive Tx and Rx: 3.5mm Stereo Jack (TRS)
- RS-232 Control Tx and Rx: 3-pin Terminal Block
- Power Consumption Total: 2.5 Watts Maximum

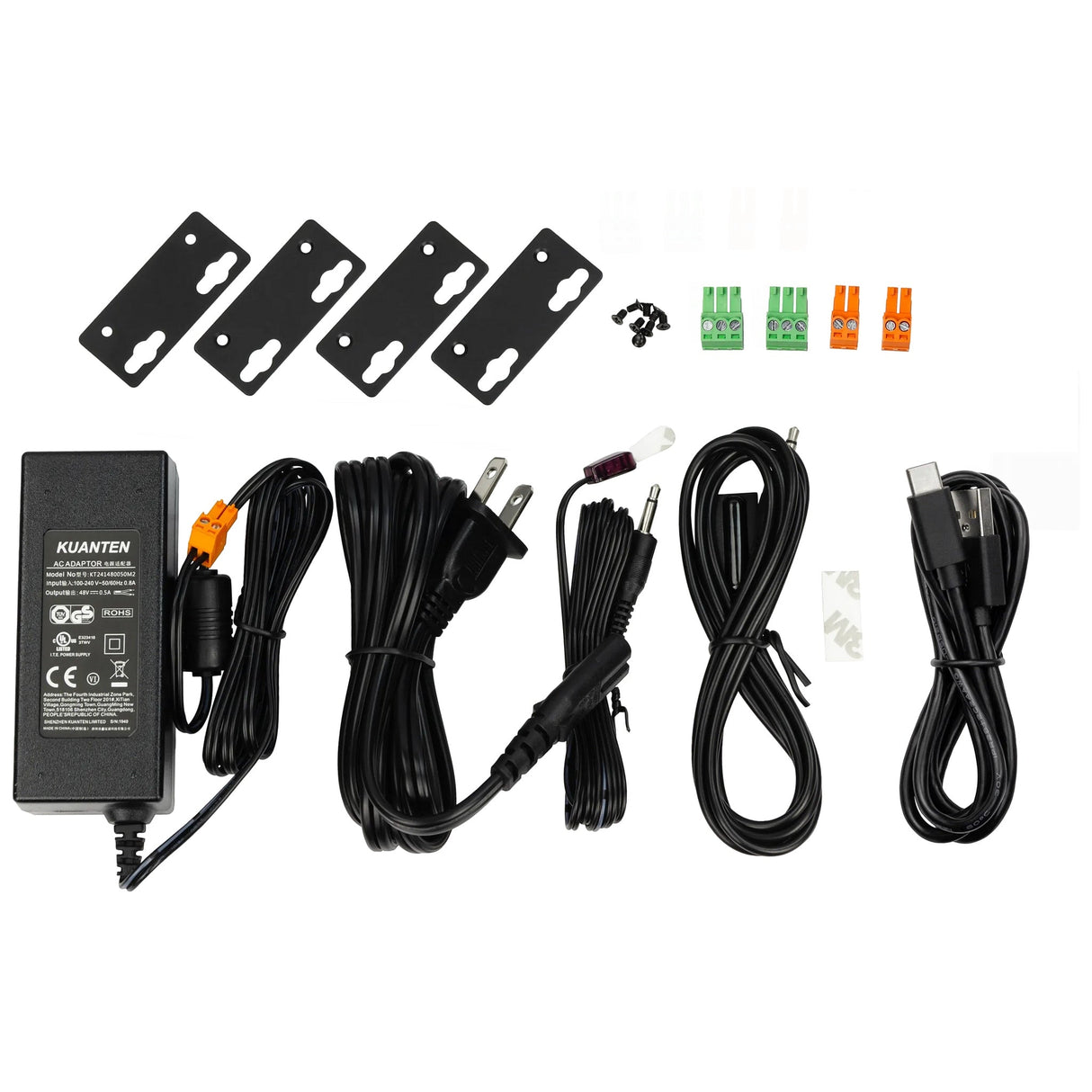

- Power Supply: Input: 48V 0.5A, Output: DC 5V 1A
- Latency: Less than 8 microseconds
