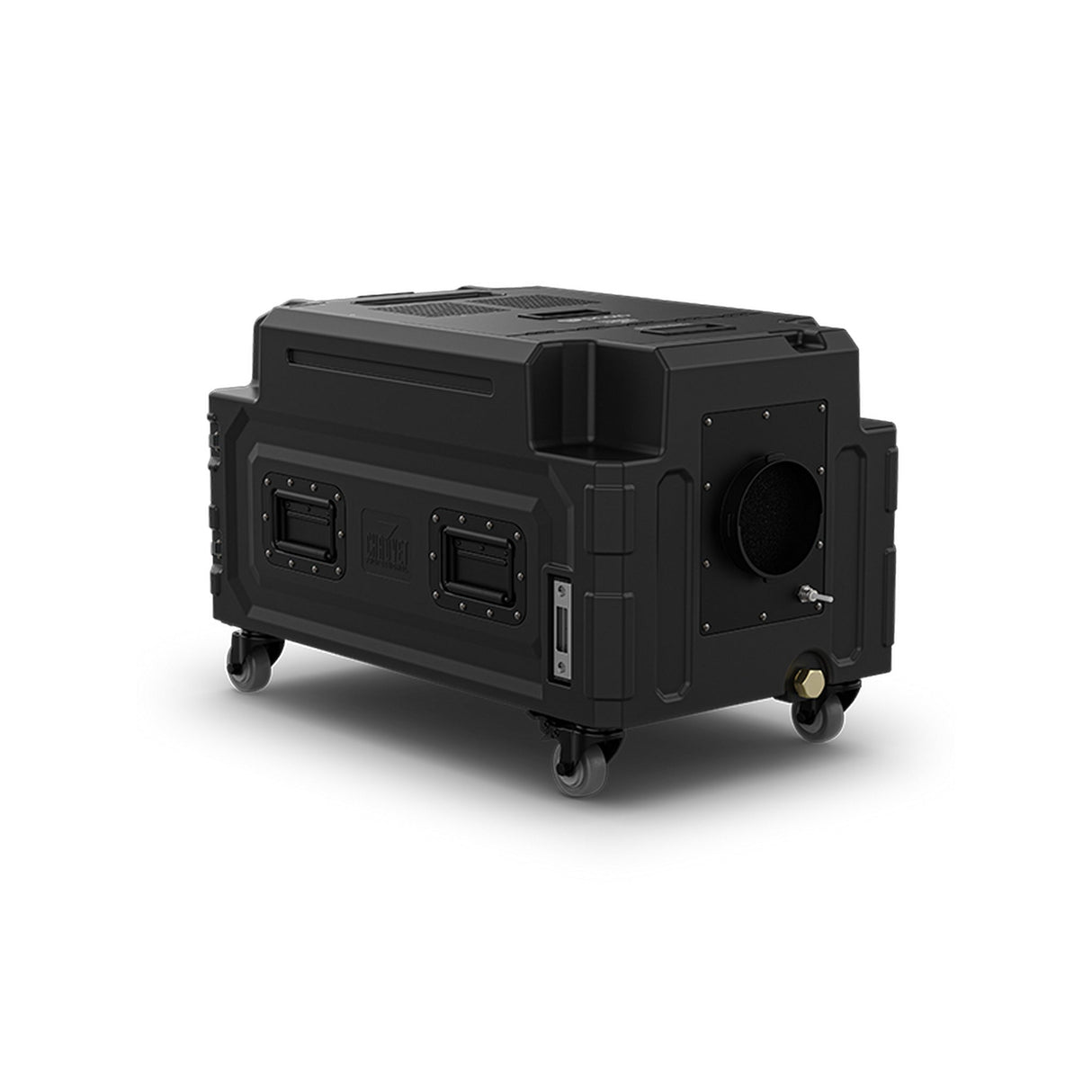

Chauvet Professional Cloud 9X IP Low Lying Fogger

Chauvet Professional Cloud 9X IP Low Lying Fogger

Chauvet Professional Cloud 9X IP is a low-lying fogger designed for stage and ballroom environments. It enables continuous production of floor-hugging fog for lighting designers and event professionals, supporting atmospheric visual effects without specialized consumables. This makes it ideal for indoor and temporary outdoor scenarios where controlled ground-level fog is required.

The unit generates low-lying fog using ultrasonic agitators that combine water with fog fluid, eliminating the need for dry ice or CO2. It supports continuous operation and automated water replenishment through a rear-mounted garden hose connection. Control is available through onboard interface, wireless RF remote, or DMX and RDM systems.

This fogger is designed to simplify setup and cleanup in touring and rental environments. Its integrated drainage system allows efficient water removal after use. A stackable housing and integrated flight case support transport and repeated deployment.

Key Features

• Low Lying Fog Effect: Produces floor-hugging fog suitable for stages and ballrooms.
• CO2 Free Operation: Operates without dry ice or CO2 and requires no special licensing or training.
• Continuous Output: Designed for continuous fog production during live events.
• Multiple Control Options: Supports onboard display, wireless RF remote, DMX, and RDM control.
• Integrated Water System: Accepts direct water connection via standard garden hose and includes internal drainage.
• Touring Ready Housing: Integrated rugged flight case with locking casters and removable rear cover.

Technical Specifications

Dynamic Effects
Fan Performance: 81 cfm
Low Fluid Shutdown: Yes

Construction / Physical
Dimensions (without back cover): 30 x 17.36 x 19.22 in (762 x 441 x 488.1 mm)
Dimensions (with back cover): 37.72 x 17.36 x 19.22 in (958 x 441 x 488.1 mm)
Output Nozzle (Outer Diameter): 4.76 in (121 mm)
Hose Length (Fully extended): 11 ft (3.4 m)
Weight: 76.6 lb (34.75 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, High-impact flame-retardant polymer
Water Tank Capacity (Primary Tank): 5.28 gal (20 l)
Water Tank Capacity (Reserve Tank): 2.48 gal (9.4 l)
Water Tank Capacity (Total): 7.77 gal (29.4 l)
Tank Capacity (Low-lying Fog Fluid): 0.8 gal (3 l)
Fluid Consumption: 27.8 ml/min
Maximum Runtime: 2 hr

Connections
Power Input: Seetronic Powerkon IP65
Data Connectors: 3-pin/5-pin IP rated
Cable Length (power): 5 ft (1.5 m)
Firmware upgrades: USB type-C

Control
Control Protocol: DMX, RDM, Wireless Remote
DMX Channels: 3
Modes/Personalities: 1 personality (3ch)
On-Board Control: Yes
Included Remote: Yes

Electrical
Input Voltage: 120 VAC, 60 Hz
Input Voltage: 230 VAC, 50 Hz
Power and Current: 1960 W, 17.5 A @ 120 V, 60 Hz
Power and Current: 1281 W, 5.59 A @ 230 V, 50 Hz
Heat-up Time: 5 min
Breaker Size: 10 A, 250 V

Certifications / Qualifications
CE, ROHS, UKCA
IP Rating: IP54, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's in the Box
(1) Cloud 9 X IP
(1) Seetronic Powerkon IP65 power cable
(1) RF remote (2-button)
(2) Hose clamps
(1) Barbed hose adapter (0.5 in)
(1) 6ft (2m) output hose, 5 in, (130 mm) diameter
(1) Removable rear cover
(1) Hose coupler, 5 in (130mm) diameter
(1) Floor nozzle, 5 in (130mm) diameter
(1) Overfill hose (polyurethane, 6mmOD, 4mm ID, 80 in / 204 cm)
Quick Reference Guide

Required Accessories
Accessories (required): Fog Fluid-LLG
Compatible Mounting Options: Floor Mount/Positioning only w/locking wheels
