Galaxy Audio HH85 Wireless Handheld Microphone Transmitter - D: 584-607 MHz
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

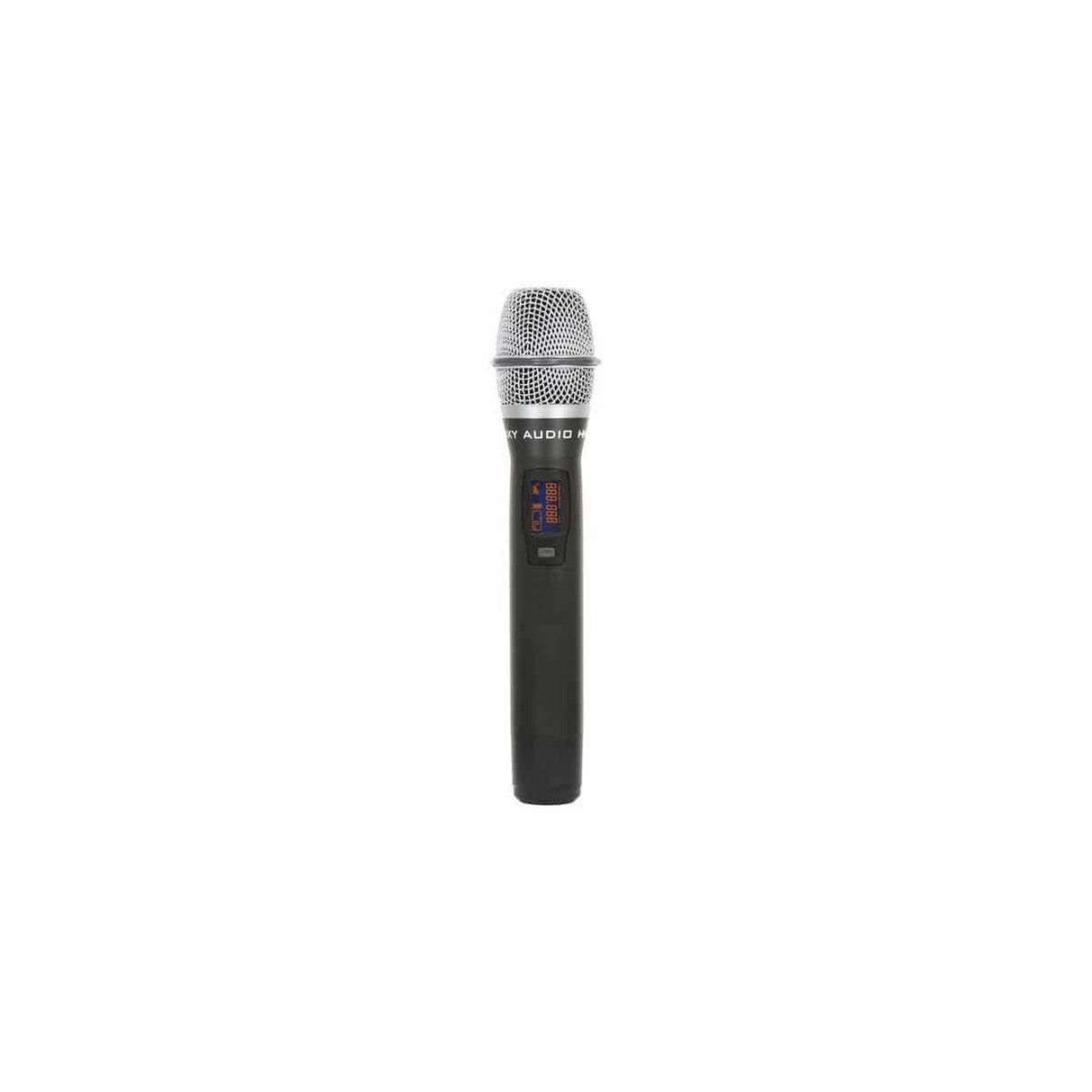

Galaxy Audio HH85 Wireless Handheld Microphone Transmitter
The Galaxy Audio HH85 Wireless Handheld Microphone Transmitter is a cardioid dynamic handheld designed for use with CTS series wireless receivers. It combines a rugged handheld form factor with an LCD display that clearly shows frequency, battery life, gain, mute, and RF power status. With two available frequency codes, it is suitable for a wide range of professional wireless environments.
This handheld transmitter uses a dynamic cardioid element for focused vocal pickup and reduced stage bleed. IR sync support allows fast pairing with a compatible CTSR receiver, while selectable RF output power lets users optimize performance for different stage sizes and RF conditions. Software selectable gain settings help match microphone output to various vocal styles and performance levels.
Ideal for live sound, houses of worship, corporate presentations, clubs, and touring productions, the HH85 offers long battery life from standard AA cells for extended events. Its clear LCD interface and straightforward controls make it easy for engineers and performers to monitor settings in real time. When paired with CTS receivers, it forms a tour grade wireless handheld solution for demanding applications.
Key Features
- Frequency Options: Available in Frequency D 584-607 MHz and Frequency J 518-537 MHz when used within CTS systems.
- Cardioid Dynamic Element: Vocal focused pickup pattern for stage and speech applications.
- LCD Status Display: Shows frequency, battery life, mute state, gain setting, and RF power level.
- IR Sync: Supports infrared syncing to compatible CTS series receivers for quick setup.
- Selectable RF Power: RF output settings of 5 mW, 10 mW, or 20 mW to suit different environments.
- Selectable Gain: Software selectable gain values of -3, 0, 3, 6, or 9 dB for level optimization.
- Battery Powered: Runs on two AA batteries with up to about 12 hours of operation using alkaline cells.
Technical Specifications
- Microphone Type: Cardioid dynamic handheld element
- Frequency Response: 60 Hz to 15 kHz
- RF Output Power: 5 mW, 10 mW, 20 mW selectable
- Gain Adjustment: Software control from -3 dB to +9 dB in 3 dB steps
- Max Audio Input Level: Approximately -5 dBm at -3 dB gain
- Power Requirements: 2 AA size alkaline or rechargeable batteries
- Battery Life: About 12 hours with alkaline batteries
- Dimensions: 9.68 in x 2.08 in (L x Diameter)
- Weight: 8.8 oz (250 g) without batteries
What’s in the Box
- x1 Galaxy Audio HH85 Wireless Handheld Microphone Transmitter
