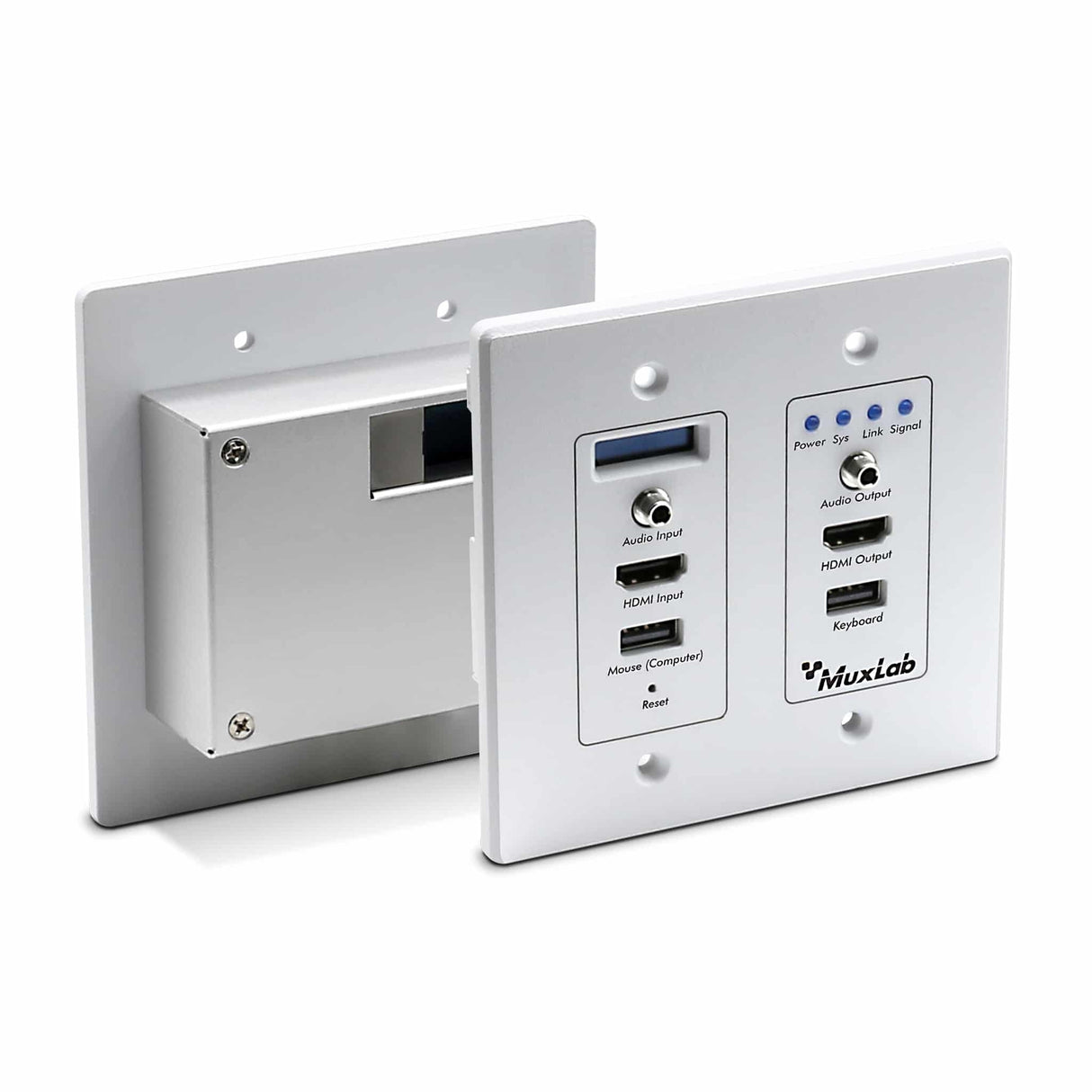

MuxLab 500866-WP-WH HDMI Over IP PoE Wall Plate Workstation Transceiver
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab 500866-WP-WH HDMI Over IP PoE 4K/30 Wall Plate Workstation Transceiver
MuxLab 500866-WP-WH is a wall plate KVM over IP workstation transceiver designed for networked AV and workstation environments. It enables HDMI video, audio, and USB control transmission over Ethernet for users requiring centralized access to multiple computers or servers. This makes it ideal for control rooms, collaborative workspaces, and enterprise systems where remote access and switching are critical.
The transceiver supports HDMI up to 4K at 30Hz using H.264 and H.265 compression over Cat5e or Cat6 networks. It allows point to point and point to multipoint configurations while supporting workstation video wall functionality and seamless switching. Network-based operation enables content sharing, source preview, and flexible routing across distributed systems.
In real-world applications, the unit supports efficient management of multiple computers from a single workstation over IP. PoE power simplifies installation by reducing the need for local power sources. This supports reliable operation in professional AV and IT deployments.
Key Features
- KVM over IP Operation: Supports HDMI video and USB keyboard and mouse control over Ethernet networks.
- 4K Video Support: Handles HDMI video up to 4K at 30Hz.
- Extended Transmission Distance: Extends audio and video transmission up to 330ft (100m) over Cat5e or Cat6 cable.
- Seamless Switching: Supports uninterrupted switching between connected computers or servers.
- Multi System Access: Supports access to up to 9 computers or servers simultaneously on each workstation screen.
- PoE Powered Design: Powered via PoE when connected to a compatible PoE PSE Ethernet switch.
Technical Specifications
Environment
HDMI 1.4
Devices
Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocol or Standard
HDMI 1.4 and HDCP 1.4
Video Resolution
Up to 4K/30 in and out
Audio
3.5mm Line in or out, or HDMI audio
Latency
80 ~ 120ms
Network Bandwidth
Up to 12Mbps
Protocols
Supports Multicast, RTSP, RTMP
Compression
Supports H.264/265
Front Panel Indicators
Power: Power indicator
Sys: System indicator
Link: LAN cable connection indicator
HD: HDMI signal status
OLED Screen
Showing the Model, ID, IP, status
Video Ports
2 x HDMI Type-A
Control Ports
1 x RS232 phoenix connector
1 x Power phoenix connector
Audio Ports
1 x 3.5mm IN
1 x 3.5mm OUT
LAN
1 x RJ45 (PoE)
USB
2 x USB-A ports for Keyboard and Mouse or PC host
Power
12VDC 1A
Control
Muximus Network Controller
3rd Party Control by TCP or UDP
Windows PC software, Android or iOS APP
Power Consumption
10W
Temperature
Operating: 0° to 40°C
Storage: -20° to 85°C
Humidity
Up to 90% non-condensing
Dimensions (L x W x H)
7.52" x 3.94" x 0.98"
191mm x 100mm x 25mm
Weight
1.2lbs (0.54kg)
Compliance
Regulatory: FCC, CE, RoHS
Flammability: 94V0
Warranty
2 years
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500988) may be purchased separately.
