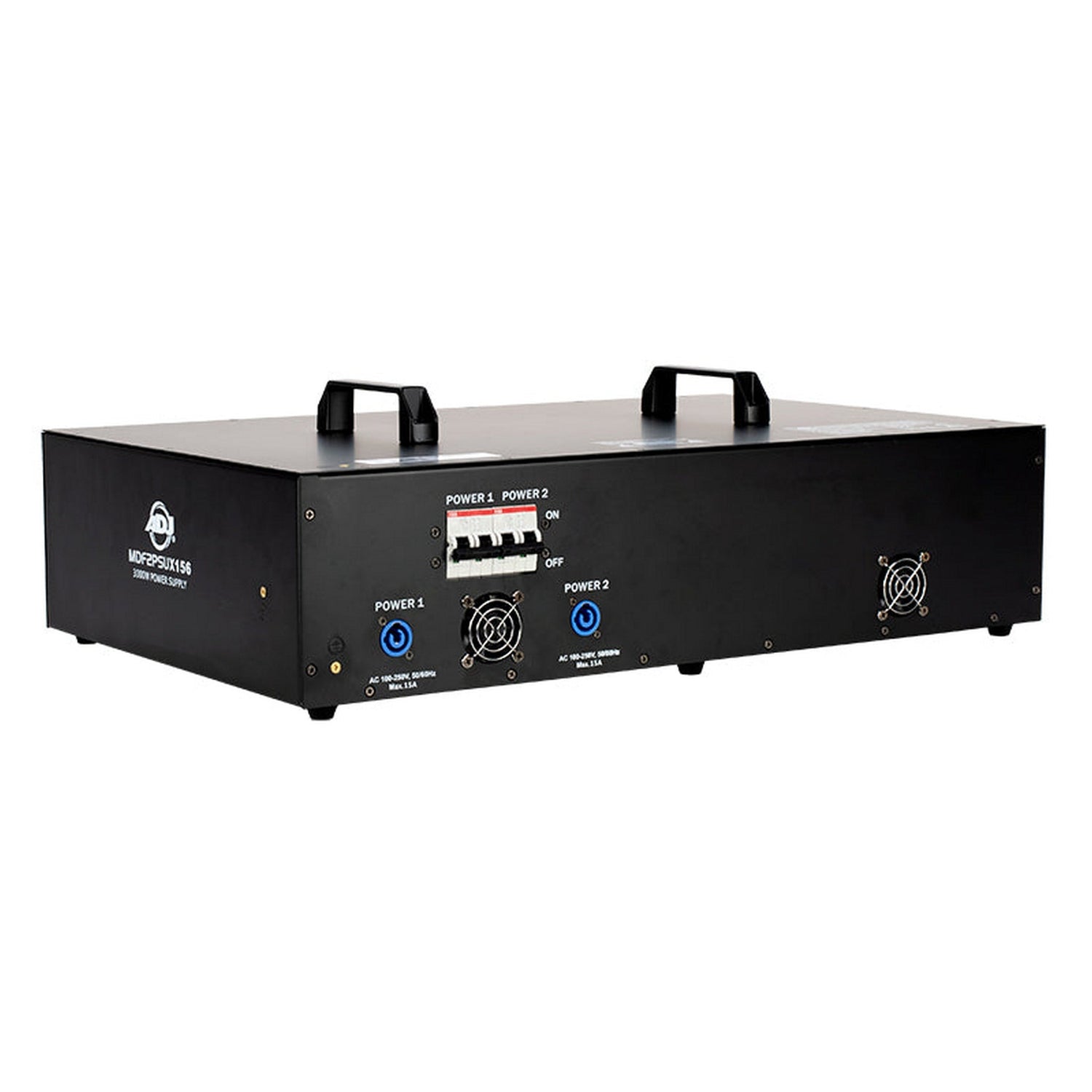

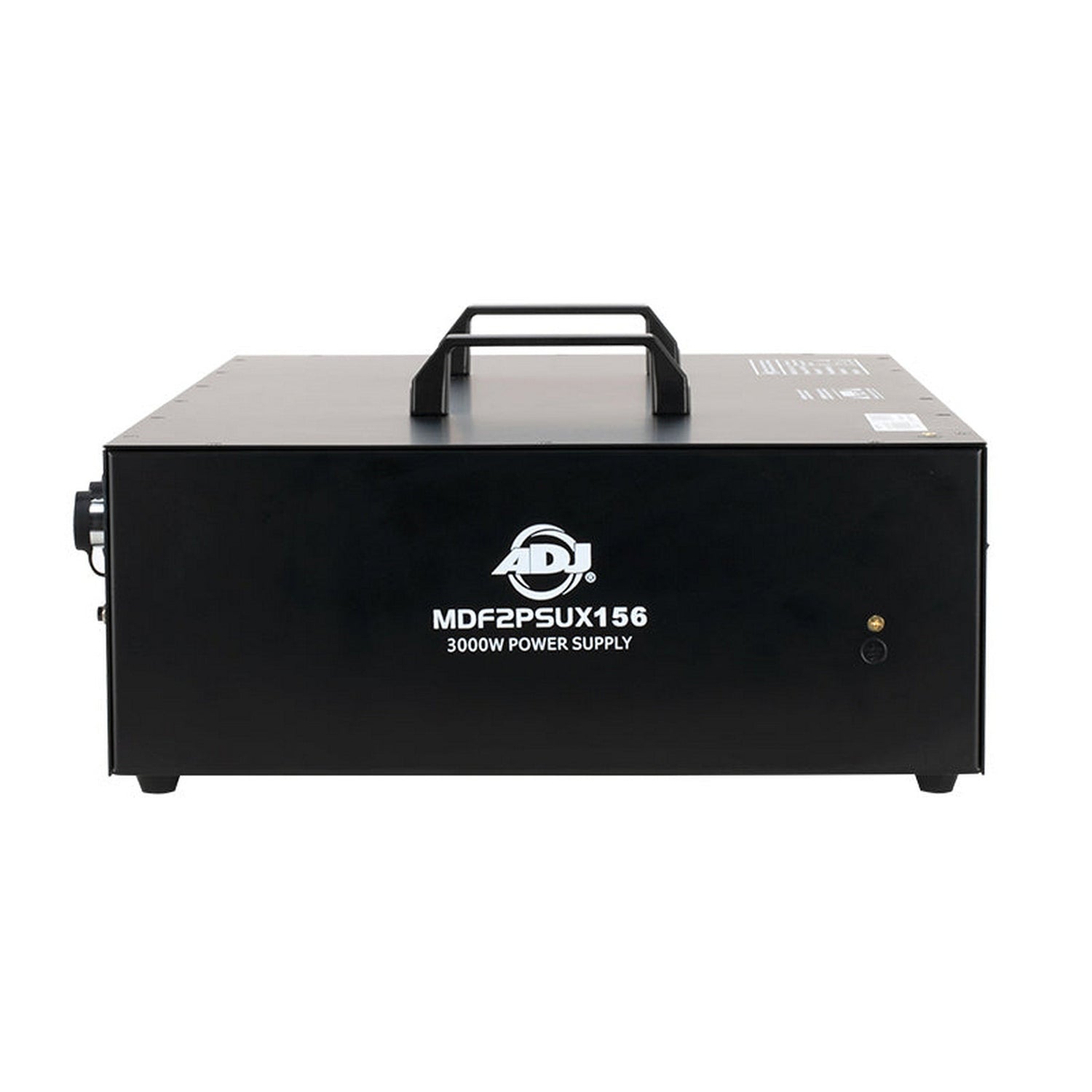

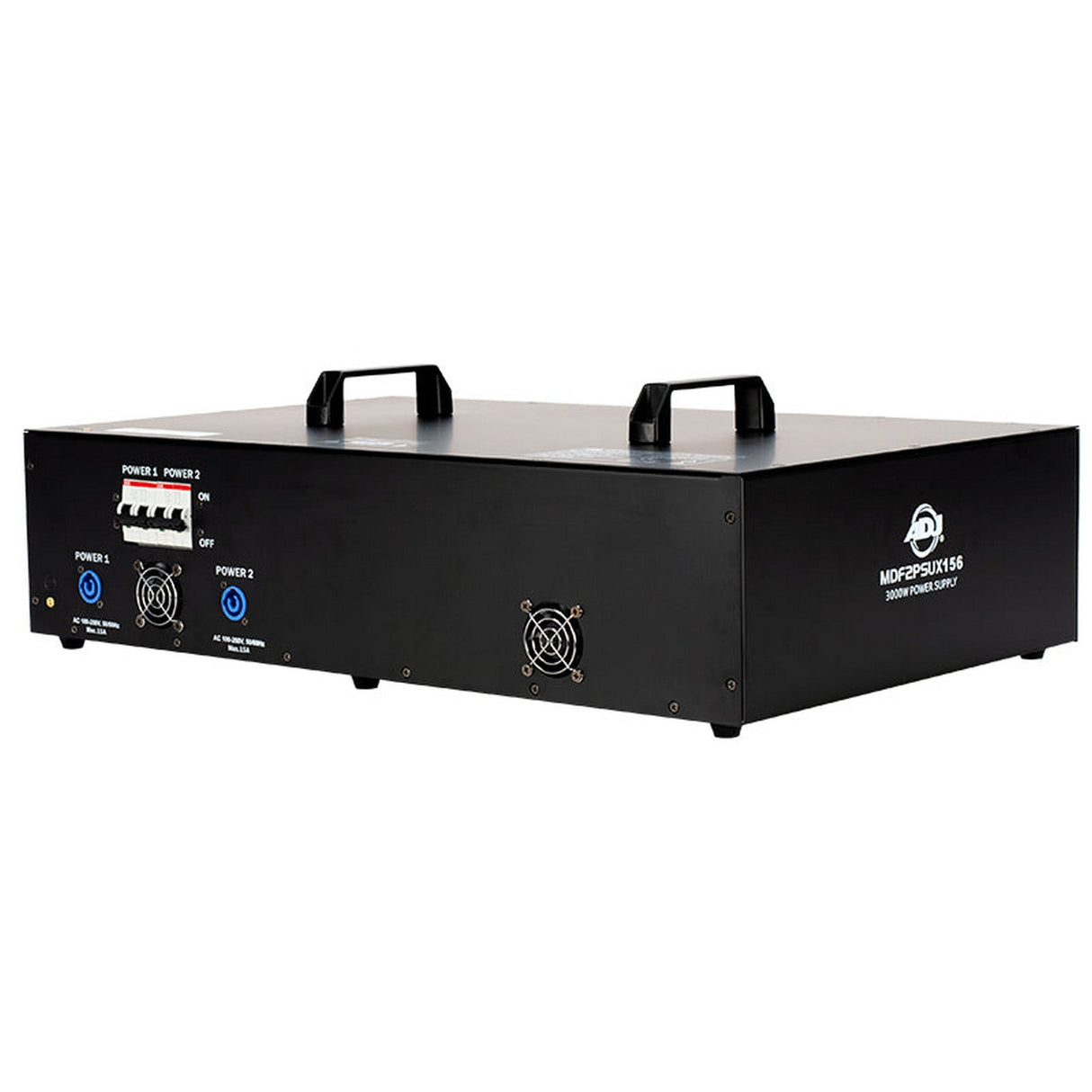

ADJ MDF2PSUX156 External Power Supply for MDF2 Dance Floor
The ADJ MDF2PSUX156 is a 3000 W external power supply designed to support up to 156 ADJ MDF2 dance floor panels. It features dual locking inputs and 12 protected 2-pin output connectors, each safeguarded by its own resettable breaker for reliable, high-capacity performance.
Key Features
- Capacity: Supports up to 156 MDF2 panels
- Power Output: 3000 W at 24 V DC

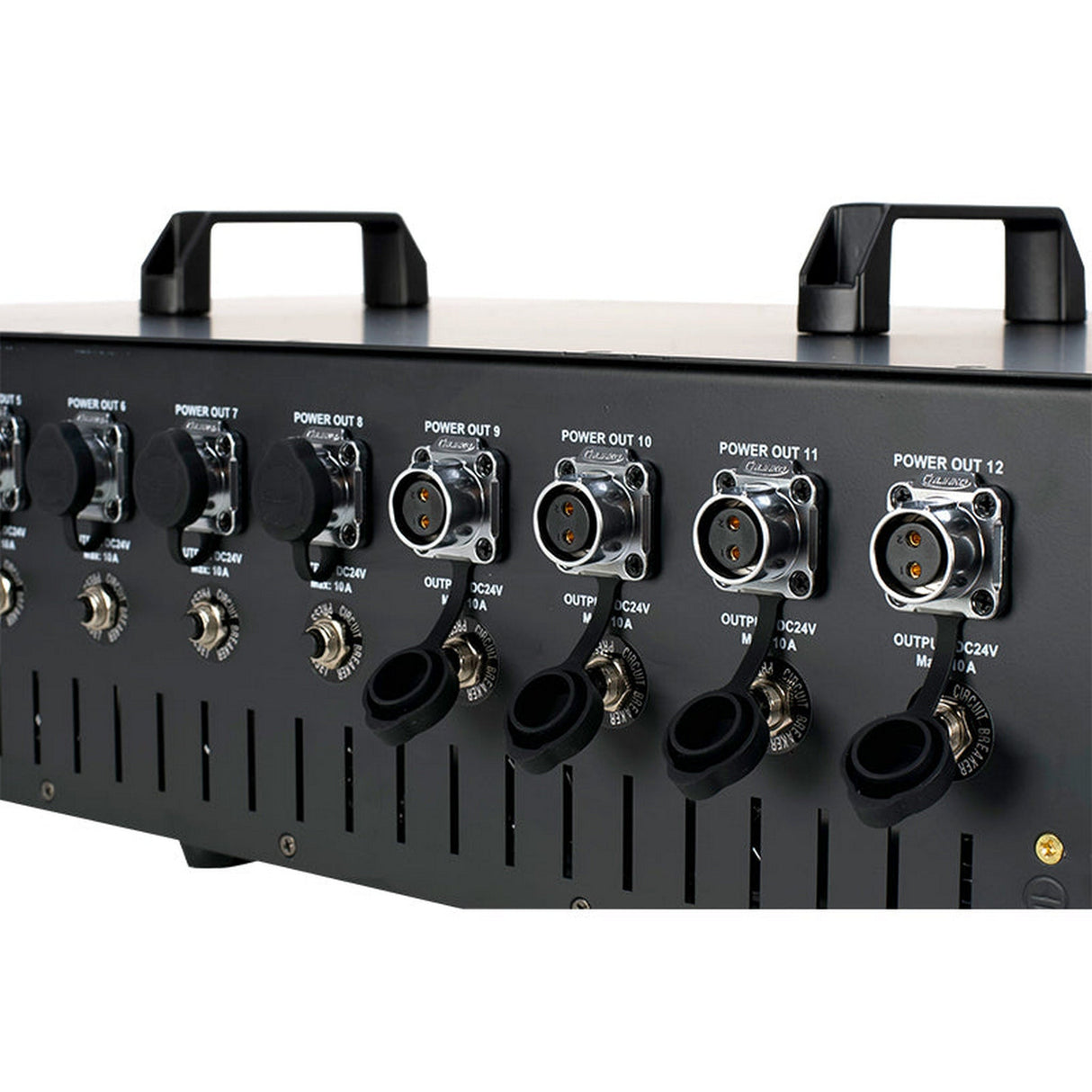

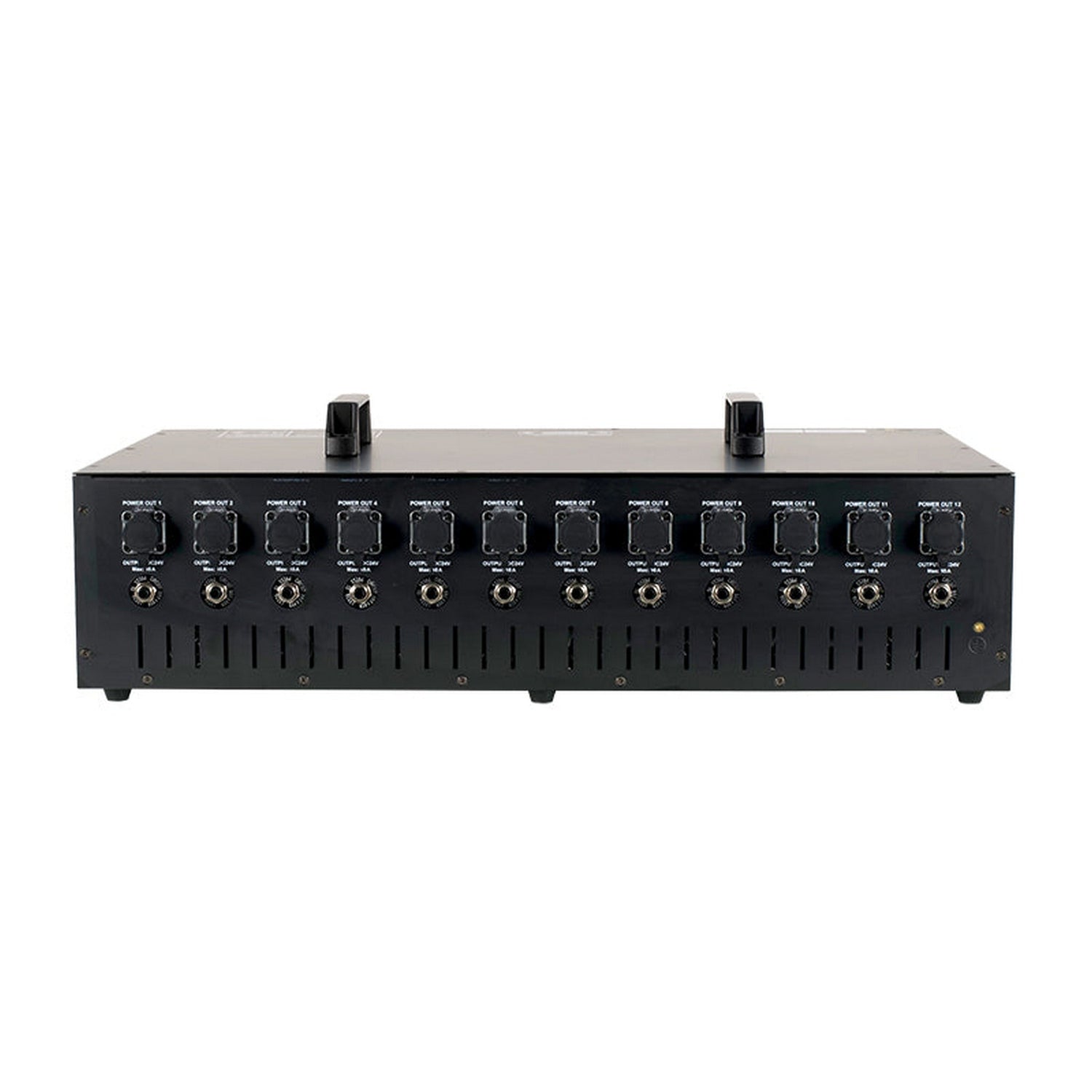

- Outputs: 12 × 2-pin connectors with individual breakers
- Controls: Two switches—one controls outlets 1-6, the other controls 7-12

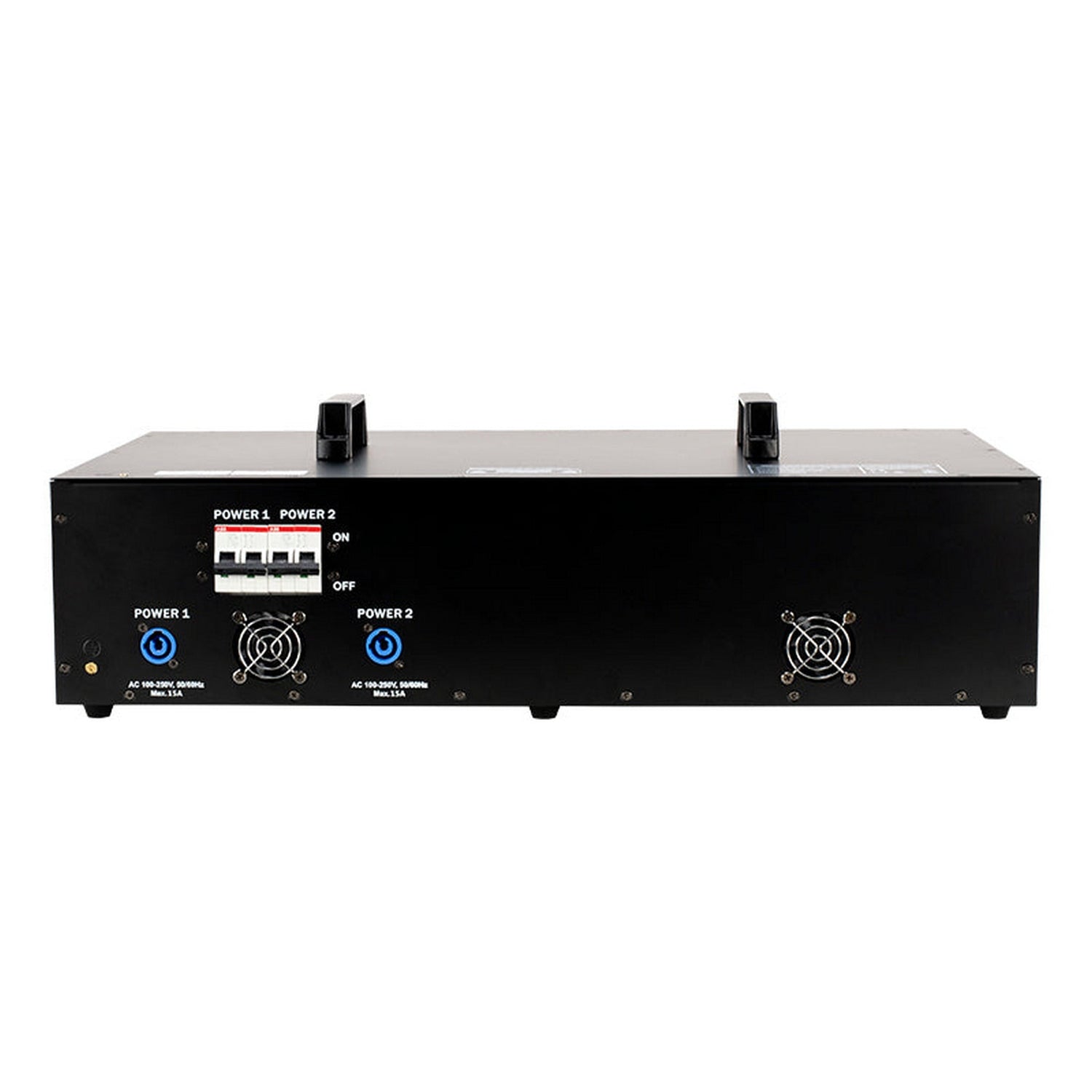

- Inputs: Two locking power inputs
- Cooling: Fan-cooled with rubber feet for stability
- Handles: Two carrying handles for portability
Technical Specifications
- Dimensions (L × W × H): 25.6 in × 17.0 in × 8.1 in (650 × 433 × 205.5 mm)
- Weight: 37.9 lbs (17.2 kg)
- Electrical Input: 100–240 V AC, 50/60 Hz
- Output Voltage: 24 V DC
- Max Load Current: 120 A
- Overload Protection: Sequence-based trip times depending on overload level
- Operating Temp Range: –4 °F to 158 °F (–20 °C to 70 °C)
- IP Rating: IP20
What's Included

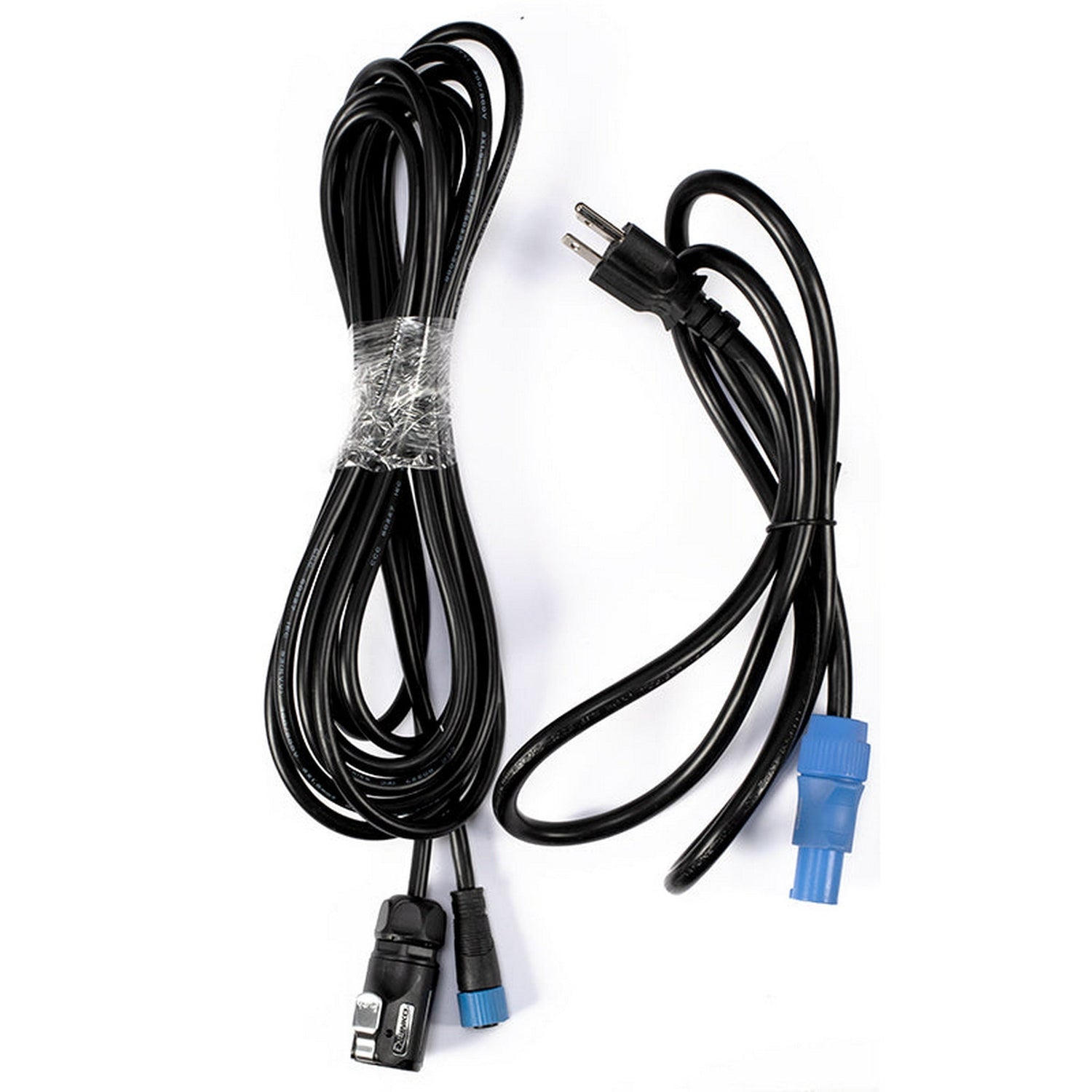

- 2x 3-ft locking power input cables

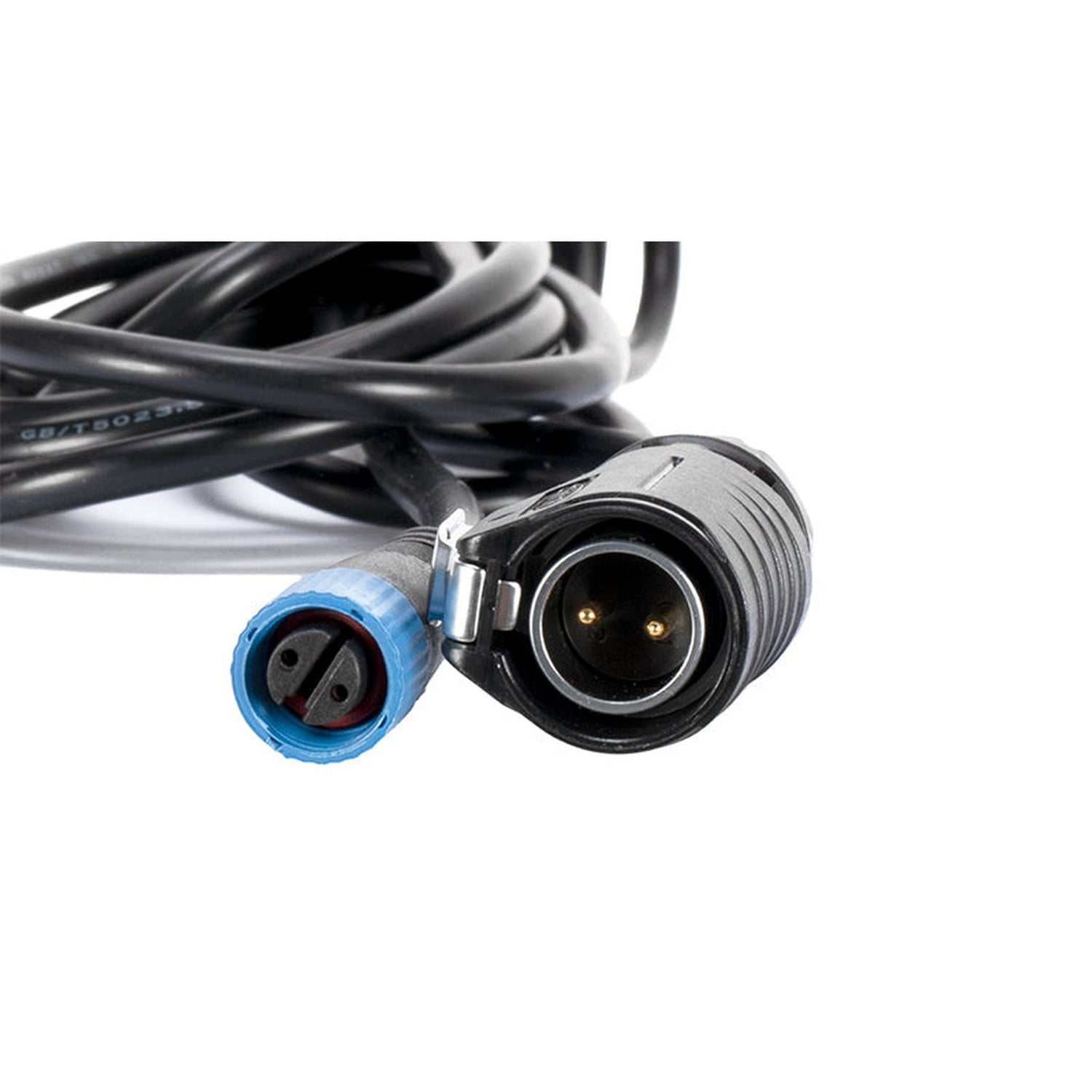

- 12x 15-ft 2-pin output cables
