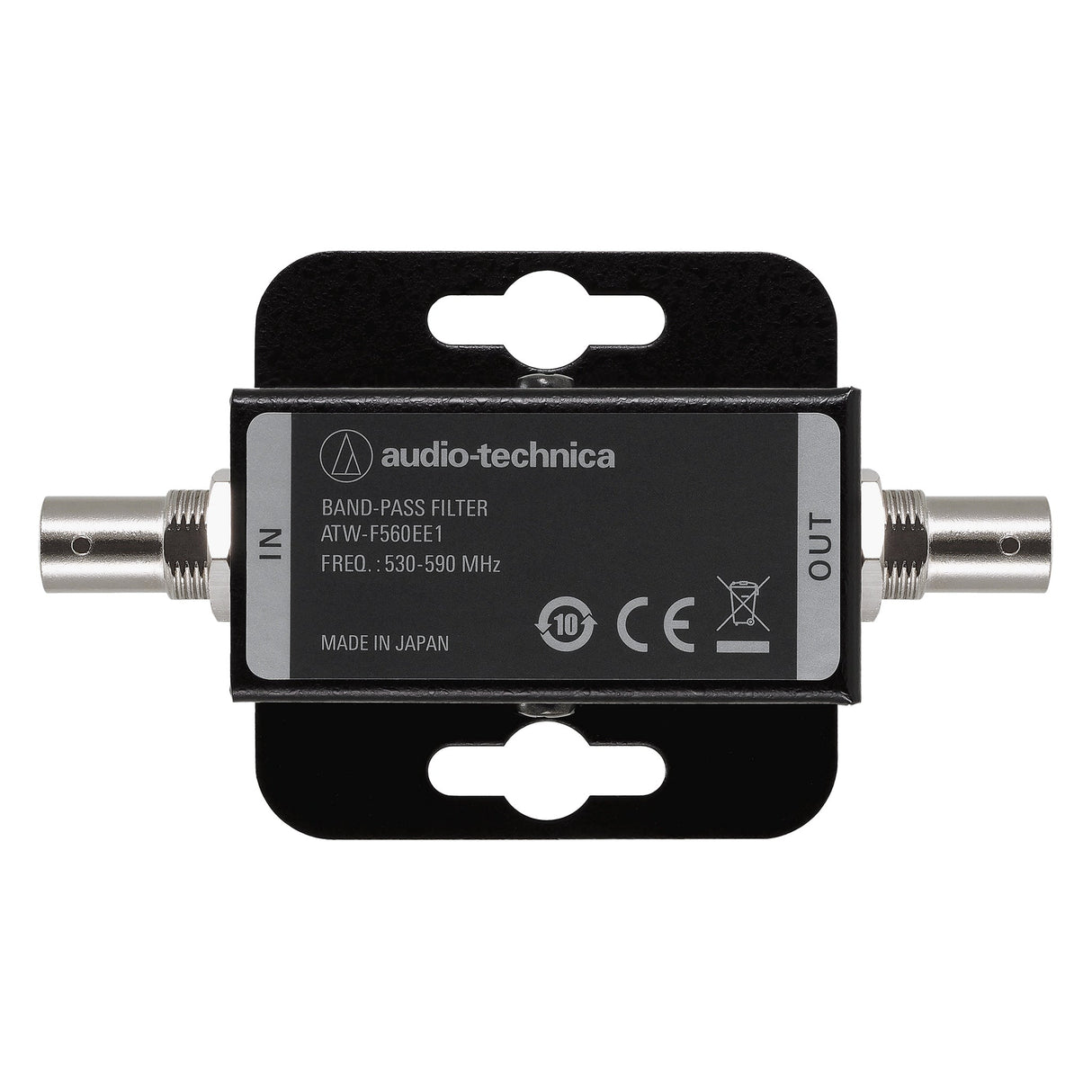

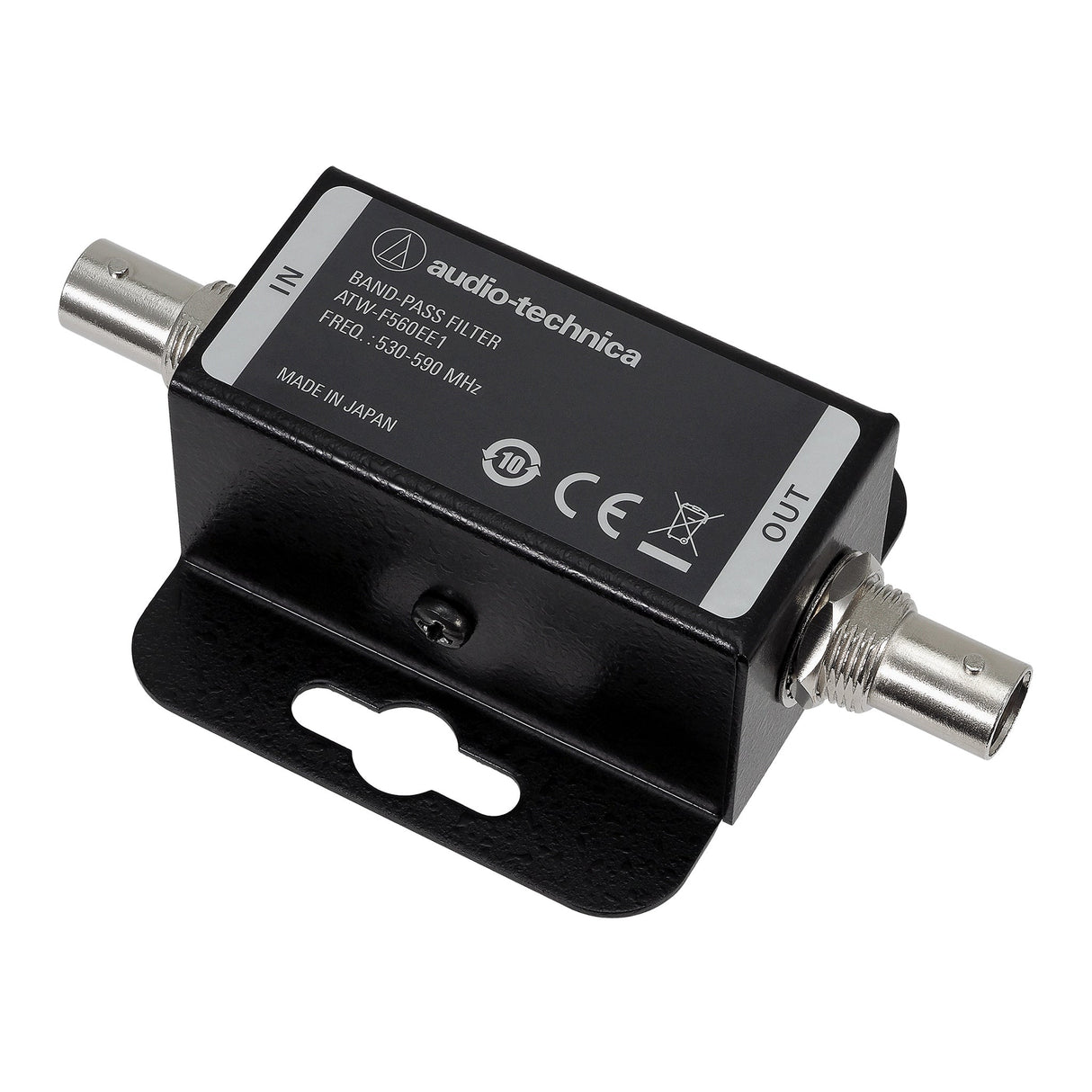

Audio Technica ATW-F560EE1 Band Pass Filter Pair

The Audio-Technica ATW F560EE1 is a passive band-pass filter pair designed to eliminate out-of-band interference in wireless microphone systems. It operates in the 530 to 590 MHz frequency range and is intended to reduce noise and unwanted RF signals outside the selected band. The filters require no power or tuning, making them simple to incorporate into your RF signal chain.

Each filter is fitted with standard BNC connectors, enabling seamless integration between antennas and wireless receivers. The passive design ensures reliable performance without adding complexity or signal distortion.

In situations where external interference can degrade wireless performance, the ATW F560EE1 helps improve dynamic range, reduce overload levels, and deliver cleaner signal paths for multi-channel wireless systems in live, broadcast, and production environments.

Key Features

• Passive band-pass filter pair — no external power required
• Covers the 530 to 590 MHz band for selective RF filtering
• Industry-standard BNC connectors for easy installation
• Maximum pass-through current: 420 mA
• Compact and rugged form factor for reliable in-rack use

Technical Specifications

• Frequency Range: 530 MHz – 590 MHz
• Impedance: 50 ohms
• Typical Transmission Loss: 4 dB
• Maximum Pass-Through Current: 420 mA
• Operating Temperature: –10 °C to +60 °C
• Recommended Operating Temp: +15 °C to +35 °C
• Connectors: 2 × BNC (female)
• Dimensions (W × D × H): 99.8 mm × 60 mm × 30 mm
• Weight: 136 g
