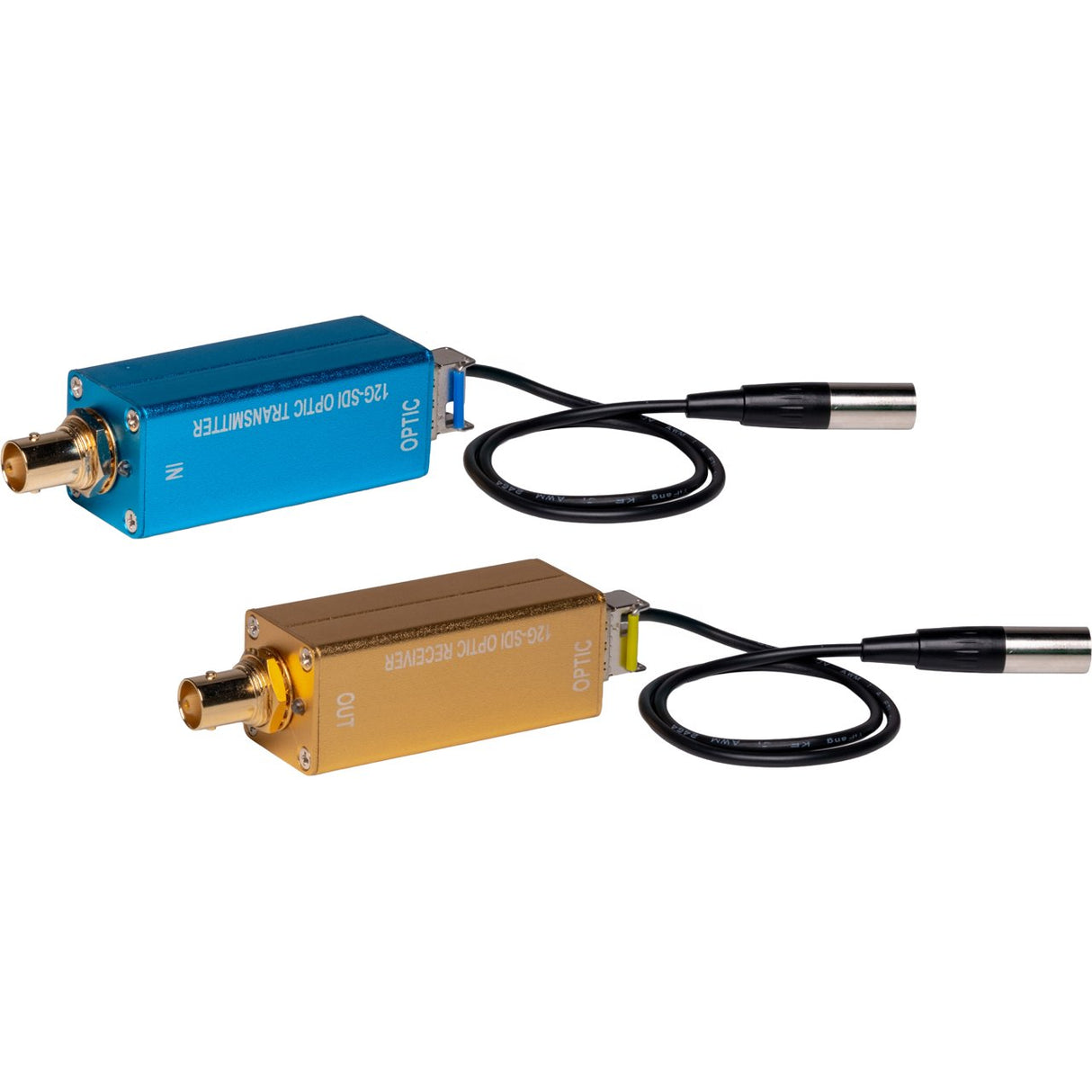

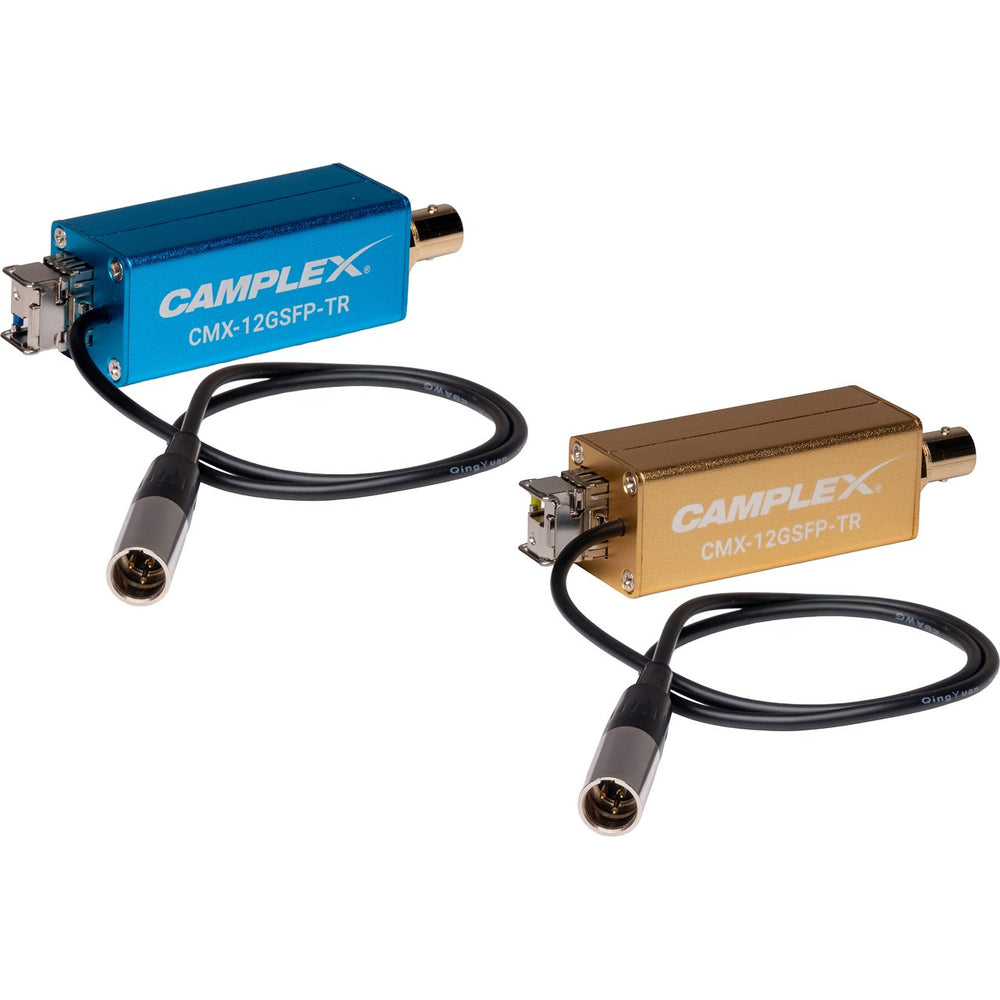

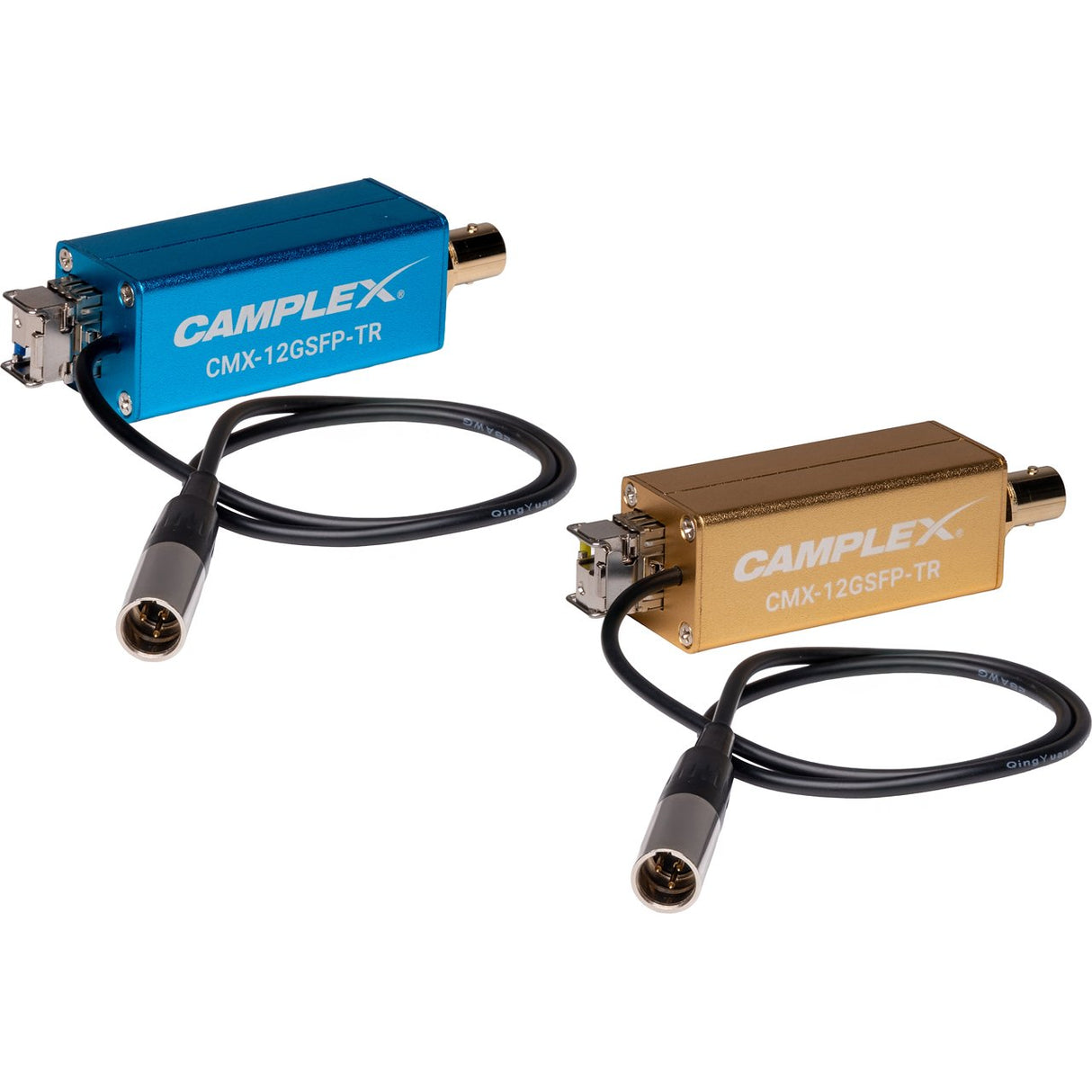

Camplex CMX-12GSFP-TR 12G SDI LC/SFP Mini Fiber Extender Set
The Camplex CMX-12GSFP-TR is a compact unidirectional fiber extender set designed to transmit 12G-SDI video over single-mode fiber with minimal latency. With support for up to 4K at 60Hz and distances up to 10 km (6.2 miles), it is ideal for broadcast, live events, and remote video transmission applications.
This extender supports full SMPTE compliance, automatically equalizes input signals, reclocks output for signal integrity, and features LED status indicators for system monitoring. The plug-and-play design simplifies deployment in OB trucks, control rooms, and remote camera feeds.
Its versatility allows backward compatibility with 3G, HD, and SD-SDI signals and is well suited for point-to-point extension of high-bandwidth video. The slim, robust housing and standard 5V power requirements make the CMX-12GSFP-TR a reliable choice for professional video systems.
Key Features
- 12G-SDI Over Fiber: Sends 12G, 6G, 3G, HD, and SD-SDI over a single-mode LC fiber link.
- High Distance Range: Up to 10 km or 6.2 miles over single-mode fiber.
- Supports 4K at 60Hz: Handles UHD resolutions with embedded audio.
- SMPTE Compliance: Supports SMPTE ST 2082-1, ST 2082-2, ST 292, ST 424, and more.
- Automatic Equalization and Reclocking: Maintains signal integrity across distances.
- LED Indicators: Provides input, output, and status feedback via LEDs.
- Compact Design: Slim housing ideal for tight installations.
Technical Specifications
- Model / Part: CMX-12GSFP-TR (Camplex)
- Link Type: 1 Channel, Unidirectional

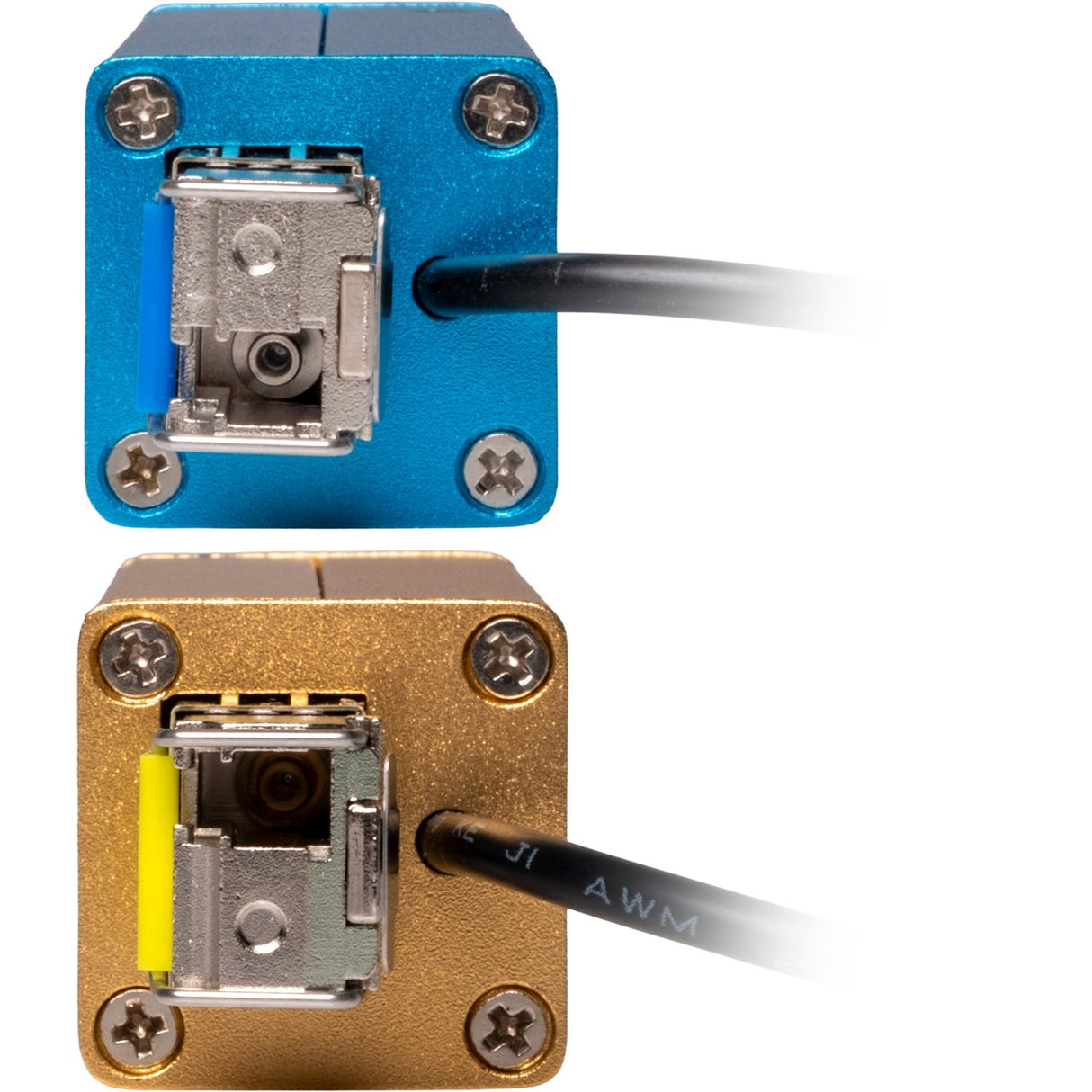

- Fiber Type: Single-Mode, LC / SFP
- Max Distance: 10 km or 6.2 miles over single-mode fiber

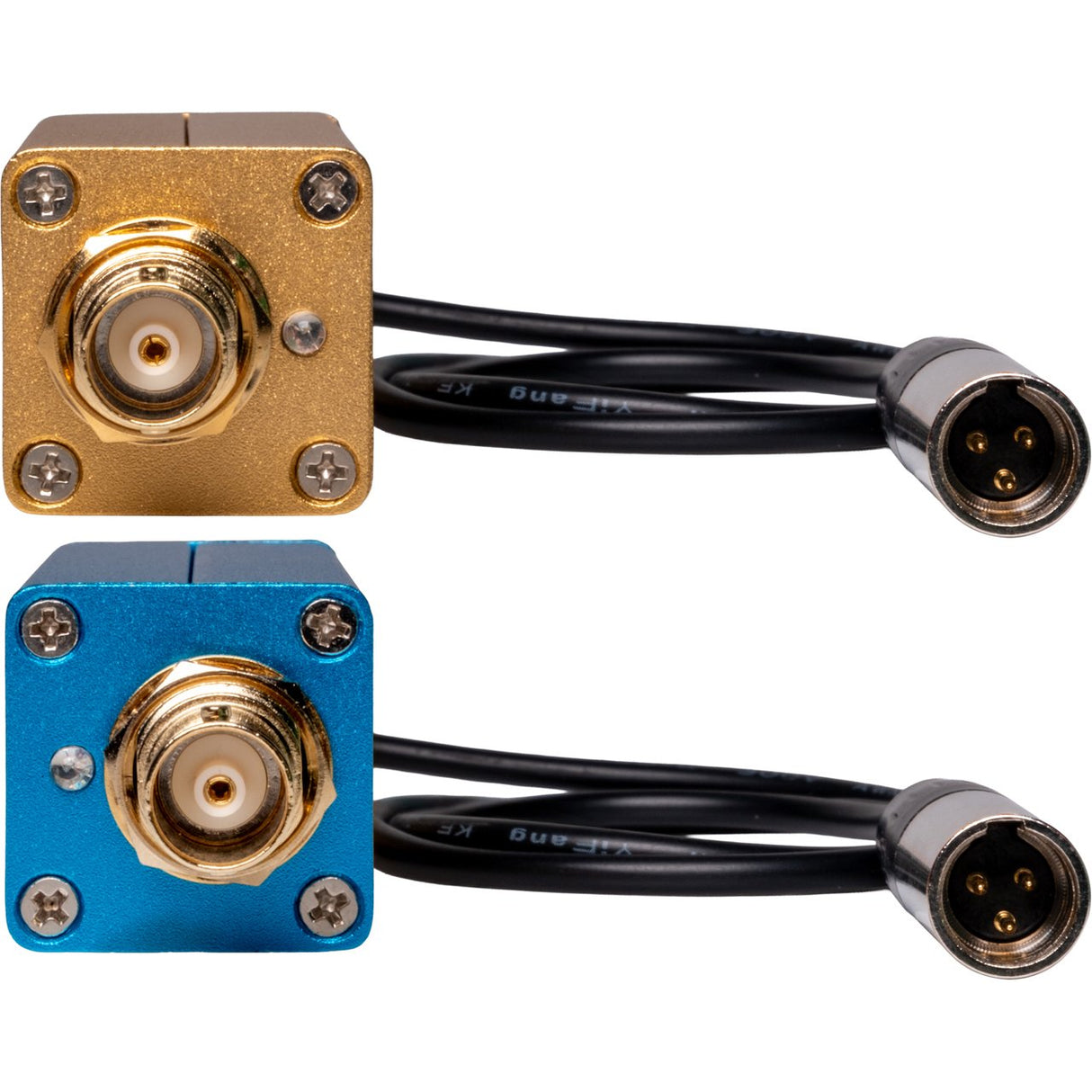

- SDI Input / Output: BNC 75 Ohm connectors
- Data Rate Range: 270 Mbps to 11.88 Gbps (12G-SDI)
- Power Supply: 5 V via mini 3-pin XLR, 3-4 W consumption
- Temperature Range: -40 C to +45 C (-40 F to +113 F)
- Dimensions (Each Unit): 3.85 in x 1.00 in x 1.00 in
- Weight (Each): ~7.4 oz (~0.46 lb)
- Compliance: FCC Part 15 Class A, EMC standards
What's in the Box
- 1x CMX-12GSFP-TR Transmitter Module
- 1x CMX-12GSFP-TR Receiver Module

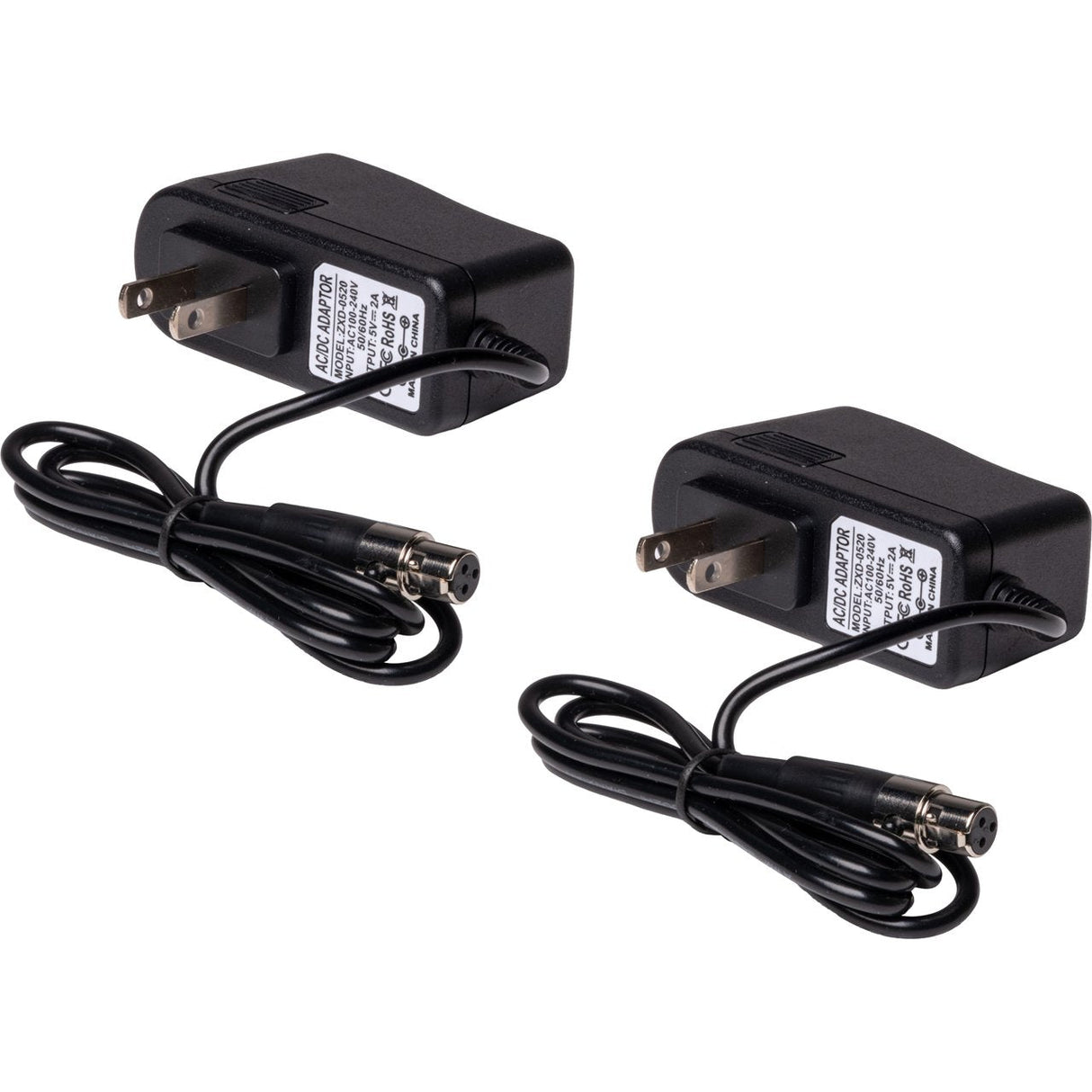

- 2x 5 V Power Supplies
- 2x SFP Modules (LC)
- User Manual / Documentation
