CHAUVET DJ GIGBAR3ILS-2 GigBAR 3 ILS 3-in-1 LED Lighting System

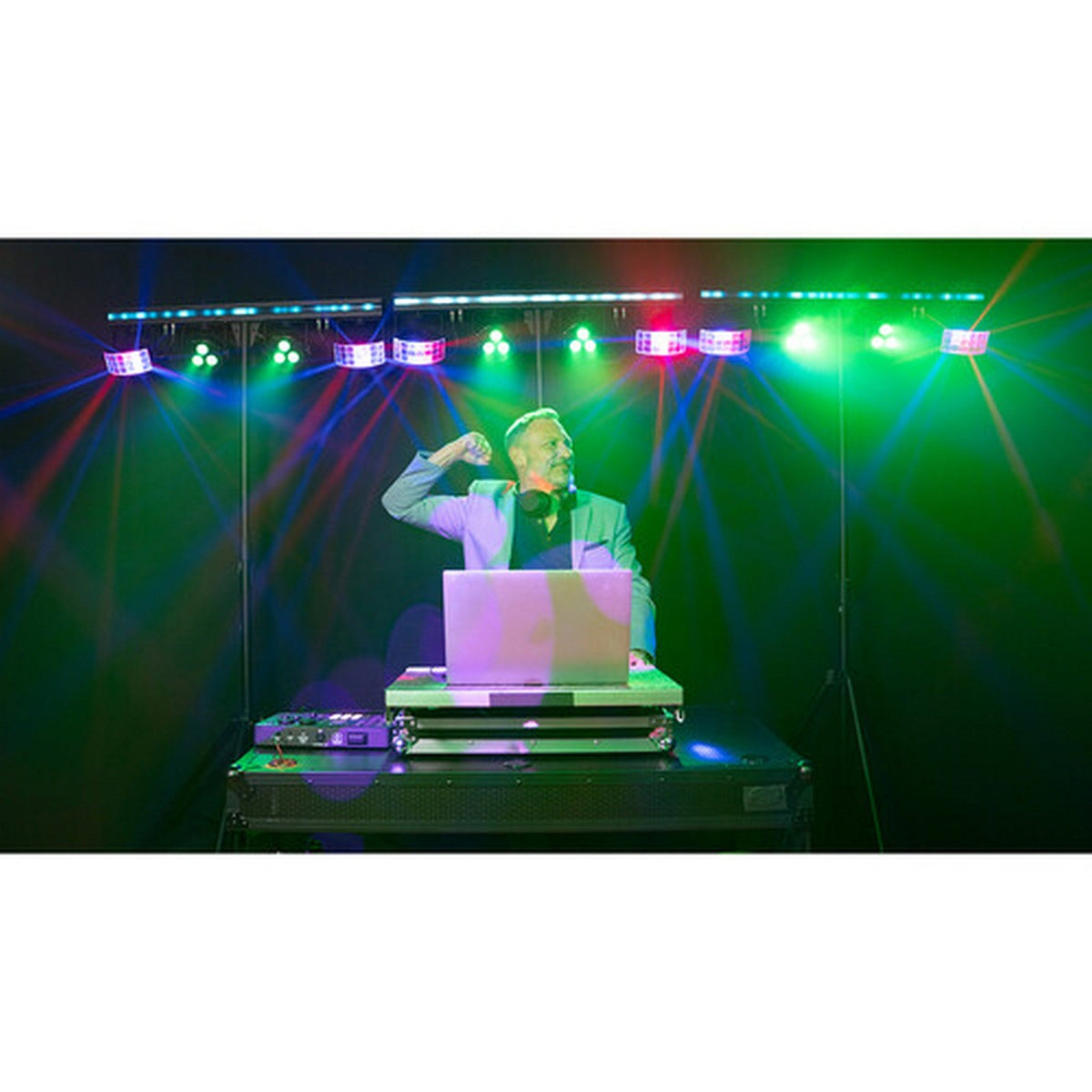

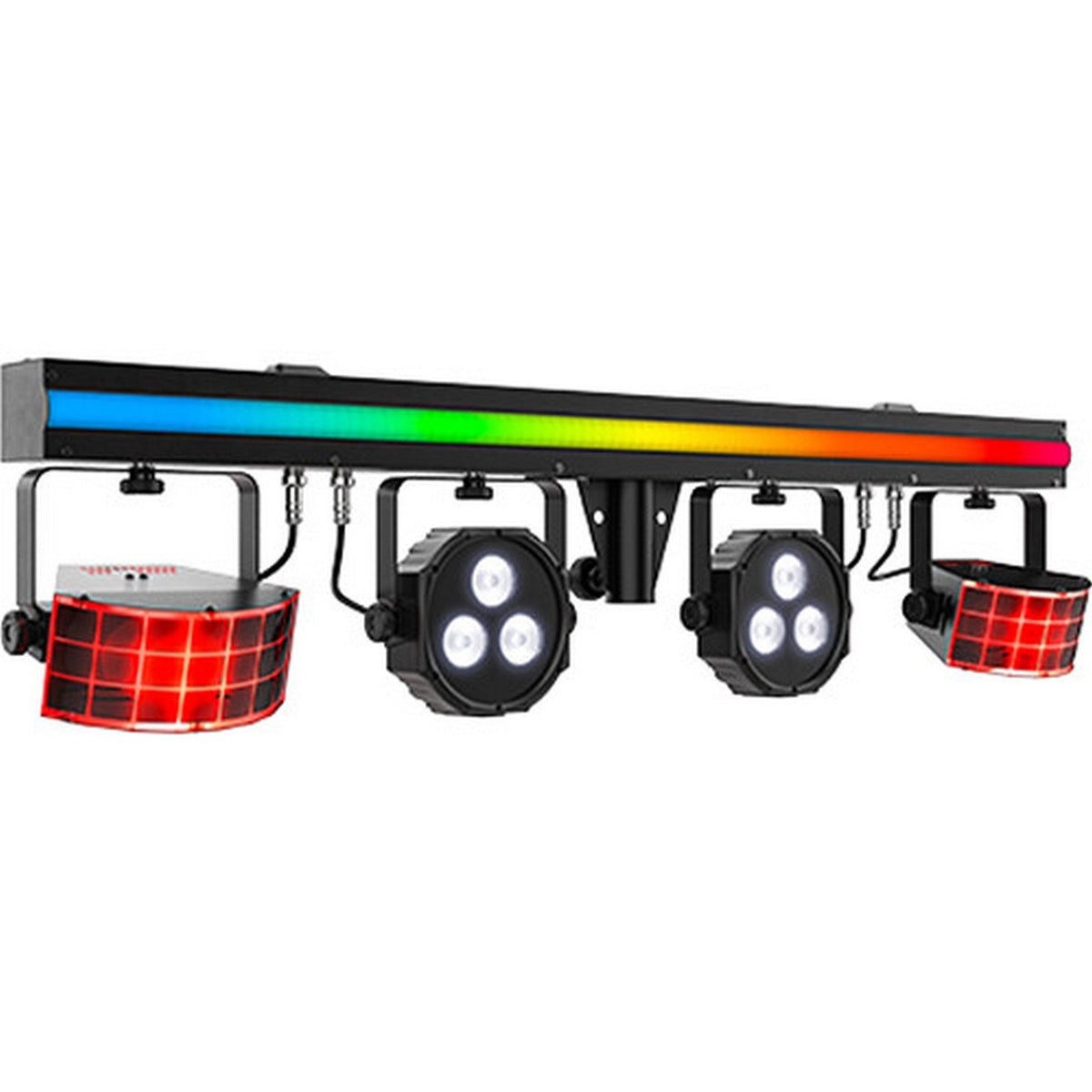

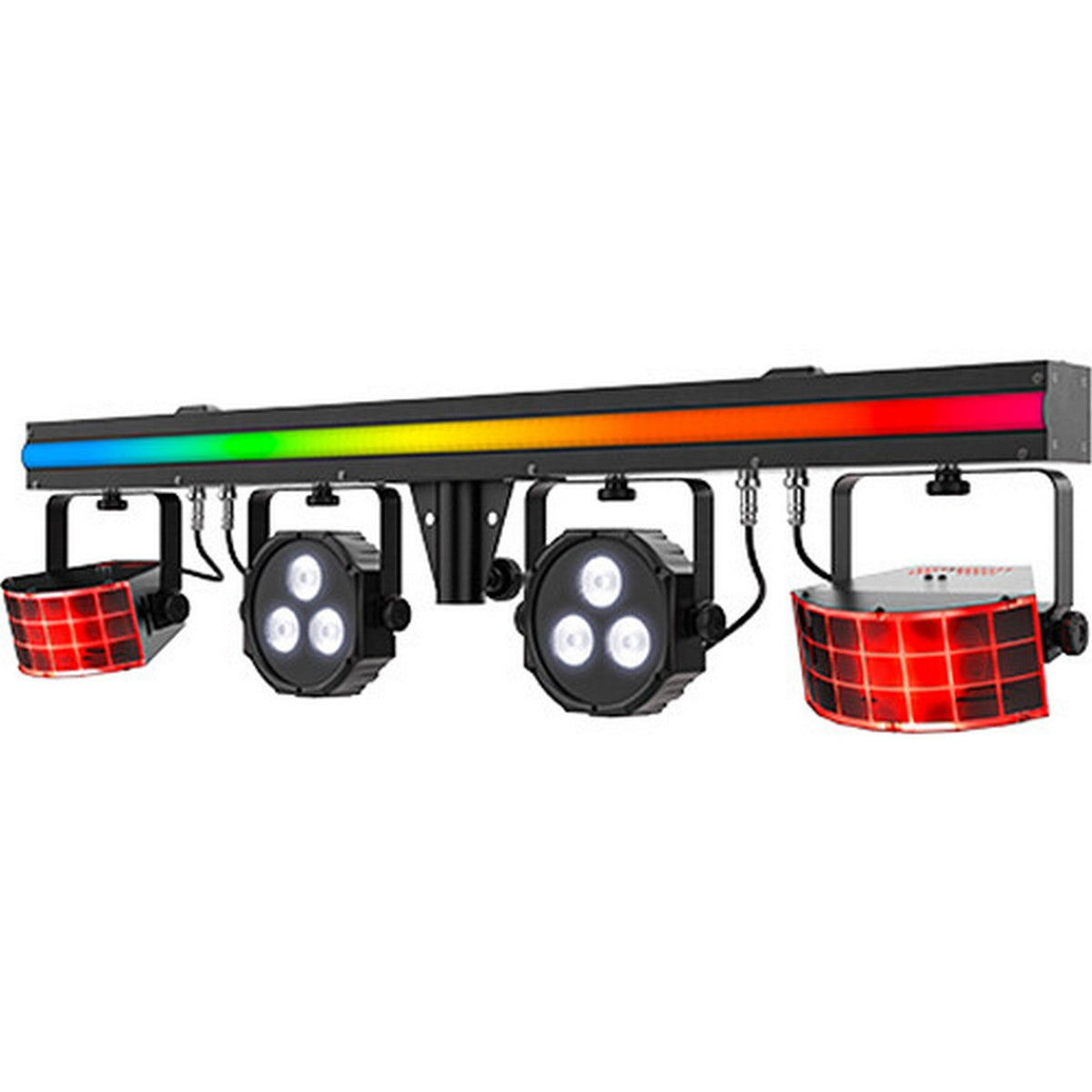

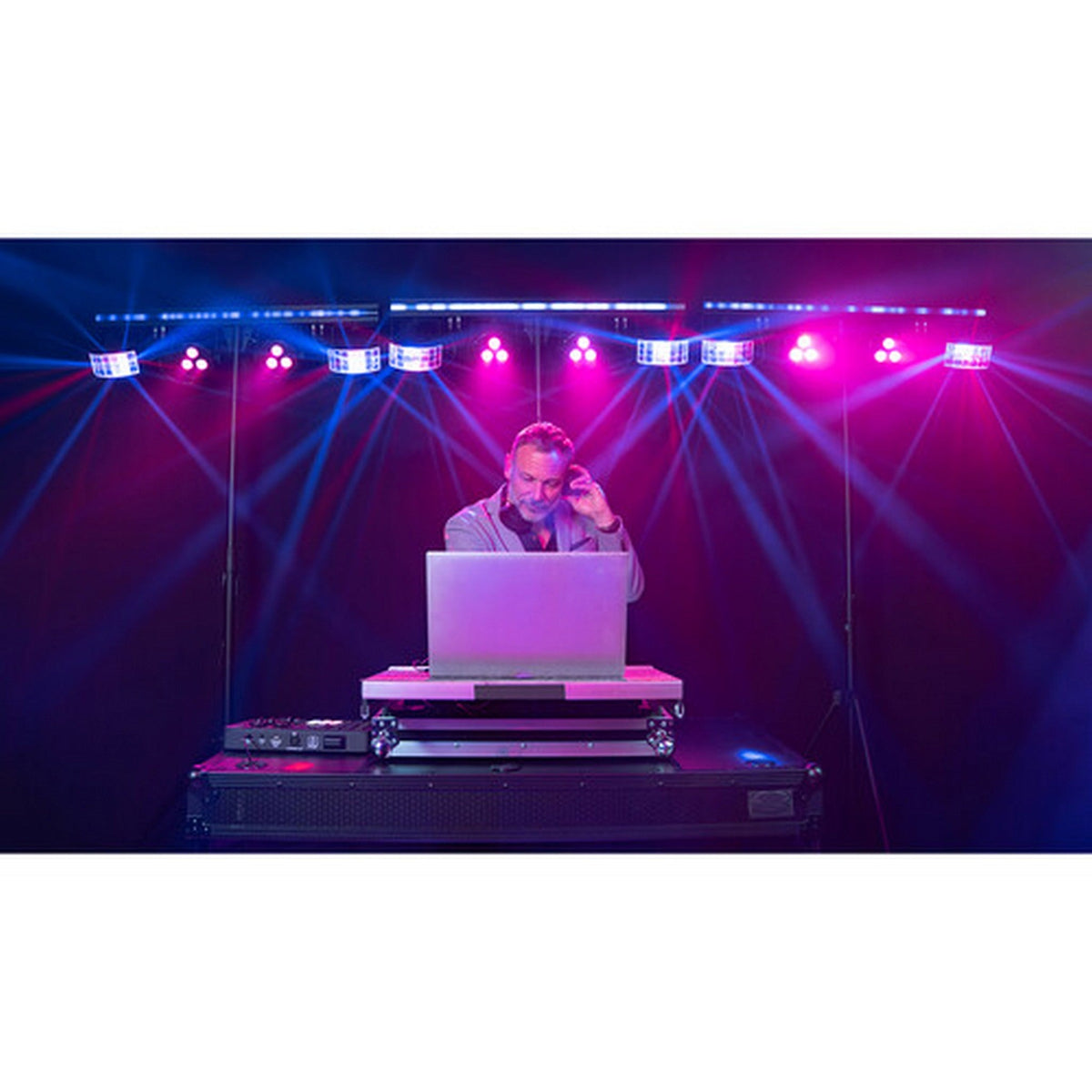

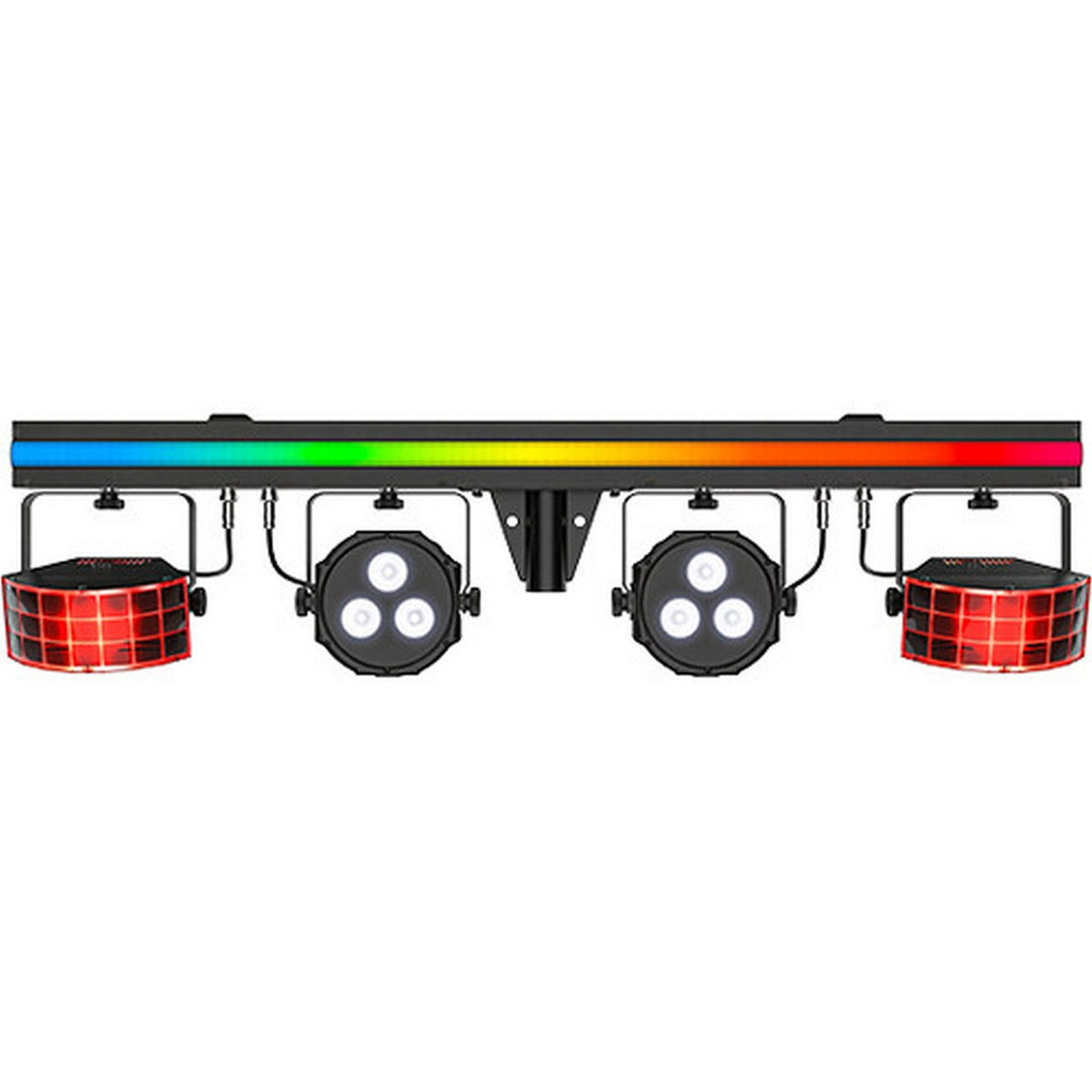

Item GIGBAR3ILS-2 is the current production run of the CHAUVET DJ GigBAR 3 ILS, the 3-in-1 lighting system that replaced the GigBAR 2. One bar carries two LED derbies, two quad-color RGB+UV pars and a 74-LED RGB strip, so a mobile DJ, band or event crew gets washes, multicolor beam effects and animated chase patterns from a single stand, a single power cord and a single control point.

Control is built around CHAUVET DJ's ILS (Instant Light Show) ecosystem: pair the bar with other ILS fixtures and they run coordinated shows without a console. Traditional DMX is available through 3-pin XLR in 2-, 21- and 132-channel personalities, and automated and sound-active programs cover gigs where nobody is running lights. The included RF remote and wireless footswitch give the performer on stage direct control of blackout, program changes and strobe.

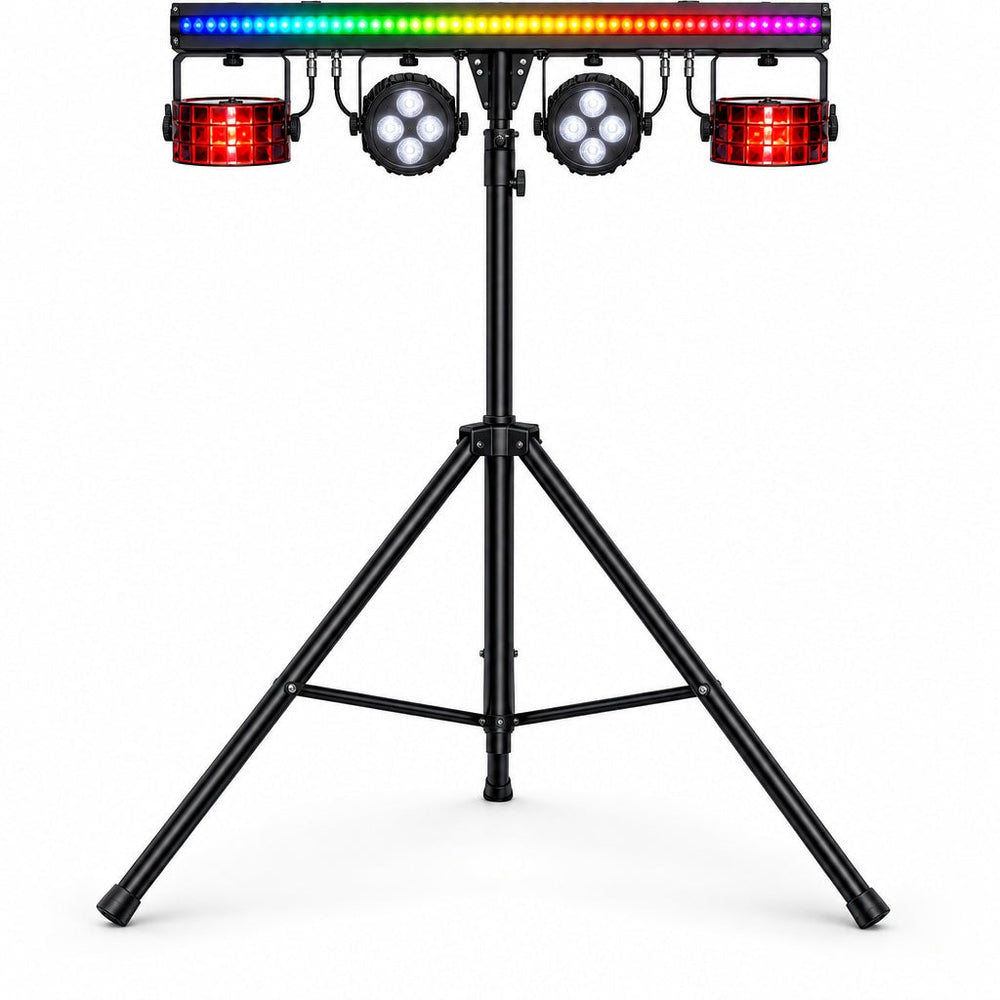

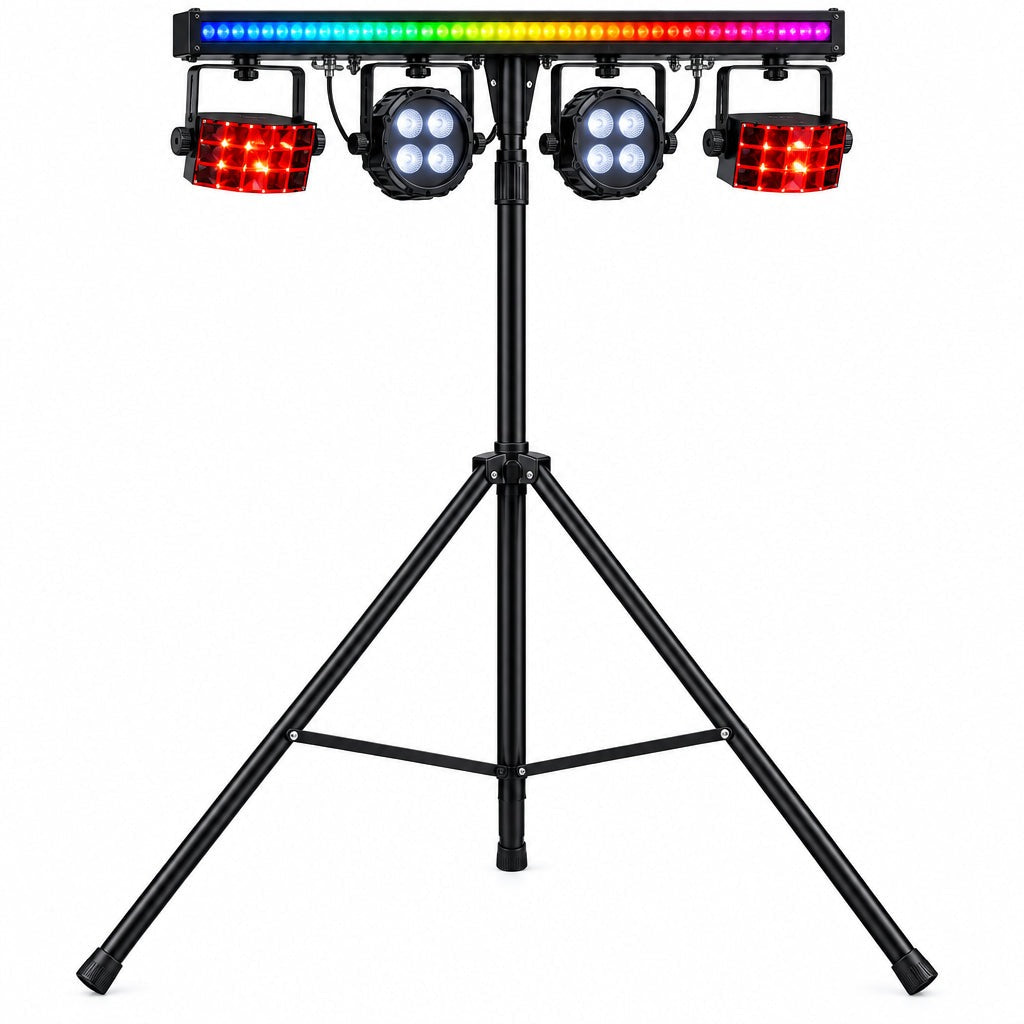

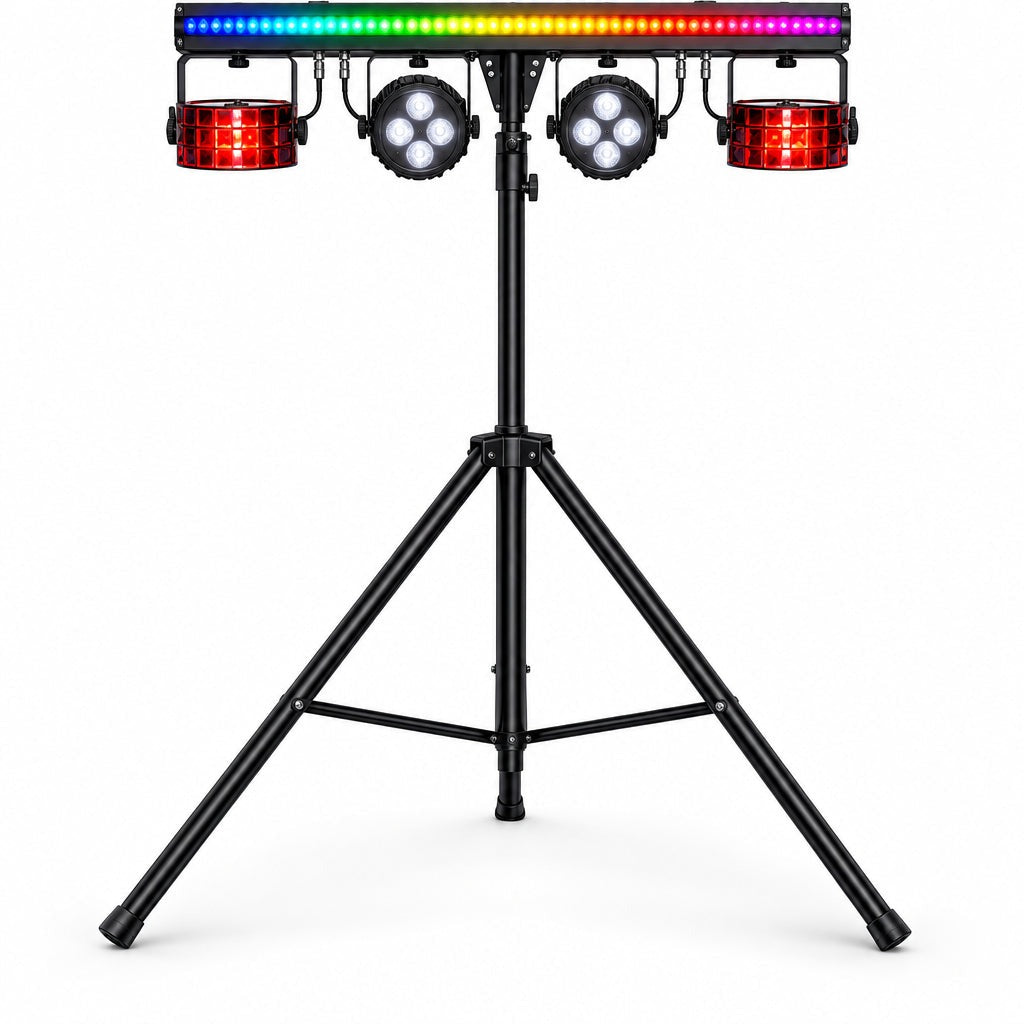

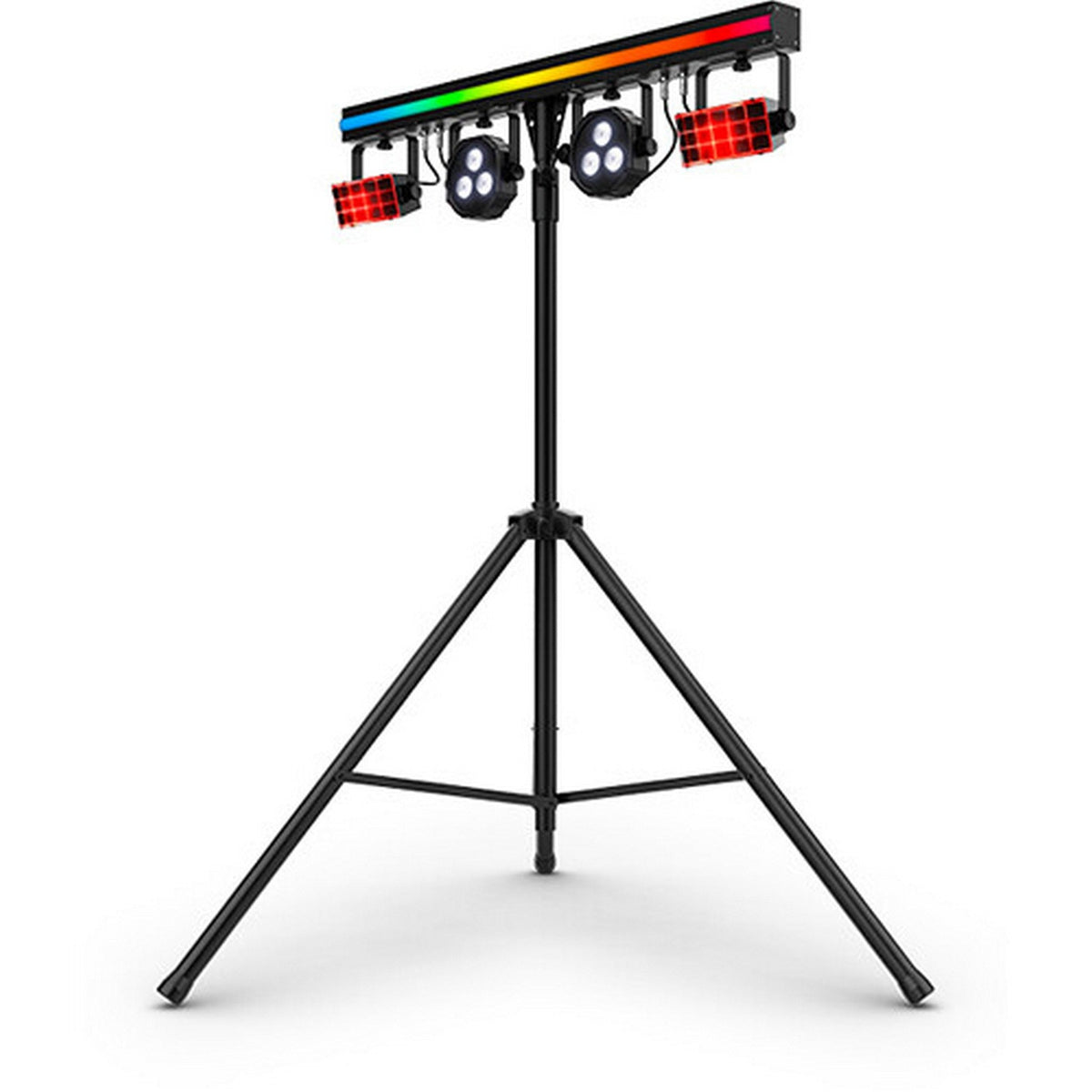

Setup is fast. The included tripod extends from 4.8 to 7.8 feet, the tripod bracket is reversible for alternate orientations, and up to four additional fixtures can mount to the top of the bar for a larger rig. Everything packs into the included carry bags. The system runs on 100 to 240 VAC and power-links up to 11 units at 120 V.

Features

• 3-in-1 bar: two LED derbies, two RGB+UV pars and one RGB LED strip
• ILS compatible for coordinated shows with other Instant Light Show fixtures
• DMX (2, 21 or 132 channels), automated, sound-active, RF remote and wireless footswitch control
• Built-in D-Fi wireless transceiver (2.412 to 2.484 GHz)
• Strobe 0 to 20 Hz, electronic dimming 0 to 100%
• Reversible tripod bracket; mounts up to four additional fixtures on top of the bar
• Full-color onboard display for programming and configuration
• Power linking up to 11 units at 120 V

Technical Specifications

• Brand: CHAUVET DJ
• Model: GigBAR 3 ILS
• Item Number: GIGBAR3ILS-2
• Fixture configuration: 2 x LED derby, 2 x LED par, 1 x LED strip
• Par light source: 6 x RGB+UV LEDs, 3.7 W; beam angle 13 deg, field angle 24 deg
• Derby light source: 2 red, 2 green, 2 blue LEDs, 3 W; coverage 114 deg
• LED strip: 74 x RGB LEDs, 5 W; coverage 174 deg
• Expected LED life: 50,000 hours
• Control: DMX512 (3-pin XLR), ILS, RF remote, wireless footswitch (433 MHz, 100 ft range)
• DMX channels: 2, 21 or 132
• Operating modes: DMX, primary/secondary, sound-active, standalone
• Input voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Power consumption: 47 W at 120 V (0.7 A); 45 W at 230 V (0.4 A)
• Power linking: 11 units at 120 V, 18 units at 230 V
• Power cable length: 9 ft; IEC input, Edison output
• Tripod height: 4.8 to 7.8 ft; mast diameter 1.5 in
• Fixture dimensions: 41.2 x 3.7 x 10.7 in; weight 13.2 lb
• Shipping dimensions: 50.2 x 21.26 x 7.48 in; shipping weight 38.14 lb
• Approvals: CE, RoHS, FCC

What's Included

• GigBAR 3 ILS bar
• Tripod
• Wireless footswitch
• RF remote
• Carrying bag and tripod bag
• Power cord
• Stealth filter
• User manual
