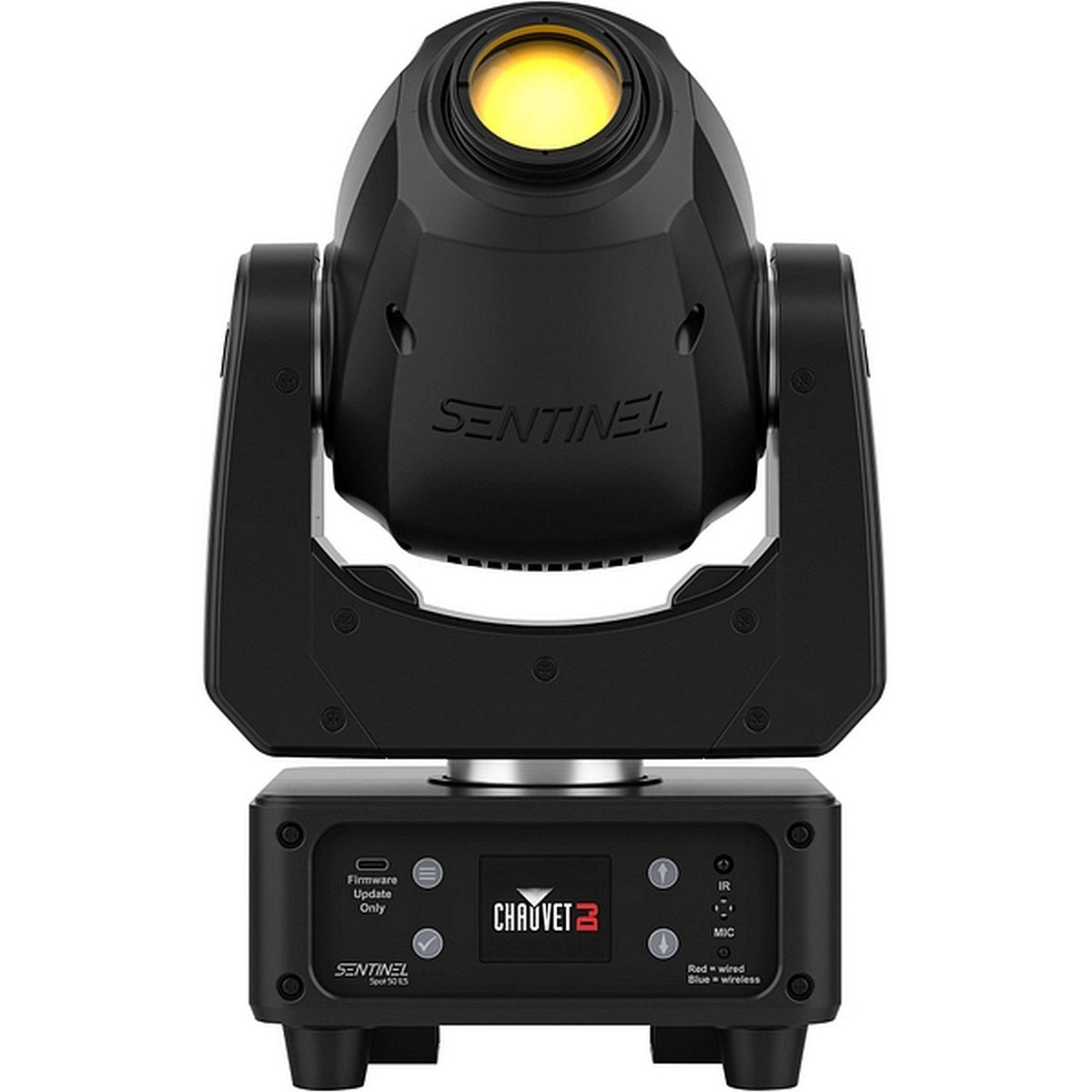

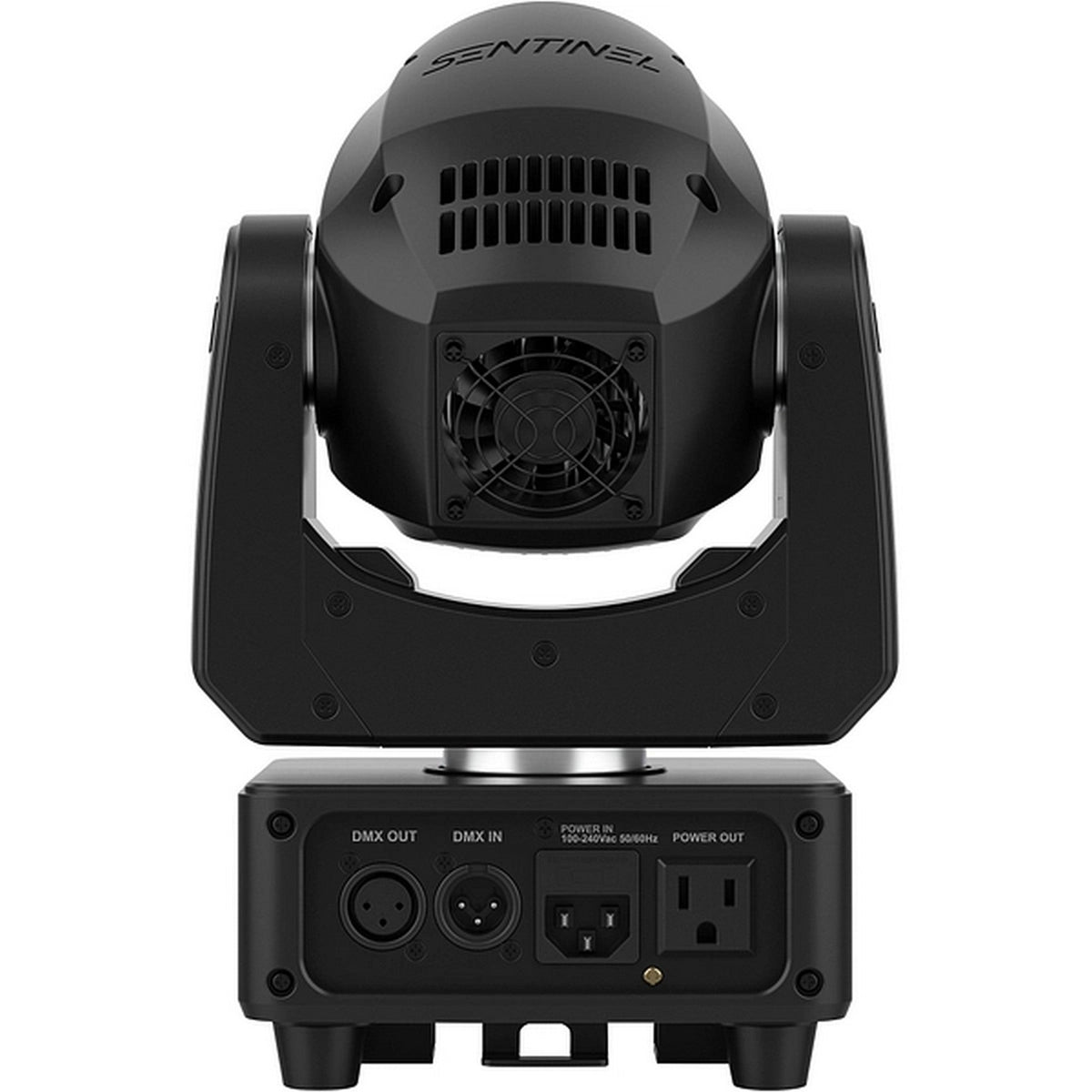

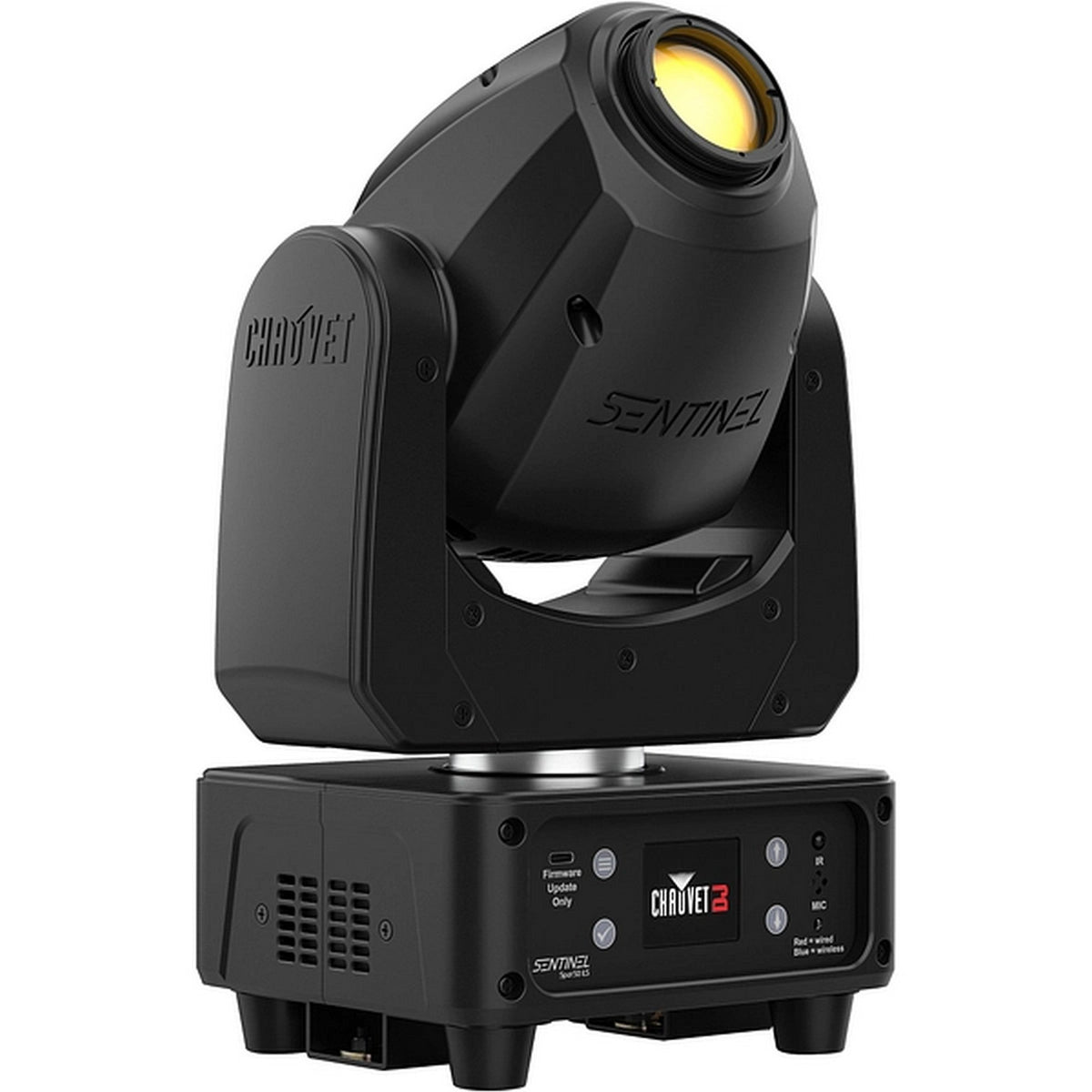

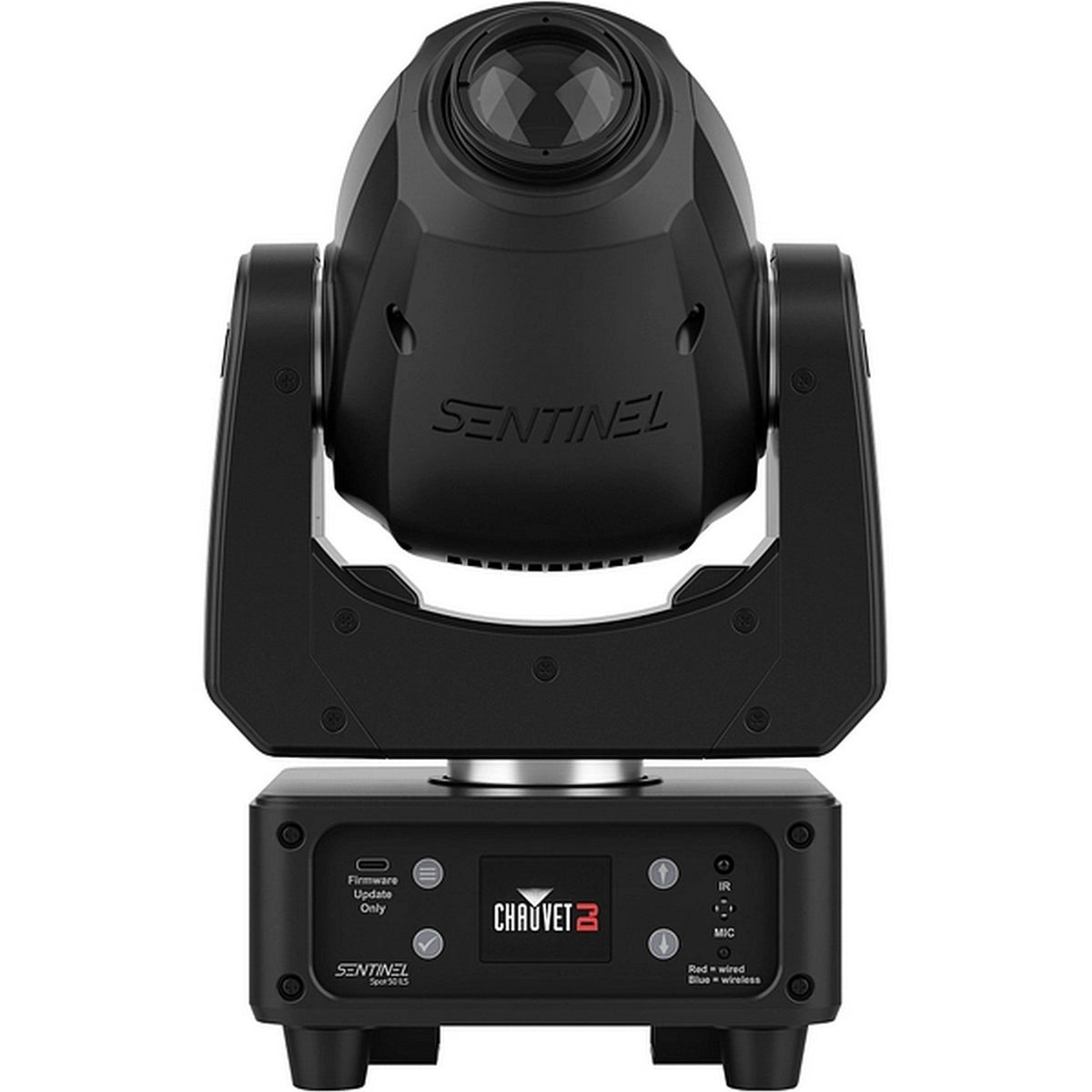

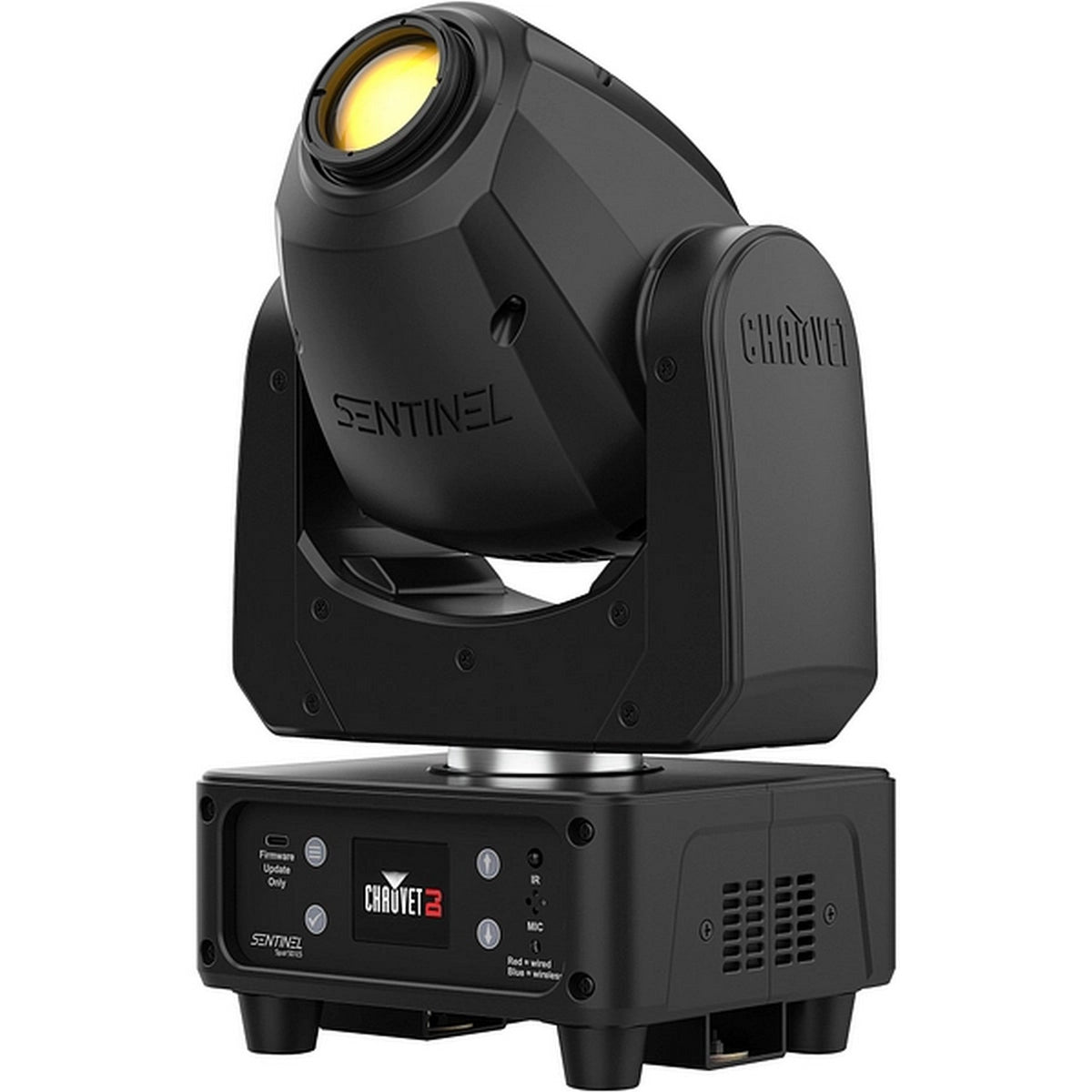

CHAUVET DJ Sentinel Spot 50 ILS 50W LED Moving Head Spot Light

CHAUVET DJ Sentinel Spot 50 ILS 50W LED Moving Head Spot Light

The CHAUVET DJ Sentinel Spot 50 ILS is a compact 50W LED moving head spotlight designed for mobile DJs, live performances, and event lighting. Featuring a 16-degree beam angle, nine selectable colors, nine gobos, and built-in wireless DMX capabilities, this fixture creates dynamic lighting effects with flexible control and positioning.

Built for entertainment venues, mobile productions, and professional lighting setups, the Sentinel Spot 50 ILS combines motorized movement with versatile color and pattern effects. Its 50W white LED produces focused illumination suitable for dance floors, stages, and event spaces. A dedicated color wheel provides nine colors plus open white, including split-color effects and variable-speed scrolling. Nine aluminum gobos allow operators to project distinct patterns, while continuous gobo scrolling adds movement and visual texture. With 540-degree pan and 229-degree tilt capabilities, the fixture provides extensive positioning flexibility for professional moving head lighting applications.

The Sentinel Spot 50 ILS incorporates CHAUVET DJ's Instant Light Shows (ILS) technology for integration with compatible lighting equipment. Its built-in D-Fi transceiver supports wireless DMX and ILS communication, reducing the need for dedicated signal cables. A full-color LCD simplifies fixture configuration, while Totem Mode helps direct lighting effects toward the dance floor. Power linking supports multi-fixture installations, making the spotlight suitable for coordinated entertainment lighting systems.

Key Features

• 50W LED Light Source: Produces focused white illumination with a 16-degree beam angle for moving spotlight effects and projected patterns.
• Built-In D-Fi Wireless Technology: Supports wireless DMX and ILS communication for flexible control and reduced signal cabling.
• ILS Compatibility: Integrates with compatible CHAUVET DJ Instant Light Shows equipment to create coordinated lighting effects.
• Nine-Color Wheel: Provides nine colors plus open white, split-color combinations, and continuous scrolling at adjustable speeds.
• Nine Aluminum Gobos: Projects nine selectable patterns plus an open position, with variable-speed continuous gobo scrolling.
• Motorized Pan and Tilt: Delivers up to 540 degrees of horizontal movement and 229 degrees of vertical movement for flexible beam positioning.
• Totem Mode: Helps maintain lighting movement within the dance floor area during performances.
• Full-Color LCD and Power Linking: Simplifies configuration while allowing multiple compatible fixtures to share an AC power connection.

Professional Moving Head Lighting Applications

Mobile DJ and Event Lighting

The Sentinel Spot 50 ILS provides moving beam effects for mobile entertainers, wedding receptions, private parties, and event productions. Its compact housing makes it practical for mobile lighting systems where equipment size and setup efficiency are important. Built-in automated effects and wireless control capabilities help simplify event lighting operation.

Stage Lighting and Live Performances

With its 50W LED source, 16-degree beam angle, and nine selectable gobos, the fixture creates defined spotlight patterns for stages and performance areas. Motorized pan and tilt allow operators to reposition beams and produce synchronized movement effects during live productions.

Wireless DMX and ILS Lighting Systems

The integrated D-Fi transceiver supports wireless communication with compatible CHAUVET DJ lighting systems. ILS compatibility allows the moving head to participate in coordinated lighting sequences, while conventional DMX control provides additional programming flexibility for lighting designers and technicians.

Dance Floor Lighting and Pattern Effects

Selectable colors, gobo projections, variable-speed scrolling, and strobe effects provide multiple ways to enhance dance floor illumination. Totem Mode helps constrain moving head effects to the designated performance area.

Lighting Performance and Optical Features

The Sentinel Spot 50 ILS uses a single 50W LED with an 11,000K color temperature and a rated life expectancy of 50,000 hours. Its optical system produces a 16-degree beam with a specified illuminance of 8,575 lux at 6.6 feet and a luminous output of 1,888 lumens.

The color wheel includes nine selectable colors plus open white, supporting split-color effects and continuous scrolling. A separate gobo wheel provides nine aluminum patterns plus an open position. These effects allow lighting operators to combine color selection, pattern projection, and motorized movement within a single fixture.

Control and Movement Capabilities

The fixture supports 5-channel and 11-channel DMX configurations through 3-pin XLR connections. Adjustable pan ranges of 180, 360, or 540 degrees and tilt ranges of 90, 180, or 229 degrees accommodate different installation environments.

Wireless control is available through the built-in D-Fi transceiver, which supports compatible DMX and ILS systems. A full-color LCD provides access to fixture settings, while optional remote controllers offer additional operating flexibility. The fixture also supports power linking for installations using multiple compatible moving heads.

Technical Specifications

• Brand: CHAUVET DJ
• Model: Sentinel Spot 50 ILS
• Product Type: LED Moving Head Spot Light
• Lighting Technology: LED
• Light Source: 1 x 50W White LED
• LED Color Temperature: 11,000K
• LED Current: 3A
• LED Life Expectancy: 50,000 Hours
• Luminous Output: 1,888 Lumens
• Beam Angle: 16 Degrees
• Illuminance: 8,575 Lux at 6.6 ft
• Colors: 9 + Open White
• Color Effects: Split Colors and Continuous Variable-Speed Scrolling
• Gobos: 9 Aluminum Gobos + Open
• Gobo Effects: Continuous Variable-Speed Scrolling
• Maximum Pan Movement: 540 Degrees
• Maximum Tilt Movement: 229 Degrees
• Selectable Pan Ranges: 180, 360, and 540 Degrees
• Selectable Tilt Ranges: 90, 180, and 229 Degrees
• Strobe Rate: 0 to 20 Hz
• DMX Channels: 5 or 11
• DMX Connections: 3-Pin XLR
• Wireless Control: Built-In D-Fi Transceiver
• Lighting System Compatibility: CHAUVET DJ ILS
• Additional Operating Feature: Totem Mode
• Control Display: Full-Color LCD
• Optional Controllers: IRC Remote, ILS Command
• Input Voltage: 100-240V AC, 50/60Hz
• Power Supply: Auto-Ranging
• Power Consumption: 68W
• Operating Current at 120V: 1.3A, 60Hz
• Operating Current at 230V: 0.7A, 50Hz
• Power Linking at 120V: Up to 8 Units
• Power Linking at 230V: Up to 12 Units
• Power Cable Length: Approximately 59.8"
• Bracket Mounting Hole: M12
• Fixture Length: 10.3"
• Fixture Width: 6.1"
• Fixture Height: 12.6"
• Weight: 8.8 lb
• Compliance: CE, RoHS
• Compatible Carrying Bag: CHAUVET DJ CHS-40 VIP Gear Bag
