Cleerline SSF-PULLEYE Heavy-Duty Cable Pulling Kit - 6-8mm

Cleerline SSF-PULLEYE Heavy-Duty Cable Pulling Kit

The Cleerline SSF-PULLEYE Heavy-Duty Cable Pulling Kit grips non-terminated fiber cables from 6 to 25 mm in diameter for protected routing through walls or conduit. Four diameter-specific models provide 230, 280, or 430 mm lengths, with rated tensile loads from 88 to 551 lb and separate breaking-load ratings.

This wire-mesh pulling sock is designed for installers handling armored, direct-burial, breakout, and high-strand-count fiber cables. Select the appropriate heavy-duty cable pulling eye by matching its diameter range to the cable jacket. The available sizes support large fiber cable installation, armored cable pulling through conduit, and long cable replacement runs.

Each model uses durable wire mesh and an integrated pulling eye for attachment to a pull line. Every size requires a conduit with an inner diameter greater than 25 mm. The cable's aramid strength members may also connect to the pulling eye when the cable construction and installation plan permit it.

Key Features

• Four Cable-Size Variants: Fits non-terminated cables with outside diameters ranging from 6 to 25 mm.
• Size-Specific Lengths: Offers 230, 280, and 430 mm pulling socks matched to different cable-diameter ranges.
• Heavy-Duty Wire Mesh: Grips larger cable jackets while helping protect the cable during installation or replacement.
• Armored Cable Compatibility: Supports compatible interlocking armored and direct-burial fiber cable constructions.
• High Pull Ratings: Provides rated tensile capacities from 88 to 551 lb, depending on the selected model.
• Integrated Pulling Eye: Creates a secure connection point for attaching the cable assembly to a pull line.
• Conduit Installation Support: Routes compatible cables through walls, pipes, ducts, and conduits with sufficient clearance.
• Optional Strength-Member Attachment: Allows compatible cable aramid yarns to connect to the pulling eye when required.

Technical Specifications

General

• Brand: Cleerline
• Product Family: SSF-PULLEYE
• Product Type: Heavy-duty fiber cable pulling kit
• Available Variants: Four cable-diameter sizes
• Compatible Cable Diameter Range: 6 to 25 mm
• Compatible Cable Condition: Non-terminated
• Pull-Sock Construction: Wire mesh
• Pull-Line Connection: Integrated pulling eye
• Minimum Conduit Inner Diameter: Greater than 25 mm
• Installation Applications: Walls, conduits, pipes, ducts, and other long or confined cable pathways
• Strength-Member Support: Compatible cable aramid strength members may be attached to the pulling eye

Available Cable-Size and Length Variants

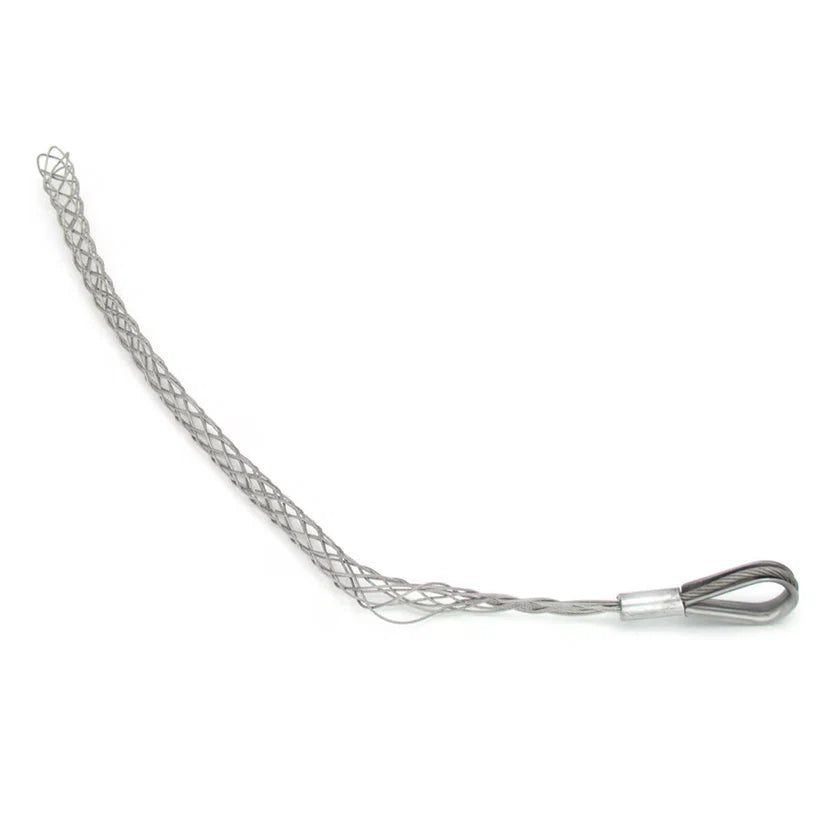

• SSF-PULLEYE68: Fits 6 to 8 mm cable; 230 mm overall length; 88 lb tensile load; 220 lb breaking load

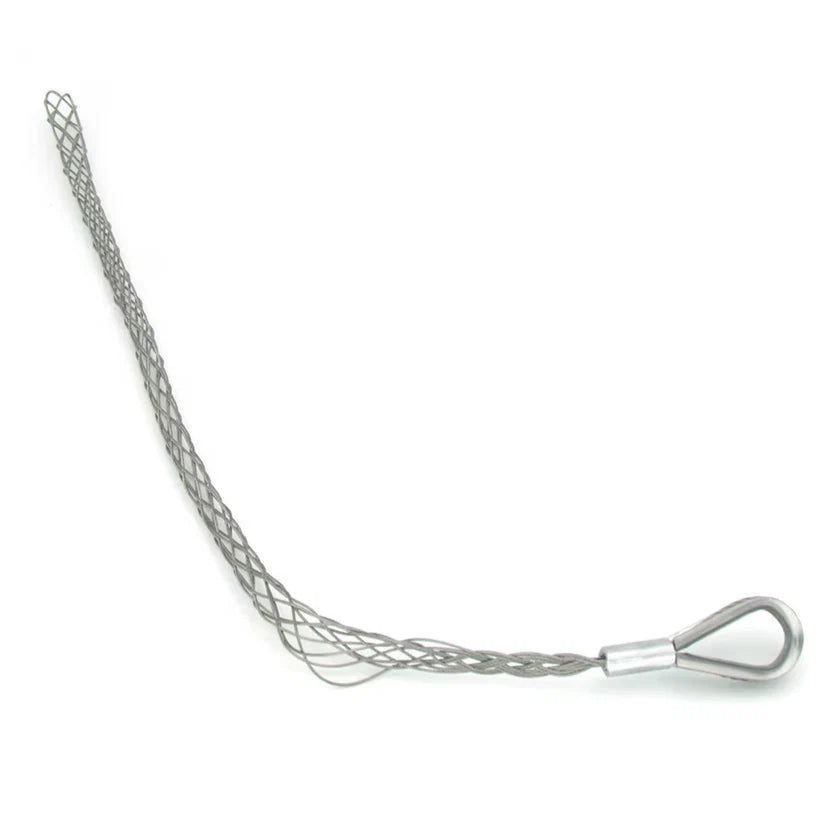

• SSF-PULLEYE712: Fits 7 to 12 mm cable; 280 mm overall length; 176 lb tensile load; 441 lb breaking load
• SSF-PULLEYE1318: Fits 13 to 18 mm cable; 430 mm overall length; 375 lb tensile load; 937 lb breaking load
• SSF-PULLEYE1825: Fits 18 to 25 mm cable; 430 mm overall length; 551 lb tensile load; 1377 lb breaking load

Compatible Cable Constructions

• Aluminum Interlocking Armored Cable: Compatible with Cleerline SSF aluminum interlocking armored constructions
• Armored Direct-Burial Cable: Compatible with Cleerline SSF armored direct-burial constructions
• Breakout Cable: Compatible with four-strand breakout cable
• Micro-Distribution Cable: Compatible with 24- to 144-strand micro-distribution cable
