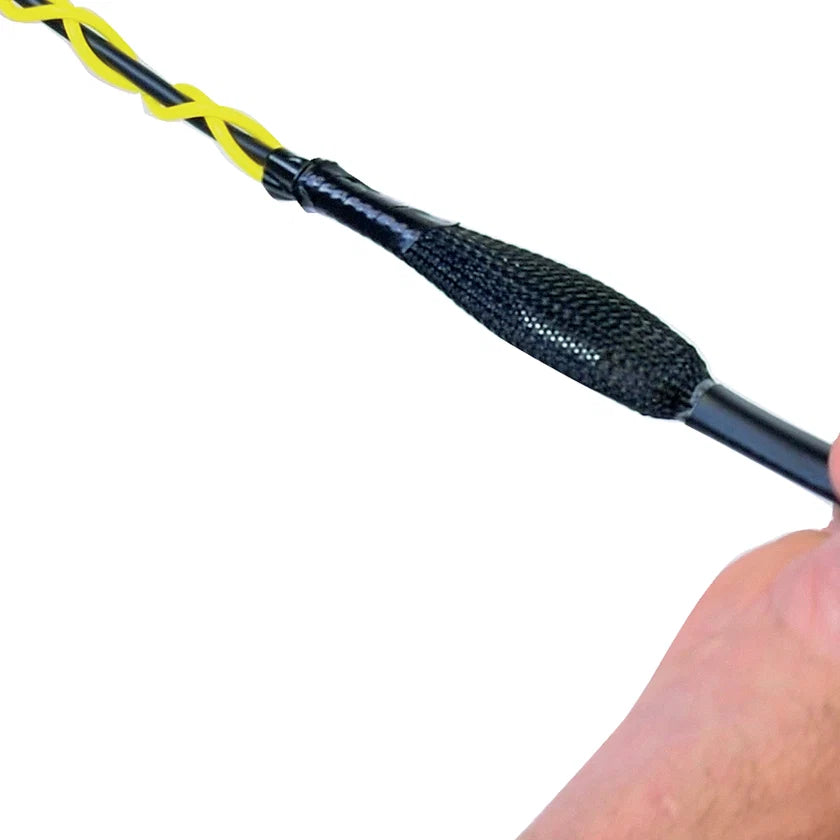

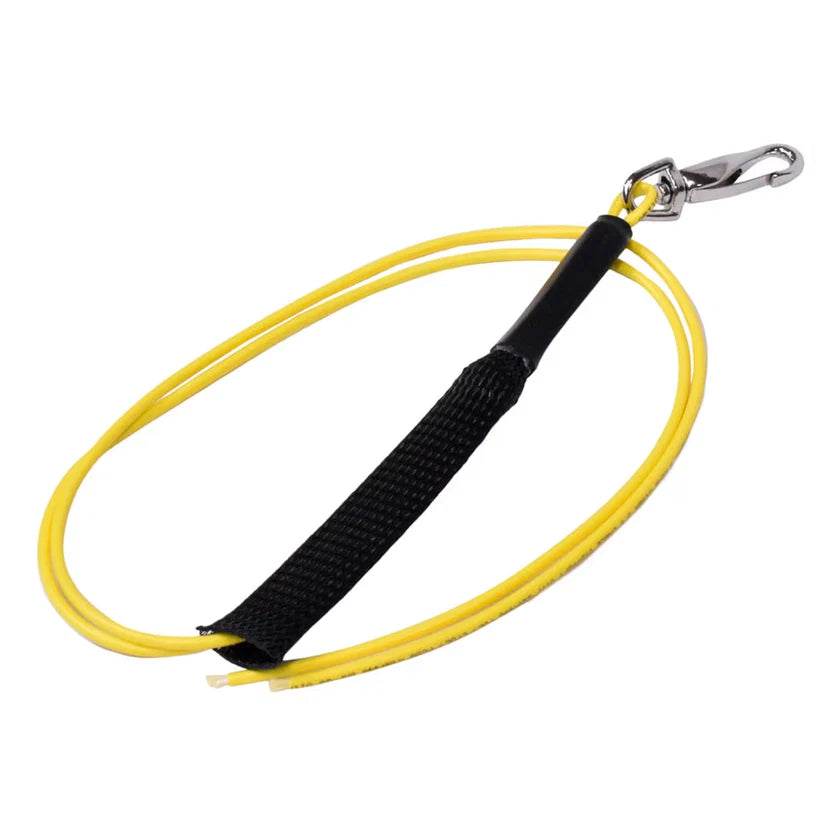

The Cleerline SSF-PULLEYED Cable Pulling Kit protects pre-terminated duplex fiber and active optical cable connectors during installation. Its expandable mesh sleeve surrounds the connector head, while integrated aramid strength members transfer pulling force away from the cable termination for safer routing through walls, conduit, pipes, and ducts.

This reusable fiber pulling eye supports installers working with simplex fiber, duplex fiber, and compatible HDMI, DisplayPort, or USB active optical cables. The rotating metal clip attaches to a pull line and helps limit cable twisting through bends. It is especially useful for long cable runs and confined pathways where an uncovered connector may snag or sustain damage.

The assembly supports pulling loads up to 124 lb and measures 19.6 inches long. The pulling eye alone requires a conduit opening of at least 0.6 inches, while a typical active optical cable installation may require approximately 1 inch. Connector dimensions should be checked before installation because the cable head must fit completely inside the protective mesh sleeve.

Key Features

• Connector Protection: Covers a pre-terminated connector head to reduce snagging and impact damage during cable pulls.
• Fiber and AOC Compatibility: Supports compatible simplex fiber, duplex fiber, and active optical cable assemblies.
• Expandable Mesh Sleeve: Wraps around the cable head while adapting to compatible connector shapes and sizes.

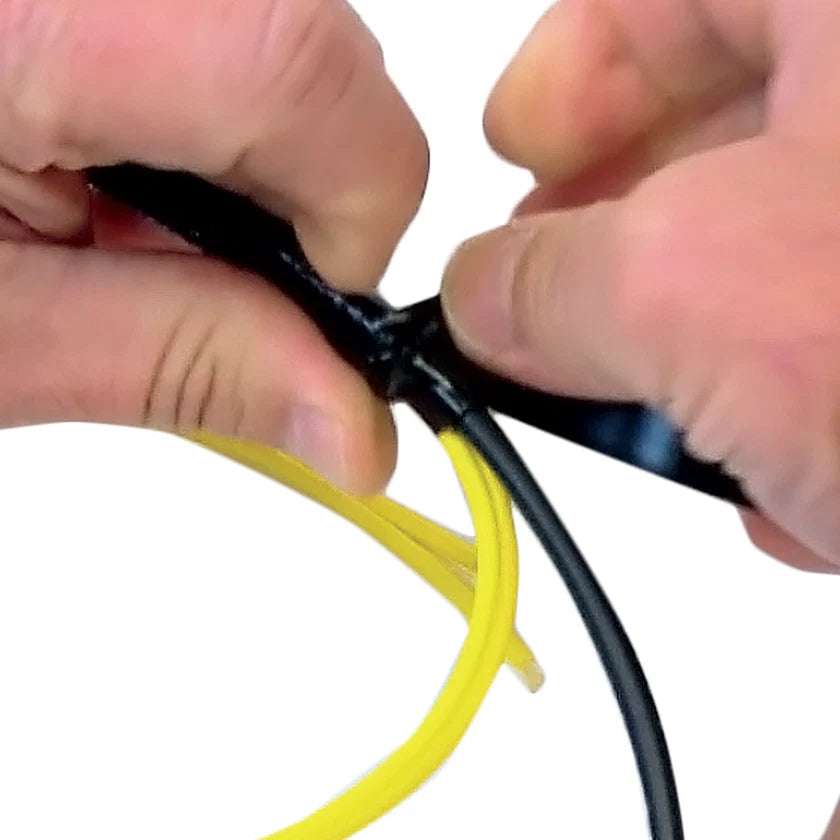

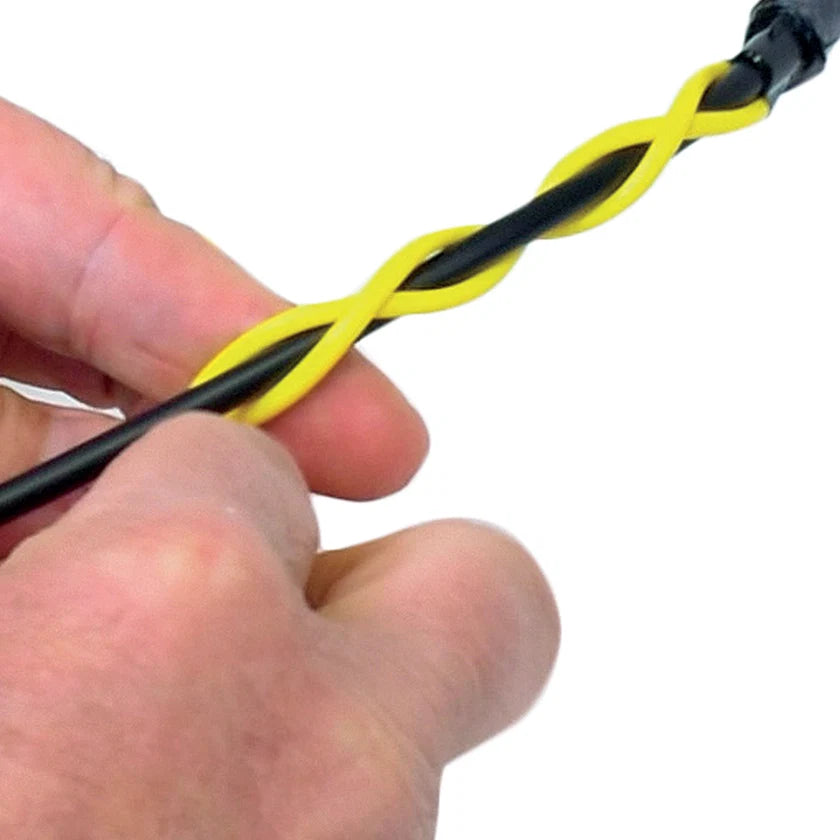

• Aramid Strength Members: Tighten around the cable as pulling tension increases to help protect the termination.
• Rotating Metal Clip: Connects to a pull line while helping reduce twisting through conduit and confined pathways.
• 124 lb Pull Capacity: Handles installation loads up to 550 N when properly secured to the cable.
• Reusable Design: Removes after installation and can be prepared for additional cable-pulling jobs.

Technical Specifications

• Brand: Cleerline
• Model: SSF-PULLEYED
• Product Type: Fiber and active optical cable pulling kit
• Compatible Cable Types: Simplex fiber, duplex fiber, and active optical cable assemblies
• Compatible AOC Interfaces: HDMI, DisplayPort, and USB
• Compatible Cleerline Cables: SSF simplex fiber, SSF duplex fiber, and SSF 8K UHD HDMI active optical cables
• Connector Fit Requirement: Connector head must fit completely inside the mesh sleeve
• Installation Applications: Walls, conduits, pipes, ducts, and other confined pathways
• Strength Member Material: PVC-jacketed aramid yarn
• Pull-Line Connection: Rotating metal clip
• Maximum Pulling Load: 550 N / 124 lb
• Minimum Conduit Inner Diameter: 0.6 inches for the pulling eye without a connector
• Typical AOC Conduit Inner Diameter: Approximately 1 inch
• Overall Length: 19.6 inches
• Reusable: Yes

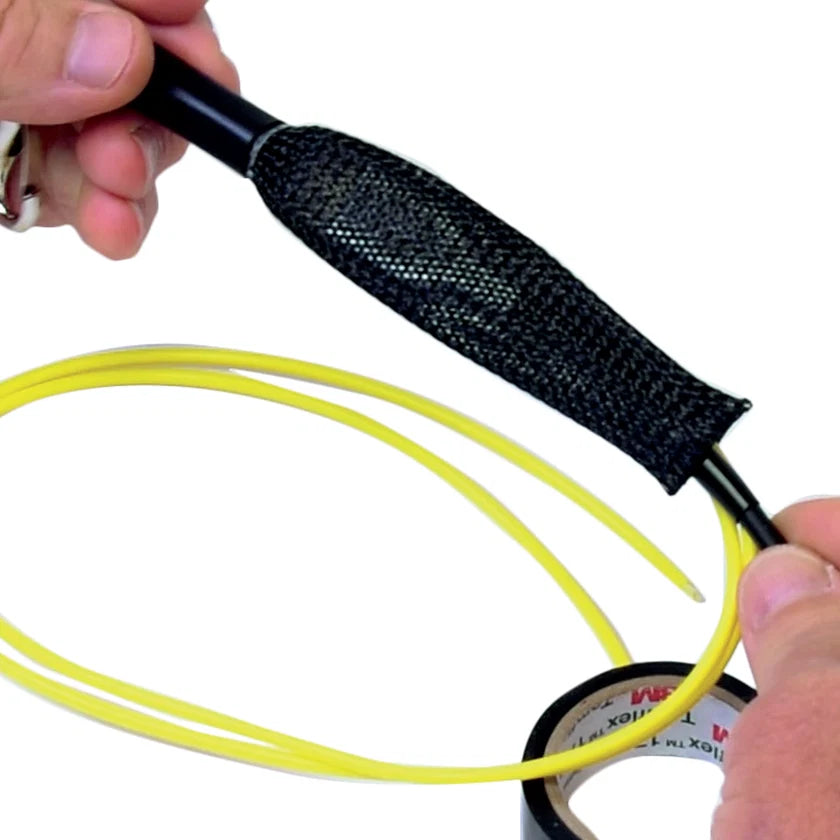

• Installation Requirement: Electrical tape is required to secure the pulling kit to the cable
