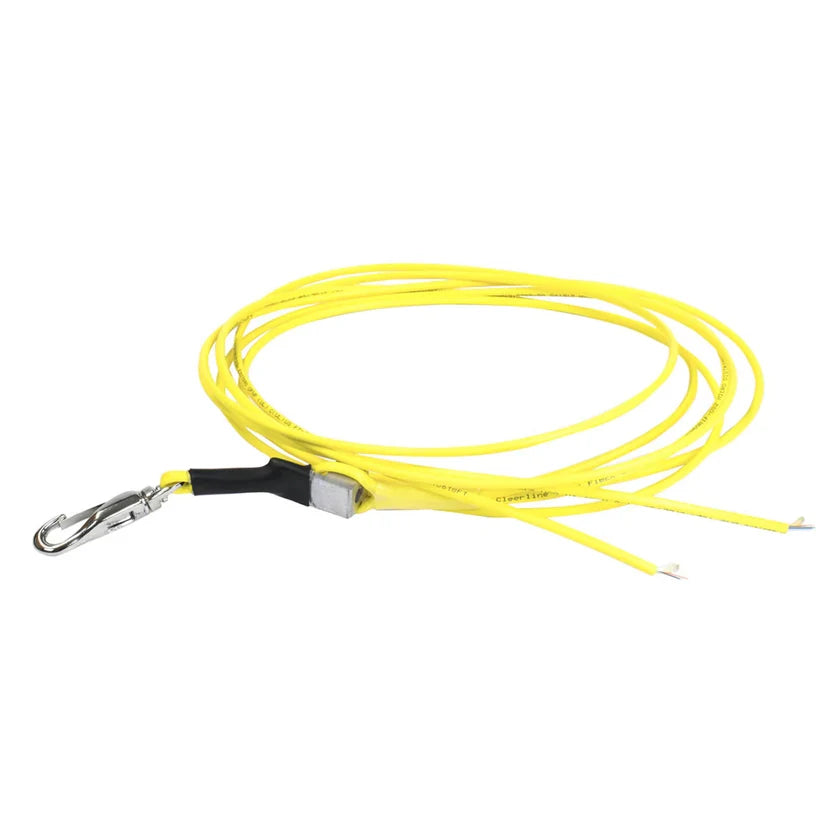

Cleerline SSF-PULLEYEM Multi-Fiber Cable Pulling Kit for Multiple Fibers

Cleerline SSF-PULLEYEM Multi-Fiber Cable Pulling Kit for Multiple Fibers

The Cleerline SSF-PULLEYEM Multi-Fiber Cable Pulling Kit protects pre-terminated assemblies during long pulls through walls, conduit, pipes, and ducts. Built for cables with two or more fibers, it combines a durable plastic mesh sock, PVC-jacketed aramid strength members, an aluminum locking nut, and a rotating pull-line clip.

This pulling eyelet suits fiber installers routing Micro Distribution, Rugged Micro Distribution, tactical, and larger-diameter cable assemblies. The locking nut connects the cable's internal strength member to the pulling eye, directing installation tension toward the reinforced aramid yarn instead of sensitive fibers, connectors, or the outer jacket.

The 59-inch assembly supports a manufacturer-rated pulling load of 500 lb and requires at least a 0.8-inch conduit opening without connectors installed. Proper preparation requires electrical tape, fiber shears, and cable strippers. Installers should stagger connector terminations when possible to reduce the completed pull-sock diameter.

Key Features

• Multi-Fiber Compatibility: Accommodates pre-terminated assemblies containing two or more optical fibers.
• Connector Protection: Durable plastic mesh surrounds the cable ends and helps keep multiple connectors organized during installation.
• Aramid Strength Members: PVC-jacketed aramid yarn transfers pulling force to reinforced cable components instead of delicate fibers.
• Aluminum Locking Nut: Secures the cable's exposed strength member directly to the pulling eyelet.
• Rotating Metal Clip: Connects easily to a pull line while helping reduce excessive twisting through the pathway.
• 500 lb Pull Rating: Supports demanding multi-fiber cable installations when attached and prepared according to the instructions.
• Long Pulling Assembly: The 59-inch design provides coverage for staggered connectors and larger cable bundles.

Technical Specifications

General

• Brand: Cleerline
• Model: SSF-PULLEYEM
• Product Type: Multi-fiber cable pulling eyelet kit
• Compatible Cable Capacity: Two or more fibers
• Compatible Cable Types: Pre-terminated multi-fiber and larger-diameter cable assemblies
• Compatible Constructions: Micro Distribution, Rugged Micro Distribution, and tactical cable assemblies
• Installation Applications: Walls, conduits, pipes, ducts, and other long or confined pathways
• Pull-Sock Material: Durable plastic mesh
• Strength Members: PVC-jacketed aramid yarn
• Strength-Member Attachment: Aluminum locking nut
• Pull-Line Attachment: Rotating metal clip
• Minimum Conduit Inner Diameter: 0.8 inches for the pulling eye only
• Maximum Rated Pulling Load: 500 lb
• Overall Length: 59 inches

Installation Requirements

• Additional Required Tools: Electrical tape, fiber shears, and cable strippers
• Connector Preparation: Stagger connector terminations when possible to reduce the pull-sock diameter
• Aramid Yarn Extension: Extend the cable's core aramid yarn 6 inches beyond the cable end or connectors
• Pulling-Eye Preparation: Remove 0.5 inches of jacket from the pulling-eye legs after taping them to the cable
• Strength-Member Wrap: Braid the pulling eye's aramid yarn around the cable jacket at least four to six times
• Strain Requirement: Distribute pulling tension through the cable's aramid yarn rather than the connectors, fibers, or mesh
