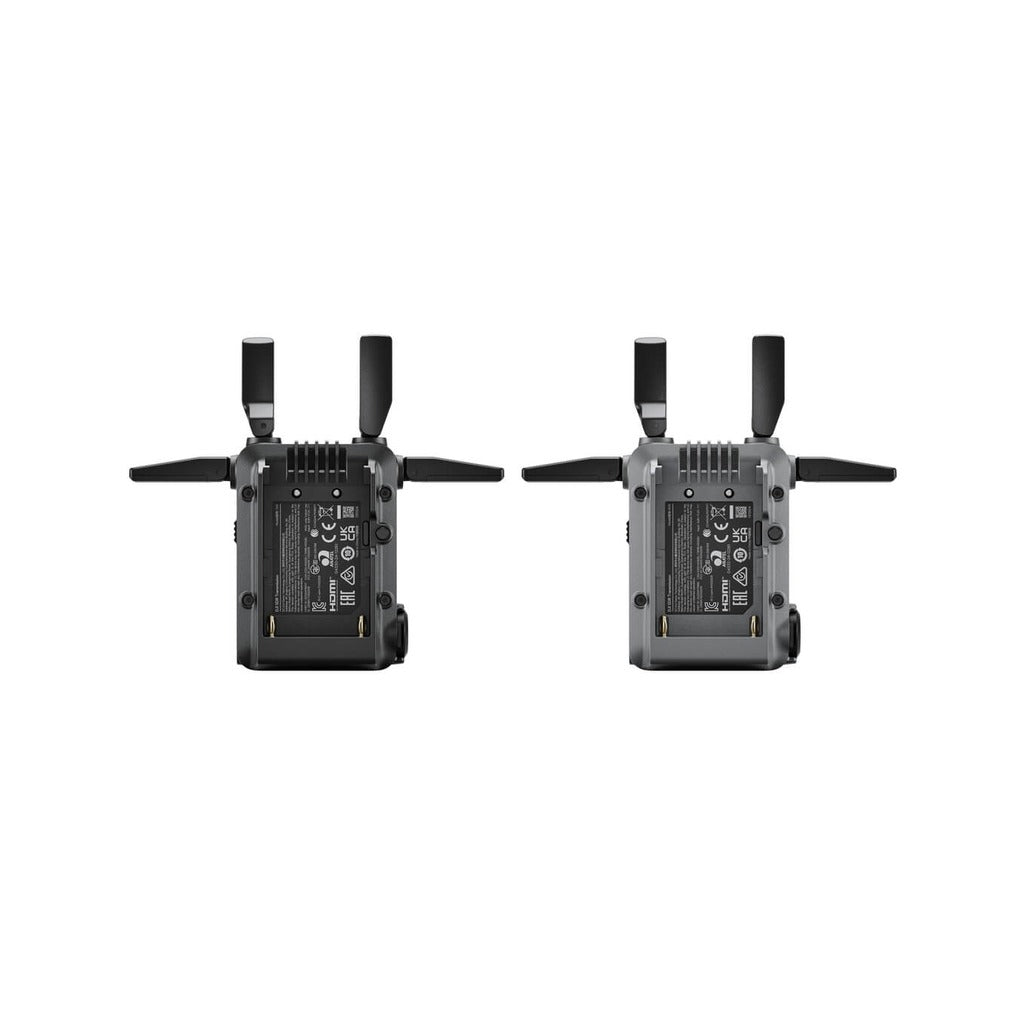

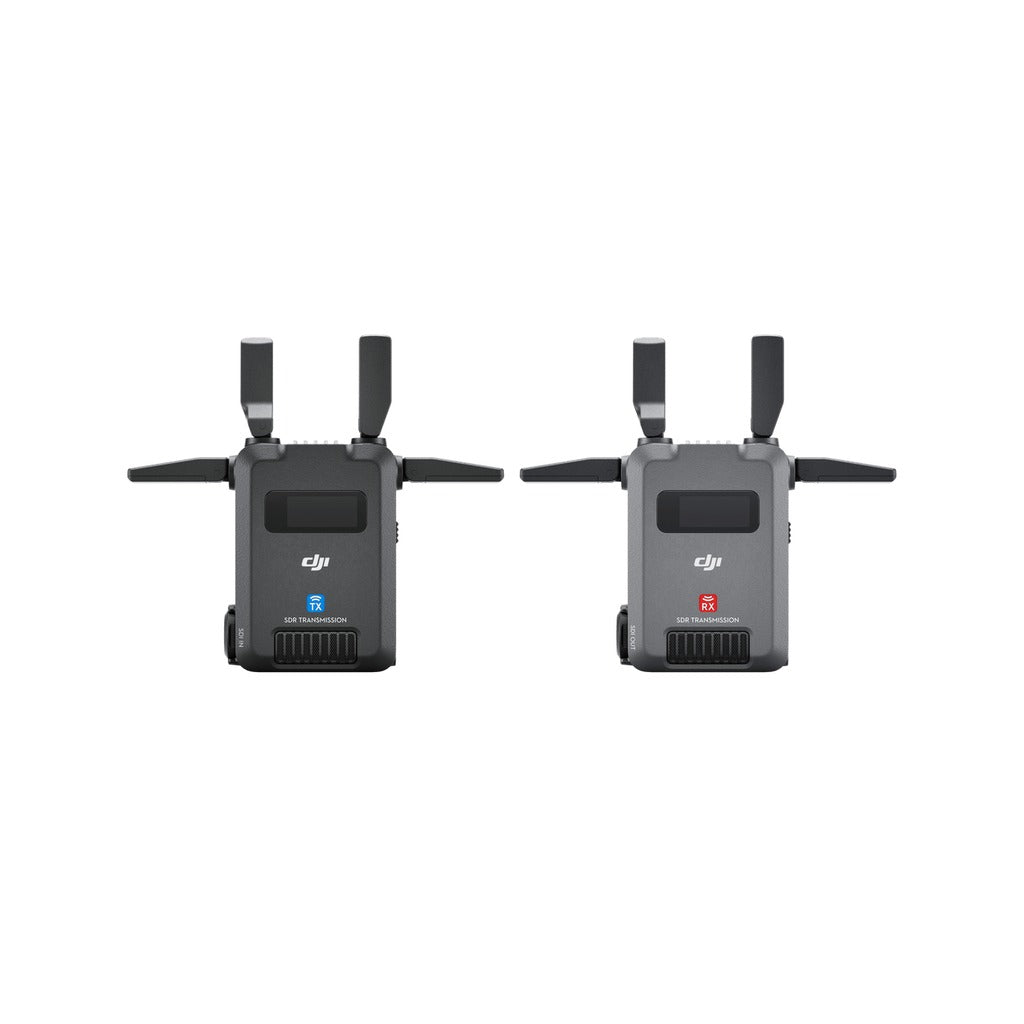

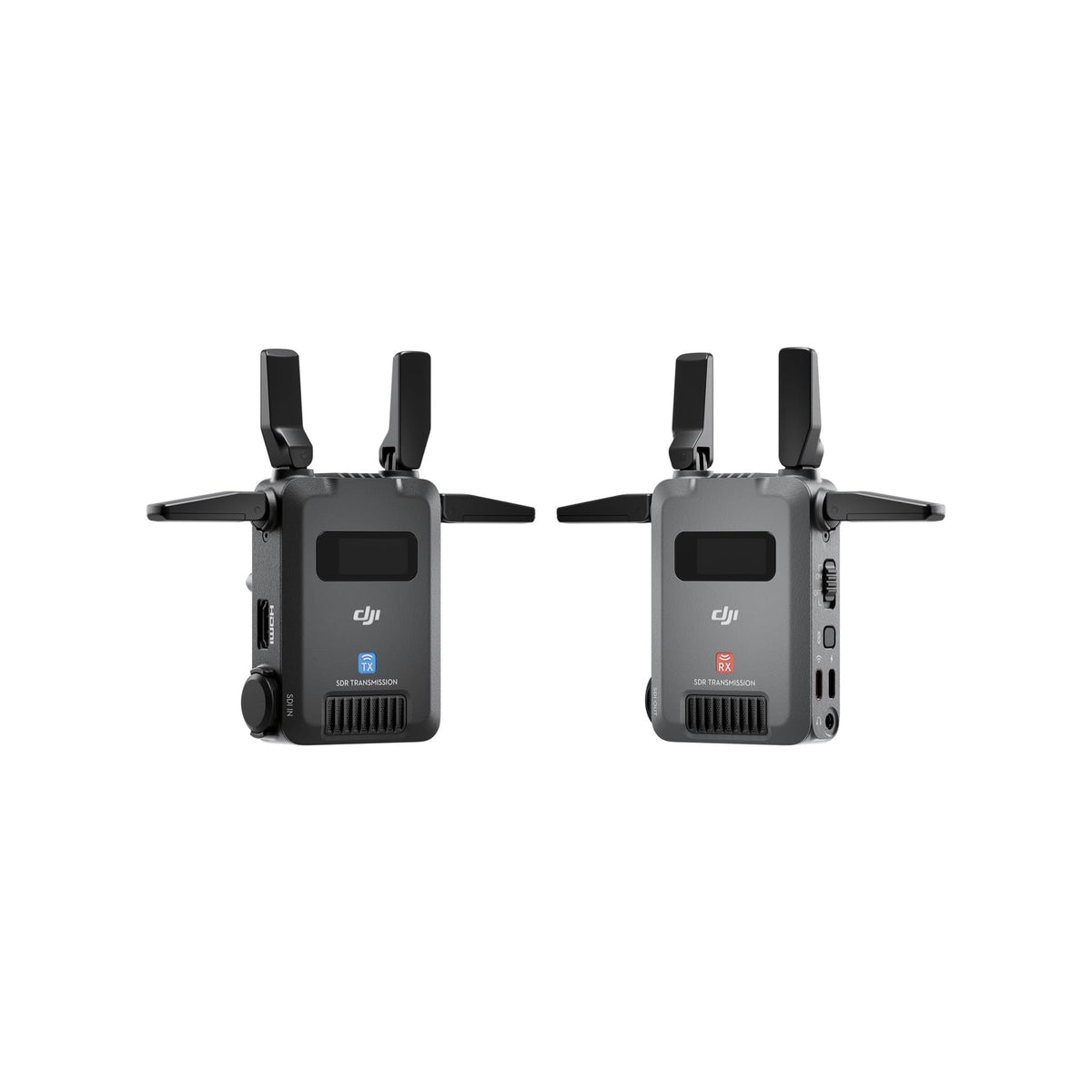

DJI SDR Transmission Combo, 1080p/60 Wireless Video TX + RX, 3 km Range

Using DJI's software-defined radio (SDR) technology, the SDR Transmission Combo sends 1080p/60fps video from a transmitter mounted on the camera or gimbal to a matching receiver up to 3 km away (FCC) with about 35 ms of transmission latency. Operation hops across the 2.4 GHz, 5.1 GHz DFS and 5.8 GHz bands to hold a clean link on crowded sets, and the system penetrates walls and obstacles better than conventional Wi-Fi-based monitors.

Both units carry SDI and HDMI connectors, so the transmitter accepts 1080p, 1080i and 720p signals from cinema and mirrorless cameras while the receiver feeds monitors, switchers or recorders. The receiver's USB-C port also outputs video to a phone or tablet running the DJI Ronin app, and a built-in Wi-Fi mode offers 200 m of short-range monitoring. Power comes from NP-F batteries, USB-C PD at 9 V or a 6.8 to 17.2 V DC source, and each unit weighs about 145 g including antennas.

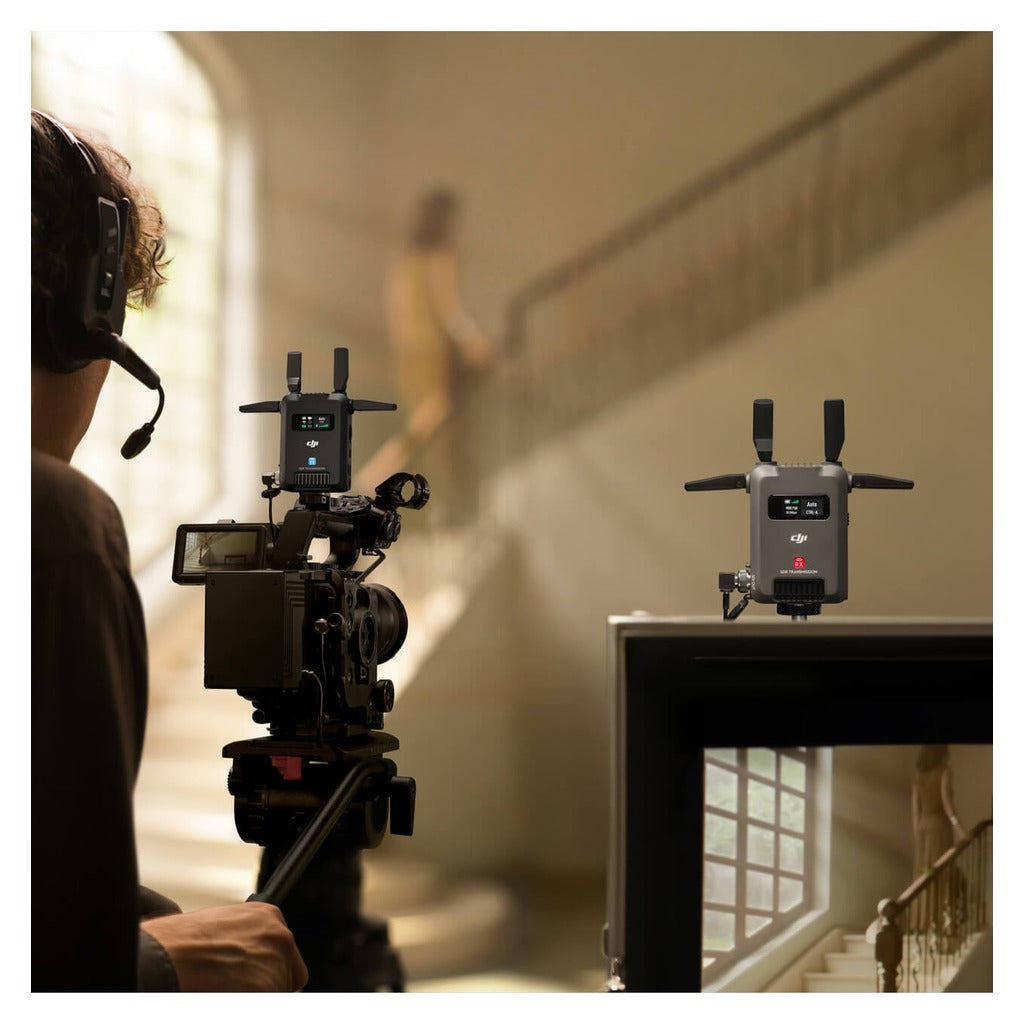

The combo packs one transmitter, one receiver, a USB-A to USB-C cable and two mounting adapter plates for camera or gimbal attachment. On a DJI RS 4 Pro or RS 4 the transmitter can mount directly and draw power from the gimbal, and the system pairs with DJI Focus Pro for remote lens control, giving directors, focus pullers and clients a reliable wireless feed.

Features

• SDR wireless video transmission up to 3 km (FCC) / 2 km (CE, SRRC, MIC), 1080p/60fps
• Approx. 35 ms transmission latency (80 ms including camera and display latency)
• Automatic frequency hopping across 2.4 GHz, 5.1 GHz DFS and 5.8 GHz for interference resistance
• Transmitter: SDI and HDMI inputs; Receiver: SDI and HDMI outputs plus USB-C video output
• Supports 1080p 23.98-60, 1080i 50/59.94/60 and 720p 50/59.94/60 signals
• Wi-Fi mode for 200 m short-range monitoring to mobile devices, approx. 110 ms latency
• Power via NP-F battery (6.8-8.4 V), USB-C PD 9 V/2 A or 6.8-17.2 V DC
• Compact 86.5 x 64 x 32 mm units, approx. 145 g each including antennas
• Mounts directly on DJI RS 4 Pro / RS 4 gimbals; works with DJI Focus Pro lens control
• Combo includes TX, RX, USB cable and camera/gimbal mounting adapter plates

Technical Specifications

• Transmitter Dimensions: 86.5 x 64 x 32 mm (L x W x H, excluding antennas)
• Transmitter Weight: approx. 145 g (including antennas)
• Receiver Dimensions: 86.5 x 64 x 32 mm (L x W x H, excluding antennas)
• Receiver Weight: approx. 145 g (including antennas)
• Max Transmission Distance (SDR): 3 km (FCC); 2 km (CE/SRRC/MIC)
• Max Transmission Distance (Wi-Fi): 200 m
• Latency (SDR): 35 ms excluding camera and display; 80 ms including
• Latency (Wi-Fi): 110 ms
• Video Input (TX): SDI, HDMI
• Video Output (RX): SDI, HDMI, USB-C (also firmware update)
• Supported Formats: 1080p 23.98/24/25/29.97/30/50/59.94/60 fps; 1080i 50/59.94/60 fps; 720p 50/59.94/60 fps
• Operating Frequency (SDR): 2.4000-2.4835 GHz, 5.725-5.850 GHz; DFS 5.470-5.725 GHz
• Operating Frequency (Wi-Fi): 2.4000-2.4835 GHz, 5.150-5.250 GHz
• Power Input: USB-C PD 9 V/2 A; USB-C 6.8-17.2 V DC; NP-F battery 6.8-8.4 V
• Operating Temperature: -10 to 40 C (14 to 104 F)

What's Included

• DJI SDR Transmission Transmitter (TX) x 1
• DJI SDR Transmission Receiver (RX) x 1
• USB-A to USB-C Cable (43 cm) x 1
• TX Camera Mounting Adapter Plate x 1
• TX Gimbal Mounting Adapter Plate x 1
