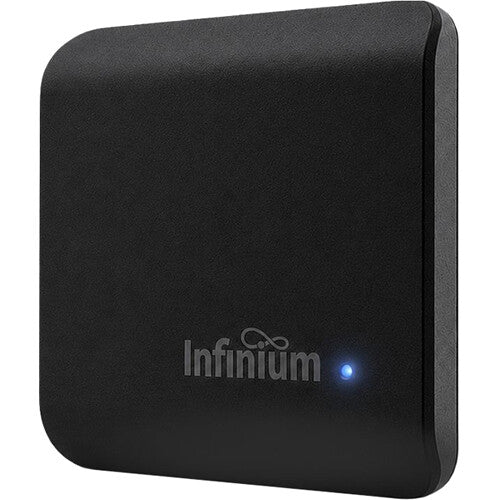

Williams AV BA-T1BK Infinium T1 Auracast Singular Transmitter

Williams AV BA-T1BK Infinium T1 Auracast Singular Transmitter

The Williams AV BA-T1BK Infinium T1 Auracast Transmitter expands a compatible Infinium system with additional audio channels or wireless coverage. It broadcasts low-latency mono or stereo audio to compatible hearing aids, cochlear implants, headphones, earbuds, smartphones, and dedicated Infinium receivers. An Infinium controller is required for operation.

The black finish helps the transmitter blend into dark ceilings, theaters, lecture halls, performance venues, and transportation facilities. Installers can place it on a wall, ceiling, shelf, or podium and connect it using one CAT5 cable. That single link carries digital audio, system control, and Power over Ethernet, reducing cabling at the transmitter location.

Bluetooth 5.4 LE Auracast transmission supports open or password-protected broadcasts with AES128-CCM encryption. The transmitter delivers up to 328 feet of open-space range when used with the Infinium BA-R1 receiver and provides less than 40 milliseconds of end-to-end latency under the specified conditions. Programmable output power helps integrators tailor coverage for individual rooms, adjacent zones, or coordinated multi-transmitter deployments.

Key Features

• Infinium System Expansion: Adds audio channels or extends Auracast coverage without requiring another controller for each transmitter.
• Black Low-Profile Finish: Blends into dark ceilings, performance spaces, theaters, lecture halls, and design-conscious installations.
• Single-Cable Installation: Receives audio, control data, and PoE through one CAT5 Ethernet connection.
• Low-Latency Broadcast: Delivers end-to-end latency below 40 milliseconds when paired with an Infinium BA-R1 receiver.
• Mono or Stereo Audio: Supports two independent mono channels or one stereo Auracast broadcast.
• Secure Listening Options: Provides open access or password-protected channels with AES128-CCM encryption.
• Programmable Coverage: Adjustable transmitter output helps match the broadcast area to the room or system design.
• Flexible Mounting: Supports ceiling, wall, shelf, and podium placement for permanent professional installations.

Technical Specifications

General

• Brand: Williams AV
• Product Family: Infinium
• Model: BA-T1BK
• Product Type: Auracast expansion transmitter
• Color: Black
• System Requirement: Requires a compatible Infinium controller
• Supported Applications: Assistive listening, multilingual interpretation, audio description, program audio, and enhanced venue audio
• Country of Manufacture: USA
• TAA Compliance: Yes

Auracast Wireless Specifications

• Wireless Technology: Auracast Bluetooth 5.4 Low Energy
• Audio Codec: LC3
• Operating Frequency: 2400 to 2483.5 MHz ISM band
• Maximum Range: Up to 328 feet in open space with the Infinium BA-R1 receiver
• End-to-End Latency: Less than 40 milliseconds with the Infinium BA-R1 receiver
• Audio Channels: Two mono channels or one stereo channel
• Sample Rates: 16, 24, and 48 kHz
• Channel Access: Open or password protected
• Encryption: AES128-CCM with a 128-bit key
• Transmitter Output Power: Programmable
• Listener Capacity: Supports any number of compatible Auracast receiving devices within the available coverage area

Connectivity and Control

• Network Connection: One RJ45 Ethernet port
• Connection Functions: Digital audio, system control, status communication, firmware updates, and PoE input
• Ethernet Standard: 10/100BASE-T, IEEE 802.3 compliant
• Recommended Cable: CAT5e or better
• Maximum Ethernet Cable Length: 328 feet
• Power: Power over Ethernet input
• Power Indicator: Programmable LED
• System Management: Compatible with Infinium Enhanced Scale and Management functions through the connected controller

Installation and Physical Specifications

• Installation Configurations: Ceiling, wall, shelf, or podium mounting
• Dimensions: 4.7 x 5 x 1.2 inches W x D x H
• Weight: 0.4 lb
• Operating Temperature: 32 to 122 degrees Fahrenheit
• Storage Temperature: -4 to 158 degrees Fahrenheit

Compliance

• Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, and Gitecki Japan

What's In the Box

• Williams AV BA-T1BK Infinium T1 Auracast Transmitter in black
