ADJ 18P Hex LED Par Fixture

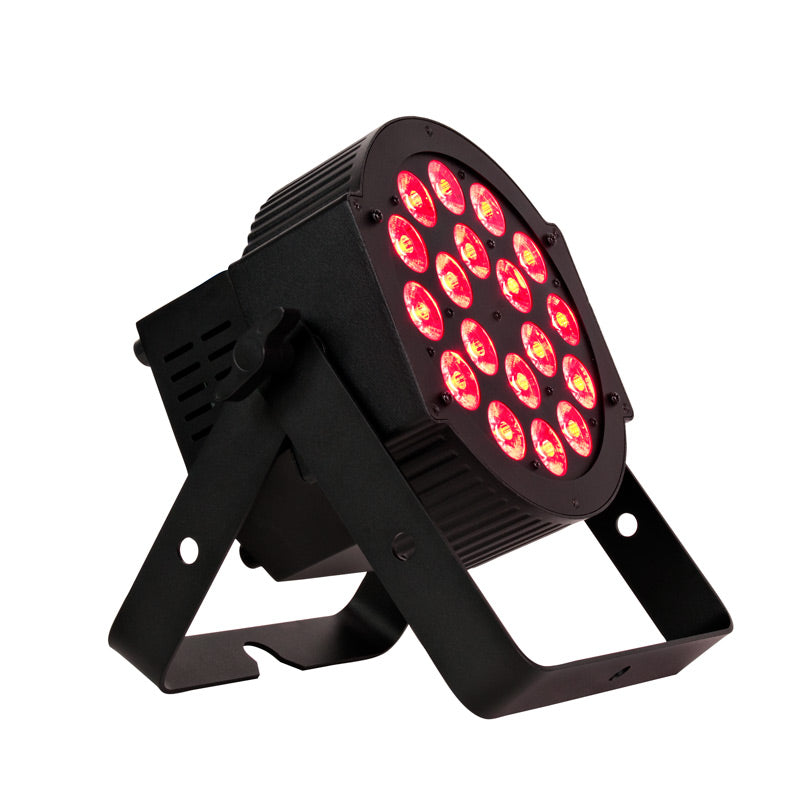

The ADJ 18P Hex is a professional-grade LED par light featuring eighteen 12‑Watt, 6‑in‑1 HEX LEDs (RGBAW+UV) with a 25° beam angle and heavy-duty all-metal construction. Designed for robust stage and uplighting applications, it offers rich color mixing and smooth washes via 63 built‑in color macros.
Its user-friendly interface includes a 4-button digital DMX menu, multiple DMX channel modes (6, 7, 8, 12 channels), and five operational modes. A gel frame is included, and the fixture supports daisy-chaining via locking power connectors.
Key Features
- Light Source: 18 x 12 W HEX LEDs (RGBAW+UV), approx. 50,000 hr life
- Beam Angle: 25°
- Color Macros: 63 built‑in
- DMX Modes: 6, 7, 8, and 12 channels
- Operational Modes: Manual Color, Color Fade, Auto Program, Sound Active, DMX
- Dimming Curves: Five selectable (Standard, Stage, TV, Architectural, Theatre)
- Flicker Free: Yes

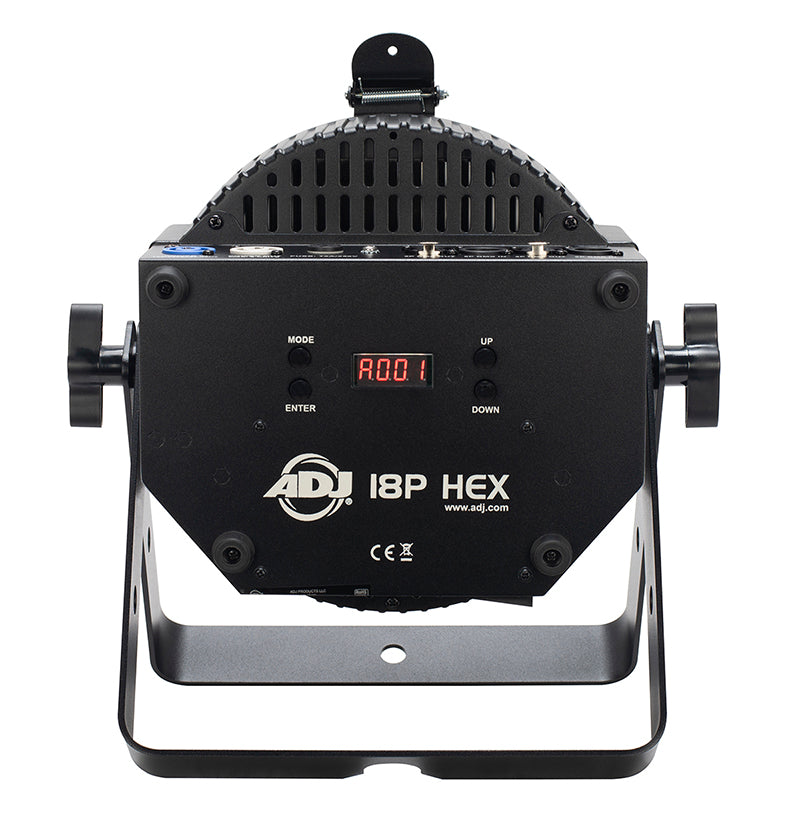

- Interface: 4-button digital DMX menu display
- Daisy-chaining: Up to 4 units at 110 V, or 8 units at 240 V via locking power in/out
- Gel Frame: Included (supports beam diffuser accessory)
- Housing: Heavy-duty metal with scissor yoke
- Certifications: cETLus, CE
Technical Specifications
- Dimensions (LxWxH): 11.96″ x 6.88″ x 13″ (304 x 174.8 x 330.4 mm)
- Weight: 12.9 lbs (5.9 kg)
- Input Voltage: 100‑240 V, 50/60 Hz (auto-sensing)
- LED Refresh Rate: 3.6 kHz
- Power Consumption: Not available (likely around 216 W per equivalent spec
- Control Protocols: DMX, RDM (Remote Device Management)

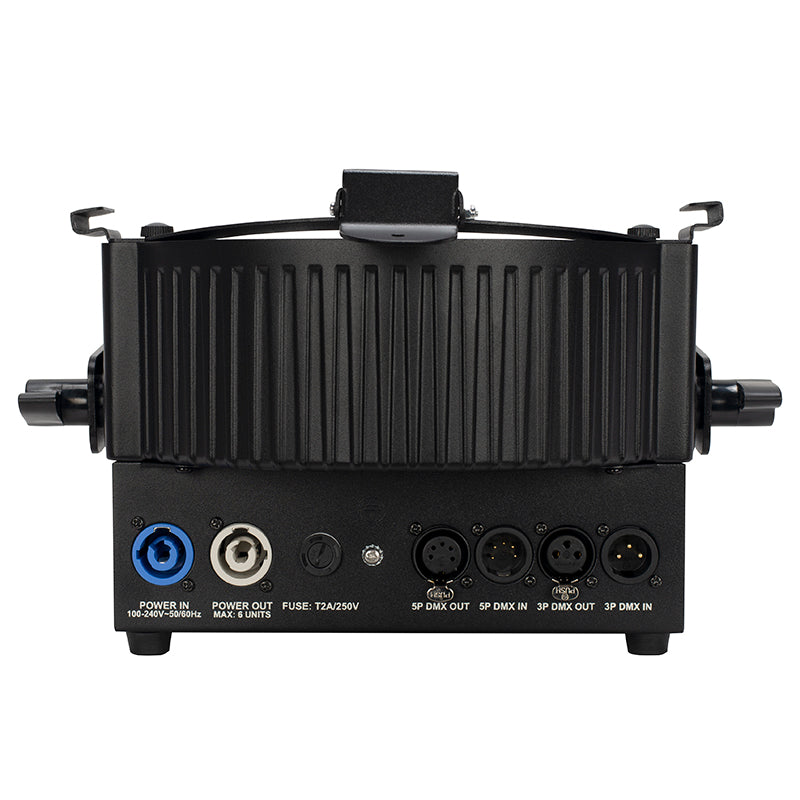

- Sockets: Locking power in/out, 3‑pin & 5‑pin DMX
- IP Rating: IP30 (dry areas)
What's Included
- 1x 1 m locking power TOEdison cable

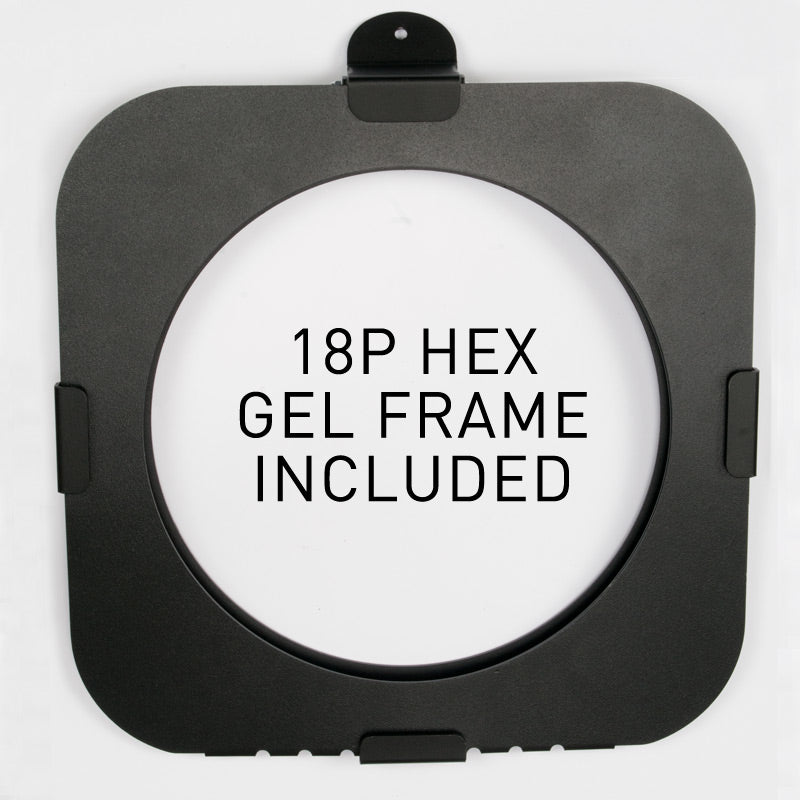

- 1x Metal gel frame
- Owner’s manual
