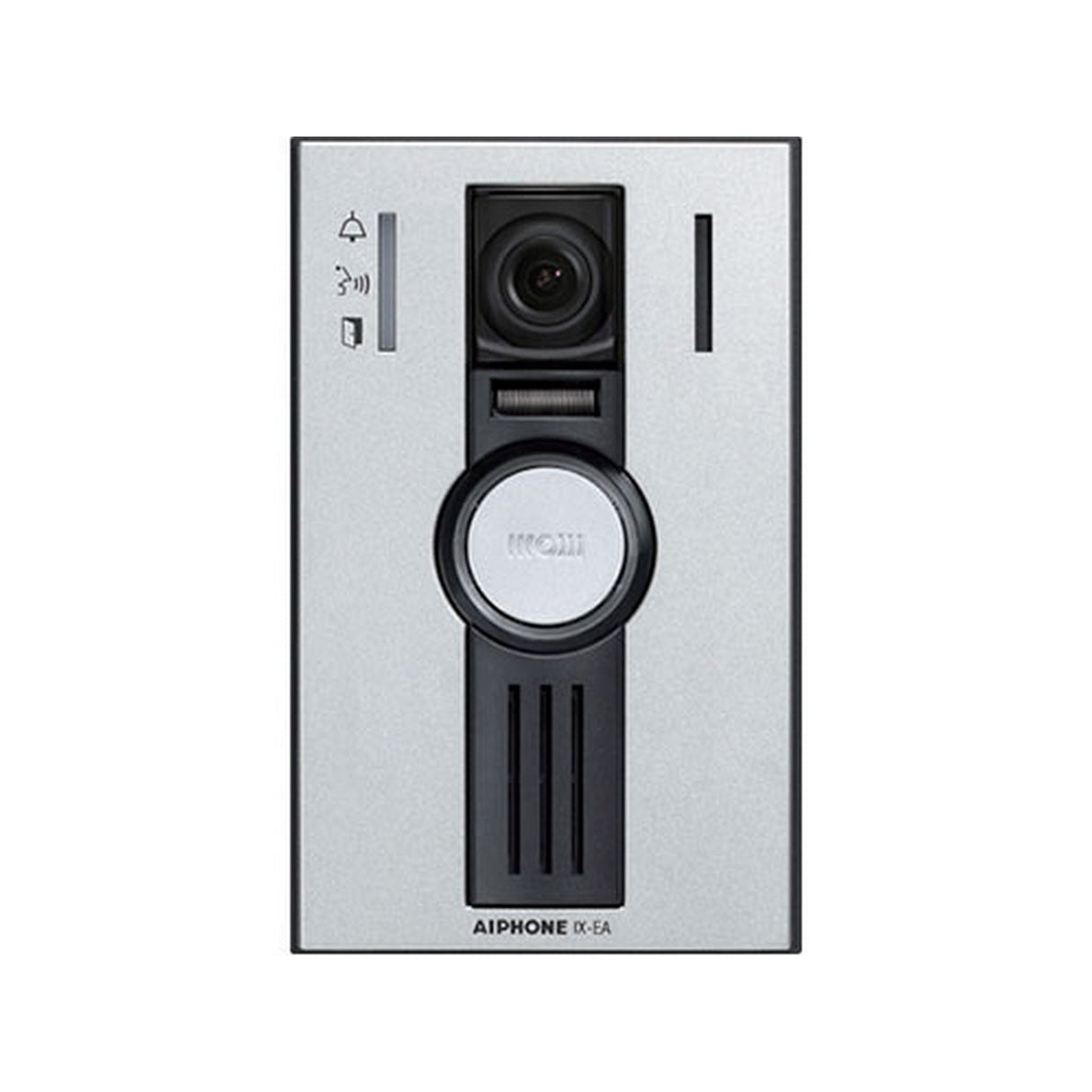

Aiphone IX-EA Surface Mount IP Video Door Station
The Aiphone IX-EA is a SIP-compliant, surface mount IP video door station designed for elevated security and integration flexibility. It supports ONVIF Profile S and RTSP streaming, enabling connectivity with modern IP intercom and surveillance systems. The station is ideal for installations requiring a robust, weather-resistant door station with advanced network compatibility.
Featuring 802.3af Power over Ethernet (PoE), a 1/3 inch CMOS 1.23 megapixel camera, and white LED illumination for low-light visibility, the IX-EA delivers clear video, even under challenging lighting. Manual camera vertical adjustment provides +13, 0, or -8 degree orientation, while a contact output and trigger input facilitate control of auxiliary devices like door strikes or alarms. Audio output is 600 ohms, using standard audio codecs such as G.711 and G.722 for wide compatibility.
Built to withstand outdoor exposure, this door station is weather resistant and ready for use in institutional, commercial, or multi-tenant residential settings. Whether for visitor access, gated entries, or secure perimeter control, the IX-EA offers reliable performance in demanding environments.
Key Features
- SIP compliant and supports ONVIF Profile S for flexible video and network integration
- Powered via PoE IEEE 802.3af (class 0) for simplified installation
- White LED illumination and 1/3 inch CMOS 1.23 MP camera for low-light clarity
- Manual camera tilt adjustment: +13, 0, or -8 degrees
- Includes 1 contact output and 1 trigger input for external device control
- Weather resistant housing suitable for exterior use
Technical Specifications
- Brand: Aiphone
- Model: IX-EA Surface Mount IP Video Door Station
- Power Source: PoE (IEEE 802.3af, class 0)
- Power Draw: 5.18 W max
- Camera: 1/3 inch CMOS, 1.23 megapixel
- Illumination: White LED, minimum illumination 5 lux
- Audio Codec: G.711 (µ-law, A law), G.722
- Video Codec: H.264/AVC, Motion JPEG
- Operating Temperature: 14 to 140 F (-10 to 60 C)
- Dimensions: 6.3 in H × 3.9 in W × 1.7 in D
- Audio Output: 600 ohms audio output
- Additional I/O: 1 trigger input, 1 contact output
