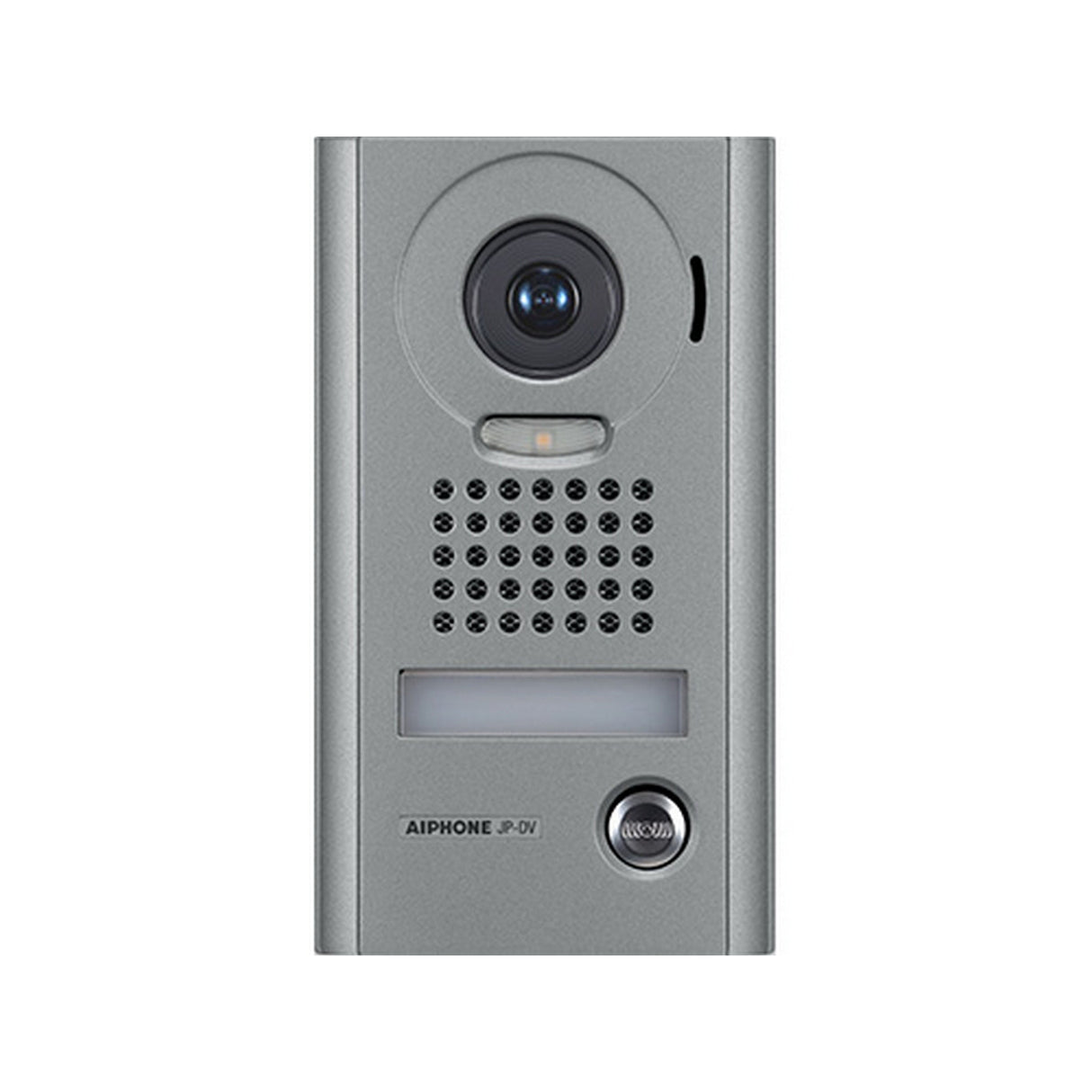

Aiphone JP-DV Surface Mount Video Door Station
The Aiphone JP-DV is a vandal- and weather-resistant surface mount video door station made for JP Series systems. It combines a wide-angle video camera, integrated speaker and mic, and durable zinc die-cast construction. It’s designed to give clear visitor access and secure communication for residential or commercial entrances.
This door station supports digital pan-tilt-zoom from the master station, enabling detailed viewing of entrance areas. It includes LED illumination for low-light visibility and operates hands-free. Wiring is simple with 2-conductor cable, and the unit can be mounted directly to a wall or 1-gang box using the MKW-P plate.
Built to perform in varied outdoor conditions, the JP-DV maintains clarity and robustness even in cold to hot temperature ranges. It’s ideal for front entry points, gated access, service entrances, and any location where durability and visibility are essential.
Key Features
- Vandal-resistant zinc die-cast body for durability
- Wide-angle camera with digital pan-tilt-zoom control from master station
- LED illumination for low-light conditions
- Hands-free audio communication
- Simple 2-conductor PE-insulated cable wiring
- Surface mount or mount to single-gang electrical box via MKW-P plate
- Weather-resistant build, suitable for exterior use
Technical Specifications
- Power Source: Supplied by JP Series Master Station
- Communication: Hands-free
- Camera: CMOS
- Minimum Illumination: 5 lux
- Viewing Angle: Wide, approx. 170° with digital pan/tilt/zoom
- Wiring Type: 2-conductor, PE-insulated, use Aiphone wire #871802
- Wiring Distance: Up to 330 ft (with 18 AWG cable)
- Mounting: Surface wall mount or to 1-gang electrical box using MKW-P plate
- Operating Temperature: -4° to 140° F (-20° to 60° C)
- Protection Rating: Weather resistant, vandal-resistant
- Dimensions: 6-13/16 in H × 3-7/8 in W × 1 in D
- Weight: Approx. 1.43 lbs (650 g)
