ColorKey CKU-6230 MobilePar Pro HEX 6 Wireless Battery LED PAR Uplight

ColorKey MobilePar Pro HEX 6 Wireless Battery-Powered LED PAR Uplight

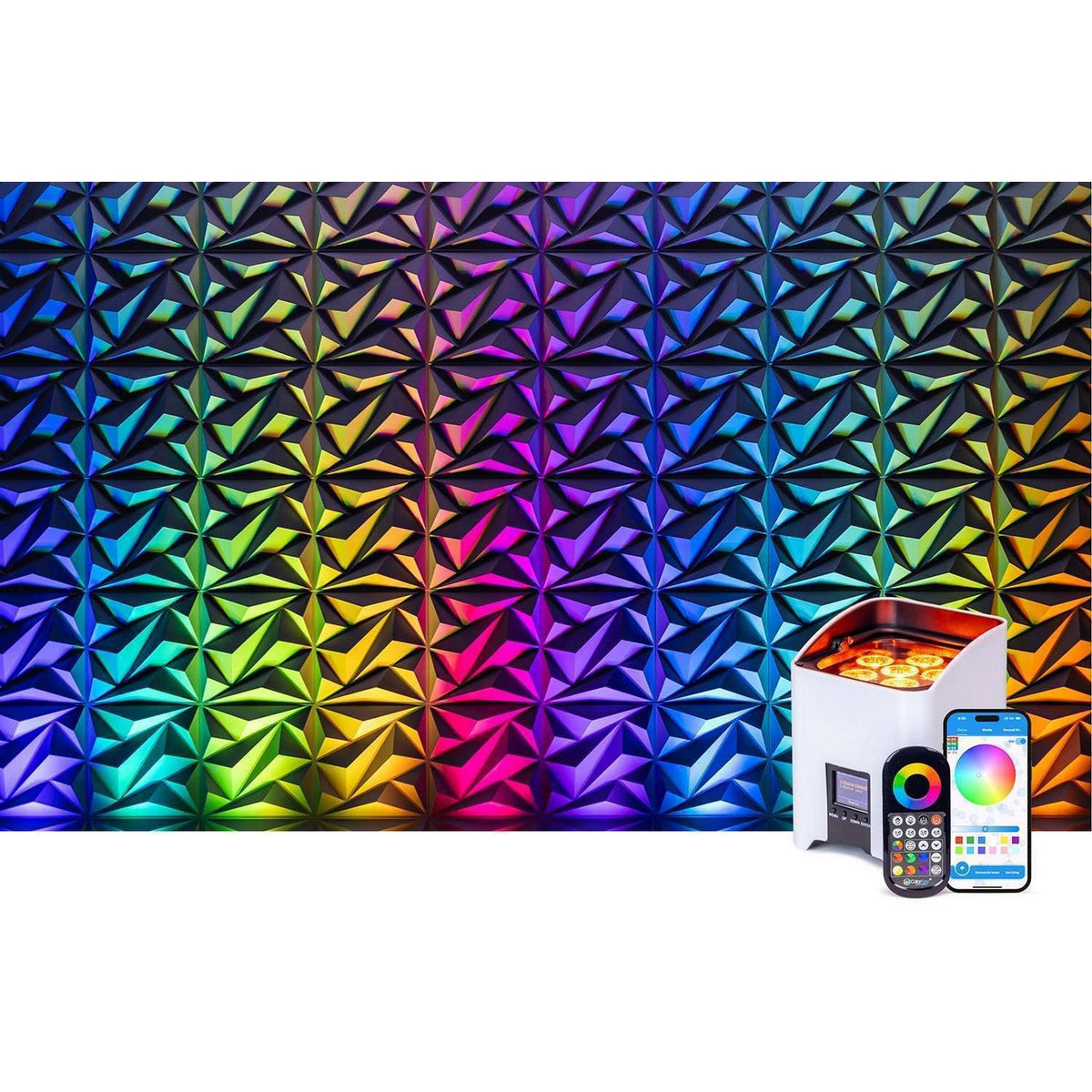

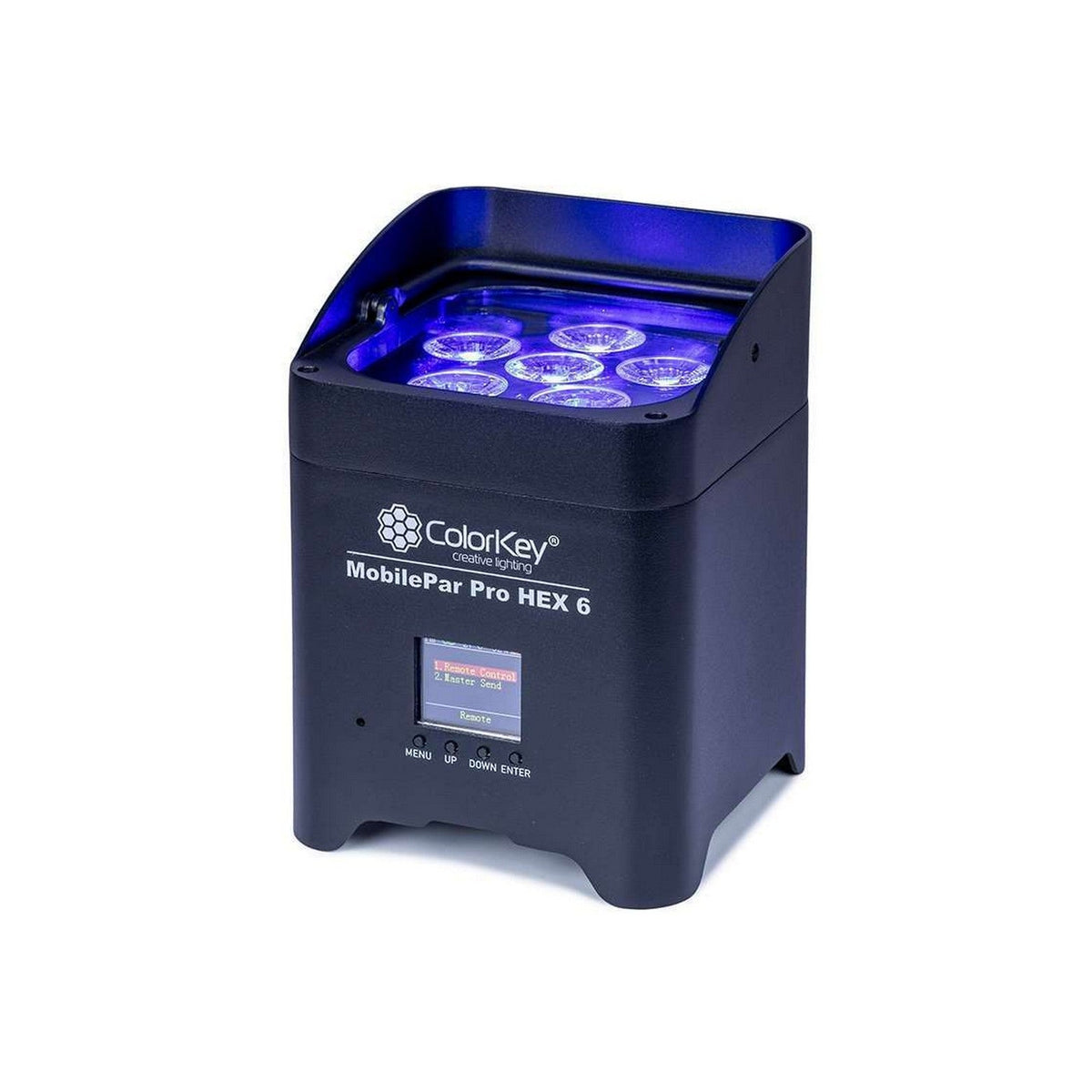

The ColorKey MobilePar Pro HEX 6 is a battery-powered LED PAR uplight featuring six 12W RGBAW+UV LEDs, integrated 2.4GHz wireless DMX, and multiple control options. Designed for professional event lighting, it provides up to 20 hours of single-color operation and supports wireless control, making it suitable for portable uplighting and venue installations.

Built for mobile DJs, wedding production companies, event designers, and lighting professionals, this wireless LED uplight delivers flexible color mixing without requiring continuous AC power. Its six-color LED system combines red, green, blue, white, amber, and ultraviolet output for decorative wall washes, architectural accents, and stage illumination. A 25-degree beam angle concentrates light for uplighting applications, while the 40-degree field angle provides broader illumination around the central beam. The rechargeable lithium-ion battery supports up to 15 hours of automatic color-fade operation, helping lighting crews maintain consistent effects throughout extended events.

The fixture integrates a 2.4GHz wireless DMX transceiver, allowing it to receive lighting instructions or transmit DMX signals to compatible fixtures. Its 3-pin DMX connections also support integration with wired lighting systems. Operators can select settings through the onboard multicolor OLED display, included RF remote, or ColorKey mobile application for iOS and Android. An adjustable kickstand simplifies floor placement and beam positioning, while the included interchangeable white shell provides an alternative appearance for weddings and formal venues. With compact dimensions and a 4.8 lb construction, the fixture accommodates mobile production environments and professional lighting installations.

Key Features

• Six 12W RGBAW+UV LEDs: Produces six-color illumination with independent red, green, blue, white, amber, and ultraviolet channels for versatile lighting effects.
• Extended Battery Operation: Delivers up to 20 hours in single-color mode or 15 hours during automatic color fades, reducing dependence on AC power.
• Integrated Wireless DMX: Features a 2.4GHz W-DMX transceiver for wireless lighting control and signal distribution across compatible fixtures.
• Multiple Control Methods: Supports DMX512, RF remote operation, smartphone app control, standalone programs, sound activation, and master/slave configurations.
• Wireless DMX Bridging: Converts incoming wired DMX signals into wireless transmissions or passes received wireless DMX signals through its wired output.
• Remote Control Included: Provides wireless access to colors, automatic programs, fades, strobe effects, and blackout functions from distances up to 200 feet.
• Adjustable Kickstand: Allows users to position the fixture at different angles for architectural uplighting, decorative illumination, and event production.
• Interchangeable White Shell: Includes a removable white exterior cover for adapting the fixture's appearance to different venue designs.

Technical Specifications

• Manufacturer: ColorKey
• Product Model: MobilePar Pro HEX 6
• Manufacturer SKU: CKU-6230
• Product Type: Battery-Powered Wireless LED PAR Uplight
• Light Source: 6 x 12W RGBWA+UV LEDs
• LED Configuration: 6-in-1
• LED Colors: Red, Green, Blue, White, Amber, Ultraviolet
• Beam Angle: 25 Degrees
• Field Angle: 40 Degrees
• LED Lifetime: 50,000+ Hours
• Dimming Range: 0-100%
• Dimming Type: Electronic
• Flicker-Free Operation: Supported
• DMX Protocol: DMX512
• DMX Channel Modes: 6 / 10 Channels
• Wireless DMX: Integrated 2.4GHz W-DMX Transceiver
• Wireless DMX Groups: 7 Selectable Groups
• DMX Connections: 3-Pin DMX Input and Output
• Wireless DMX Functions: Transmitter, Receiver, and Wireless-to-Wired DMX Bridge
• Control Methods: Wireless DMX, Wired DMX512, RF Remote, ColorKey App, Master/Slave, Sound Active, Standalone
• Mobile App Compatibility: ColorKey App for iOS and Android
• RF Remote Range: Up to 200 ft
• Display: Multicolor OLED
• Display Controls: MENU, UP, DOWN, ENTER
• Preset Colors: 48 Static Color Presets
• Automatic Programs: Color Jump, Color Fade, Color Pulse
• Sound-Activated Programs: 4
• Strobe: Electronic, Adjustable
• DMX Signal Loss Options: Blackout or Hold Last Setting
• Battery Type: Integrated Rechargeable Lithium-Ion
• Battery Capacity: 9600 mAh
• Battery Voltage: 22.5 VDC
• Maximum Battery Runtime: Up to 20 Hours, Single-Color Operation
• Automatic Fade Runtime: Up to 15 Hours
• Battery Recharge Time: Approximately 5.5 Hours
• Rated Battery Cycle Life: Approximately 500 Charging Cycles
• Power Supply: AC 100-240V, 50/60Hz
• Maximum Power Consumption: 72W
• Power Connections: AC Power Input and Output
• Maximum Operating Temperature: 104 Degrees Fahrenheit
• Ingress Protection Rating: IP20
• Mounting Options: Floor Placement, Adjustable Kickstand, Threaded Clamp Mount
• Included Housing Colors: Black with Interchangeable White Shell
• Dimensions (L x W x H): 5.4" x 5.5" x 7.5"
• Net Weight: 4.8 lb

Professional Wireless DMX Control

The integrated wireless DMX transceiver supports flexible lighting configurations without requiring a dedicated wireless receiver at every fixture. A compatible wired DMX controller can connect directly to the uplight, allowing the fixture to distribute control signals wirelessly to additional compatible lights. Conversely, the fixture can receive wireless DMX instructions and pass them through its physical DMX output. This functionality is particularly useful when connecting moving heads mounted above illuminated lighting totems or creating synchronized lighting arrangements across event spaces.

ColorKey App and RF Remote Operation

For productions without a traditional lighting console, the fixture provides several independent control options. The included RF remote allows operators to select preset colors, adjust brightness, activate sound-responsive effects, change automatic programs, and trigger blackout functions. The ColorKey mobile application provides another control method through compatible iPhone, iPad, and Android devices. Multiple compatible fixtures can also operate together through master/slave configurations, allowing coordinated effects across a lighting installation.

Battery-Powered Event Uplighting

The rechargeable lithium-ion battery supports extended operation for weddings, corporate receptions, concerts, and temporary event installations. A full recharge requires approximately 5.5 hours, while the onboard display provides battery-level information during operation. The fixture also offers adjustable floor positioning and an interchangeable exterior shell, allowing lighting technicians to coordinate both illumination and equipment appearance with venue requirements.

What's in the Box

• 1 x ColorKey MobilePar Pro HEX 6 LED Uplight
• 1 x Power Adapter
• 1 x RF Remote Control
• 1 x Interchangeable White Shell
• 1 x QR Quick Start Guide
