DJI Dock 3 Drone-in-a-Box Station for Matrice 4D/4TD, Flame-Retardant Foam

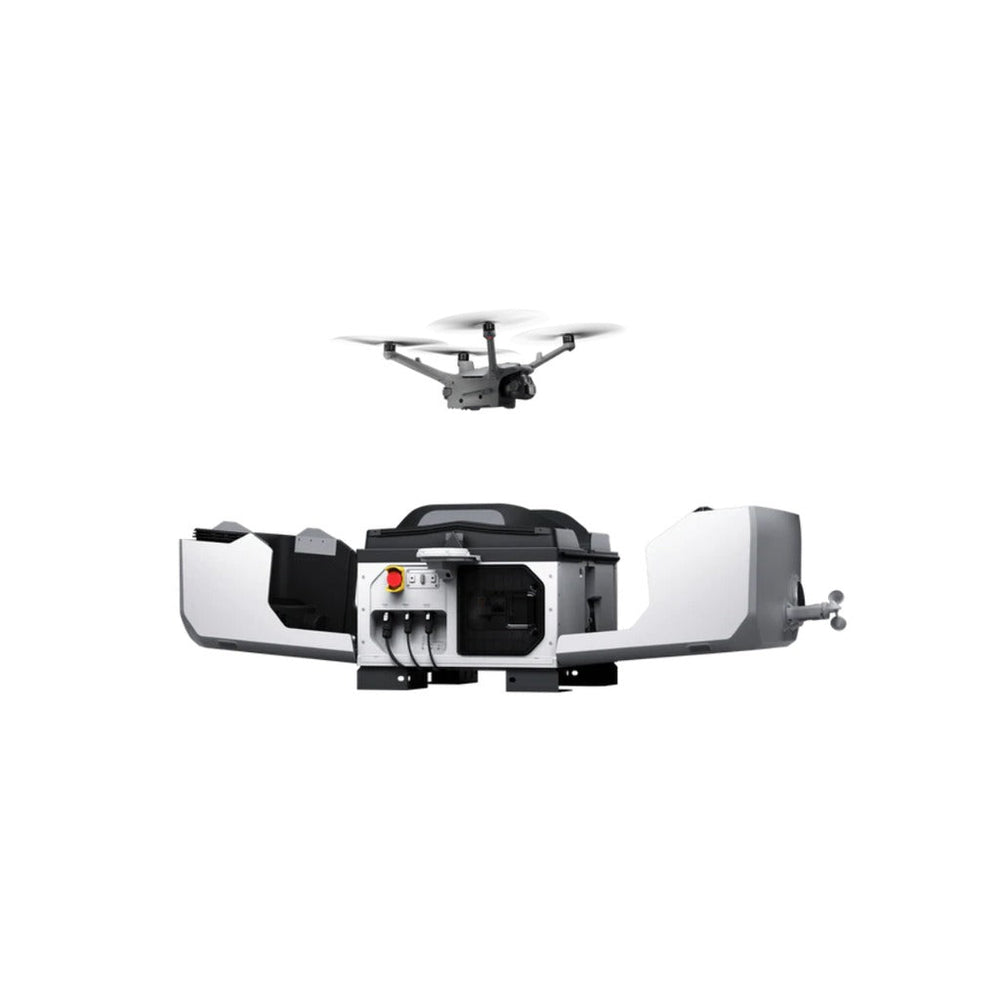

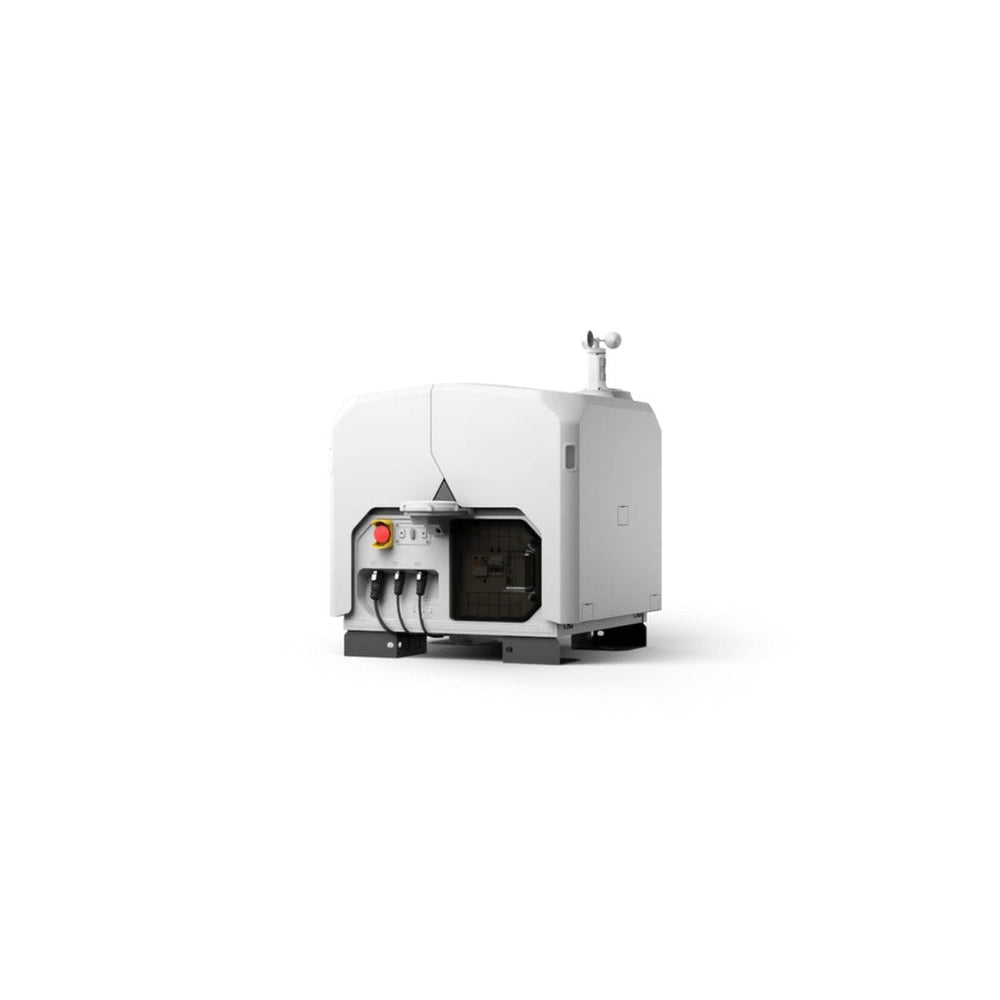

Remote, repeatable drone operations are what the DJI Dock 3 is built for: a weatherproof base station that houses, charges and launches a Matrice 4D or Matrice 4TD on scheduled or on-demand missions managed through DJI FlightHub 2. It is the first DJI dock that supports vehicle-mounted deployment, so a single truck-mounted unit can relocate to new sites while still charging the aircraft and transferring data, and docks can also be fixed-installed for perimeter security, infrastructure inspection and emergency response.

Hardware specifications are sized for continuous outdoor duty. The IP56-rated enclosure operates from -30 to 50 C with compressor-based air conditioning, recharges the aircraft from 15% to 95% in about 27 minutes, and carries a 12 Ah lead-acid backup battery good for more than four hours if site power fails. An integrated RTK base station, nine-antenna video transmission system, wind-speed gauge, rainfall, temperature, immersion and in-cabin sensors, internal and external 1080p security cameras, and 20 kA lightning protection on the AC port are all built in.

Connectivity runs over gigabit Ethernet or 4G via the optional DJI Cellular Dongle 2, with cloud deployment on FlightHub 2, FlightHub 2 On-Premises, FlightHub Sync or the DJI Cloud API. This flame-retardant foam version is a distributor-designated packaging variant of the standard Dock 3 (CP.EN.00000590.01) and ships without an aircraft: the Matrice 4D/4TD and its flight batteries are ordered separately. DJI Enterprise dealer authorization applies.

Features

• Autonomous docking station for DJI Matrice 4D and Matrice 4TD (one aircraft)
• Supports vehicle-mounted deployment with in-transit charging and data transfer
• IP56 enclosure; -30 to 50 C operating temperature; compressor air conditioning
• Charges the aircraft from 15% to 95% in about 27 minutes (25 C)
• 12 Ah / 12 V lead-acid backup battery, more than 4 hours of operation
• Integrated RTK base station (GPS, BeiDou, GLONASS, Galileo, QZSS) - 1 cm + 1 ppm horizontal accuracy
• Wind speed, rainfall, ambient temperature, water immersion and in-cabin temperature/humidity sensors
• Internal and external 1080p security cameras with 151 degree FOV and auxiliary white light
• 10/100/1000 Mbps Ethernet; 4G via DJI Cellular Dongle 2 (sold separately)
• Works with DJI FlightHub 2, FlightHub 2 On-Premises, FlightHub Sync and DJI Cloud API

Technical Specifications

• Total weight: 55 kg (without aircraft)
• Dimensions (cover open): 1760 x 745 x 485 mm (L x W x H)
• Dimensions (cover closed): 640 x 745 x 770 mm (L x W x H)
• Input voltage: 100-240 V AC, 50/60 Hz
• Max input power: 800 W
• Operating temperature: -30 to 50 C (-22 to 122 F)
• Ingress protection: IP56
• Compatible aircraft: DJI Matrice 4D / Matrice 4TD (1 aircraft)
• Max operating altitude: 4500 m
• Max landing wind speed: 12 m/s
• Charging output: 35 V DC; 15% to 95% in approx. 27 min at 25 C (aircraft powered off)
• Backup battery: 12 Ah lead-acid, 12 V output, more than 4 hours
• RTK accuracy: horizontal 1 cm + 1 ppm (RMS), vertical 2 cm + 1 ppm (RMS)
• Video transmission: 9 built-in antennas (2T4R); 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz (region dependent)
• Air conditioning: 48 V DC, compressor type
• Network: 10/100/1000 Mbps adaptive Ethernet; 4G via DJI Cellular Dongle 2 (sold separately)
• Sensors: wind speed, rainfall, ambient temperature, water immersion, in-cabin temperature, in-cabin humidity
• Security cameras: external and internal, 1920 x 1080, 151 degree FOV, auxiliary white light
• Lightning protection: AC port 20 kA; Ethernet port 10 kA
• Edge computing: supports data communication with external switches
• Deployment app: DJI Enterprise app (Android)

What's Included

• DJI Dock 3 x1
• Wind Speed Gauge x1
• Grounding Wire (0.5 m, pre-installed at grounding screw) x1
• Power Plug x1
• Network Plug x2
• Power Cable Terminals x6
• Screwdriver x1
• Screws x1 set
• Dual-Head USB-C Cable x1
