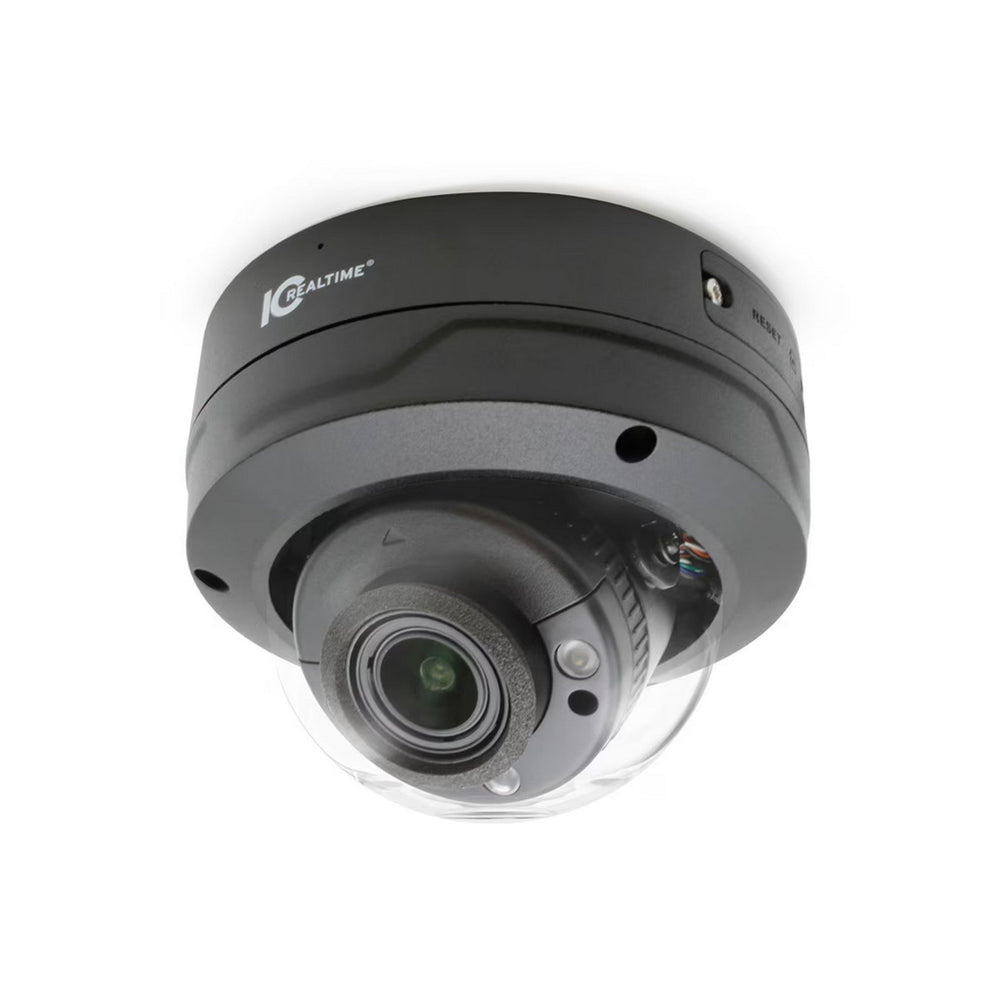

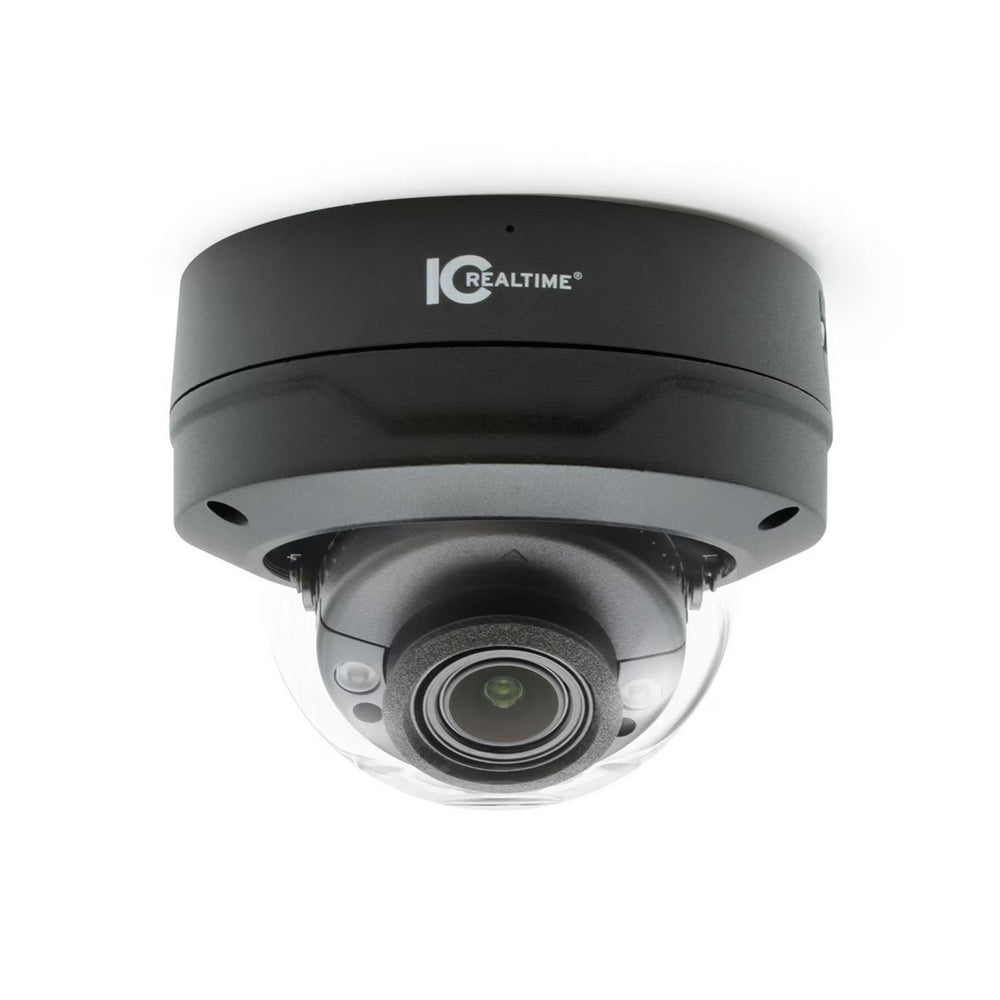

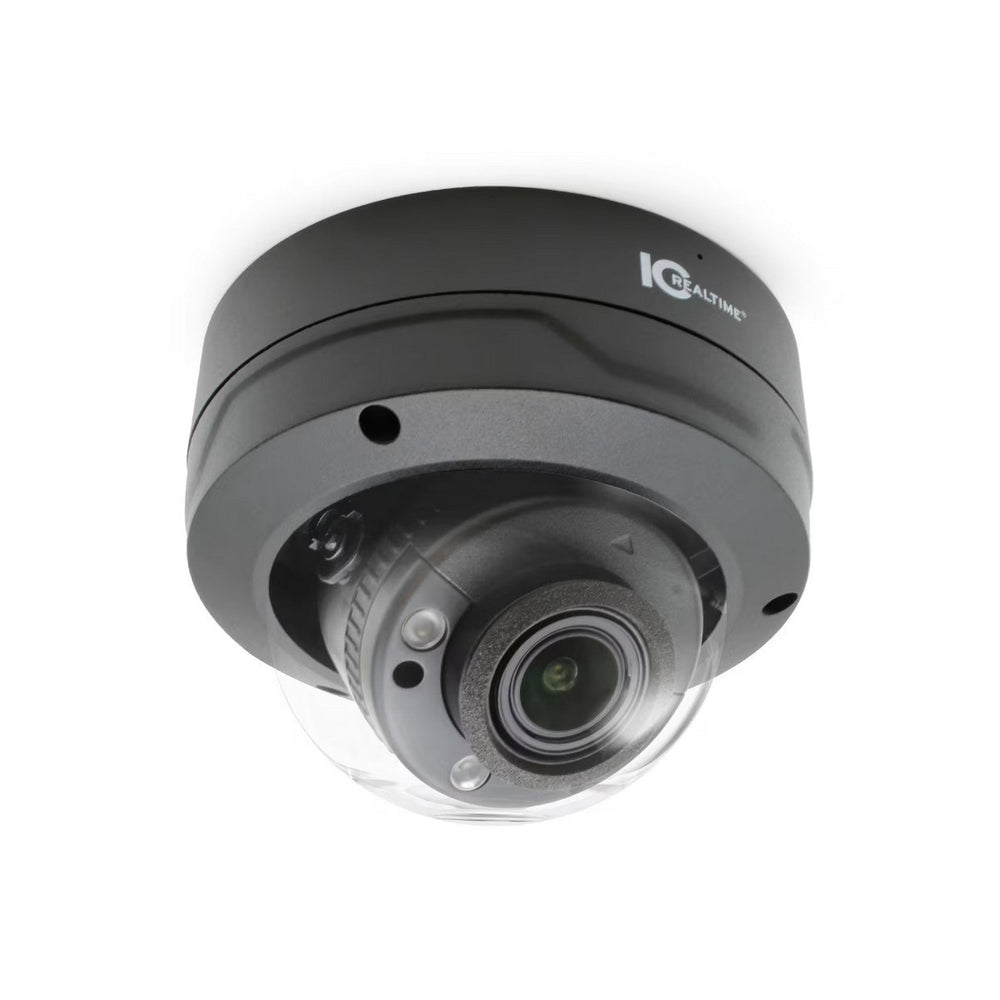

IC Realtime IPEL-D40V-IRB3 4MP Camera Vandal Dome w/Varifocal Lens

The IC Realtime IPEL-D40V-IRB3 4MP IP Camera is a top-tier surveillance solution with its high-end features and durable construction. Engineered for both indoor and outdoor environments, this camera is designed to withstand the harshest conditions, ensuring dependable security monitoring day and night. Boasting a 4MP sensor, intelligent video analytics, and multiple connectivity options, the IPEL-D40V-IRB3 is the perfect solution for safeguarding residential properties, commercial premises, and critical infrastructures.

Equipped with a motorized vari-focal lens, the IPEL-D40V-IRB3 allows for flexible image capture across a range of distances. Its infrared (IR) illumination provides superior visibility in low-light conditions, reaching distances of up to 131 feet. With intelligent video functions and high dynamic range (HDR) technology, this camera delivers clear and detailed footage regardless of lighting variability.

Integrating effortlessly into existing surveillance networks, the IC Realtime IPEL-D40V-IRB3 supports multiple video compression formats such as H.265, H.264, and MJPEG. Its robust network features include edge storage, ONVIF compatibility, and multi-user access, making it versatile for various security needs.

Key Features

• 4MP Image Sensor with 2688 x 1520 Effective Pixels

• Motorized Vari-Focal Lens (2.7mm - 13.5mm)

• Infrared Illumination up to 131 feet

• Advanced Intelligent Functions including Tripwire and Intrusion Detection

• Supports H.265, H.264, and MJPEG Compression Formats

• ONVIF Profile S/G/T, CGI, P2P Interoperability

• IP67 Weatherproof and IK10 Vandal Resistant

• Built-in Mic, Audio I/O, and Alarm I/O for Enhanced Surveillance Capabilities

Specifications

• Image Sensor: 1/2.9" 4 Megapixel progressive CMOS

• Effective Pixels: 2688(H) x1520(V)

• RAM/Rom: 128MB/512MB

• Scanning System: Progressive

• Minimum Illumination: 0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)

• Illumination Distance: Distance up to 131 ft (40 m)

• Illumination On/Off Control: Auto / Manual

• Illumination LEDs: 3

• Camera Illumination Type: IR

• Lens Type: Motorized vari-focal

• Mount Type: φ14

• Focal Length: 2.7mm~13.5mm

• Max. Aperture: F1.5

• Angle of View: Horizontal: 104°–29°, Vertical: 54°–16°

• Close Focus Distance: 2.6 ft (0.8 m)

• DORI - Detect: 210-688ft

• DORI - Observe: 84-275ft

• DORI - Recognize: 42-137ft

• DORI - Identify: 21-68ft

• IVS: Tripwire; Intrusion

• Advanced Intelligent Functions: Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects)

• Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, and lighting condition changes. Supports Object Search with compatible NVRs

• AI Search: Works together with AI enabled NVRs to perform refined intelligent search, event extraction, and merging to event videos

• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream)

• Streaming Capability: 3 Streams

• Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240)

• Frame Rate: Main Stream (2688 × 1520@1–25/30 fps); Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps); Third Stream: 1920 × 1080 @ (1–25/30 fps)

• Bit Rate Control: CBR/VBR

• Bit Rate: H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps

• Day/Night: Auto(ICR) / Color / B/W

• Backlight Compensation: BLC, HLC, WDR (120dB)

• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control: Auto / Manual

• Noise Reduction: 3D DNR

• Flip: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.)

• Mirror: Off / On

• WDR: 120dB

• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

• Network Ethernet: RJ-45 (10/100Base-T)

• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

• Max. User Access: 20 (Total bandwidth: 64 M)

• Edge Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS

• Web Viewer: IE, Chrome, Firefox, Safari

• Management Software: Smart ICRSS, IC Now

• Smart Phone: iOS, Android

• Audio I/O: Built-in Mic, 1 (RCA port) each output/input

• Alarm I/O: 1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC

• Memory Slot: Micro SD card (support max. 256 G)

• Power Supply: DC12V, PoE (802.3af)

• Power Consumption: Basic: 2.8 W (12 VDC); 3.6 W (PoE); Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE)

• Operating Conditions: -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH

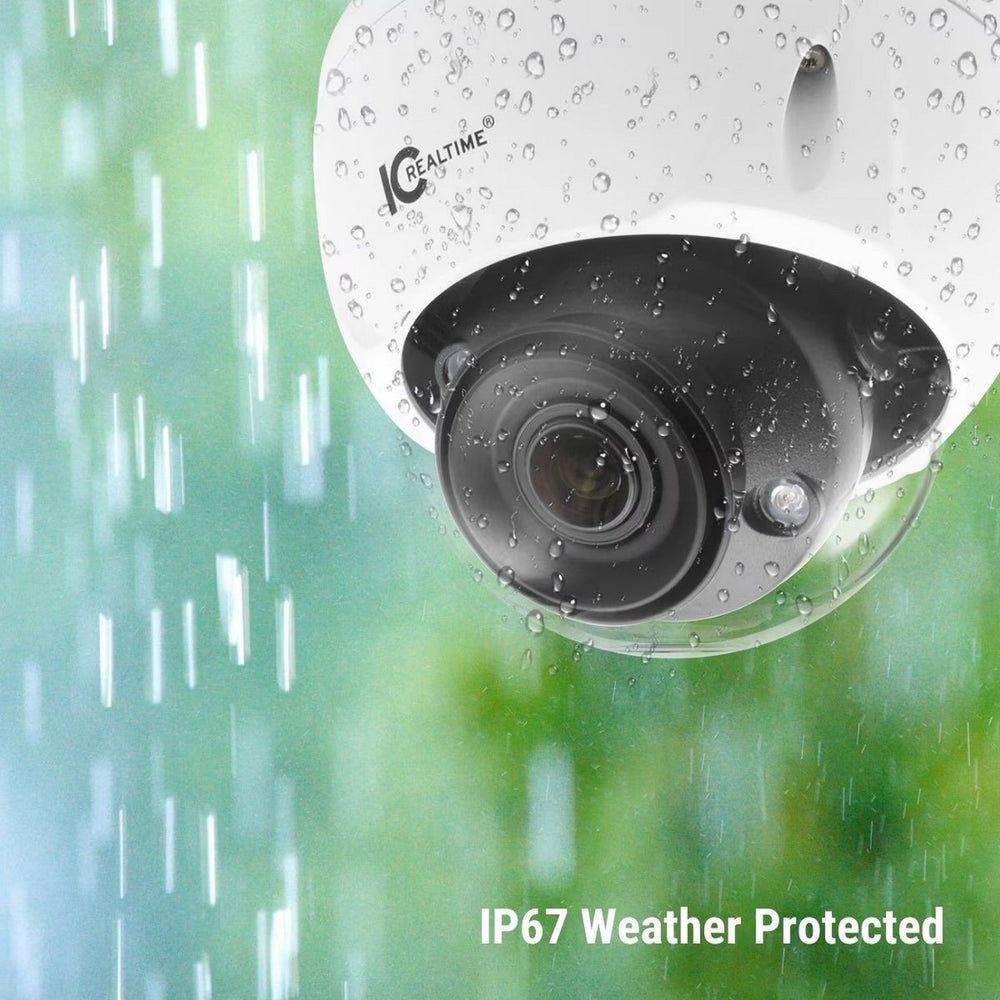

• Ingress Protection: IP67

• Vandal Resistance: IK10

• Construction: Metal

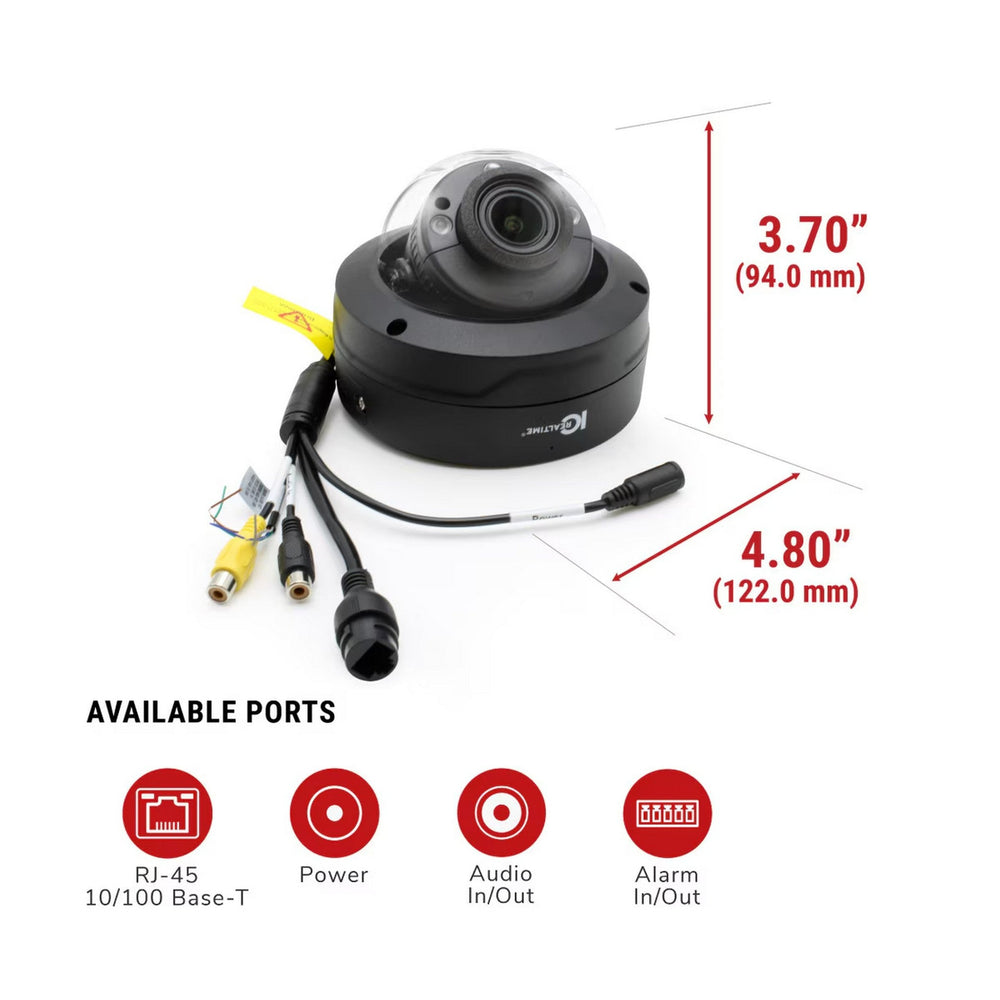

• Dimensions: 3.7" × Φ4.8" (94 mm × Φ122 mm)

• Gross Weight: 2.17lb (986 g)

Package Contents

IC Realtime IPEL-D40V-IRB3 4MP Camera Vandal Dome w/Varifocal Lens
