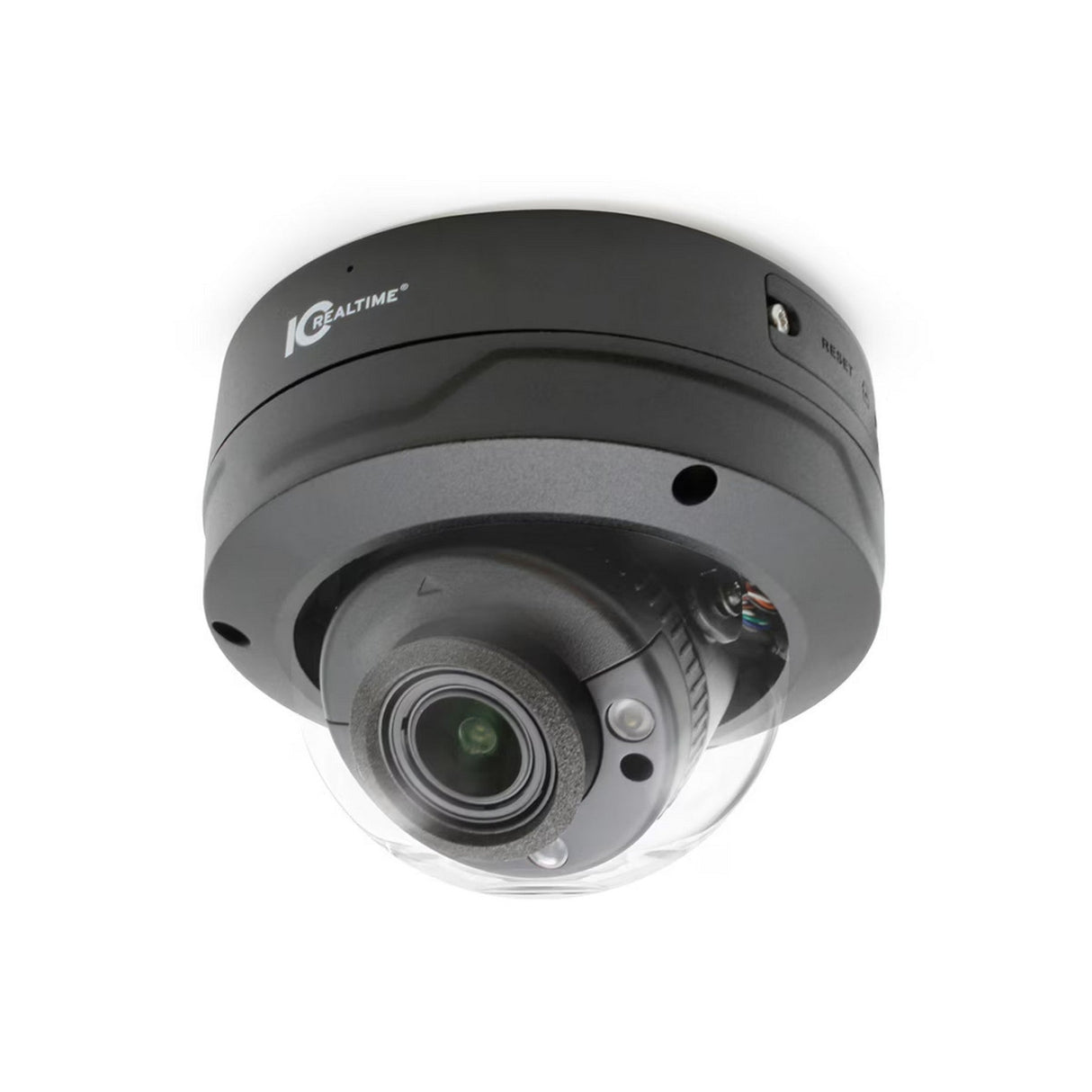

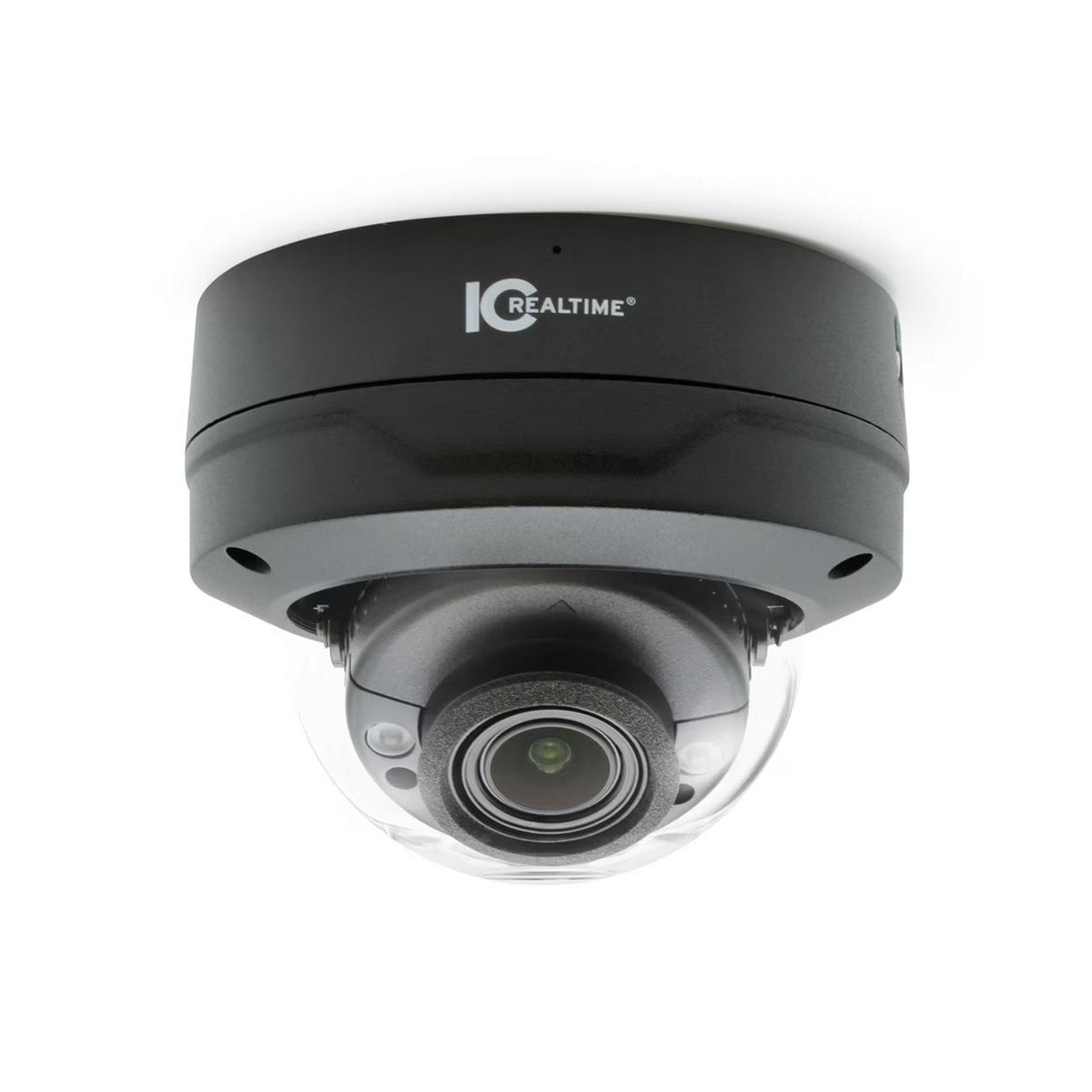

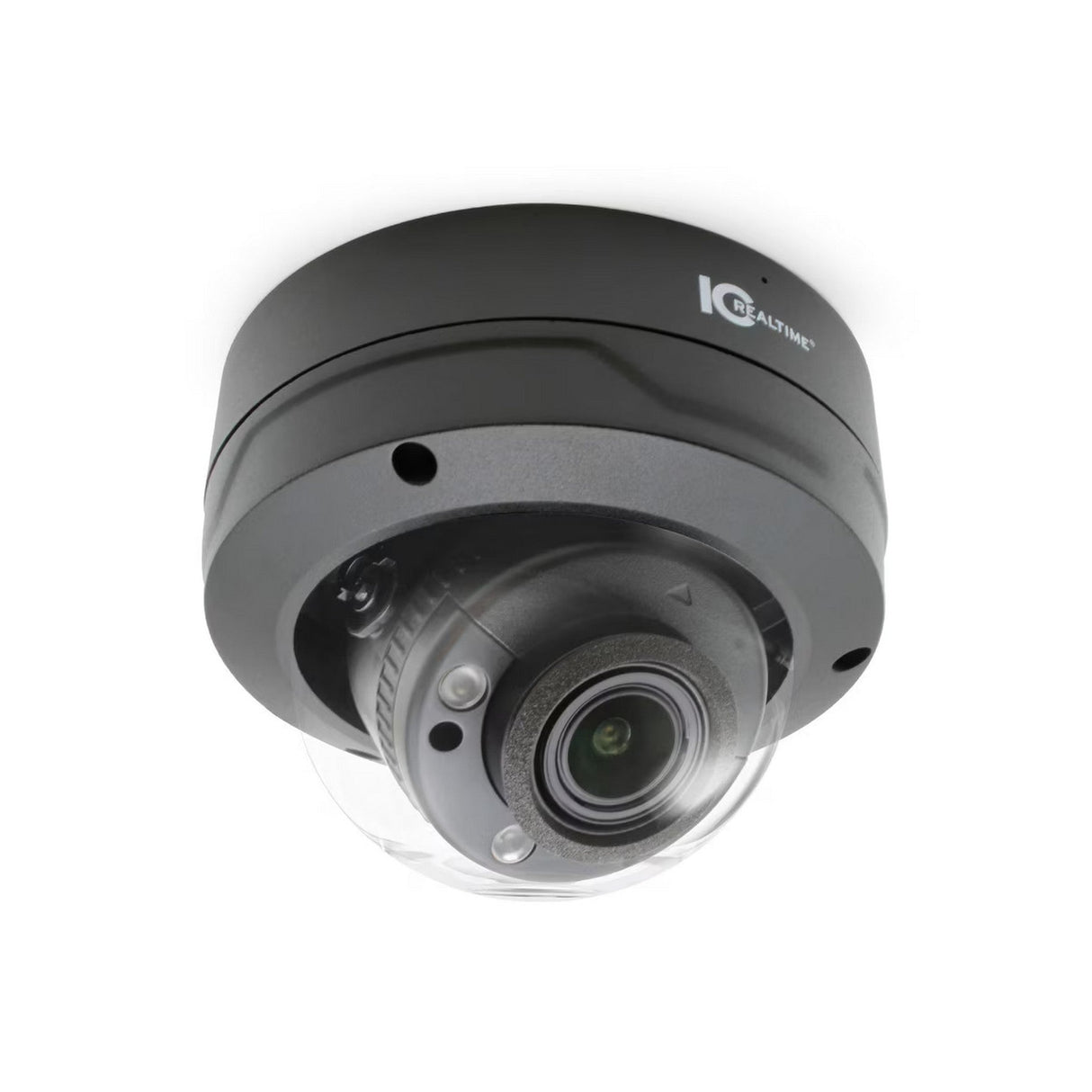

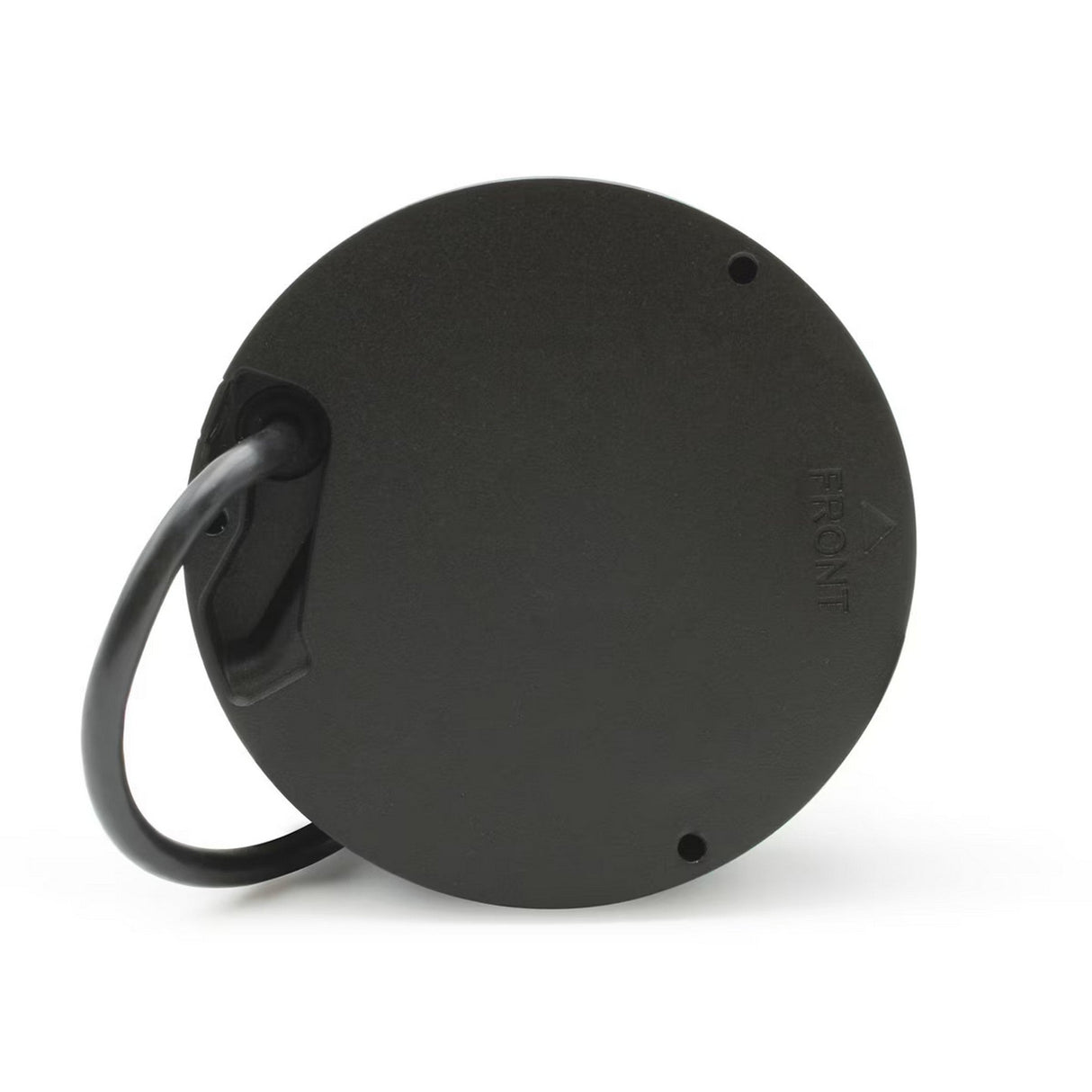

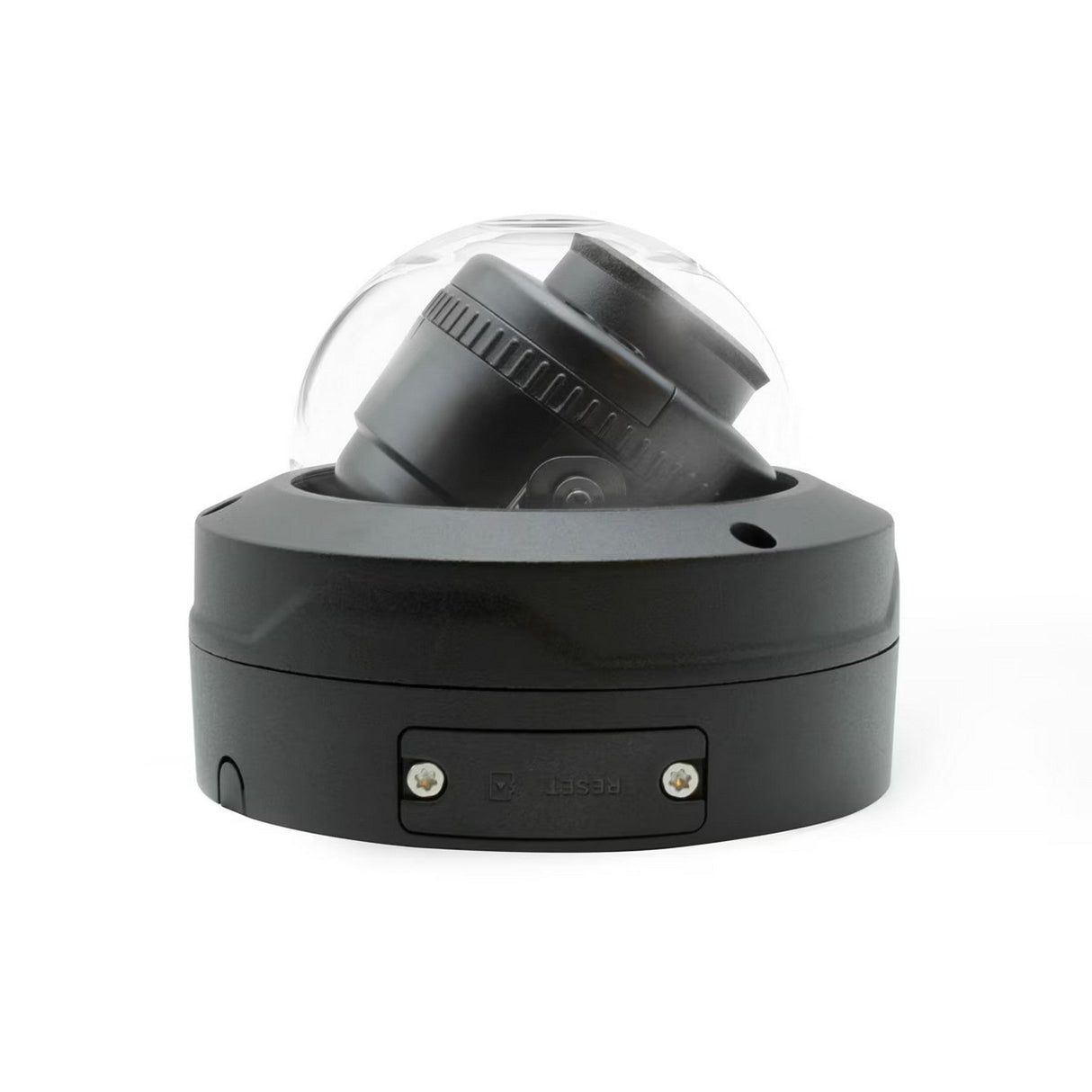

IC Realtime IPEL-D40V-IRB3 4MP Camera Vandal Dome w/Varifocal Lens
The IC Realtime IPEL-D40V-IRB3 4MP IP Camera is a top-tier surveillance solution with its high-end features and durable construction. Engineered for both indoor and outdoor environments, this camera is designed to withstand the harshest conditions, ensuring dependable security monitoring day and night. Boasting a 4MP sensor, intelligent video analytics, and multiple connectivity options, the IPEL-D40V-IRB3 is the perfect solution for safeguarding residential properties, commercial premises, and critical infrastructures.
Equipped with a motorized vari-focal lens, the IPEL-D40V-IRB3 allows for flexible image capture across a range of distances. Its infrared (IR) illumination provides superior visibility in low-light conditions, reaching distances of up to 131 feet. With intelligent video functions and high dynamic range (HDR) technology, this camera delivers clear and detailed footage regardless of lighting variability.
Integrating effortlessly into existing surveillance networks, the IC Realtime IPEL-D40V-IRB3 supports multiple video compression formats such as H.265, H.264, and MJPEG. Its robust network features include edge storage, ONVIF compatibility, and multi-user access, making it versatile for various security needs.
Key Features
4MP Image Sensor with 2688 x 1520 Effective Pixels
Motorized Vari-Focal Lens (2.7mm - 13.5mm)
Infrared Illumination up to 131 feet
Advanced Intelligent Functions including Tripwire and Intrusion Detection
Supports H.265, H.264, and MJPEG Compression Formats
ONVIF Profile S/G/T, CGI, P2P Interoperability
IP67 Weatherproof and IK10 Vandal Resistant
Built-in Mic, Audio I/O, and Alarm I/O for Enhanced Surveillance Capabilities
Specifications
Image Sensor: 1/2.9" 4 Megapixel progressive CMOS
Effective Pixels: 2688(H) x1520(V)
RAM/Rom: 128MB/512MB
Scanning System: Progressive
Minimum Illumination: 0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance: Distance up to 131 ft (40 m)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 3
Camera Illumination Type: IR
Lens Type: Motorized vari-focal
Mount Type: φ14
Focal Length: 2.7mm~13.5mm
Max. Aperture: F1.5
Angle of View: Horizontal: 104°–29°, Vertical: 54°–16°
Close Focus Distance: 2.6 ft (0.8 m)
DORI - Detect: 210-688ft
DORI - Observe: 84-275ft
DORI - Recognize: 42-137ft
DORI - Identify: 21-68ft
IVS: Tripwire; Intrusion
Advanced Intelligent Functions: Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects)
Intelligent Motion Detect 2.0: Advanced secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, and lighting condition changes. Supports Object Search with compatible NVRs
AI Search: Works together with AI enabled NVRs to perform refined intelligent search, event extraction, and merging to event videos
Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream)
Streaming Capability: 3 Streams
Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240)
Frame Rate: Main Stream (2688 × 1520@1–25/30 fps); Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps); Third Stream: 1920 × 1080 @ (1–25/30 fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC, HLC, WDR (120dB)
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Flip: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution.)
Mirror: Off / On
WDR: 120dB
Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
Network Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Max. User Access: 20 (Total bandwidth: 64 M)
Edge Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart ICRSS, IC Now
Smart Phone: iOS, Android
Audio I/O: Built-in Mic, 1 (RCA port) each output/input
Alarm I/O: 1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC
Memory Slot: Micro SD card (support max. 256 G)
Power Supply: DC12V, PoE (802.3af)
Power Consumption: Basic: 2.8 W (12 VDC); 3.6 W (PoE); Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE)
Operating Conditions: -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction: Metal

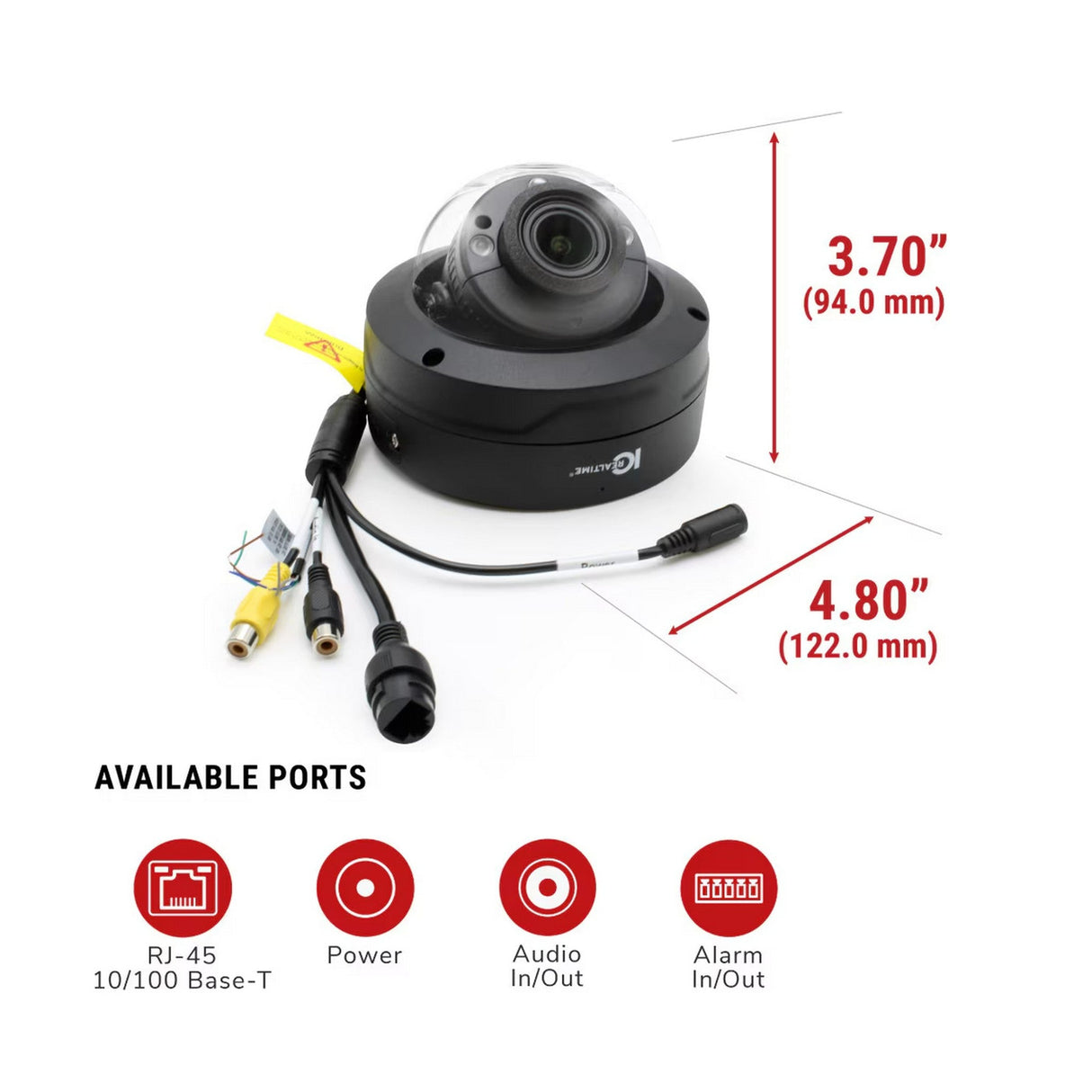

Dimensions: 3.7" × Φ4.8" (94 mm × Φ122 mm)
Gross Weight: 2.17lb (986 g)
Package Contents
IC Realtime IPEL-D40V-IRB3 4MP Camera Vandal Dome w/Varifocal Lens
