TRENDnet TEW-W960DAP AX1800 Wi-Fi 6 PoE In-Wall Access Point

TRENDnet | SKU: TREN-TEWW960DAP
1 6
$14500

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Orders placed between Monday - Friday before 1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

Description
TRENDnet

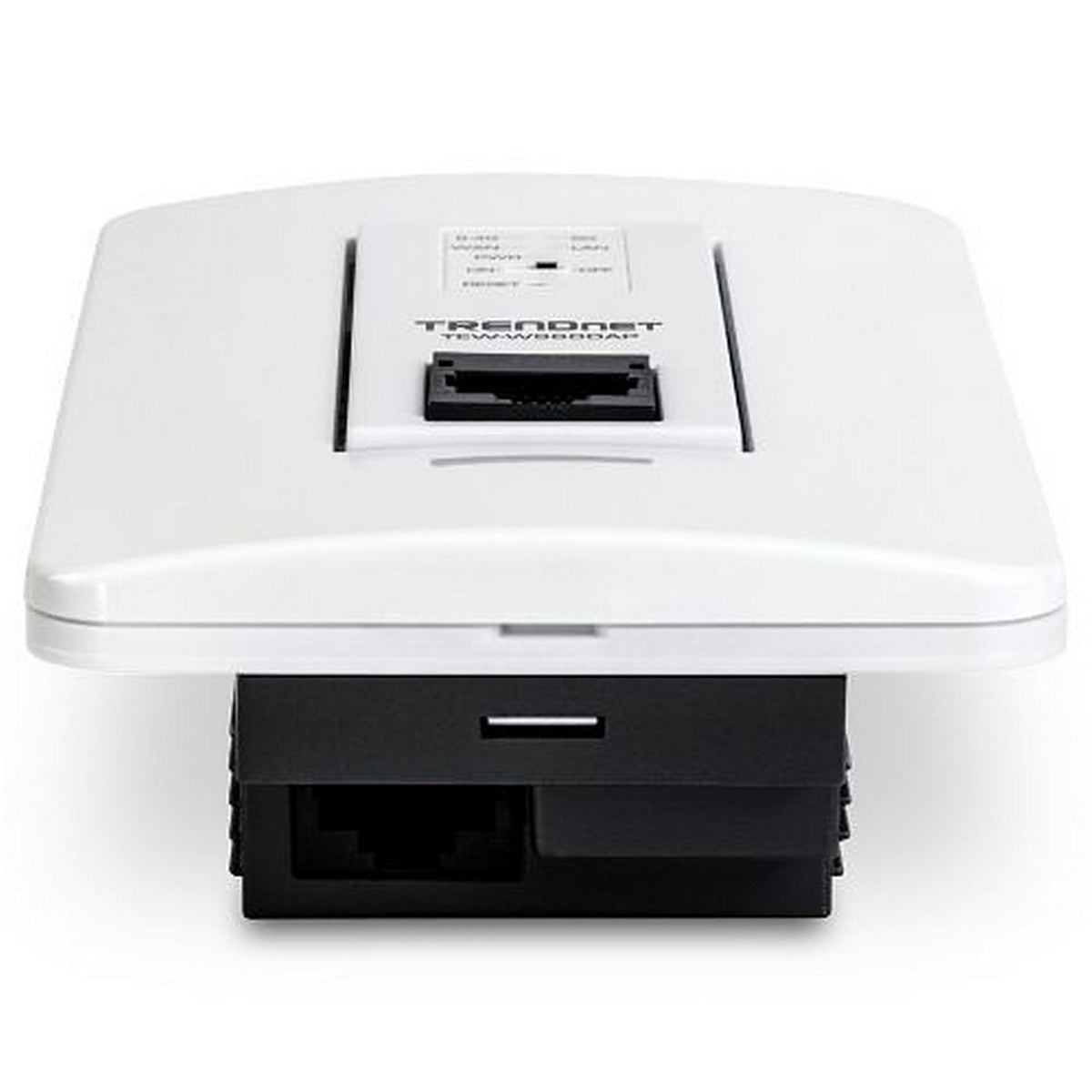

TRENDnet TEW-W960DAP AX1800 Wi-Fi 6 PoE In-Wall Access Point

$14500

Free Shipping

TRENDnet TEW-W960DAP AX1800 Wi-Fi 6 PoE In-Wall Access Point

The TRENDnet TEW-W960DAP AX1800 Wi-Fi 6 PoE In-Wall Access Point delivers dual-band wireless networking through a compact, wall-mounted design. Supporting speeds up to 1201 Mbps on 5GHz and 573 Mbps on 2.4GHz, it combines Wi-Fi 6 technology, Gigabit Ethernet connectivity, WPA3 security, and Power over Ethernet for professional indoor network installations.

Designed for hotels, offices, apartments, classrooms, and commercial buildings, the TEW-W960DAP provides wireless connectivity without occupying valuable desk or ceiling space. Its low-profile housing installs into a standard single-gang wall box using the included wall plates. A dedicated Gigabit PoE input receives network data and operating power through one Ethernet cable, while a second Gigabit LAN port provides wired connectivity for nearby equipment. Dual-band AX1800 performance supports modern smartphones, tablets, laptops, and other compatible wireless devices. Orthogonal Frequency-Division Multiple Access (OFDMA) and Multi-User Multiple-Input Multiple-Output (MU-MIMO) technology improve network efficiency when multiple devices share available wireless resources.

The TEW-W960DAP supports WPA2 and WPA3 security, IEEE 802.1Q VLAN segmentation, and up to 16 wireless network names across its two frequency bands. Band steering helps distribute compatible wireless clients, while configurable bandwidth controls support organized network traffic management. Administrators can configure the access point locally through a web interface or remotely using optional TRENDnet Hive cloud management. The device also supports SSH administration, SNMP monitoring, and scheduled network maintenance. TRENDnet provides a three-year manufacturer warranty and identifies the applicable U.S. and Canadian models as NDAA and TAA compliant.

Key Features

AX1800 Dual-Band Wi-Fi 6 Performance

Simultaneous 2.4GHz and 5GHz Wireless Networking

The TEW-W960DAP operates two wireless frequency bands simultaneously, allowing compatible devices to connect using either 2.4GHz or 5GHz networking.

Its Wi-Fi 6 architecture supports theoretical maximum transmission rates of 573 Mbps on 2.4GHz and 1201 Mbps on 5GHz. These bands provide flexibility when connecting equipment with different wireless capabilities.

The 2.4GHz band supports compatible legacy devices and applications where wireless signal penetration is important. The 5GHz band provides additional bandwidth for supported higher-speed networking applications.

Both wireless bands operate through integrated antennas, eliminating the need for external antenna connections.

OFDMA Wireless Technology

Orthogonal Frequency-Division Multiple Access allows compatible Wi-Fi 6 devices to share wireless transmission resources more efficiently.

By allocating portions of a wireless channel to multiple clients, OFDMA improves resource utilization in environments where numerous devices communicate simultaneously.

This capability supports busy office networks, hotel guest rooms, classrooms, and other high-density wireless environments.

MU-MIMO Connectivity

Multi-User Multiple-Input Multiple-Output technology enables the access point to communicate with multiple compatible wireless clients using separate data streams.

MU-MIMO helps improve wireless efficiency when supported devices access shared network resources.

Combined with OFDMA and 1024-QAM modulation, the access point provides the wireless capabilities associated with the IEEE 802.11ax standard.

Integrated Dual-Band Antenna System

The access point incorporates four internal antennas for simultaneous dual-band operation.

Two antennas provide 2 dBi gain on the 2.4GHz band, while two additional antennas deliver 4 dBi gain on 5GHz.

This internal antenna configuration maintains the fixture's discreet appearance while providing wireless connectivity throughout supported indoor environments.

Discreet In-Wall Installation for Commercial Networks

Standard Single-Gang Wall Box Compatibility

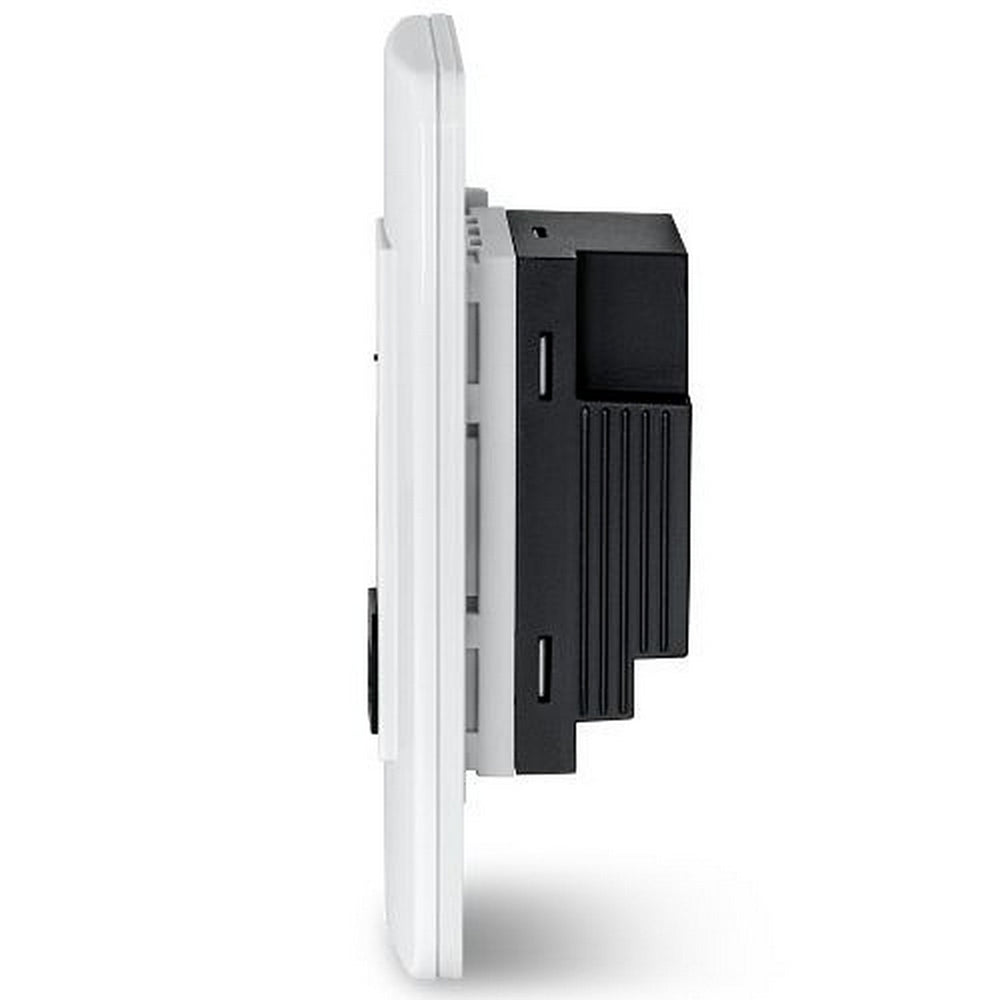

The TRENDnet TEW-W960DAP is designed for installation in a standard single-gang wall box.

Its compact form factor allows the main networking components to sit within the wall box while the front panel remains accessible.

Included wall plates provide the mounting interface for a clean installation, making the device suitable for interior spaces where visible networking equipment should remain minimal.

Low-Profile Design

The access point features a white housing intended to complement common interior wall finishes.

Its integrated antennas and compact front panel eliminate the need for external antenna assemblies or a separate tabletop enclosure.

This design is especially useful in hospitality installations, meeting rooms, professional offices, and multiroom commercial networks.

Integrated Status Indicators

Front-panel LED indicators provide visual feedback about the access point's operating status and network connections.

An integrated LED on/off switch allows administrators to disable visible status lighting when a less noticeable installation is preferred.

A reset button provides local access to supported device recovery and configuration functions.

Gigabit Ethernet and Power over Ethernet

IEEE 802.3af PoE Input

The TEW-W960DAP receives operating power through its Ethernet connection using IEEE 802.3af Power over Ethernet technology.

A compatible PoE switch or injector supplies both electrical power and network data over a single Ethernet cable.

This installation method reduces the need for an additional power connection near the wall-mounted access point.

The manufacturer specifies maximum electrical power consumption of 8.54W.

Additional Gigabit LAN Connection

In addition to its Gigabit PoE input, the access point provides a second Gigabit Ethernet port for wired network connectivity.

This port supports 10/100/1000 Mbps Ethernet connections, allowing compatible wired devices to access the network through the installed access point.

The additional port is useful for equipment such as desktop computers, compatible media devices, and other Ethernet-enabled peripherals positioned near the wall installation.

Flexible Network Infrastructure Integration

The access point supports standard Gigabit Ethernet networking and IEEE 802.1Q VLAN functionality.

Its wired interface accommodates integration into compatible managed networking environments, including installations using PoE switches and centrally administered network infrastructure.

WPA3 Security and Wireless Access Management

WPA2 and WPA3 Wireless Encryption

The TEW-W960DAP supports WPA2 and WPA3 wireless security configurations for protecting compatible network connections.

Personal authentication includes supported SAE configurations, while enterprise authentication supports compatible RADIUS infrastructure.

These security options help administrators implement appropriate wireless access policies for business, educational, and hospitality networks.

Multiple SSIDs and VLAN Segmentation

The access point supports up to eight Service Set Identifiers (SSIDs) per frequency band, for a maximum of 16 wireless networks.

Each SSID can be assigned to an IEEE 802.1Q VLAN, allowing administrators to separate network traffic according to user groups or operational requirements.

This functionality supports configurations such as employee wireless access, guest networking, and dedicated operational device networks.

MAC Filtering and Client Isolation

Configurable MAC address filtering provides another method for controlling which devices can connect to supported wireless networks.

Client isolation helps restrict direct communication between connected wireless devices when enabled.

Additional access management functions include configurable client limits and scheduled MAC filtering.

Wireless Traffic Management and Band Steering

Automatic Band Steering

Band steering helps direct compatible dual-band wireless clients toward the 5GHz frequency band.

This feature can reduce congestion on the 2.4GHz network while improving the distribution of connected devices across available wireless resources.

Bandwidth Control Per SSID

The TEW-W960DAP provides configurable bandwidth allocation for individual wireless network names.

Administrators can use these controls to manage network resource usage across separate wireless networks.

This capability is useful when providing different bandwidth policies for guest networks, internal operations, and other supported applications.

Wireless Scheduling

Scheduled wireless radio operation allows administrators to enable or disable wireless connectivity according to configured schedules.

This feature supports locations that require wireless access only during specific operating periods.

TRENDnet Hive Cloud Management

Optional Remote Network Administration

The TEW-W960DAP supports TRENDnet Hive, an optional cloud-based management platform for compatible TRENDnet networking equipment.

Hive enables administrators to manage supported access points remotely through a web browser or mobile application.

The service provides access to network configuration, monitoring, and diagnostic functions without requiring a dedicated local management server.

TRENDnet Hive requires a separate service subscription.

Multi-Device Monitoring

Hive supports centralized management of multiple compatible TRENDnet devices within a network installation.

Administrators can review supported hardware status information, including processor and memory utilization, and perform available management tasks remotely.

Scheduled configuration and firmware deployment functions help simplify maintenance across larger installations.

Local Web and Command-Line Management

The access point also supports local administration through HTTP and HTTPS browser interfaces.

Secure Shell (SSH) provides command-line management, while SNMP v2c and v3 support integration with compatible network monitoring platforms.

These management methods accommodate professional networking environments where administrators require direct control over device configuration.

Network Monitoring and Troubleshooting

Integrated Network Diagnostics

The TEW-W960DAP includes diagnostic tools for monitoring network connectivity and troubleshooting communication problems.

Supported functions include ping testing, traceroute, event logging, and channel utilization scanning.

These capabilities help technicians evaluate network conditions and investigate connectivity issues during installation and ongoing maintenance.

Connection Monitoring and Automatic Reboot

Ping watchdog and gateway monitoring functions allow the access point to monitor supported network connections.

The device also provides manual and scheduled reboot capabilities for planned maintenance and network administration.

These features support managed installations where remote troubleshooting and maintenance access are important.

Professional Networking Applications

Hotel and Hospitality Wi-Fi

The in-wall design makes the TEW-W960DAP suitable for hotel guest rooms and hospitality facilities.

Its integrated Gigabit LAN connection supports nearby wired equipment, while dual-band Wi-Fi 6 provides wireless access for compatible guest devices.

Office and Commercial Installations

Businesses can deploy the access point in offices, meeting rooms, and other commercial interiors requiring discreet network hardware.

VLAN segmentation, WPA3 security, and configurable bandwidth management support organized business networking environments.

Multiroom Residential and Apartment Networks

The compact single-gang design supports wireless network installations in apartments, residential developments, and other multiroom properties.

PoE connectivity reduces the need for additional power wiring, while integrated wireless antennas preserve a clean interior appearance.

Educational and Institutional Facilities

Schools and institutional buildings can use the access point to provide wireless connectivity in classrooms, offices, and shared interior spaces.

Multiple SSIDs, configurable access controls, and centralized management capabilities support installations requiring separate wireless access policies.
