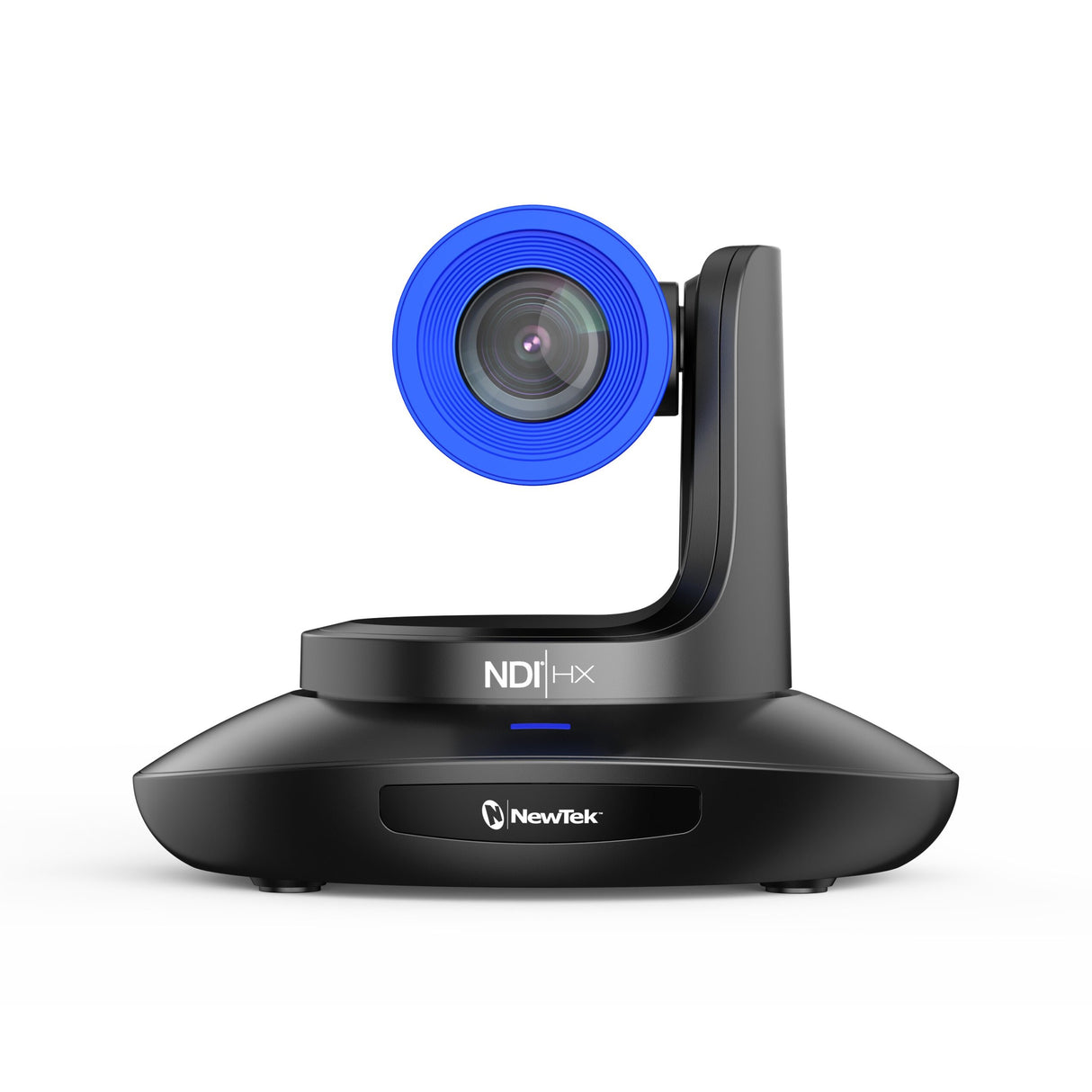

NewTek NDI|HX PTZ3 Camera, Black

Simple, Flexible, Uncompromising.
The NewTek NDI|HX PTZ3 Camera is the very best and easiest way to acquire live video for input into any workflow and is the world’s first camera to offer NDI|HX3 - delivering low latency, all the while maintaining maximum quality at efficient bandwidth. In addition, the all-new PTZ3 is the very first NewTek camera to offer Professional XLR audio connectivity as well as Tally, control, power, audio and video all using a single cable

NDI. Better.
By simply appearing on the network automatically, NDI Cameras can be easily integrated into any workflow. The PTZ3 breaks the mold with the integration of NDI|HX3; giving the option to deliver low latency transmission with reduced bandwidth, while maintaining the visually lossless standards NDI users’ demand.

Audio. Better.
Better than ever audio is now possible with the Professional XLR audio input available in the NDI|HX PTZ3 Camera. Delivering clean, professional level audio directly from the camera into the NDI network, the XLR feature offers an array of connectivity options - all with a single connection.

Connect. Better.
No other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain. The NewTek PTZ3 can be added into any workflow with a single ethernet cable for HD video up to 1080/60p, audio, PTZ presets and control, tally, and PoE

PTZ. Better.
Hard stop and stop movements during camera presets which create an inferior viewing experience are a thing of the past - the PTZ3 offers synchronized preset starts and a new motion algorithm that helps create a natural look and feel to any production

That’s not all - the PTZ3 is also now available in both Black and White body colors and includes ceiling and wall mounts, making it perfect for any setting including studios, hospitals, corporate meeting spaces, or for live events.

A PTZ Camera Like No Other
The PTZ3 allows video professionals, information technology managers, and system designers to explore new ways to expand, grow, and evolve their video productions using the network, while simultaneously streamlining integration and installation by incorporating power over Ethernet.

Key Features

• Offers NDI|HX3 support
• Support for sophisticated devices with Professional XLR audio connection
• Available in Black and White body colors
• One ethernet cable for audio and video, PTZ control and tally
• Compatible with NDI version 5
• Smooth, motor-driven pan-tilt-zoom operation and movement between presets
• Integrated and automatic tally support via NDI
• Native support for HD video formats up to 1080p 60

Technical Specifications

Video Output
NDI|HX, 3G-SDI, HDMI
Audio Output
NDI|HX, HDMI
Video Formats
1080p: 60, 59.94, 50, 30, 29.97, 25, 24,
1080i: 59.94, 50
720p: 60, 59.94, 50, 30, 29.97, 25
Zoom
20x Optical & 2x digital zoom
Sensor
1/2.86” High Quality CMOS Sensor
Shutter Speed
1/30 to 1/10,000 sec
Panning Angle
-170° to +170°
Panning Speed
Max 120°/sec
Tilting Angle
30° to +90°
Tilting Speed
Max 80°/sec
Aperture
F1 ~ F14
Focal Length
4.9~98mm
Horizontal Angle of View
60°(Far)-3,2°(Near)
Min. Object Distance
1.5m (Wide/Tele)
Min. Illumination
1.0 lux
Encoding
H.264/H.265, NDI|HX
Audio Input Mini
XLR, 3.5mm stereo audio input (line)
Embedded Audio
NDI, HDMI
Signal
Balanced (Mini XLR), Unbalanced (Line In)
Sample Rate
48KHz
Frequency
100Hz~20KHz
Total Harmonic distortion
-90dB
Tally
Supported
Anti-Flicker
Off/50Hz/60Hz
Gain Control
Auto, Manual
Control
NDI
User Interface
Web based or NewTek NDI Studio Monitor applications for remote
configuration, control, and monitoring
POE+
POE+ (IEEE 802.3 at)
Direct Power
DC12V
Power Consumption
8W
Operating Temperature
-10°C~50°C
Operating Humidity
20%~80%
Dimensions
8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
Weight
2.97lbs (1.35 kg)
Ceiling Mount
Included
Wall Mount
Included
Adapters
MiniXLR (f) to XLR(f) adapter included
