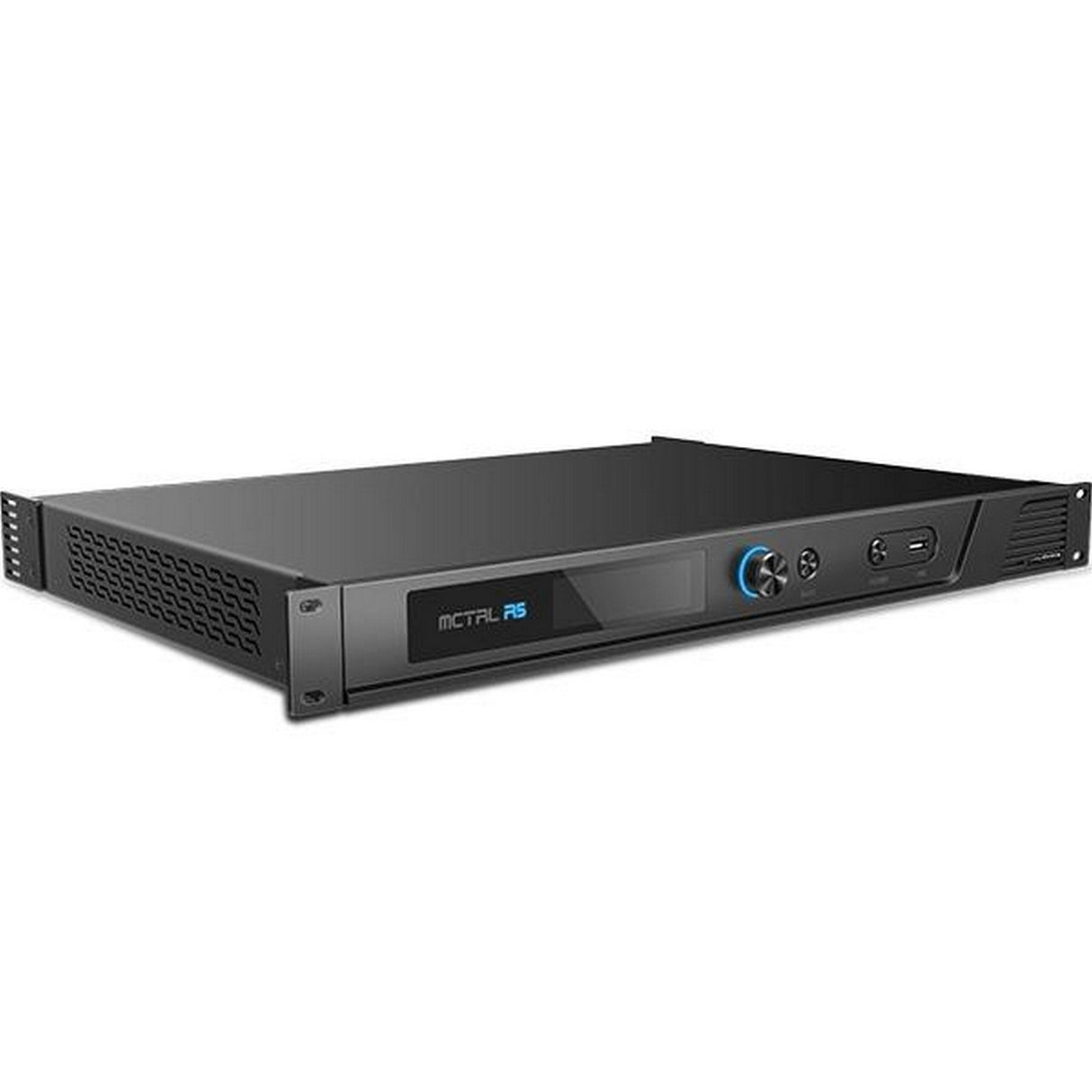

NovaStar MCTRL R5 Professional LED Display Controller
NovaStar MCTRL R5 Professional LED Display Controller
Free Shipping
NovaStar MCTRL R5 Professional LED Display Controller
MCTRL R5 is the first independent controller that supports rotation function. With up to 3840-1080@60Hz loading capacity, it can support any custom resolution within this range as needed, to meet the on-site configuration requirements of extra-long or extra-large displays. Working with the A8s or A10s, the MCTRL R5 supports free screen configuration on SmartLCT, presenting full rotation of the display screen at any angle, adding diversity to images, and bringing different visual experience to users.
Key Features
- Free Rotation: LED panel rotates in any area at any angle, providing infinite possibility for creative display.
- Super-long loading capacity: The loading capacity of a single set can reach up to 4K-1K@60Hz.
- Long-distance optical transmission: The distance of optical transmission can reach about 10 kilometers, presenting more stable images.
- Input Interface: HDMI 1.4, Dual DVI, 6G SDI
Technical Specifications
Connectors
Inputs
6G-SDI - 1, HDMI - 1, DVI - 1
Outputs
Ethernet port - 8, OPT - 2
Weight & Dimensions
482.6-330-45 (mm)
Weight
4.0 kg
Control
Ethernet - 1
USB - 1 Control interface of upper computer
USB - 1 Cascading interface
Power & Current
AC 100~240V, 50/60Hz
Consumption
25W
Thermal
Operating temperature
-20~60 Degrees Celcius
