NovaStar NovaPro UHD Jr All-In-One LED Display Controller
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

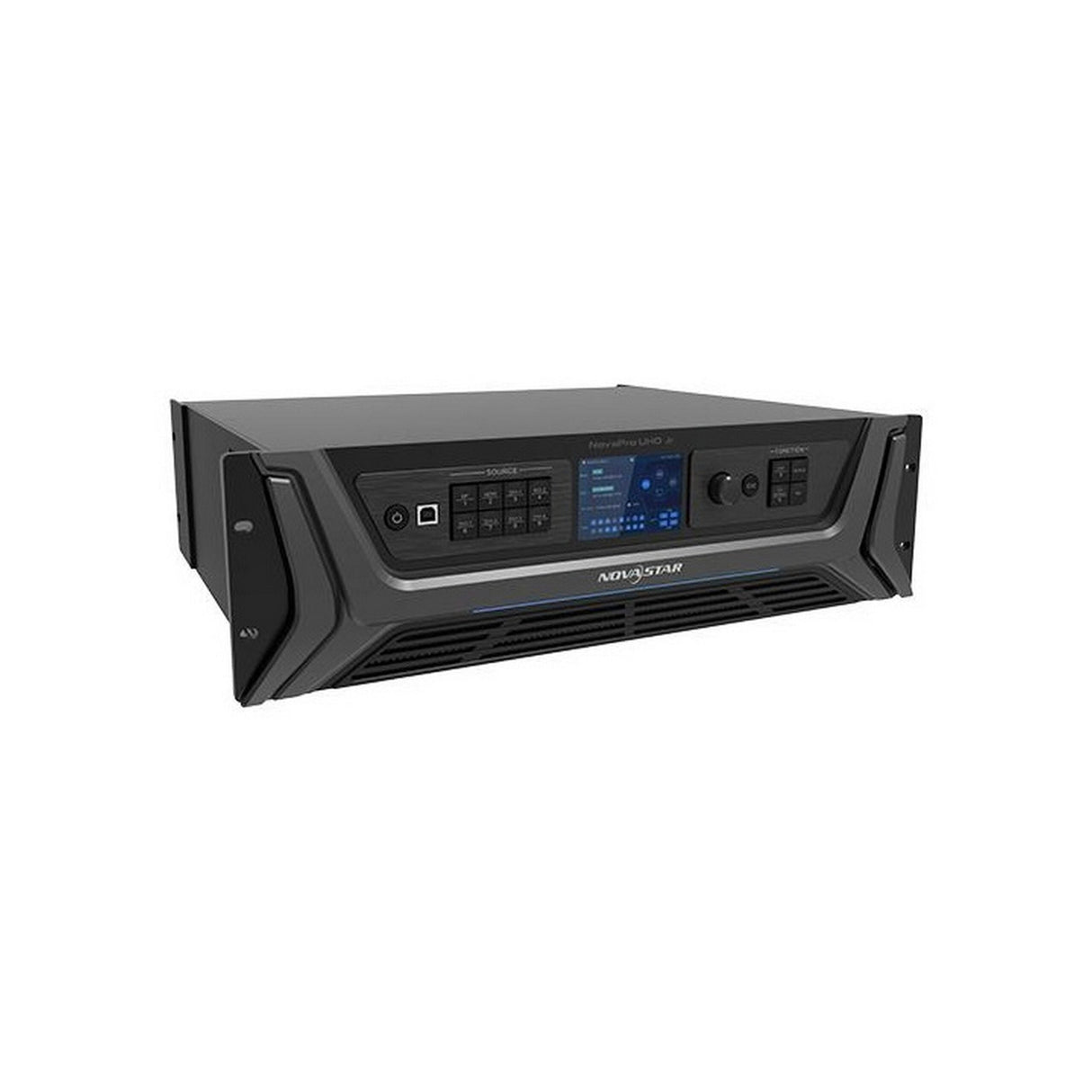

NovaStar NovaPro UHD Jr All-In-One LED Display Controller
NovaPro UHD Jr is an all-in-one controller that features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet and 4 optical fiber ports, and 4K-2K@60Hz ultra high-definition inputs and outputs. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites, and other high-end rental applications as well as fine-pitch LED displays.
Key Features
- 1 x DP 1.2, 4 x DVI, 1 x HDMI 2.0 with loop output
- 2 x 12G-SDI with loop output
- 16 x Neutrik Ethernet output and 4 x optical fiber outputs
- Loading capacity up to 10,400,000 pixels
- An input source can be made up of 4 DVI input sources
- Greatly enhances display image quality
- The supported frame rates are 23.98, 29.97 and 59.94
- Zero frame latency from device to receiving card
- Customized BKG settings support pure color and image BKGs
- 3 image scaling modes: auto fit, pixel to pixel, custom
- Capture input source image can be used as a BKG image
- 4 devices can be cascaded to load a super-large screen
- V-Can (smart control software from NovaStar) supported
- 10 user presets can be created and saved as templates
- Supports custom EDID and standard EDID
Technical Specifications
No computer or external scaler needed
4K x 2K @60Hz ultra HD (inputs and outputs)
Multiple video signal format support
Cascade up to 4 units
Rack mountable aluminum enclosure
Weight & Dimensions
Length
19.0 inches (482.6 mm)
Width
15.6 inches (396.5 mm)
Height
5.5 inches (139 mm)
Weight
13.9 lbs. (6.3 kg)
Control
16x RJ45 EtherCON outputs
4x fiber optic ports
USB and GenLock in/loop ports
Audio IN
1/8 inch connector
Video IN
1x DP 1.2 / 1x HDMI 2.0 with loop out
12G SDI with loop
Locking IEC power input
Power & Current
100-240VAC - 50/60Hz
Max Power Consumption
70W
