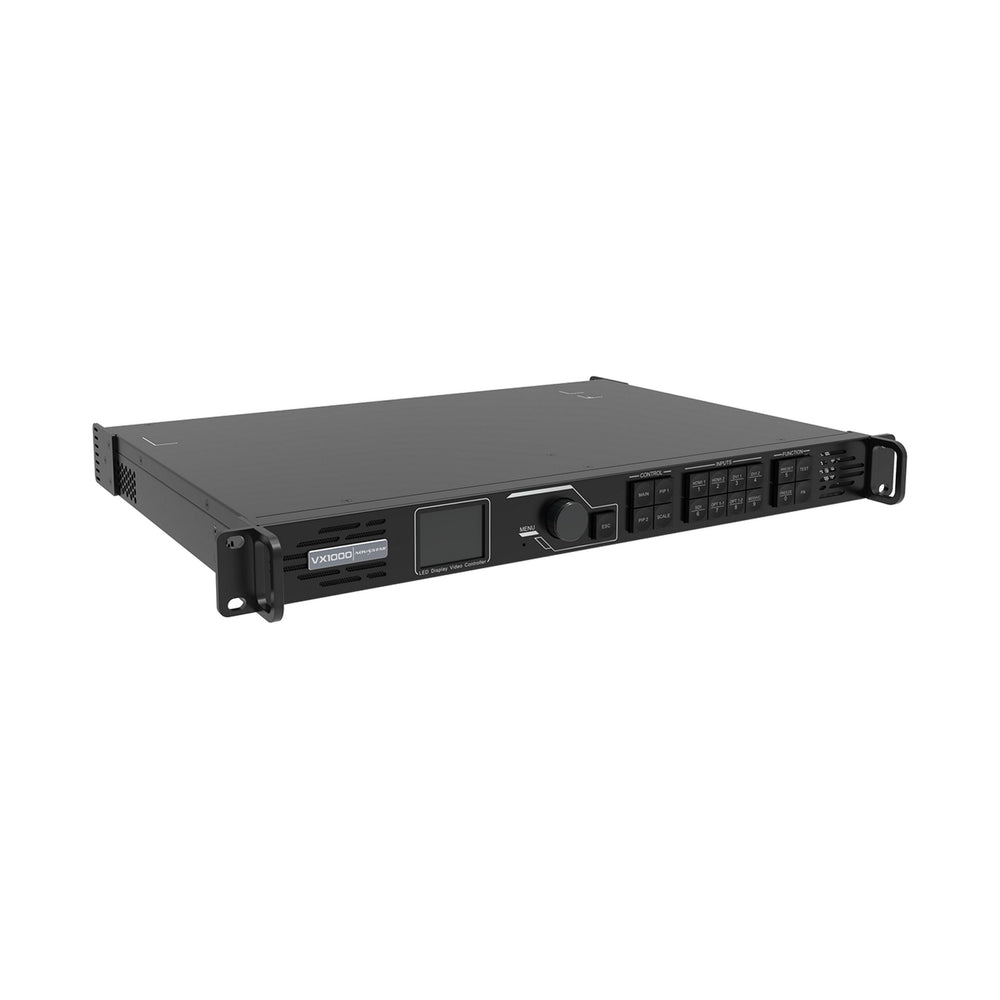

NovaStar VX1000 2-In-1 Video Controller and Processor

NovaStar VX1000 2-In-1 Video Controller and Processor

The VX1000 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.

The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4Kx1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Key Features

• Input connectors
  - 1x HDMI 1.4 (IN & LOOP)
  - 1x HDMI 1.4
  - 1x DVI (IN & LOOP)
  - 1x DVI
  - 1x 3G-SDI (IN & LOOP)
  - 1x 10G optical fiber port (OPT1)
• Output connectors
  - 10x Gigabit Ethernet ports
  A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
  - 2x Fiber outputs
  OPT 1 copies the output on 10 Ethernet ports.
  OPT 2 copies or backs up the output on 10 Ethernet ports.
  - 1x HDMI 1.3
  For monitoring or video output
• Self-adaptive OPT 1 for either video input or sending card output
  Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector,
  depending on its connected device.
• Audio input and output
  - Audio input accompanied with HDMI input source
  - Audio output via a multifunction card
  - Output volume adjustment supported
• Low latency
  Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
• 3x layers
  - Adjustable layer size and position
  - Adjustable layer priority
• Output synchronization
  An internal input source or external Genlock can be used as the sync source to ensure the output
  images of all cascaded units in sync.
• Powerful video processing
  - Based on SuperView III image quality processing technologies to provide stepless output scaling.
  - One-click full screen display
  - Free input cropping
• Easy preset saving and loading
  - Up to 10 user-defined presets supported
  - Load a preset by simply pressing one button
• Multiple kinds of hot backup
  - Backup between devices
  - Backup between Ethernet ports
  - Backup between input sources
• Mosaic input source supported
  The mosaic source is composed of several input connectors of the same type.
• Up to 4 units cascaded for image mosaic
• Three working modes
  - Video Controller
  - Fiber Converter
  - Bypass
• All-round color adjustment
  Input source and LED screen color adjustment supported, including brightness, contrast,
  saturation, hue and Gamma
• 3D function
  Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience
• Pixel level brightness and chroma calibration
  Work with NovaLCT and NovaStar calibration software to support brightness and chroma
  calibration on each LED, which can effectively remove color discrepancies and greatly improve
  LED display brightness and chroma consistency, allowing for better image quality.
• Multiple operation modes
  Control the device as you wish via V-Can, NovaLCT or device front panel knob and buttons.

Technical Specifications

Overview
Loading capacity: 6.5m pixels
Layers: 3 x 4Kx1K@60Hz
Mosaic input source supported
Audio input and output
3D functions
Low latency
Output synchronization
Connectors
2x HDMI 1.4 + LOOP In
2x DVI (HDMI 4.1) + LOOP In
1x 3G-SDI + LOOP In
10x Gigabit Ethernet outputs
2x 10G OPT ports
1x HDMI 1.3 (monitor)
1x RJ45 Ethernet (PC)
1x USB Type A (PC)
1x USB Type B (cascading)
1x Genlock In + LOOP
Control
LCD menu display
Intuitive display interface
PC: Ethernet, USB (A/B), Genlock IN + LOOP
Power
100-240VAC, 50-60 Hz
Power consumption: 28W, 1.5A
Warranty
3-year warranty
Dims & Weight
19" L x 13.3" W x 2" H
8.9 lbs
