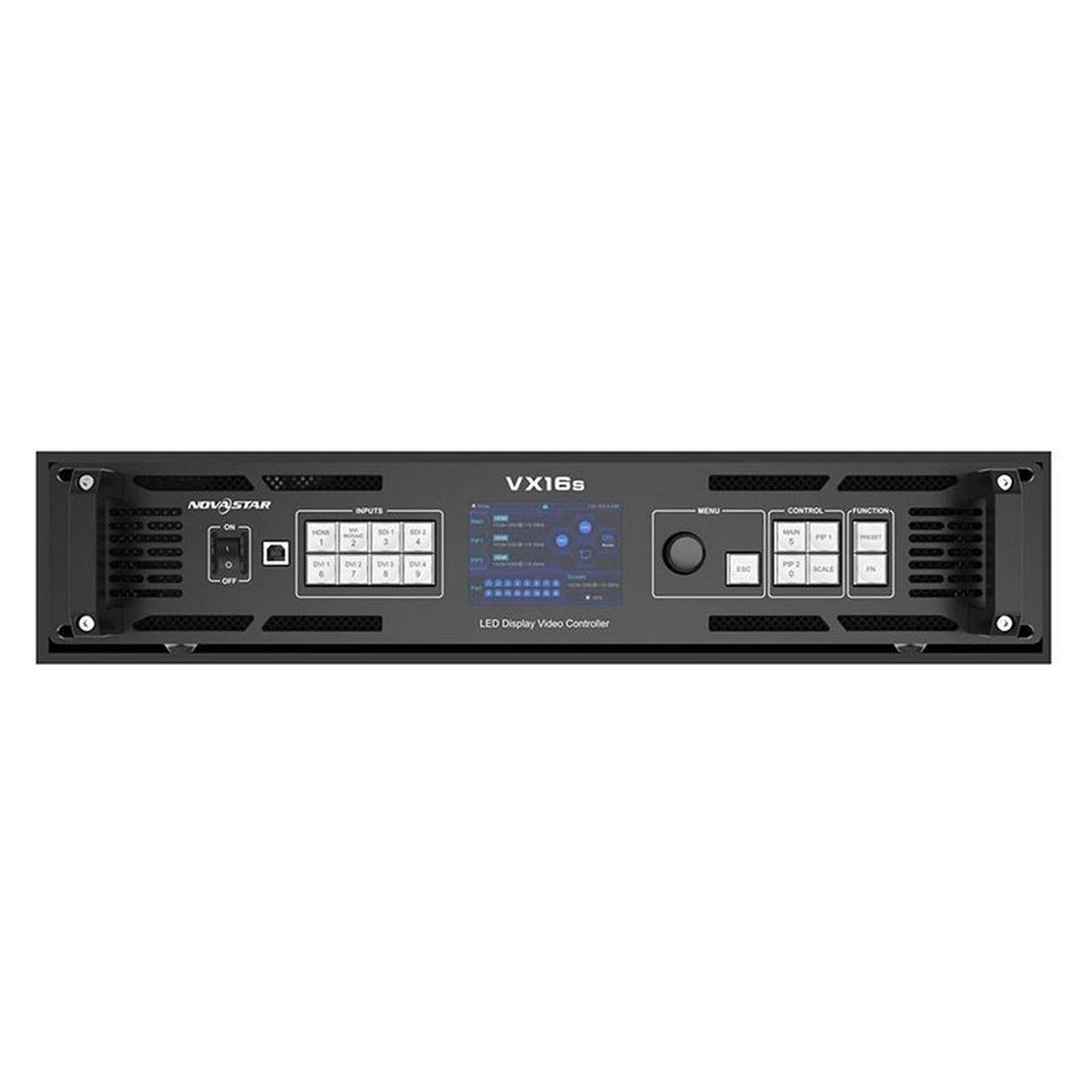

NovaStar VX16s: All-in-one LED Display Video Processor for Richer Image Mosaic Effects

The NovaStar VX16s is a powerful and versatile all-in-one LED display video processor that integrates video processing, video control, and LED screen configuration into a single unit. This makes it a cost-effective and user-friendly solution for a variety of applications, including stage control systems, conferences, events, exhibitions, high-end rental, and fine-pitch displays. Beyond its core processing power, the VX16s boasts a number of features that make it a standout choice for demanding applications. A key advantage is its support for a wide range of video signals, including Ultra HD 4K×2K@60Hz image processing and sending capabilities. This ensures compatibility with even the latest high-resolution video sources and delivers stunning image quality on even the most pixel-dense LED walls.

The VX16s also provides exceptional flexibility for managing complex video presentations. It offers up to 10,400,000 pixels of processing power, allowing you to drive massive LED displays with ease. With three independent layers and adjustable layer priorities, you can create layered video compositions that combine live video feeds, pre-recorded content, and computer graphics. This capability is ideal for applications such as live events productions, where you might need to overlay a presenter's image on top of a background video or incorporate data visualizations into your presentation.

For added creative control, the VX16s supports 3D display effects, enabling you to create visually immersive experiences that will captivate your audience. It also provides three scaling options for flexible image manipulation, allowing you to resize and position video content to perfectly fit your LED display. Whether you need to pixel-to-pixel map a video source to a specific display area or create a custom aspect ratio for a unique visual effect, the VX16s provides the tools you need to achieve your creative vision.

Key Features

Supports a variety of video signals, including Ultra HD 4K×2K@60Hz image processing and sending capabilities.

Up to 10,400,000 pixels for high-resolution displays.

Three independent layers and up to four DVI inputs that can form an independent input source.

Supports 3D display effects for added visual impact.

Three scaling options for flexible image manipulation.

Up to four devices can be linked to load a super large screen.

Backup mode for automatic failover in case of signal loss or Ethernet port failure.

Technical Specifications

Input Connectors: 2x 3G-SDI, 1x HDMI 2.0, 4x SL-DVI

Pixel Capacity: Up to 10,400,000 pixels

Layers: 1x 4K x 2K main layer, 2x 2K x 1K PIPs (PIP 1 and PIP 2), adjustable layer priorities, DVI Mosaic: up to 4 DVI inputs can form an independent input source

Supported Frame Rates: 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz

3D Support: Supports 3D display effect on the LED screen

Scaling Options: Pixel-to-pixel, full screen, and custom scaling

Image Mosaic: Up to 4 devices can be linked to load a super large screen

Control: VCan software, up to 10 presets can be saved for future use

EDID: Custom EDID and standard EDID supported

Physical

Dimensions:482.6 mm x 372.5 mm x 94.6 mm

Net weight:6.22 kg

Gross weight:9.78 kg

Packing Information

Carrying case:530.0 mm x 420.0 mm x 193.0 mm

Accessories 1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval

Packing box:550.0 mm x 440.0 mm x 215.0 mm
