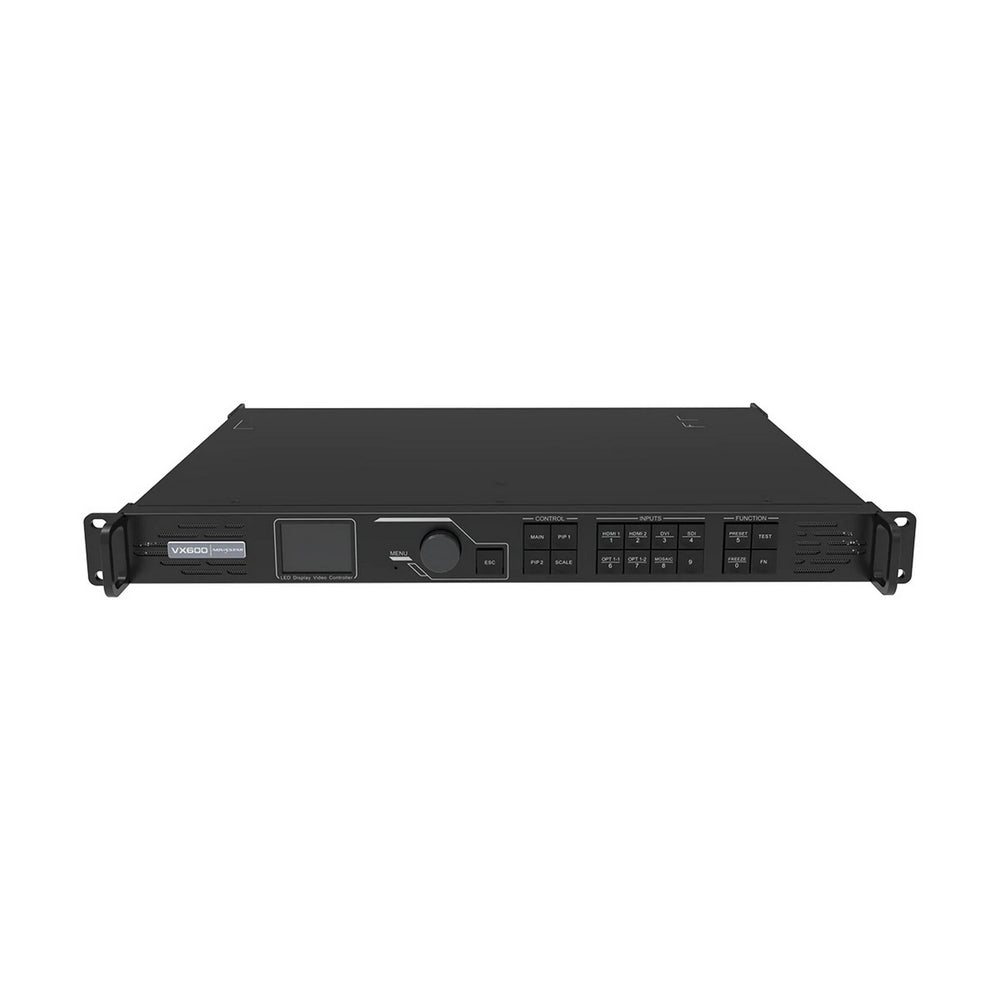

NovaStar VX600 6-Port 2-In-1 Video Controller, 3.9m Pixels
NovaStar VX600 6-Port 2-In-1 Video Controller, 3.9m Pixels
Free Shipping
NovaStar VX600 6-Port 2-In-1 Video Controller, 3.9m Pixels
All-in-One Controller
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Highly Versatile
The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
Key Features
- 2x HDMI 1.3 (HDMI-In & Loop) (max. 1920x1200@60Hz), Custom EDID's possible
- 1x DVI (1920x1200@60Hz, Custom EDID's possible
- 1x 3G-SDI (max. 1920x1080@60Hz)
- 6x LED-Out (RJ45)
- 1x HDMI 1.3 Out (fixed resolution of 1920x1080@60Hz when the output is used as monitoring)
- 2x OPT-Out (10G)
- V-Can Support
- Genlock
- Supports up to 3x layers
- Memory for 10 presets
- Cascading via USB possible
- Display configuration without computer possible
- Control via USB or LAN
Technical Specifications
Loading capacity
3.9m pixels
Layers
3
Mosaic input source supported
Audio input and output
3D functions
Low latency
Output synchronization
Connectors
2x HDMI 1.3 + LOOP In
2x DVI (HDMI 1.3) + LOOP In
1x 3G-SDI + LOOP In
6x Gigabit Ethernet outputs
1x 10G OPT port
1x HDMI 1.3 (monitor)
1x RJ45 Ethernet (PC)
1x USB Type A (cascading)
1x USB Type B (PC)
1x Genlock In + LOOP
Power
100-240VAC, 50-60 Hz
Power consumption
28W, 1.5A
Warranty
3-year warranty
Dims & Weight
19ā L x 13.9ā W x 2ā H
8.9 lbs
