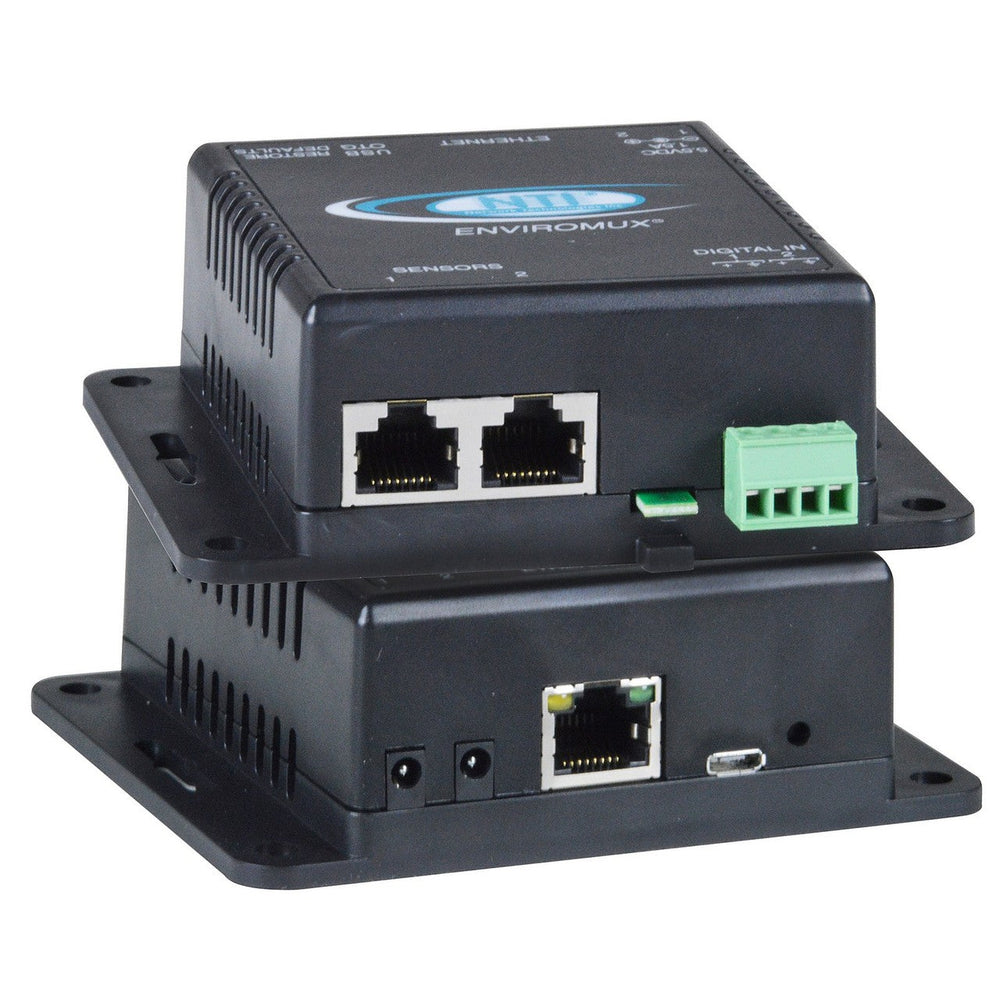

NTI ENVIROMUX-MICRO-T Micro Environment Monitoring System
The ENVIROMUX Micro Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).
Key Features
- 1 integrated temperature sensor
- 2 RJ45 ports for external temperature/humidity sensors
- 2 digital inputs sensitive to contact closure
- Dual DC power provides dual redundancy
- Sensors are hot pluggable
- Monitor (ping) up to 4 IP network devices & alerts are sent if devices are not responding
- Create multiple alerts for any installed sensor
- Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert
- Alerts are posted in message log, which is accessible through Web user interface
- Automatically configures network settings received from a connected DHCP server
- Supports 4 IP network video cameras for live view of any facility
- Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG
- USB port for connecting USB modem
- Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors
- Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights
- Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored
Technical Specifications
RJ45 Sensor Ports
Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
Three levels of user-defined alerts normal, warning, critical.
USB Port
One female Micro USB connector for connecting a USB Modem.
Ethernet Port
One female RJ45 connector.
10/100 Base-T Ethernet interface.
Integrated Temperature Sensor
Applications from -4°F to 167°F
Accuracy-
±0.72°F at -14 to 167°F
±0.9°F at -4 to 23°F
Resolution
0.2°F
Power
Dual DC power provides dual redundancy.
If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
The unit draws power from the source with the highest DC voltage (nominal 5.5V).
If both sources have exactly the same voltage, it will draw in part from each of them.
110 to 240 VAC at 50 or 60 Hz via AC adapter.
Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
Input voltage
5.5VDC ±5%
Power consumption
4W max.
Environmental
Operating & Storage Temperature
-4°F to 167°F
Operating & Storage Relative Humidity
0 to 90% non-condensing RH.
Dimensions
WxDxH in (all options)
4x3.44x1.37 (102x87x35 mm)
