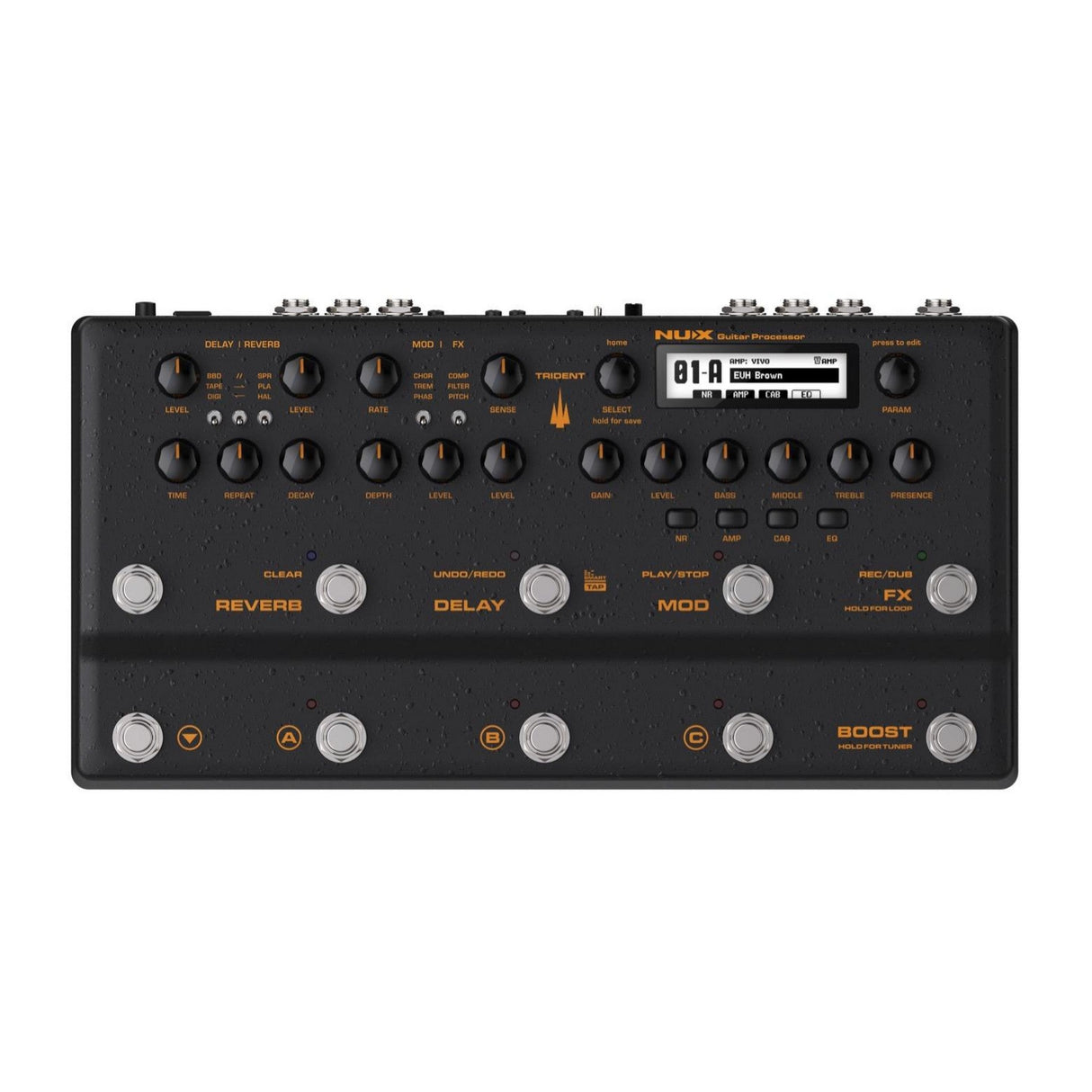

NUX Trident NME-5 Guitar Amp Processor

Perfect for live applications, the TRIDENT offers plenty of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for adding an expression pedal, MASTER VOL pot, and MIDI IN / OUT.

The TRIDENT uses one-piece die-cast aluminum case, it’s solid, strong, build for live performance.

The TRIDENT features our newly updated iconic TSAC-4K Amp Modeling (White-box Physical Modeling algorithm). The TSAC-4K Amp Modeling algorithm is twice as complex than previous versions. This led us to design a new hardware platform with 2 DSPs, one to handle all the effects, and the other to handle the amp modeling algorithm. Additionally, the TRIDENT uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise levels.

This world-class amp modeling algorithm comes fully loaded with features and functionality. Just like their real counterparts, the included 27 amps feature HIGH/LOW inputs, 4 inputs for patch cable jumping, toggle switch for voicing, for max tweaking.

The TRIDENT is a powerful IR loader and includes 27 Cab IRs at 1024 sample resolution. Fine tune your Cab tone with 4 microphones (3 positions each), to adjust IR low cut / high cut / level.

And finally, expand your IR library with 3rd party IRs and 32 additional slots. The Trident edit software will convert the IR format automatically on your PC or Mac.

The knob layout, toggle switches, and foot switches of the TRIDENT are akin to stomp boxes, you can engage/disengage the effects freely. The SELECT & PARAM encoders with LCD display deliver more parameter details, block order / status.

The TRIDENT is also a powerful studio device, a perfect USB-C Audio Interface for guitar. You can download Trident Editor from the product page to edit patches, and setup the USB routing. Record your TRIDENT tracks to your favorite DAW or use it as a re-amp device to breathe new life into your previously recorded audio tracks. Caution!! In order to offer you the best dynamic range of USB Streaming, the TRIDENT doesn’t control the PC’s system playback volume. When using the TRIDENT as a USB audio interface, remember to adjust your PC’s playback volume from the “minimum” to the desired volume. Take care of your ears.

Technical Specifications

INPUT Impedance
1MΩ
AUX IN Impedance
10kΩ
RETURN Impedance
100kΩ
OUTPUT 1, OUTPUT 2, SEND Impedance
1kΩ
Phone Impedance
47Ω
Dynamic Range
109dB
Sampling Rate
48kHz / 32bit
System Latency
1ms
Power
9V DC (Negative Tip, included ACD-006A adaptor)
