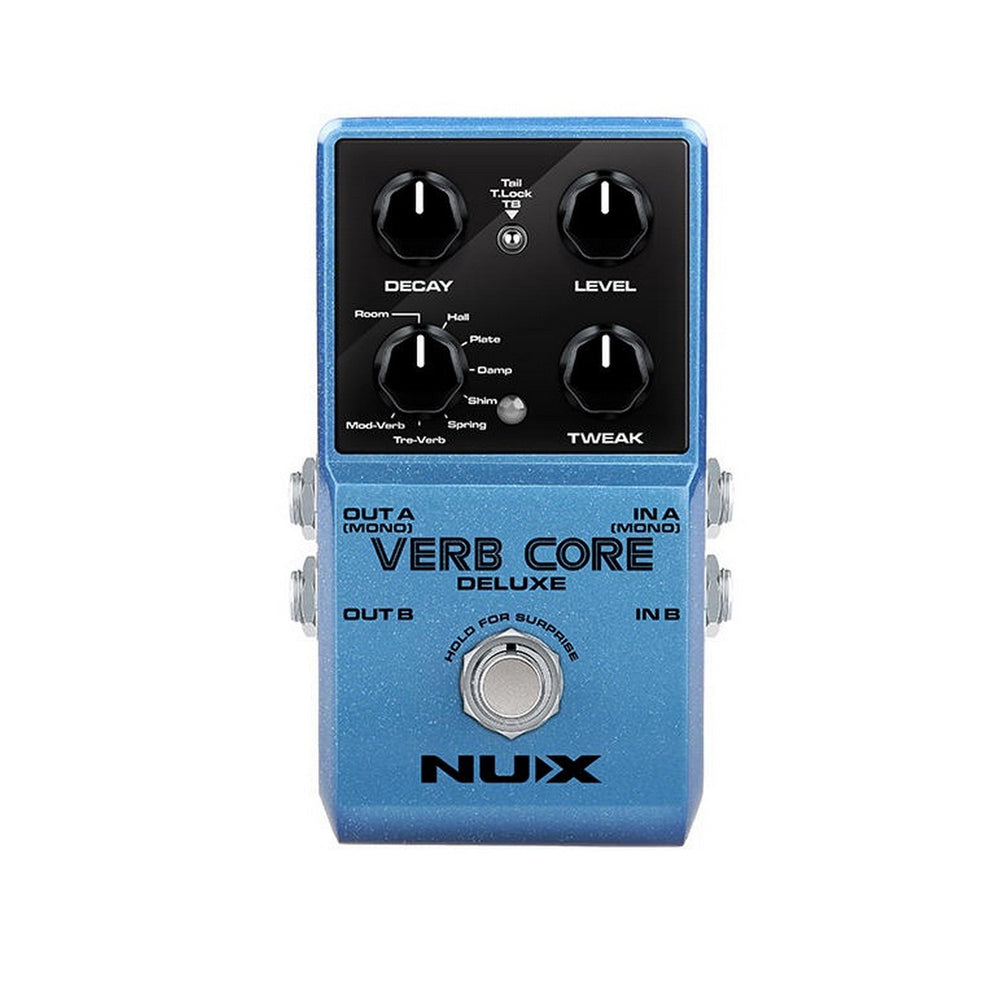

NUX Verb Core Deluxe Reverb Guitar Effects Pedal

Ambience in Motion
The NUX VERB CORE DELUXE is a reverb pedal with 8 different types including Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb and Mod Verb. You can select the reverb type by using the Type knob.

Room reverb simulates a smaller acoustic space. In such a room, many reflections are absorbed by soft materials, and the sound is reflected and sustained only by the walls (covered with wallpaper), windows and maybe some furniture. Room reverb is akin to the normal ambience we’re used to hearing in the real world.

Hall reverb is based on the legendary Lexicon 224 which was unleashed in 1978. It has a famously lush reverb tail which single-handedly defined the sound of an entire era. A large encompassing reverb with warm, organic decay.

Plate reverb was inspired by EMT 140, which made use of a metal plate suspended in a steel frame, that was able to recreate reverberations like those heard in an acoustic space; a renowned studio reverb found on classic recordings.

Damp reverb is huge and endless, warm and natural.

Shim (shimmer) reverb pitch shifts the reverb up an octave through each feedback loop, creating a haunting and other-worldly sound. This is a unique effect that may open some interesting and experimental sonic options.

Spring reverb simulates the drippy and squishy sounding spring tank that was generated in a spring by creating a mechanical oscillation. To achieve a “bouncy” tone, Spring reverb is a solid choice for adding a bottom-heavy dimension. Classic surf reverb; great for Rockabilly too!

Tre-Verb (Tremolo Verb) combines tremolo and spring reverb, like the vintage tube amplifier with warm tremolo and spring reverb atmosphere that really fills out your sound with classic depth and dimension.

Mod-Verb (Modulation Verb) combines gorgeous chorus with damp reverb, this huge reverb delivers a lush, ambience-soaked sound.

Kill Dry: This function allows you to get fully proceed signals without any dry signals, so you are able to get pure dry amp sound and pure wet amp sound with paralleled gear chain. Or to reach a new level of ambiance effects if the original mixing is just not enough for your ideas.

Key Features

• 8 reverb types in a compact enclosure.
• Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb, Mod-Verb.
• Freeze function.
• True-bypass or Buffer-bypass (Tails).
• Supports Stereo.
• Kill Dry.
• Low power consumption. (Less than 120mA)
• Analog dry signal for low noise and zero latency.

Technical Specifications

Weight
270g
Input Impedance
1MΩ
Output Impedance
1kΩ
Dynamic Range
104 dB
DSP Processing
48KHz / 32-bit
A/D D/A Sampling Rate
48KHz / 24-bit
Power
9V DC (Negative tip, Optional ACD-006A adapter)
Current Draw
less than 120mA
Dimensions
122(L) X 72(W) X 47(H)mm
