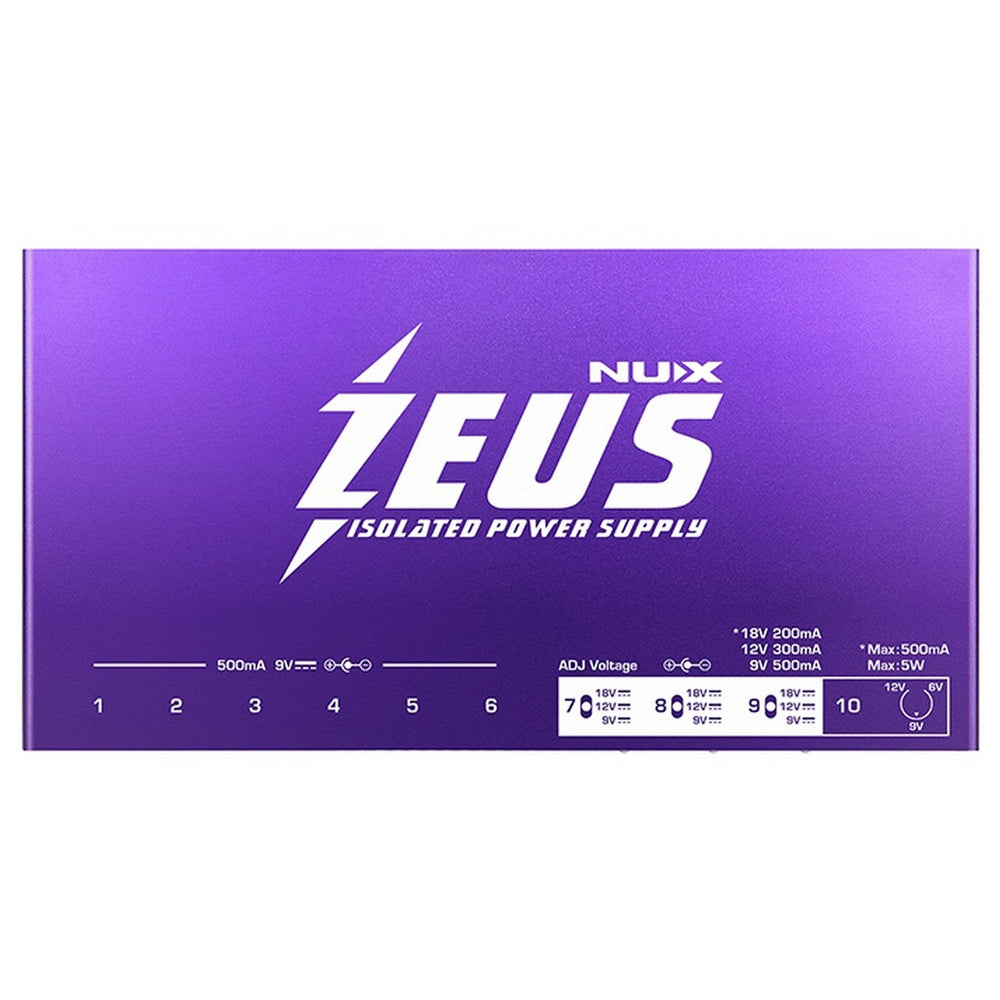

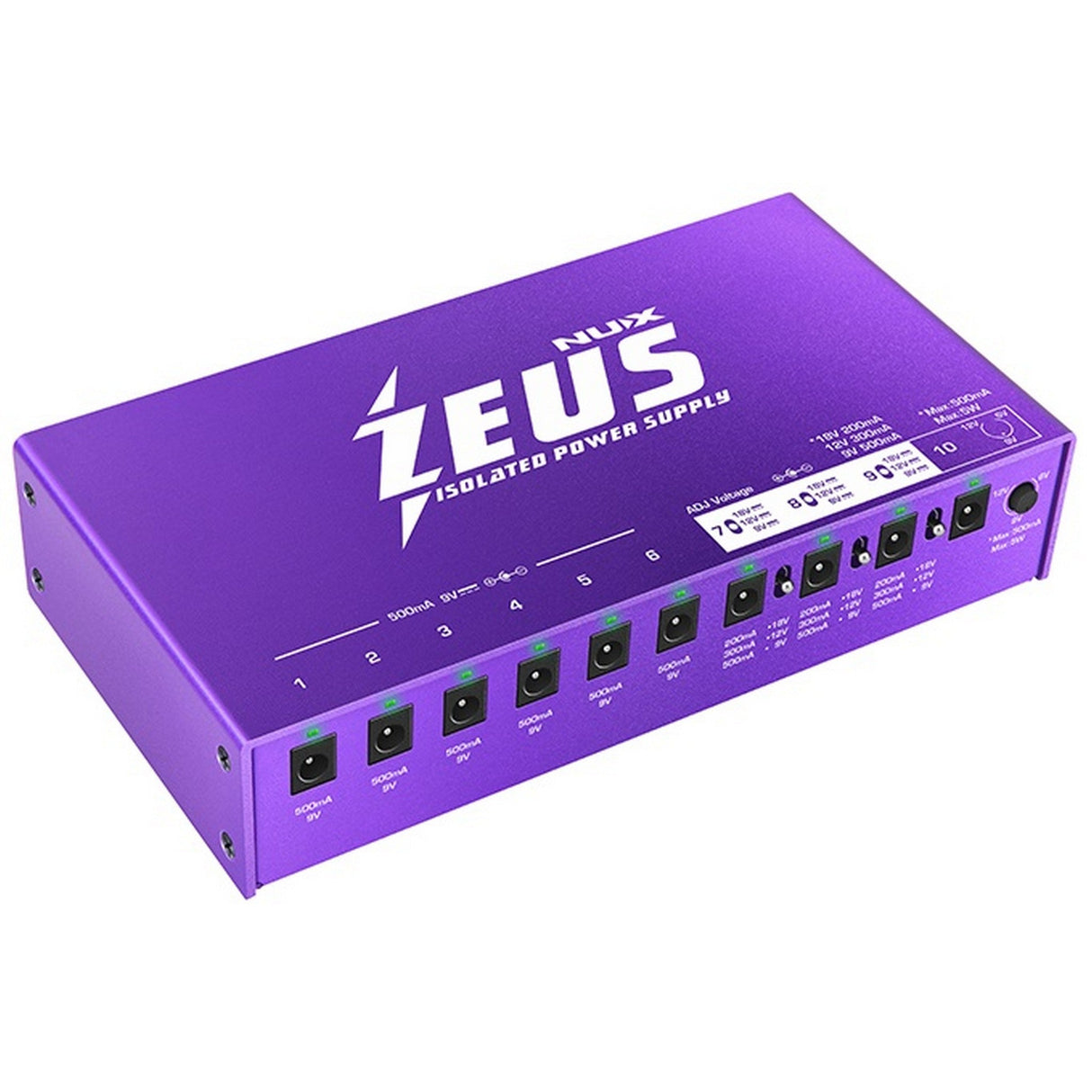

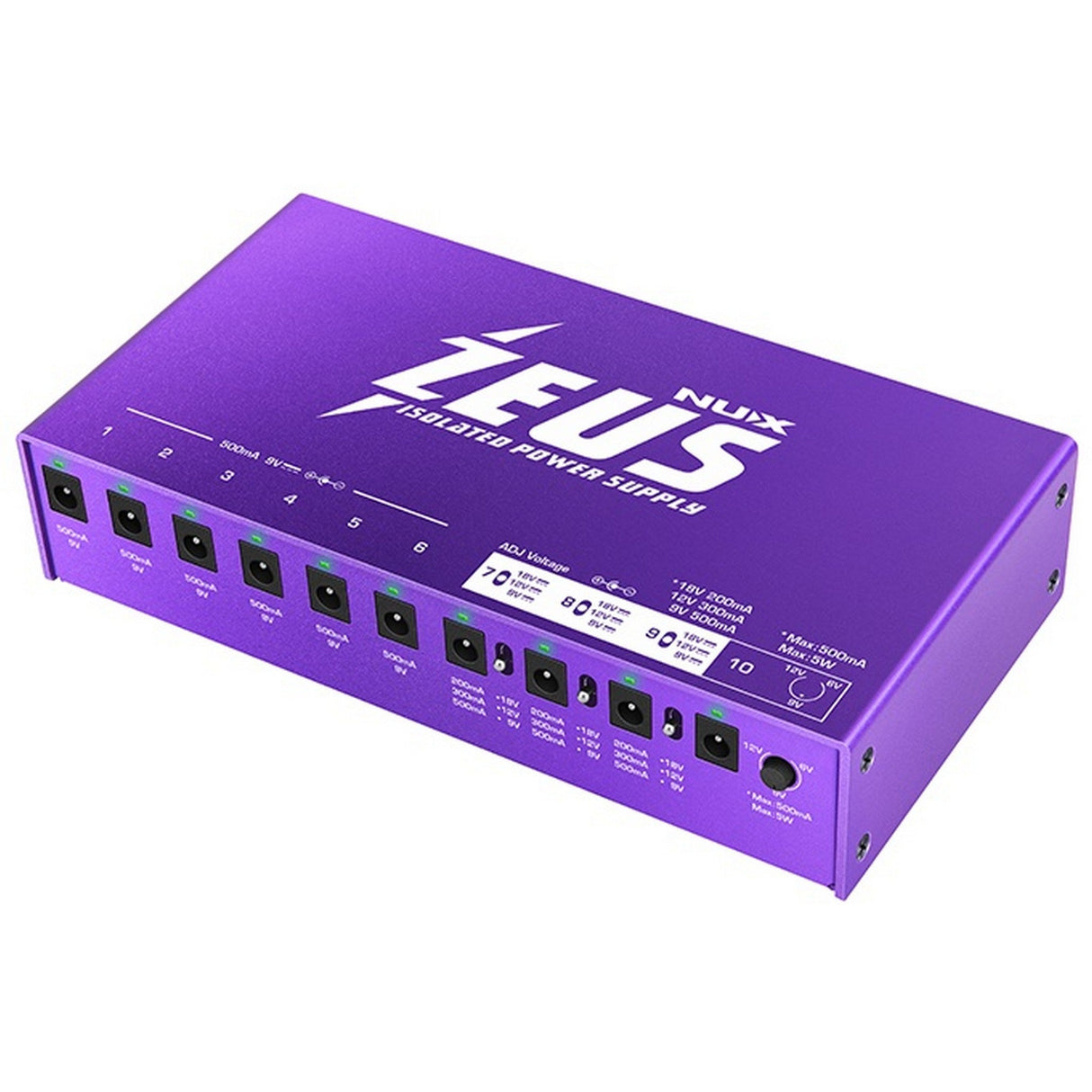

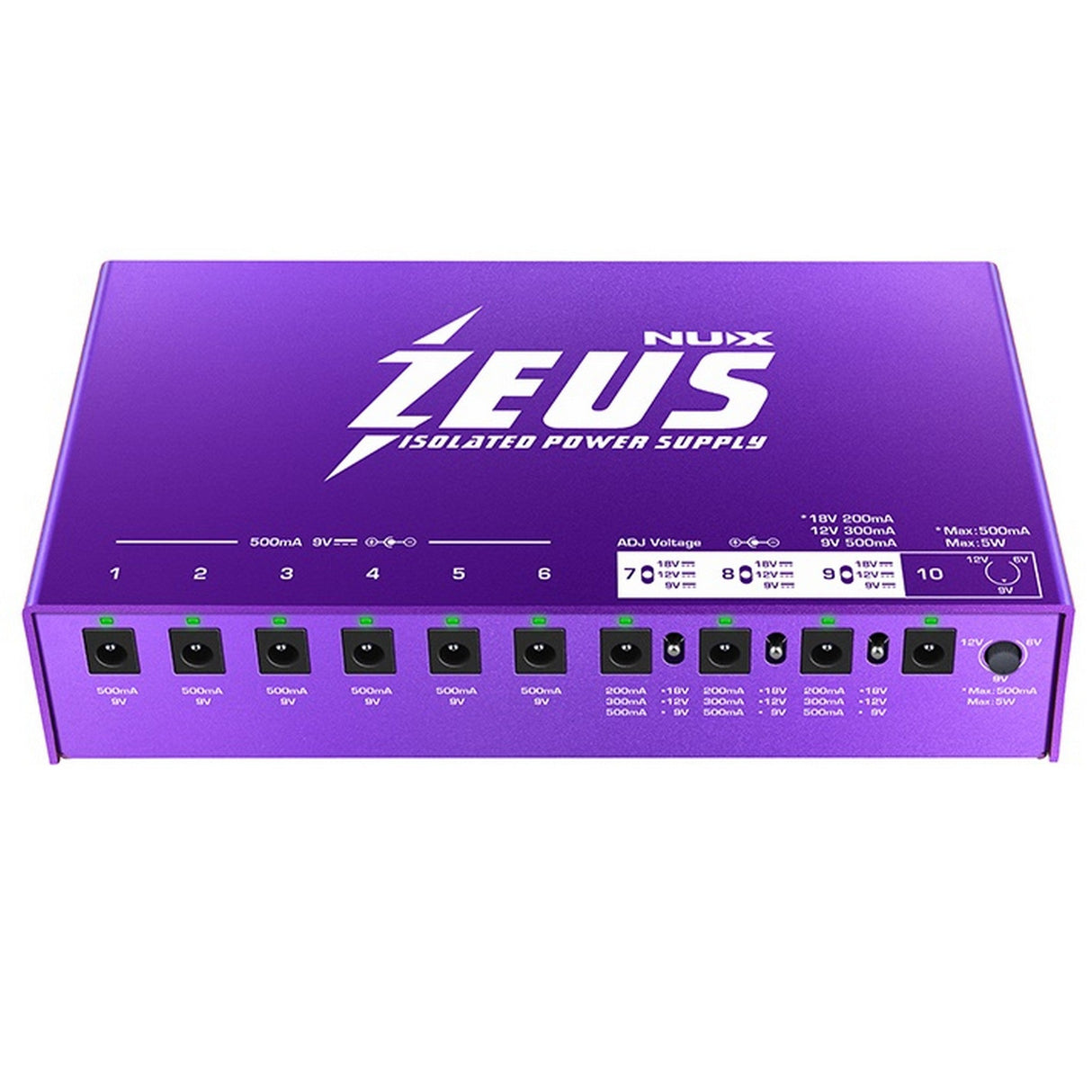

Introducing the concept of the Nux Zeus 6 9V Outputs Isolated Power Supply, named after the god of thunder, with the ability to throw lightning bolts. Zeus offers 10 high-current isolated DC power outputs powered by 10 isolated switching power transformers, ensuring a clean and stable power source for your pedals. With the modern musician in mind, Zeus includes 3 adjustable high-current outputs (9v/500ma | 12v/300ma | 18v/200ma) and 1 tweakable high-current output (6v~9v~12v), allowing you to optimize your sound with pedals like Fuzz or Phaser.

For gigging musicians, Zeus features a USB port for charging your mobile devices. Its universal AC power input enables worldwide usability without any AC voltage concerns, providing a reliable and robust power solution for your pedals.

Efficiency (Reliable)
Zeus delivers more current efficiently compared to linear power supplies.

Transient Currents (Powerful)
Zeus can handle transient currents that exceed normal operating levels, making it suitable for power-hungry modern DSP effects.

Tweakable Dial Control (Sag or Rise for the best sounding)
Adjustable voltage settings (6V~12V) allow for fine-tuning, especially crucial for tone-sensitive musicians using Ge Fuzz pedals, Phaser, BBD Chorus, and Overdrive pedals.

Optical Negative Feedback Control (Sound like designed to sound)
Individual isolation eliminates ground noise issues, ensuring a clean sound output.

Extremely Low Noise
Zeus maintains low noise levels for all types of pedals.

UL Certification (Safety)
Zeus is UL-certified for safety and environmental responsibility.

Universal AC Power (100V~240V World Tour Ready)
Zeus supports a wide range of AC voltages, making it suitable for international touring musicians.

Self-Regulated Output (Ultra Low Impedance)
The self-regulated output design of Zeus offers clean power with minimal impedance, preserving harmonics and dynamics.

In addition to standard DC cables, Zeus includes a reverse polarity cable, 3.5mm mini plug cable, and an HX current doubler adaptor for versatility. It can even power LINE6 HX-STOMP without any issues.

To double the current output, you can parallel 2 outputs from 1-6, ensuring a safe load of less than 800mA for optimal performance.

Key Features

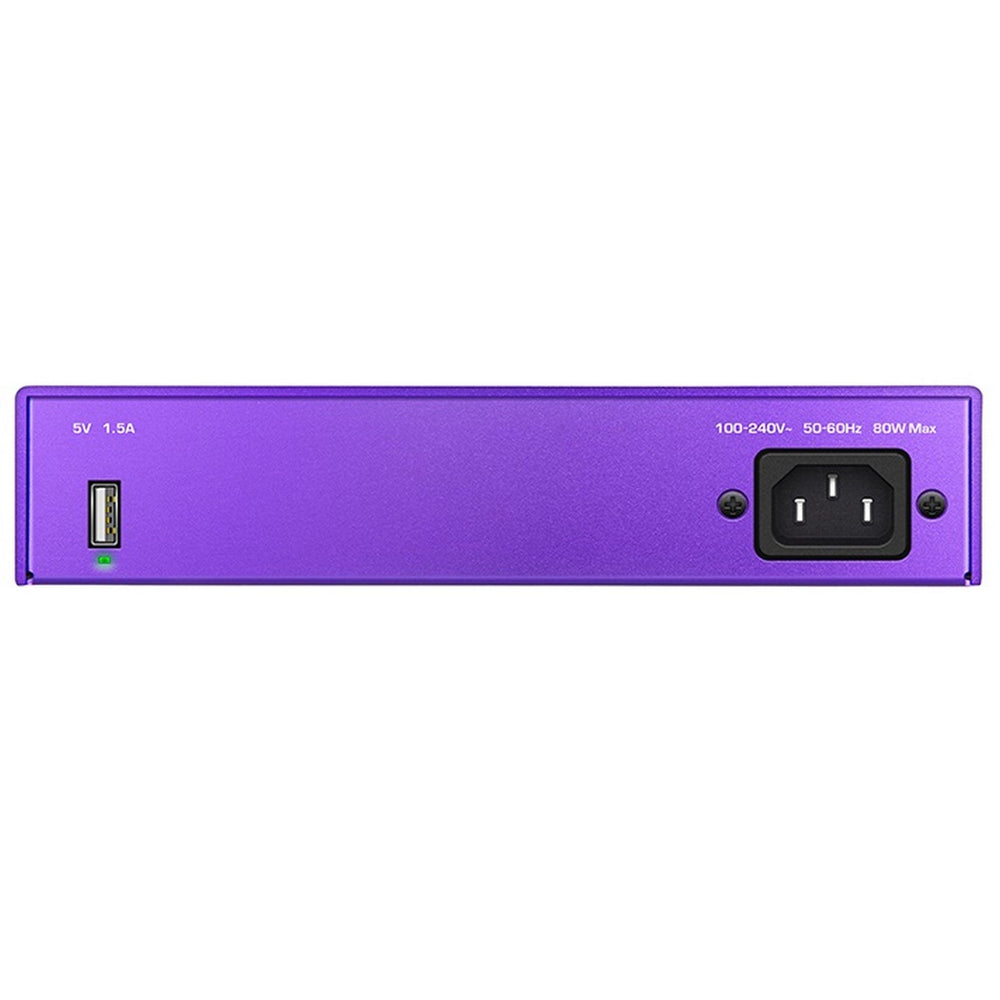

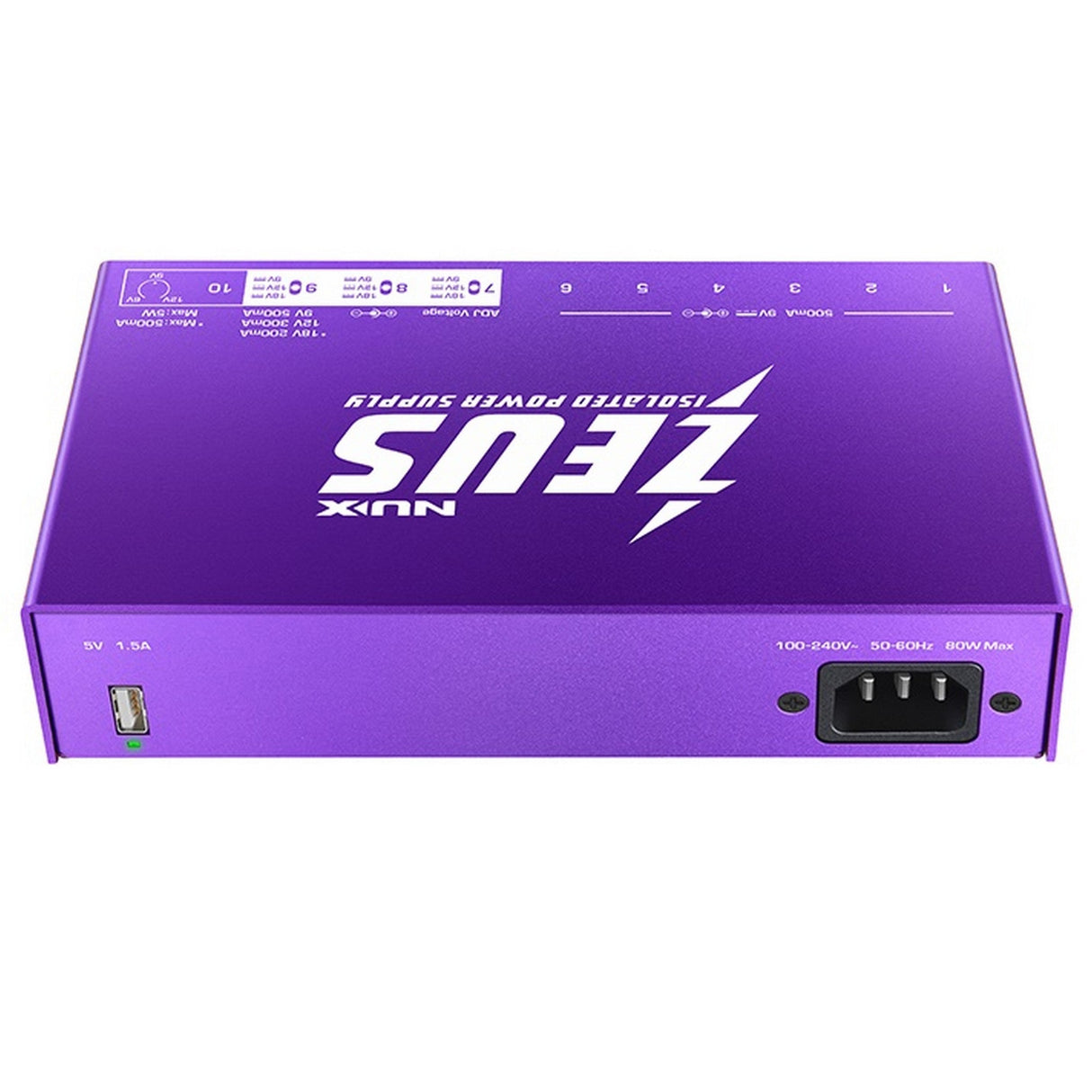

• Pad compatible USB charger with 5V / 1.5A output

• Ensures noise-free operation with dual isolation

• Green LED indicator shows working status when DC cable is plugged in

• Supports universal AC power input from 100-240V

• Provides over-heating and over-current protection

• Compact and lightweight design with high power efficiency

Technical Specifications

AC Power Input
100~240V AC 50/60 Hz
DC Outputs

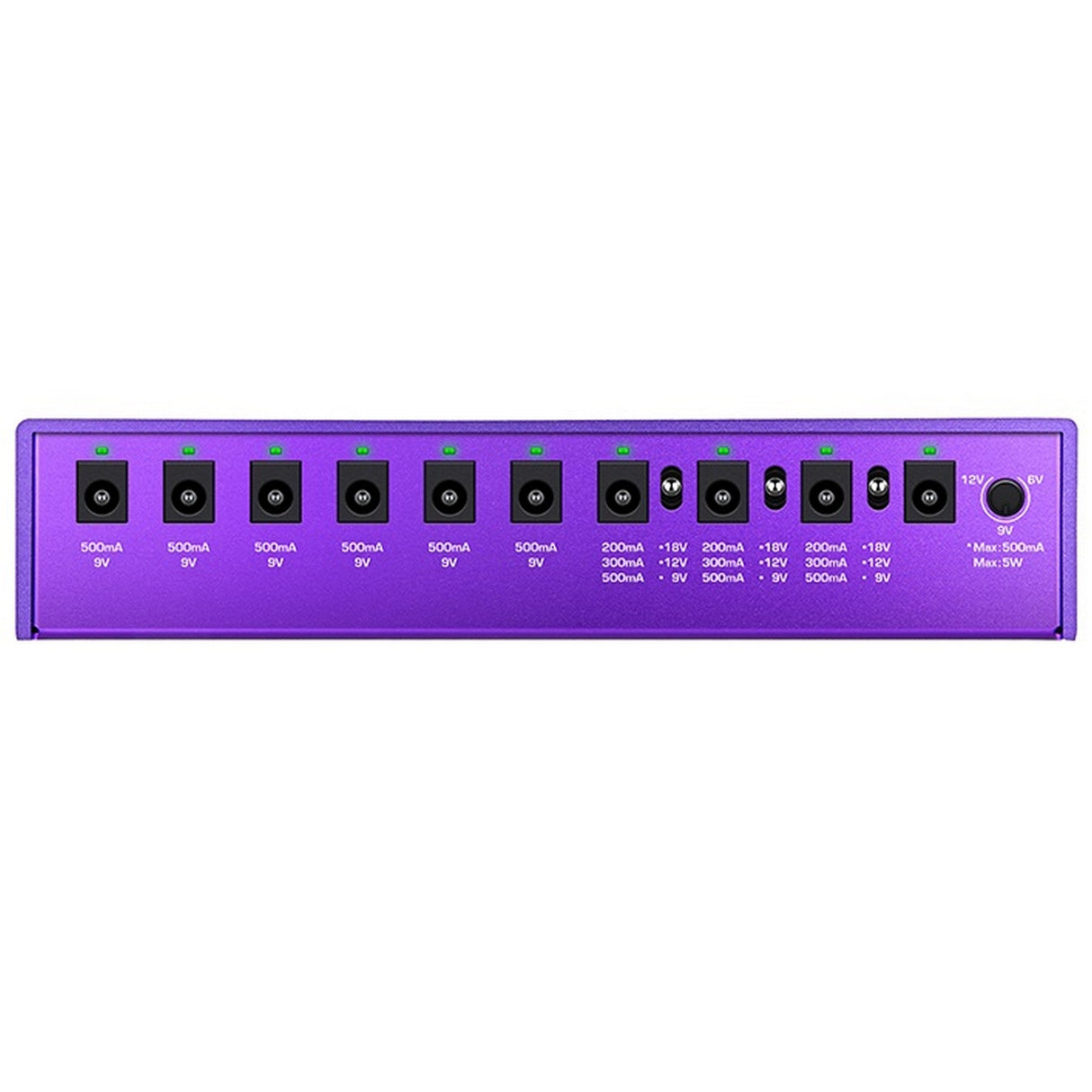

9V / 500mA x6, 9V/12V/18V adjustable x3, 6V~12V tweakable x1, USB 5V/1.5A for Pad
DC Cables
DC Link Cable (2.1mm Barrel Connectors-Right-Angle to Straight Ends) 50cm x5
DC Link Cable (2.1mm Barrel Connectors – Right-Angle to Straight Ends) 30cm x5
Reverse Polarity Cable-2.1mm Right-Angle 50cm x1
3.5mm Mini plug Cable-Right-Angle 50cm x1
HX Current Doubler Adaptor (2*2.1mm Jack to 2.5mm Right-Angle Plug) 10cm x1
Dimensions
195mmx101mmx42mm
Weight
658g
