OBSBOT UVC to NDI Adapter

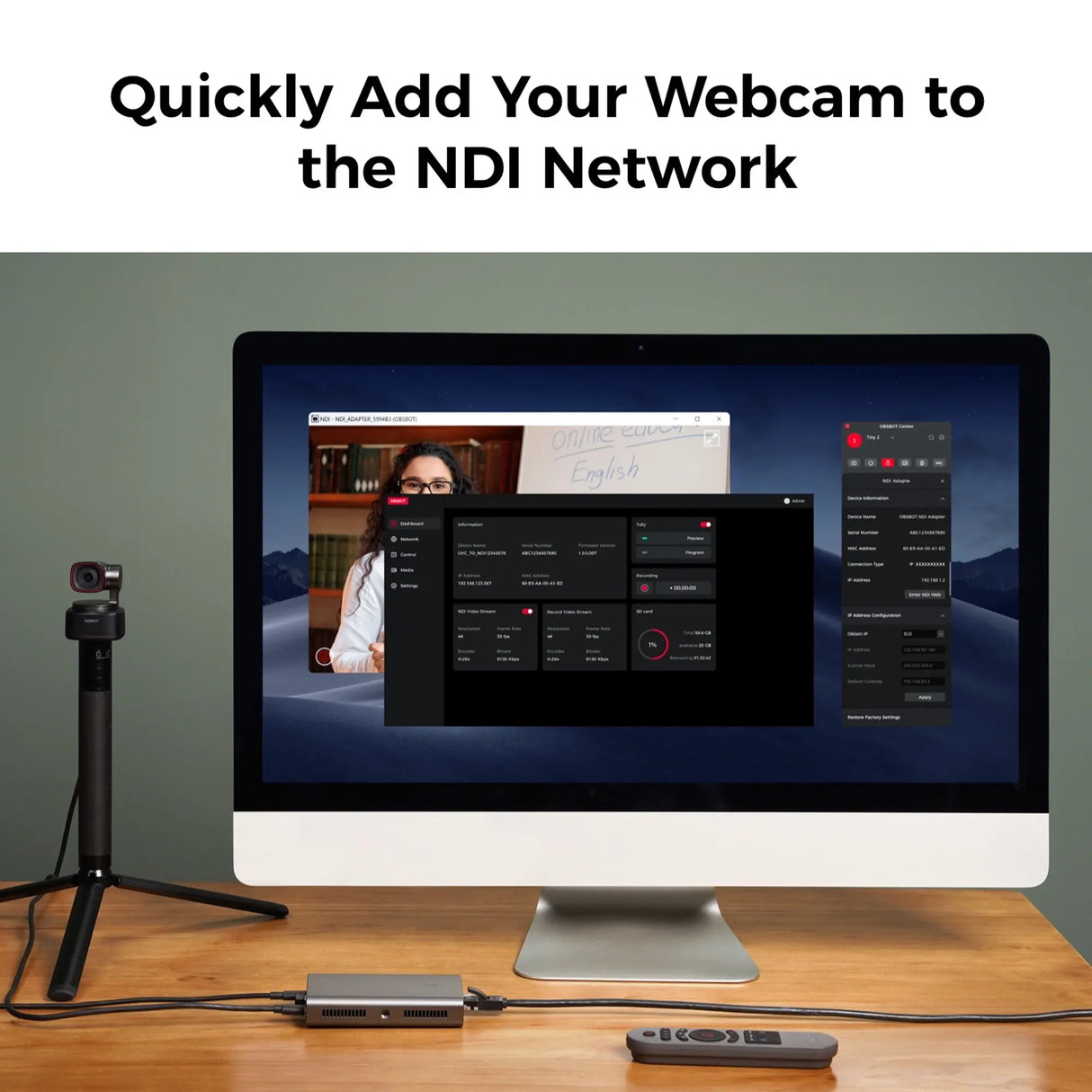

Quickly Add Your Webcam to the NDI Network: Connect your webcam to this adapter and instantly enjoy high-quality, low-latency transmission through the NDI network. Elevate your livestreaming experience with powerful NDI connectivity.

PoE Support & Tally Light: Experience ultimate convenience with the dedicated tally light and PoE support. Receive instant status updates with the tally light, while PoE support keeps your webcam charged and connected with a single Ethernet cable.

Simultaneous Micro SD Card Recording: Never miss a moment with the Micro SD card recording feature. Capture and store livestream videos simultaneously, ensuring reliable backup for your valuable content.

Controllable via OBSBOT Tiny/Meet Smart Remote Control: After plugging in the receiver of the remote control, you can remotely control most of the OBSBOT Webcam's features.

Key Features:

• Instantly convert UVC signals to NDI
• PoE supported, no need for separate power supply
• Designed with a tally light for effortless status checking
• Supports recording livestream videos to Micro SD card while streaming

Specifications

Dimension: 116*70*22.5mm

Weight: 202g/395.5g

Input: Decoding Formats: MJPEG/H264, Compatibility: UVC 1.0/1.1/1.5 protocol

Output: Encoding Formats: H264/H265, Resolution: 3840x2160@ [60 59.94 50 30 29.97 25 24 23.98], 2560x1440@ [60 59.94 50 30 29.97 25 24 23.98], 1920x1080@ [60 59.94 50 30 29.97 25 24 23.98], 1280x720@ [60 59.94 50 30 29.97 25 24 23.98]

Contact Interface: Power: USB-C 2.0, 9V/2A, 5V/3A, 12/2A or 20V/1A (depends on adapter), support PD 3.0, Control: USB-A 2.0, 5V/0.5A, Data: USB-C 3.0, 5V/2A, Network: 1*RJ45 10/100/1000Mbps Ethernet port (with PoE) IEEE 802.3 af/at, Max power 25W

Rating: 5-20VDC, Up to 15W

Memory Card Type: Micro SD (Up to 512 GB)

Operating Environment: Working Environment Temperature: 0°C-40

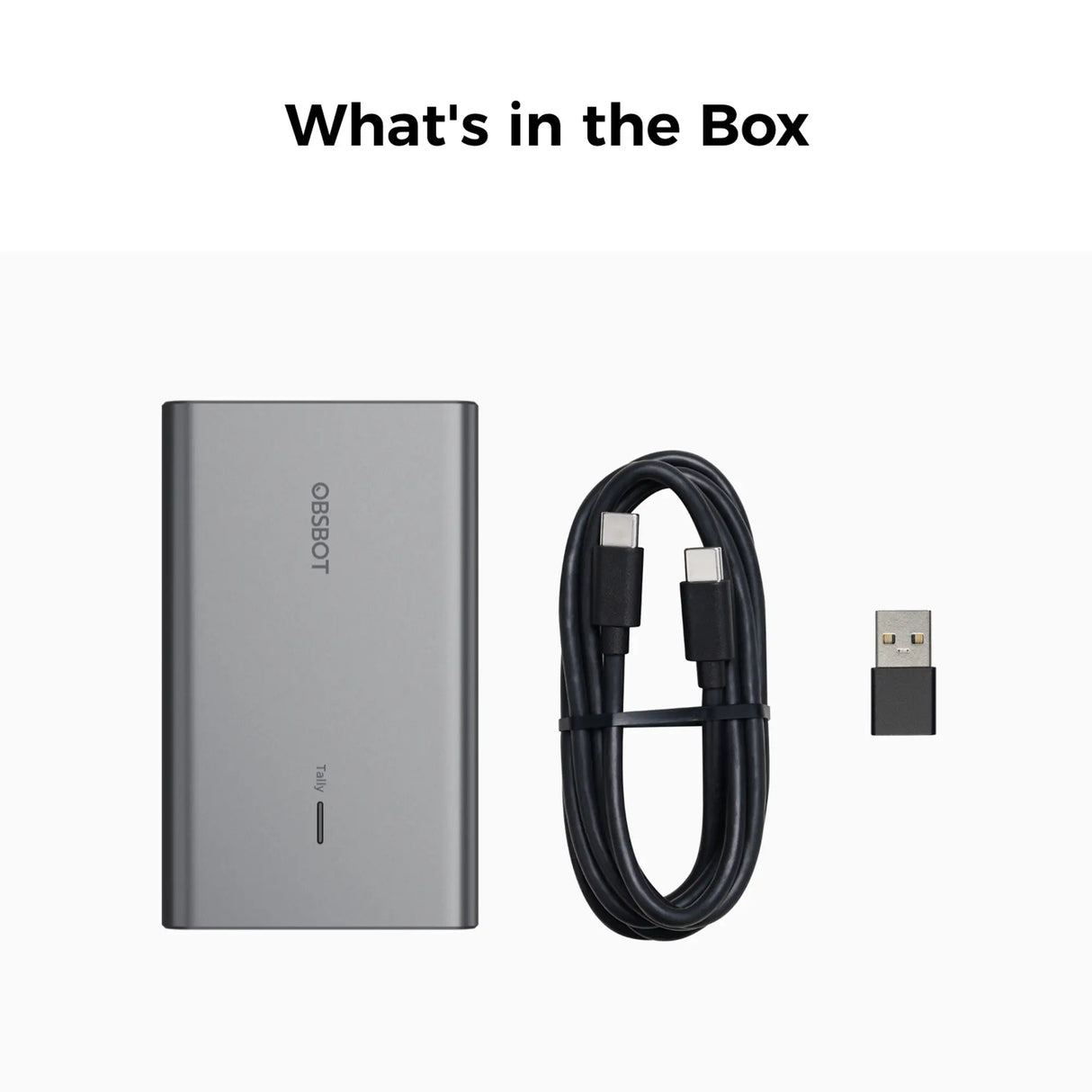

What's In the Box

• 1 x OBSBOT UVC to NDI Converter
• 1 x USB-C to USB-C Cable
• 1 x User Manual
