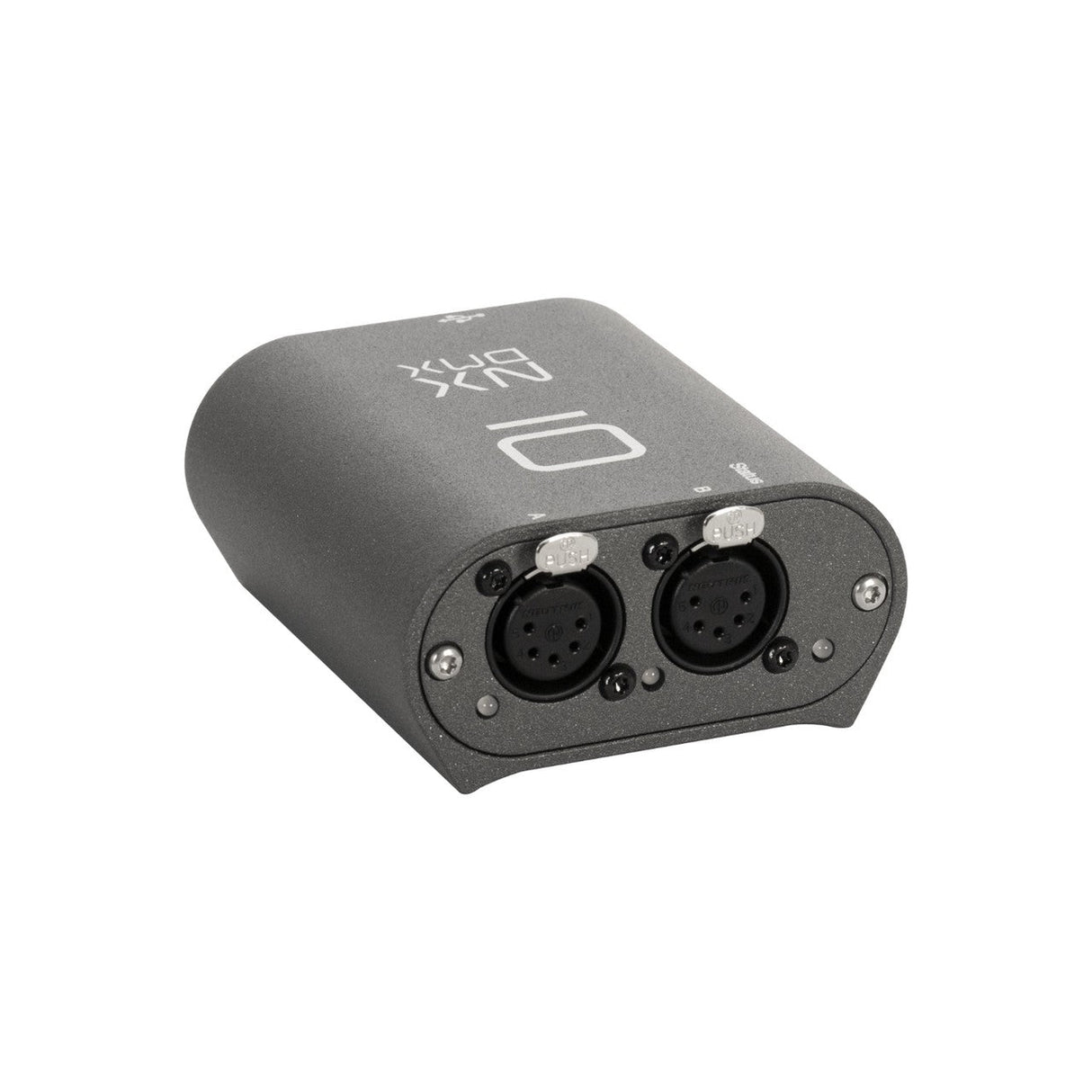

Obsidian Control NX DMX 2 Universe USB Powered DMX Node

NX DMX is a USB powered 2 port DMX Node. As a member of the innovative ONXY platform from Obsidian Control Systems the NX DMX provides instant access to DMX In and Outputs as well as RDM communication. The device is plug and play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast wayand affordable optionto add two additional DMX ports.NX DMX supports ONYX on PC systemsforup to four Universes without any dedicated license. When connected to an ONYX licensedPC or a console the NX DMX is assignable to any one of 255 Universes.

Key Features

• Instant ONYX PC system - Plug and Play
• USB to DMX512 adapter
• Optically Isolated for equipment protection
• Internal DMX processor, customizable refresh rates
• 2x 5pin XLR DMX (In or Out) - 1024 Ch.
• RDM Support
• Rugged metal housing
• Kensington Security Slot

Technical Specifications

Physical Dimensions
Length
92 mm (3.7 in.)
Width
82 mm (3.3 in.)
Height
41mm (1.7 in.)
Weight
245g (0.6 lbs.)
Electrical
Power
5VDC over USB
Maximum current
300mA
Requirements
Windows 7,8 or 10
USB 2.0 port
ONYX or LightJockey 2 software
