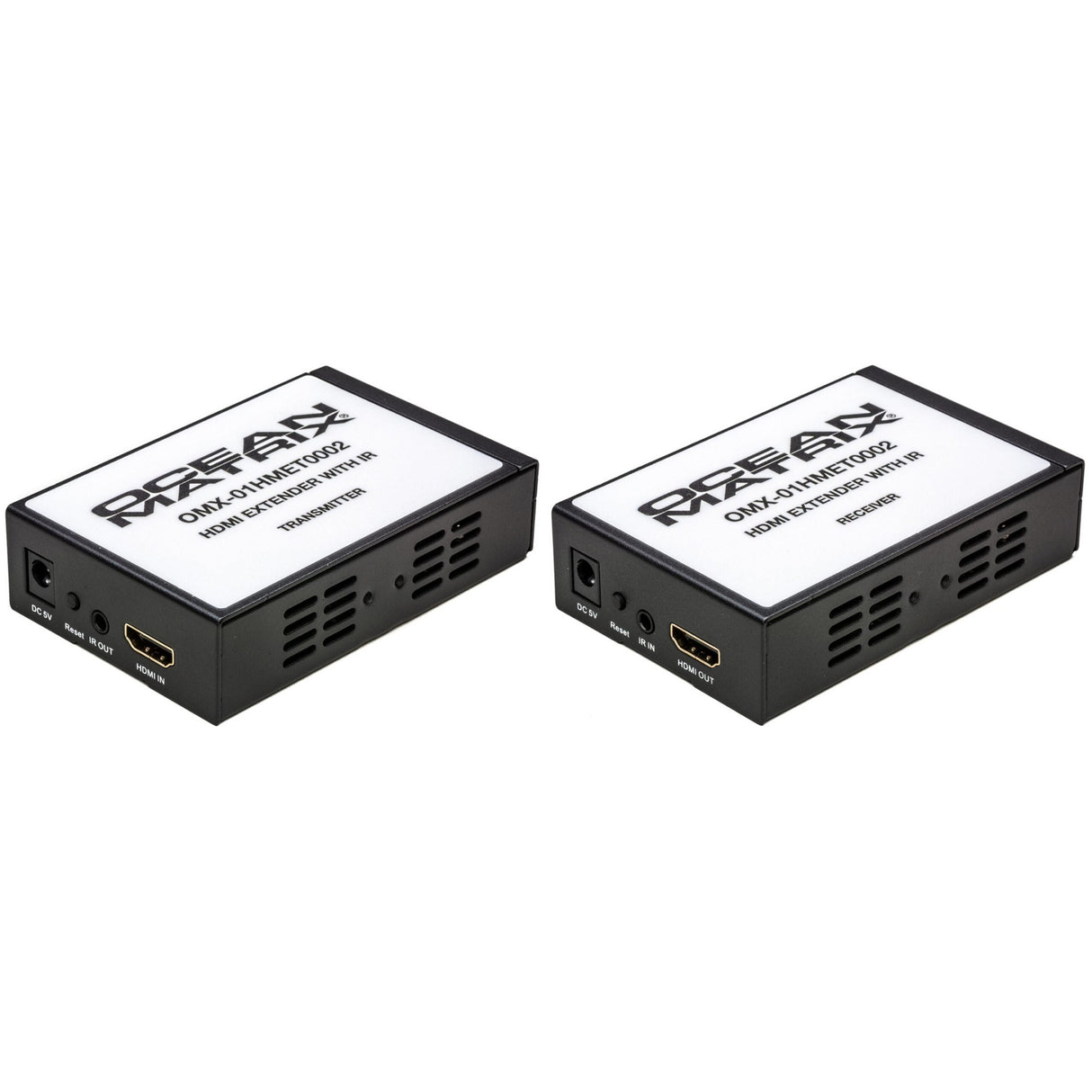

Ocean Matrix 01HMET0002 HDMI Over Single CAT5e/6/7 Extender

Extend your 1080p HDMI signals throughout your network with the Ocean Matrix OMX-01HMET0002 HDMI Over IP Extender. The system sends 1080P@60Hz HDMI up to 328 feet over a single CAT5e/6/7 cable. The system supports IP network switches as well as deep Color (12 bit) video and digital audio with a bandwidth up to 225MHz.

For complete control, especially in digital signage systems or sports bar applications, the OMX-01HMET0002 handles unidirectional IR transmission to allow you to easy control the remote source. Fully compatible with Dolby Digital, DTS 5.1, and Dolby Digital+.

Key Features

• HDMI Audio/Video over a Single CAT5e/6/7 Cable
• Equalizes & Recovers Incoming TMDS Data
• Transmission Distance (CAT5e/6/7): 1080P@60Hz up to 328 feet
• One-Direction IR Control from Display to Source
• Supports IP Switch/Hub/Router
• Rugged Black Powder-Coated Metal Enclosure
• LED Power Indicator
• CE, RoHS Certified

Technical Specifications

Compliance
HDMI 1.3b, HDCP 1.4, DVI 1.1
Video Resolutions
up to 1080p@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2 / Color Depth: 10-bit, 12-bit
Audio Formats
PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
Inputs
TX - 1-HDMI Type A / RX - 1- RJ45, 1-3.5mm Stereo Mini-Jack (Infrared Emitter)
Outputs
TX - 1- RJ45, 1-3.5mm Mini-Jack (Infrared Emitter) / RX - 1-HDMI Type A
Power Consumption
TX - 2W / RX - 2.5W
Dimensions (each)
4.0 x 2.6 x 1.0 in
Weight (each)
10.58 oz
Item Includes
2- 5V/1A Power Supply, 2 Pair of IR Blasters
Warranty
1 Year
