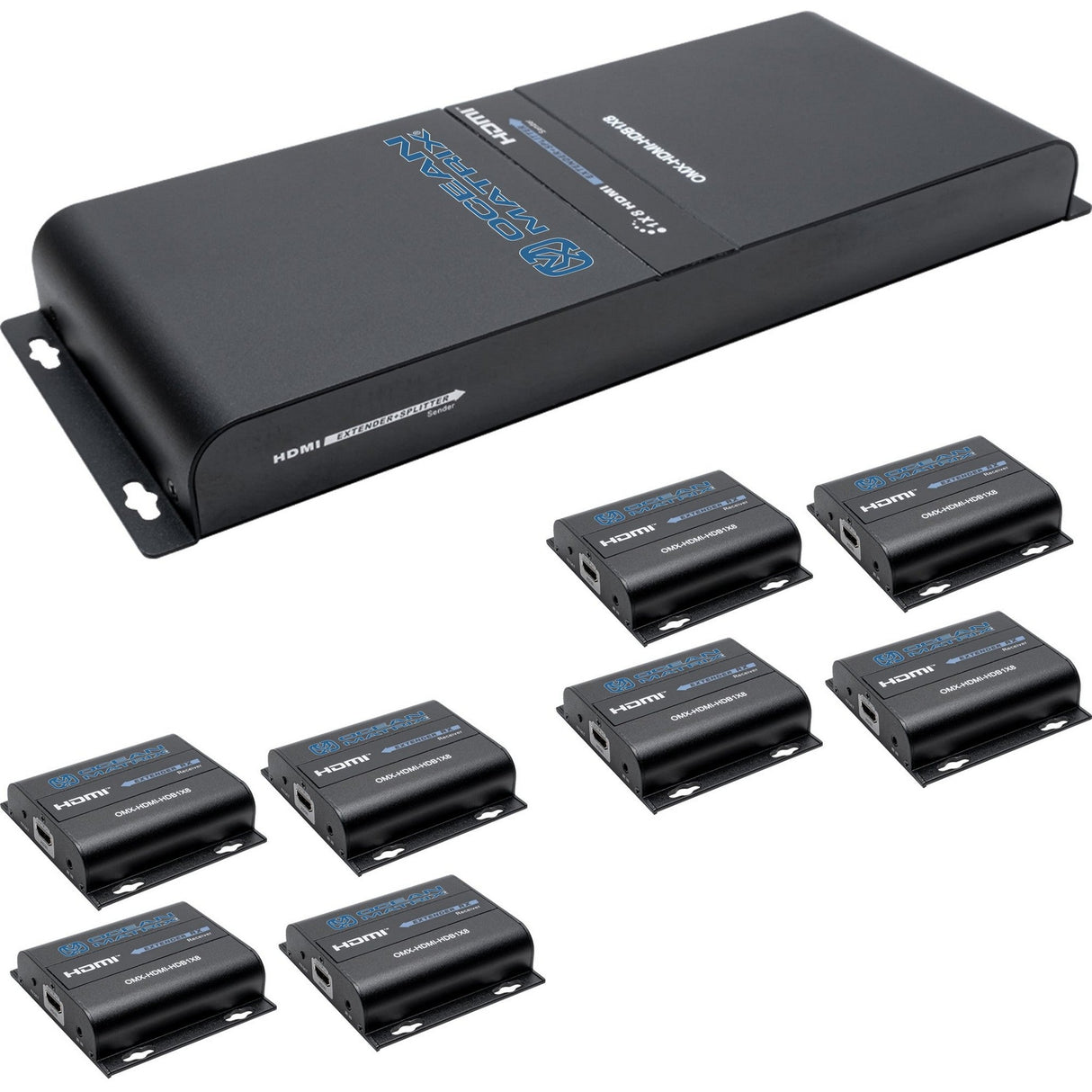

Ocean Matrix 1x8 HDMI Extender and 1080p60 Splitter Set over CAT5/5e/6

Ocean Matrix | SKU: OCE-OMXHDMIHDB1X8
$78995

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

Ocean Matrix OMX-HDMI-HDB1X8 1x8 HDMI Extender & Splitter Set (1080p60) over Cat5/5e/6

The Ocean Matrix OMX-HDMI-HDB1X8 1x8 HDMI Extender & Splitter Set is a reliable and efficient solution designed to transmit HDMI signals over long distances while maintaining high-quality video and audio. This versatile extender/splitter system allows users to distribute a single HDMI signal to up to eight remote locations via standard Cat5/5e/6 cables. Whether you're running HDMI to multiple monitors, projectors, or displays in commercial environments, this unit ensures a seamless and stable signal over extended distances with full HD support.

With support for resolutions up to 1080p at 60Hz, the OMX-HDMI-HDB1X8 delivers crisp, high-definition video across extended distances. Thanks to its advanced signal transmission technology, it offers a maximum transmission distance of up to 394 feet (120 meters) using Cat6 cables, ensuring a consistent and reliable connection even in large or complex installations. Ideal for both professional AV setups and home entertainment systems, this extender/splitter system ensures optimal performance with minimal signal degradation.

Additionally, the OMX-HDMI-HDB1X8 supports IR control signals, allowing users to remotely control the source device from the display location, providing convenience in multi-location AV setups. The device is easy to install, with the transmitter (TX) and receiver (RX) units featuring user-friendly design and simple connection setup. Its compact size and robust build quality make it suitable for various environments, ensuring durability and long-lasting performance.

Key Features

  • Distribute 1 HDMI input to 8 remote locations
  • Supports resolutions up to 1080p at 60Hz
  • Maximum transmission distance of 394 feet (120 meters) at 1080p 60Hz over Cat6 cable
  • IR signal support (20-60kHz) for remote control of the source device
  • HDMI version 1.3, compatible with HDCP 1.4
  • Plug-and-play installation with no additional software required
  • Compact and durable design for both commercial and residential use
  • DC 12V power supply with low power consumption (<24W)

Technical Specifications

Inputs: 1 x HDMI
Outputs: 8 x RJ45
HDMI Version: HDMI 1.3, compatible with HDCP 1.4
Supported Resolutions: 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz / 720p@50/60Hz / 1080i@50/60Hz / 1080p@50/60Hz
Transmission Distance: 394 feet (120 meters) at 1080p 60Hz with full HD over a single CAT6 cable
IR Signal: Supports 20-60kHz IR devices
Operating Temperature: 32°F - 140°F (0°C - 60°C)
Power Supply: DC 12V/3A
Power Consumption: < 24W
Dimensions: TX: 11.75 x 4.33 x 1.17 inches (LxWxH)
RX: 3.70 x 3.80 x 0.93 inches (LxWxH)
Weight: TX: 1.75 lbs
RX: 0.30 lbs

What's Included

  • 1 x OMX-HDMI-HDB1X8 Extender Set (1 x Extender, 8 x Receivers)
  • 1 x DC12/3A Adapter
  • 8 x DC5/1A Adapters
  • 1 x IR Blaster Extension Cable
  • 8 x IR Receiver Extension Cables
