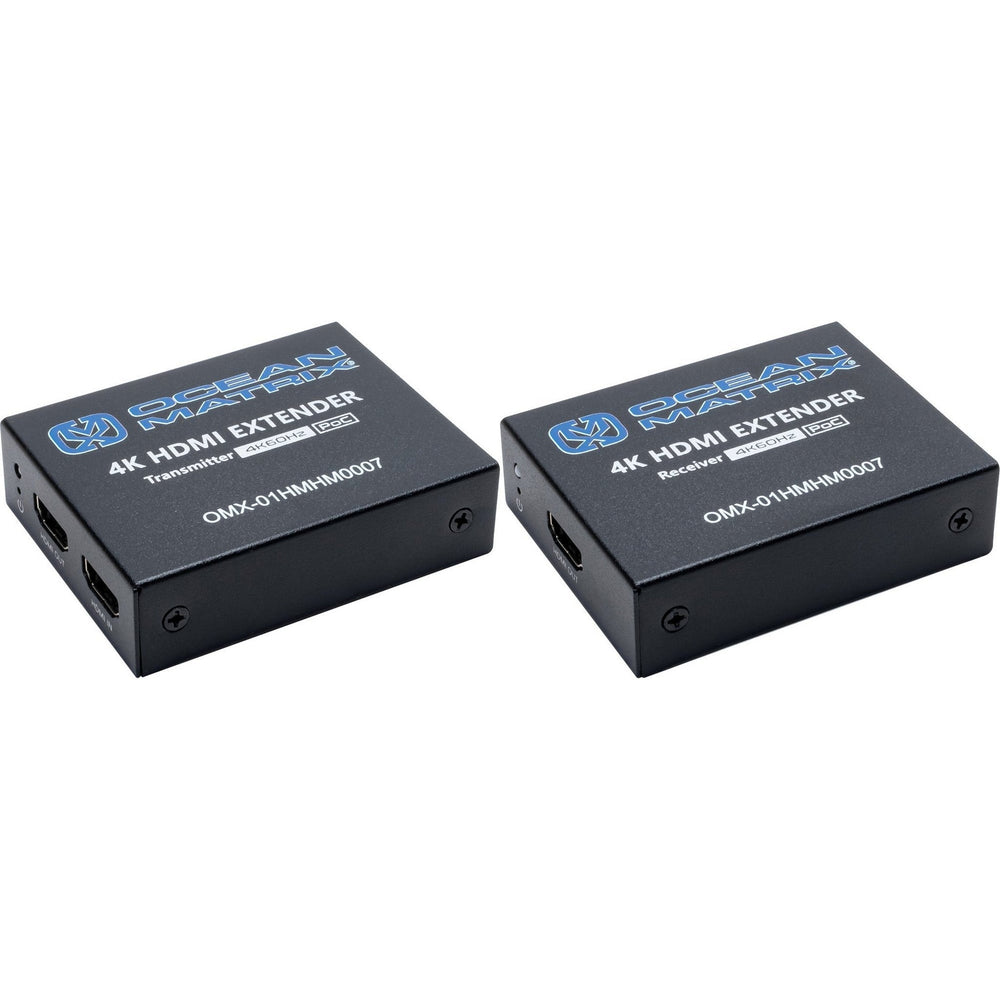

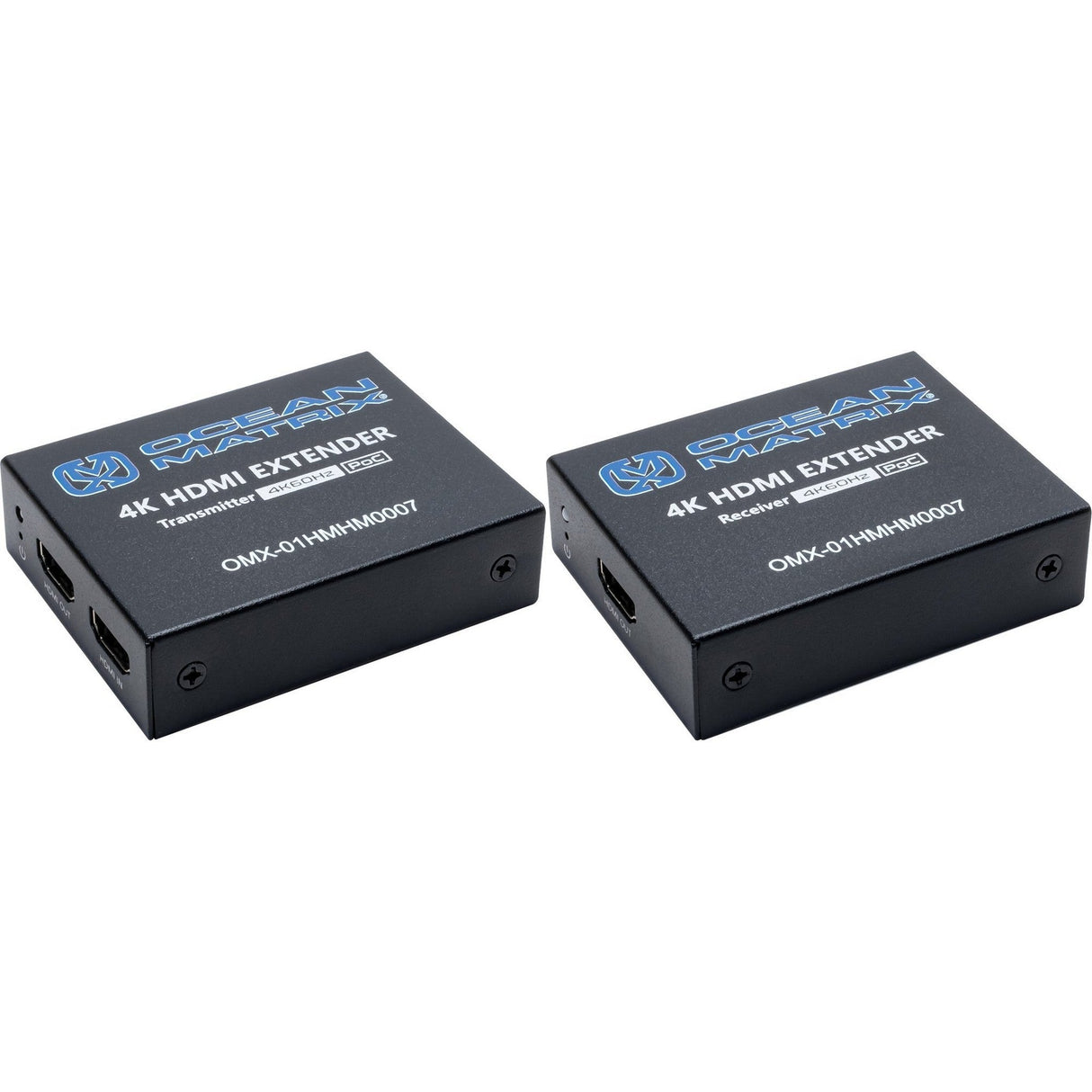

Ocean Matrix 4K 60Hz 4:4:4 HDR HDMI POC Extender

Ocean Matrix OMX-01HMHM0007 4K 60Hz 4:4:4 HDR HDMI POC Extender - Up to 164 Feet Over Cat6

The Ocean Matrix OMX-01HMHM0007 4K 60Hz HDR HDMI POC Extender is the ideal solution for transmitting high-definition HDMI signals across long distances while maintaining top-quality image and sound performance. Designed for use with Cat6 cabling, this extender supports HDMI 2.0 features like deep color, 4K resolution, HDR (High Dynamic Range), and 4:4:4 chroma subsampling. Whether you're setting up a home theater, commercial AV system, or digital signage application, this extender delivers clear, sharp visuals and immersive sound at impressive distances—up to 164 feet at 4K 60Hz.

This HDMI extender not only supports a wide range of resolutions but also ensures compatibility with the latest audio and video technologies. With support for HDR10 and Dolby Atmos, the OMX-01HMHM0007 enhances both your video clarity and sound quality, making it a top choice for any environment where high performance is required. The extender includes a Power Over Cable (PoC) feature, simplifying installation and reducing cable clutter by transmitting power over the same Cat6 cable, eliminating the need for separate power adapters.

Built for robust, high-performance applications, the Ocean Matrix OMX-01HMHM0007 extender features a range of impressive technical specifications. It provides a maximum transfer rate of 18Gbps, ensuring smooth 4K video playback and audio transmission without degradation, even at long distances. The extender is also designed to operate reliably in a wide temperature range, making it suitable for both commercial and residential installations in various climates.

Key Features

• 4K Resolution Support: Up to 3840x2160 at 60Hz, perfect for high-definition video displays.
• Power Over Cable (PoC): Simplifies installation by using a single Cat6 cable for both signal and power.
• Support for HDR and Deep Color: Delivers enhanced contrast, brightness, and color depth for superior picture quality.
• Compatibility with Latest Audio Formats: Supports LPCM, DTS-HD, Dolby Digital 5.1, and Dolby Atmos audio formats.
• Extended Transmission Distance: Transmit 4K signals up to 164 feet (50 meters) and 1080p signals up to 230 feet (70 meters).
• Reliable Performance: Works in extreme temperatures, making it suitable for various environments.

Technical Specifications

Maximum Transfer Rate: 18Gbps
Maximum Transmission Bandwidth: 600MHz
Compatibility: HDMI 2.0 (deep color, 4K, HDR, YUV 4:4:4), HDCP 2.2, HDCP 1.4
Supported Resolutions:

• 480i@60Hz
• 480p@60Hz
• 576i@50Hz
• 576p@50Hz
• 720p@50/60Hz
• 1080i@50/60Hz
• 1080p@50/60Hz
• 3840x2160@24/25/30/50/60Hz
• 2048x1080
• 1920x1440
• 1920x1080
• 1280x960
• 1280x800
• 1280x768
• 1680x1050
• 1360x768
• 1366x768
• 1600x900
• 1024x768
• 800x600

Transmission Distance: 4K - 164 feet (50m) / 1080p - 230 feet (70m)
Audio Formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
IR Interface: TX: 1x3.5mm IR OUT Female / RX: 1x3.5mm IR IN Female
Power Supply: DC 5V/500mA
Power Consumption: TX < 2.3W / RX < 1.5W
Working Temperature: -20°F - 140°F (-20°C - 60°C)
Storage Temperature: -22°F - 158°F (-30°C - 70°C)
Dimensions (LxWxH): TX & RX: 3" x 2.3" x 0.83"
Weight: TX 0.2813 lbs / RX 0.2813 lbs

What's Included

• OMX-01HMHM0007 Extender Set (1 x Transmitter / 1 x Receiver)
• 1 x DC to USB Power Cable
• 1 x IR Blaster Extension Cable
• 1 x IR Receiver Extension Cable
